A central heating breakdown in a hard-to-access technical space
In Varennes, our AirGreen team was called for a central heating problem in a residence where the electric furnace could no longer maintain a comfortable temperature. The client had noticed a gradual drop in heat, ventilation that seemed to run without producing enough warm air, and irregular heating cycles. In a house equipped with a duct network, this type of symptom can quickly become concerning, especially when the furnace serves as the main heat source.
Upon arrival, the installation context allowed us to understand that the intervention would require a particularly methodical approach. The equipment was located in a low technical space, like a crawl space or basement with restricted access, with several metal ducts, pipes, cables, old insulation, and closely packed mechanical elements. This type of environment is common in some residences on the South Shore, notably in Varennes, Longueuil, and Brossard, where heating systems have sometimes been modified, extended, or adapted over the years.
The machine involved was a central electric furnace connected to an existing duct network. The nameplate was not easily accessible during the initial visual inspection, but the setup matched a residential electric furnace supplying several rooms through supply and return air ducts. The main issue was not just to get the heat running again, but to understand why the system was no longer delivering full performance.
Symptoms observed before the service call
The client described a typical situation of an electric furnace losing efficiency:
- air was coming out of the vents, but it seemed less warm than before;
- the temperature set on the thermostat was hard to reach;
- the furnace would start, then sometimes stop too quickly;
- some areas of the house remained colder;
- the system seemed to work harder for a less satisfactory result;
- no strong odor or major noise was reported, but comfort was no longer stable.
These clues often guide the diagnosis toward several possibilities: defective heating element, weakened sequencer, intermittent heating relay, poor airflow, problematic filter or return air, misconfigured thermostat, loose electrical connection, or activated thermal protection.
On an electric furnace, it is important not to limit oneself to a single hypothesis. A machine can blow air without heating properly if only part of the elements is activated. It can also cut off heating if the airflow is insufficient and the internal temperature rises too quickly. Our diagnosis therefore had to cover both the electrical part, ventilation, and the duct network.
A visual inspection that revealed several challenges

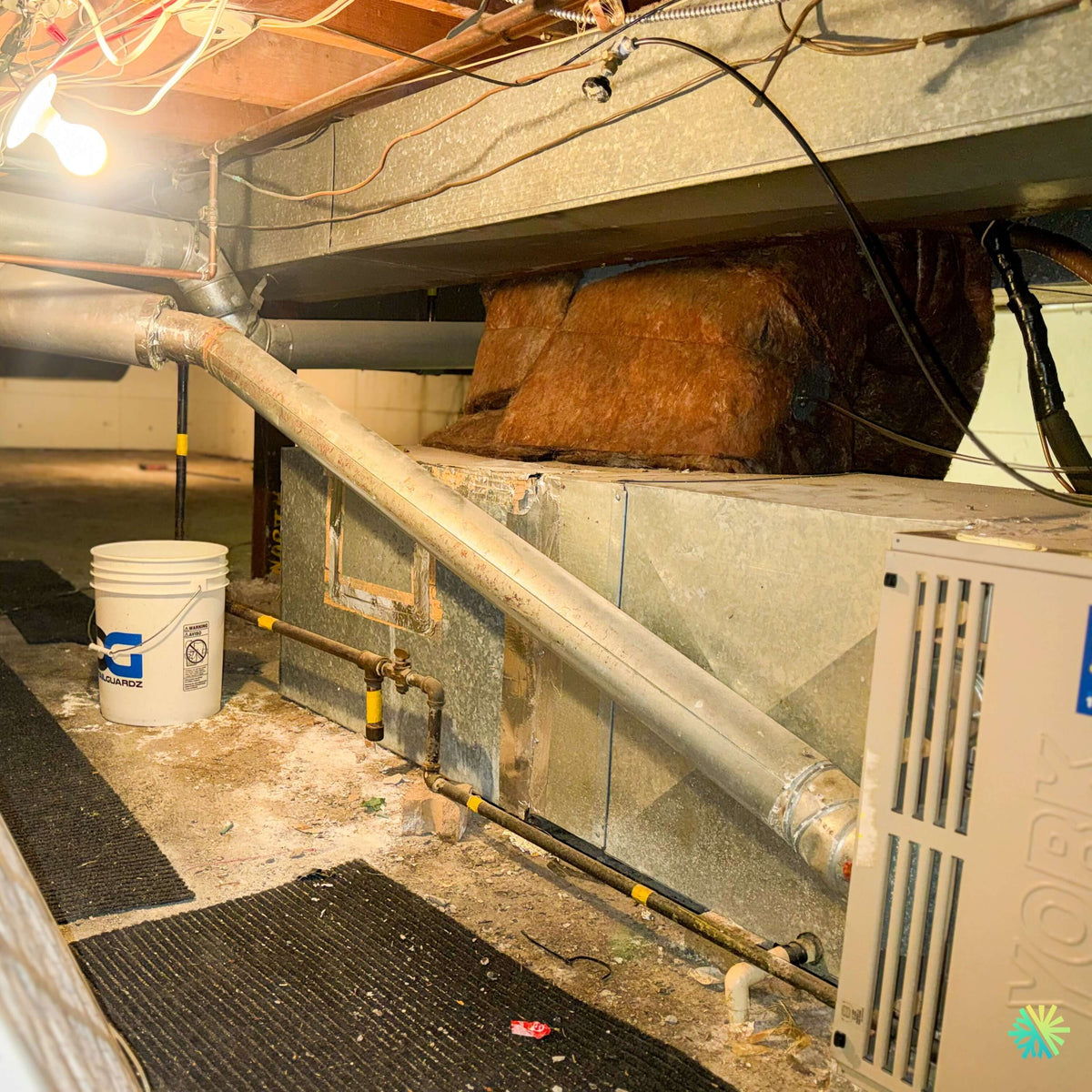

The image of the site clearly illustrates the complexity of this intervention: old metal ducts, visible insulation, piping on the floor, low space, accumulated dust, and limited access to the furnace and air network sections. In this type of technical room, every movement must be precise. An effective HVAC intervention requires protecting surrounding components and not unnecessarily moving existing ducts, cables, or fittings.
We started by checking the general condition of the system:
- sturdiness of the supply ducts;
- condition of the return air;
- presence of visible air leaks;
- access to service panels;
- condition of insulation around ducts;
- signs of overheating or excessive dust;
- continuity of control wiring;
- condition of accessible electrical connections;
- furnace reaction to a heating demand.
An important point was the condition of the duct network. When a duct is poorly sealed, deformed, or partially blocked, the furnace can produce heat, but this heat does not effectively reach the rooms. The customer then perceives a heating failure, while part of the problem may come from the air distribution.
Thermostat and heating sequence diagnosis
We then requested a temperature increase on the thermostat to observe the complete sequence. On an electric furnace, the process must follow a logical order: call for heat, activation of the control circuit, start or preparation of ventilation, progressive activation of heating elements, then maintenance of the cycle until the demand is satisfied.
During initial tests, the furnace responded to the call, but the temperature rise was not steady. The ventilation worked, but the heat produced did not match what is expected from a properly functioning electric furnace. This behavior indicated that part of the heating sequence could be interrupted or incomplete.
We checked:
- the thermostat demand;
- the control circuit voltage;
- the continuity of low voltage wires;
- the heating relay response;
- the fan startup;
- the supply air temperature;
- maintaining the cycle under prolonged demand.
This step ruled out a simple thermostat programming error. The problem was more on the furnace side itself or its operating conditions.
Checking internal electrical components
The intervention then focused on the furnace’s electrical compartment. In an electric furnace, components like sequencers, relays, fuses, thermal protections, and heating elements operate under heavy load. Over time, a connection can loosen, a contact can wear out, or a component can become intermittent.
Our technician inspected common signs of wear:
- heated or blackened terminal;
- weakened wire;
- relay sticking or not closing properly;
- sequencer activating only part of the heating;
- thermal protection triggered;
- dust accumulation near components;
- unstable low voltage connection;
- vibration transmitted through the duct network.
The diagnosis identified a weakness in the heating activation sequence. Part of the system was receiving the command, but the full activation of the elements was not stable. This explains why the ventilation could operate without producing the expected heat.
Intervention carried out: electrical correction and airflow validation
After isolating the likely source of the problem, we proceeded with targeted restoration. The intervention included tightening accessible connections, checking internal protections, cleaning critical areas, and fixing the weak point in the heating control.
In this type of repair, it is not enough to replace or adjust a component. It is also necessary to ensure that the furnace receives and moves enough air. A heating element operating with insufficient airflow risks overheating, which can cause another shutdown.
We therefore validated:
- airflow at the supply;
- condition of the return air;
- presence of visible restrictions in the ducts;
- outlet temperature after heating activation;
- ventilation stability;
- normal cycle shutdown after thermostat satisfaction.
The duct network showed signs of aging and some sections deserved future monitoring, but the intervention restored the furnace operation without a full equipment replacement.
A safe restart and precise recommendations to prevent recurrence
Once the corrections were made, we restarted the furnace in heating mode and observed its behavior over a full cycle. The difference was clear: the temperature rise was more consistent, the blown air was warmer, and the furnace responded better to the thermostat demand.
Performance tests after repair
We performed several validations before closing the service call:
- starting from the thermostat;
- full activation of the heating sequence;
- measuring the supply air temperature;
- observing the fan in operation;
- checking for normal shutdown;
- listening for vibrations;
- visual inspection after operation;
- checking for the absence of overheating smell;
- confirmation of more stable heating in the served areas.
These tests are essential in residential HVAC repair. A furnace may seem to work for two minutes, then fail again when the load increases. By observing the system over a more complete sequence, we can confirm that the correction truly holds under demand.
Why airflow is as important as the electrical component
In several service calls for electric furnaces in Varennes, Montreal, Laval, Longueuil, the North Shore, and the South Shore, the customer first thinks of a heating element failure. However, the airflow plays an equally important role.
An electric furnace must pass air through its heating elements at a sufficient speed. If the filter is dirty, if the return air is blocked, if the ducts leak, or if the fan is weakened, the heat does not distribute properly. The system may then shut down for safety, produce insufficient heat, or run longer than necessary.
In this Varennes residence, the duct network was an integral part of the diagnosis. The technical space showed a system that had probably undergone several adjustments over time. We therefore explained to the client that future maintenance should not only focus on the furnace but also on the entire air distribution system.
Mistakes to avoid with a central electric furnace
Certain habits can worsen central heating problems or mask the real symptoms.
Letting filters become saturated
A filter that is too dirty reduces airflow and forces the furnace to work under poor conditions. This can cause low heat, short cycles, or thermal protection activation.
Closing too many supply vents
Closing several vents in the house can unbalance the air system. The furnace then pushes against higher pressure, which can reduce efficiency and strain the fan.
Storing objects near technical access points
In a crawl space or low basement, space is already limited. Keeping panels accessible allows for faster and safer diagnosis.
Ignoring a gradual loss of heat
A furnace that heats “a little less” deserves an inspection. An intermittent component may continue to work partially for some time before completely failing.
Replacing the thermostat without diagnosis
A new thermostat does not fix a faulty sequencer, a weak connection, a failed component, or an airflow problem. Diagnosis must always precede replacement.
When a repair is preferable to a replacement
In this case in Varennes, the repair was logical because the furnace still responded properly after fixing the problem. We do not recommend replacing a central system without first assessing its actual condition.
Several factors guide our recommendation:
- age of the furnace;
- availability of parts;
- condition of the duct network;
- electrical safety;
- frequency of breakdowns;
- repair cost;
- comfort achieved after service;
- compatibility with a future central heat pump;
- overall system efficiency.
When the furnace is still safe and the fault is targeted, professional repair can extend the installation’s lifespan. When failures become repetitive or the duct network is too degraded, we explain possible options, including furnace replacement or adding a more efficient central heat pump.
Expertise tailored to homes in Varennes and the South Shore
Varennes features several types of residences: older homes, renovated properties, compact technical basements, central systems modified over the years, and installations combining electric heating, ventilation, and sometimes central air conditioning. Each building has its particularities.
Our HVAC service experience in Varennes, Longueuil, Montreal, Laval, on the North Shore and the South Shore allows us to tailor our diagnosis to real-world conditions. A system is not judged solely by its brand or age. We must observe its environment, duct network, power supply, behavior under demand, and the client’s usage habits.
Final result: more consistent heat and a better-controlled system
At the end of the service, the electric furnace was operating more steadily. The client experienced better heat distribution and a more reliable thermostat response. We also took the time to explain the signs to watch for: lukewarm air, short cycles, tripping circuit breaker, unusual noise, overheating smell, or persistent cold spots.
This electric furnace repair in Varennes demonstrates the importance of a comprehensive approach: electrical diagnosis, ventilation control, duct inspection, recommissioning, and practical recommendations. A central heating failure is not always dramatic, but it must be handled precisely to prevent recurrence.
At AirGreen, we apply the same rigor to electric furnaces, central heat pumps, wall-mounted heat pumps, wall air conditioners, and residential HVAC systems throughout Greater Montreal. The goal remains simple: restore comfort, secure the system, and help the client better understand their equipment.
