When an electric furnace blows cold air: an HVAC diagnosis that must go beyond the thermostat
In Laval, our AirGreen team was called for a Lennox electric furnace installed in a residential mechanical room in the basement. The client noticed a very specific problem: the system started, the fan blew into the ducts, but the air distributed throughout the house was no longer warm enough. In some rooms, the temperature rose very slowly; in others, the air seemed almost cold, even when the thermostat setting was increased.
This type of situation is common with electric central heating systems, especially when the furnace ages, internal connections loosen, power relays wear out, or heating elements no longer all activate properly. The most common mistake is to believe that if the fan works, the furnace works. In reality, an electric furnace can ventilate perfectly while producing only part of its heating capacity.

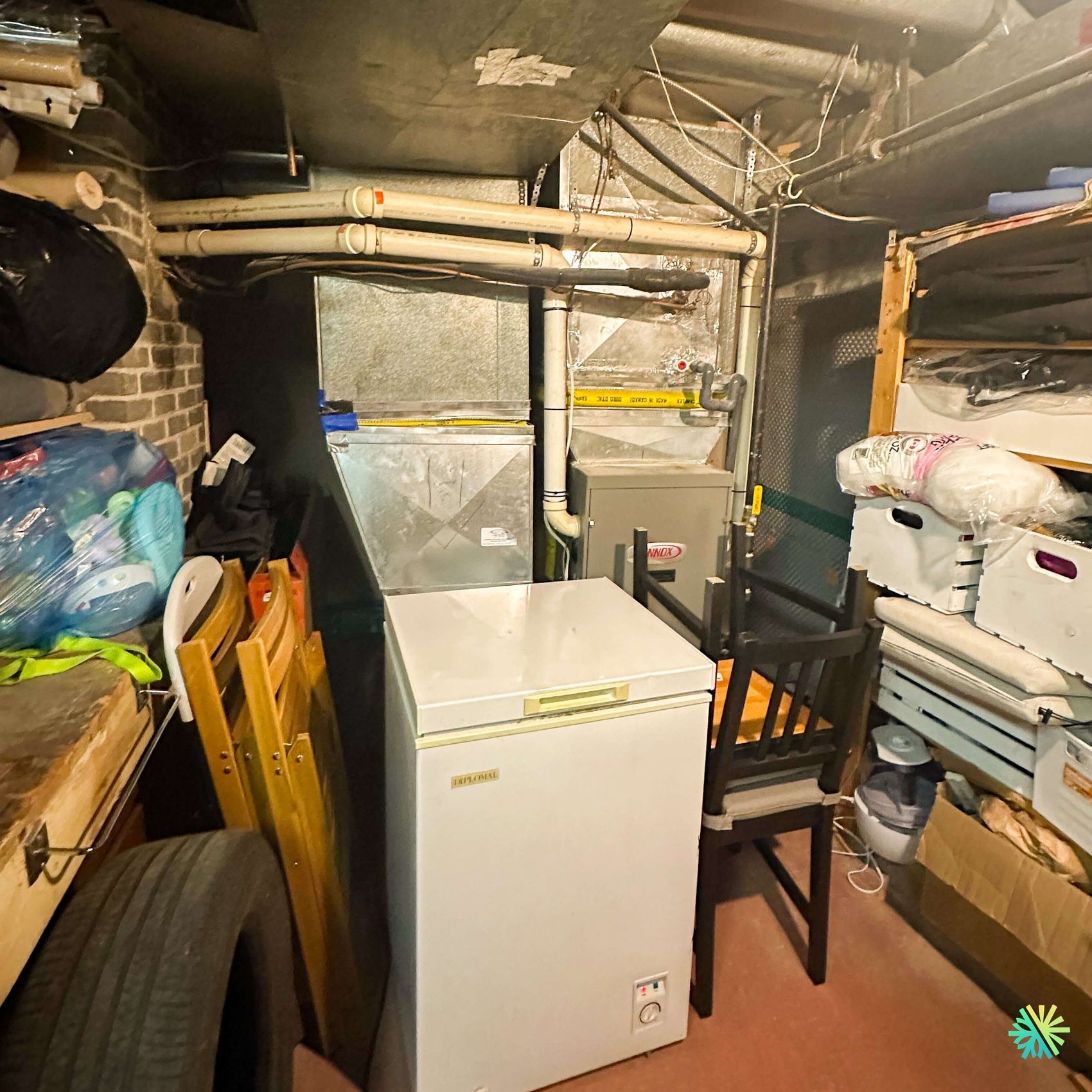

In this case in Laval, the installation was located in a confined space, surrounded by storage, metal ducts, PVC drainage piping, and an existing distribution network. Access to the furnace required working methodically, as the mechanical room did not offer much clearance. Despite this, the important components were accessible: front panel, electrical section, connection to the plenum, filter, ventilation motor, and control connections.
A Lennox electric furnace integrated into an existing duct network
The observed unit was a Lennox electric furnace, connected to a network of metal ducts serving the different zones of the house. This type of system is designed to heat air directly using electric elements, then distribute it throughout the residence by forced ventilation.
In several homes in Laval, as well as in Montreal, Longueuil, on the North Shore and on the South Shore, these furnaces are often installed in finished basements or mechanical spaces shared with storage. This setup can complicate maintenance if access is cluttered, but it also allows for efficient centralized heating of the house when the system is properly adjusted.
Upon our arrival, we noted several important elements:
- electric furnace installed in a narrow mechanical room;
- connection to an existing metal plenum;
- main ducts visible on the ceiling;
- drain piping nearby;
- limited service space in front of the device;
- presence of a filter and a central distribution network;
- need to validate both the electrical part, ventilation, and air circulation.
These details directly influence the quality of the diagnosis. A central furnace is not just a heating box: it is a complete system where electricity, airflow, controls, and ducts must work together.
Symptoms reported by the client
The client had noticed that the house took longer to reach the requested temperature, especially on colder days. The thermostat seemed to call for heat normally, but the furnace did not always respond with the same intensity.
Lukewarm air instead of hot air
The first symptom was air blown that was less warm than usual. This sign can indicate an inactive heating element, a faulty relay, a poor heating sequence, an airflow too high compared to the heat produced, or a loss of electrical power.
Longer cycles
The furnace ran longer to achieve a less convincing result. When the system has to run longer, it can increase electricity consumption while decreasing comfort.
Temperature difference between rooms
Some rooms were still receiving acceptable air, while others remained cool. This variation could come from the duct network, but in this case, the main cause seemed primarily related to the heat production itself.
No clear code on the thermostat
The thermostat did not show any obvious error. This is often the case with simpler electric furnaces: the fault is not always visible on the screen, especially if the fan continues to run.
Our diagnosis: check the complete heating sequence
For an electric furnace repair in Laval, our priority is to follow the device's operating logic. An electric furnace must receive a request from the thermostat, activate the fan according to the planned sequence, power the relays or contactors, then engage the heating elements in stages.
We started by observing the system’s behavior at startup.
Checking the thermostat and heating request
We confirmed that the thermostat was indeed sending a heating request. The command was correctly reaching the furnace, which allowed us to quickly rule out a simple problem of a poorly programmed thermostat or weak battery.
Inspection of the furnace electrical panel
The electrical section was then opened with the necessary precautions. On an electric furnace, this step is essential because the electrical loads are significant. We inspected the connections, wires, relays, terminals, and possible signs of overheating.
Some connections showed signs of fatigue: not a major burn, but enough to justify tightening, a visual cleaning, and a full validation. In several HVAC service calls, a slightly loose connection can create resistance, produce unwanted heat, fatigue a relay, and lead to an intermittent failure.
Testing heating elements
We then tested the furnace heating elements. The goal was to verify if each was receiving power correctly and if the resistance was within specifications. An open or partially faulty element can cause the furnace to operate at reduced capacity. The customer then feels lukewarm air without necessarily seeing a complete failure.
In this case, one of the heating stages was not activating properly. The fan was running, some elements were producing heat, but the total capacity was not available. This perfectly explained the prolonged cycles and lack of heat.
Checking relays and sequencers
The problem mainly came from a worn power relay, associated with an unstable activation sequence. This component is critical: it allows the heating elements to be powered at the right time. When it becomes intermittent, the furnace may heat properly once, then operate at half capacity in the next cycle.
We also checked that the ventilation did not start too early compared to the heat produced. If the fan pushes air before the elements are sufficiently hot, the customer perceives a cool draft, even if the system is technically in heating mode.
Filter and airflow inspection
The filter was inspected because a clogged filter can cause internal overheating and trigger the safety shutdown of some components. Here, the filter was not completely blocked but needed attention. We recommended regular replacement to avoid excessive static pressure in the system.
Repair performed on site
After identifying the main cause, we proceeded to fix the fault.
Replacement of the defective relay
The power relay responsible for the unstable activation of a heating stage was replaced with a part compatible with the furnace configuration. This step restored a more reliable heating sequence.
Tightening and securing connections
Accessible internal connections were checked and tightened when necessary. On an electric furnace, this preventive work is important because heating and cooling cycles can, over time, contribute to loosening some connections.
Heating elements validation
Once the relay was replaced, we retested the heating elements. The stage that was not activating properly resumed functioning according to demand. The furnace thus regained a much more consistent heating capacity.
Fan inspection
The ventilation motor was observed over several cycles. The airflow was stable, without excessive vibration or abnormal noise. We also verified that the airflow in the duct network was regular.
Result: heat restored, shorter cycles, and a safer system
After the repair, we let the Lennox electric furnace run in heating mode to validate the system’s actual behavior. The blown air was noticeably warmer, the temperature rise was faster, and the operating sequence was more stable.
The customer immediately noticed a difference in comfort. The furnace was no longer just ventilating: it was actually heating at its intended capacity.
Measurements and observations after the intervention
We checked several points before concluding the service call:
- correct activation of the heating demand;
- stable operation of the replaced relay;
- adequate power supply to heating elements;
- absence of abnormal electrical noise;
- regular ventilation;
- improved blowing temperature;
- normal system behavior over multiple cycles.
This validation is essential. An HVAC repair should not end as soon as the machine restarts. It is necessary to confirm that the failure does not return in the next cycle and that the components operate under safe conditions.
Why a relay failure can be misleading
A defective relay or sequencer can create a partial failure. This is what makes the diagnosis more subtle. The furnace is not completely stopped; it gives the impression of working, but it does not heat enough.
This type of failure is often described by customers with phrases like:
- “It blows air, but it’s not warm.”
- “The house eventually heats up, but far too slowly.”
- “The thermostat rises with difficulty.”
- “It seems like the system is working without results.”
- “Some parts are fine, others remain cold.”
These symptoms are very useful for guiding the diagnosis, but they must always be confirmed by electrical and mechanical tests.
Mistakes to avoid with a central electric furnace
Constantly increasing the thermostat temperature
Raising the setpoint to 25 or 26 °C does not fix a furnace running at reduced capacity. It simply forces the system to run longer, with increased consumption.
Ignoring longer cycles
A system that heats more slowly than before often indicates a real change. Even if the house eventually reaches the temperature, the furnace may be compensating for a partial failure.
Neglecting the filter
A dirty filter can reduce airflow, cause overheating problems, strain the motor, and affect comfort. In a home with central heating, the filter should be checked regularly, especially during the heating season.
Storing too close to the equipment
In this mechanical room, the space was used for storage. It is important to keep sufficient access around the furnace to allow maintenance, proper ventilation, and safe interventions.
Waiting for a complete breakdown
A partial breakdown often costs less to fix than a complete failure. A worn relay, a heated connection, or an intermittent element can damage other components if the problem is ignored.
The importance of a complete HVAC diagnosis in Laval
Homes in Laval often have central systems installed for several years, sometimes modified over time with the addition of a central heat pump, an air conditioner, a humidifier, or an air exchanger. Each modification can influence air circulation and the furnace's behavior.
That is why our interventions are not limited to changing a part. We analyze the entire system: heating, ventilation, controls, ducts, filter, electrical supply, and installation conditions. This approach allows us to correct the real cause of the problem and avoid repeated service calls.
An AirGreen service adapted to the residential realities of Greater Montreal
AirGreen regularly performs electric furnace repairs in Laval, as well as in Montreal, Longueuil, the North Shore, and the South Shore. Our technicians are familiar with typical Quebec home configurations: tight mechanical rooms, older duct networks, already loaded electrical panels, combined systems with central heat pumps, and installations where access must be carefully planned.
In this specific case, the intervention extended the useful life of the Lennox furnace, restored reliable heating, and reassured the client about the overall condition of the system. A complete replacement was not necessary at this stage. A targeted repair, well diagnosed and properly validated, was the most logical solution.
A well-maintained electric furnace remains a reliable system
An electric furnace can provide stable heating for many years, provided its components are inspected and maintained. Relays, heating elements, electrical connections, and the ventilation motor all undergo repeated cycles. Over time, some parts naturally wear out.
Periodic maintenance helps identify:
- loose connections;
- worn-out relays;
- overly restrictive filters;
- noisy motors;
- signs of overheating;
- heating sequence problems;
- performance drops before complete failure.
This intervention in Laval demonstrates that a central heating problem can be effectively resolved when the diagnosis is structured. The system was blowing air but not heating properly. After inspection, replacing the faulty relay, checking the elements, and fully validating the operation, the Lennox electric furnace regained reliable performance.
