Repair of a SmartComfort Electric Furnace in Bois-des-Filions

An electric furnace in the basement with a complex duct network: restoring heating without compromising ventilation

In Bois-des-Filions, on the North Shore, our AirGreen team responded to a service call for a SmartComfort electric furnace installed in a very busy mechanical basement: main metal ducts, flexible ducts on the ceiling, distribution plenum, electrical supply, existing ventilation network, and partially limited access due to the room layout. The customer contacted us because the heating no longer responded properly to the thermostat's demand. Some rooms remained cold, the fan seemed to run longer than before, and the heat distributed in the ducts appeared less consistent.

This type of intervention is common in residences in the greater Montreal area, especially in homes where a central electric furnace has been connected to an existing duct network, sometimes modified over the years. In this Bois-des-Filions residence, the furnace was installed next to a large metal return air duct and under several flexible ducts. The space was functional, but it required a thorough diagnostic method: it was necessary to check the furnace itself, but also the incoming air, outgoing air, electrical connections, internal safety devices, and the quality of the distribution network.

Symptoms observed before our arrival

The customer had noticed several typical signs of a central electric system losing efficiency:

• indoor temperature difficult to maintain during cold periods;
• air blown less hot than usual;
• longer heating cycles;
• comfort variation between rooms;
• fan running without providing sufficient heat;
• airflow noise more noticeable in certain ducts;
• concern related to electrical consumption;
• the impression that the furnace was working harder.

An electric furnace can continue to blow air even when part of its heating elements no longer activate. This is precisely what makes the diagnosis important: the system appears to be working, but the actual heating capacity is reduced. In some cases, a sequencing relay, a contactor, a limit sensor, a heating element, or an electrical connection can prevent one or more heating stages from engaging properly.

An installation that required a complete system assessment

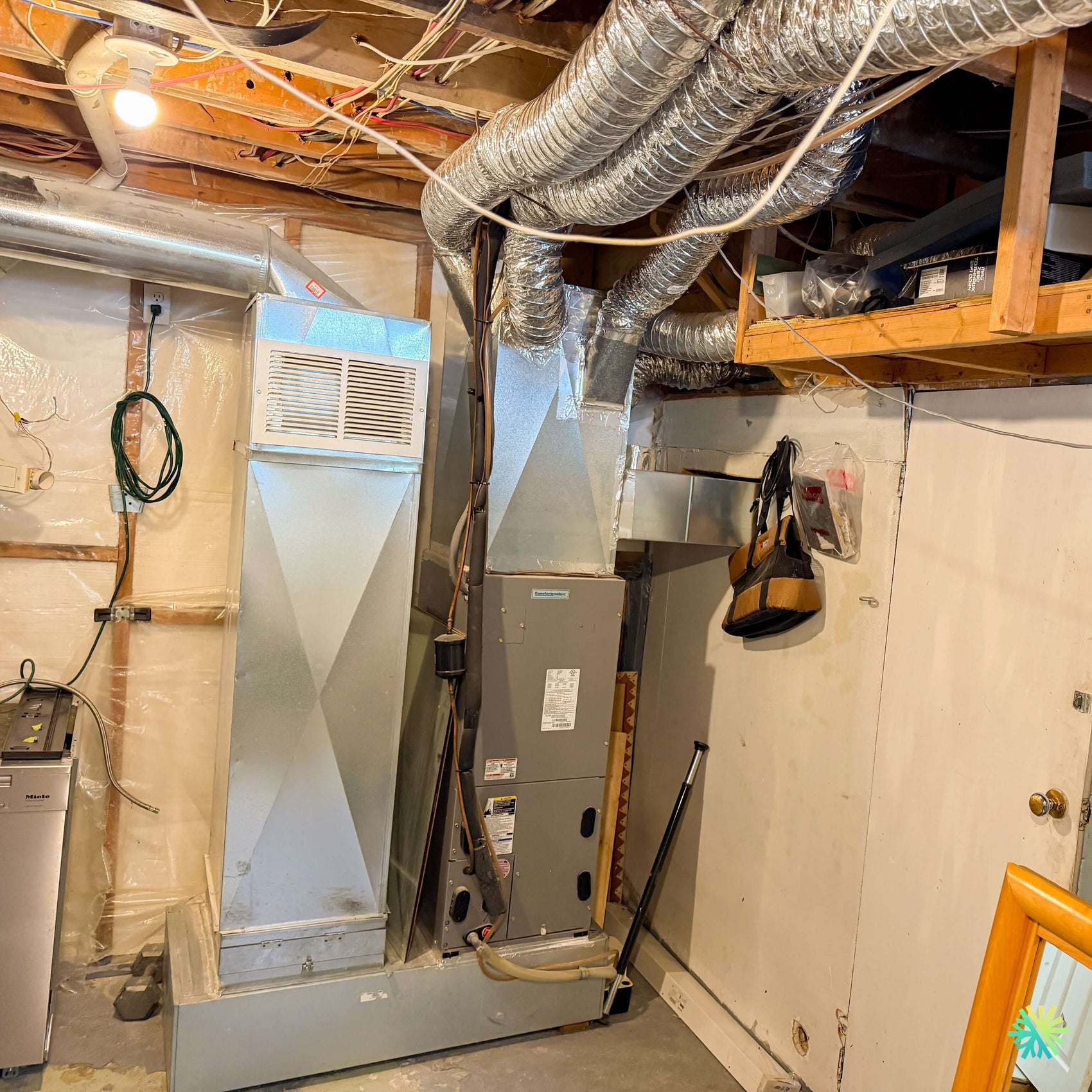

On site, we identified a central electric furnace of the SmartComfort brand, connected to a network of metal and flexible ducts. The unit was installed in the basement, with a large return air section on the left and a distribution plenum above the furnace. Several flexible ducts passed through the ceiling, indicating distribution to different zones of the house.

This context is important because a heating failure is not always caused solely by the furnace. The final comfort depends on several elements:

• the power of the electrical elements;
• the fan speed;
• the cleanliness of the filter;
• the static pressure in the ducts;
• the plenum’s airtightness;
• the balancing of the ventilation branches;
• the quality of the return air;
• the thermostat and its settings;
• the overheating safeties;
• the condition of the electrical connections.

Our role was therefore to avoid a too-quick diagnosis. Replacing a part without checking the airflow or the electrical sequence can temporarily fix a symptom but leave the main problem to return a few weeks later.

Electrical diagnosis: validating the heating demand step by step

We started by checking the demand at the thermostat, then the furnace’s response. An electric furnace often operates in stages: the fan starts, then the heating elements activate progressively to avoid a sudden current surge. If a stage does not engage, the system can heat partially but never reach full capacity.

Our technicians checked:

• the main electrical supply;
• the connections in the control compartment;
• the relays and sequencers;
• the low voltage signals coming from the thermostat;
• the safety limits;
• the activation of the heating elements;
• the operating amperage;
• the fan stability;
• the air temperature at the outlet.

The diagnosis showed that the furnace was indeed receiving a heating demand, but the response was not optimal. Part of the heating sequence was unstable, which explained the lukewarm air and prolonged cycles. We also spotted connections that needed tightening and dust buildup around some accessible areas.

Airflow diagnosis: a factor often underestimated

An electric furnace must move enough air to distribute heat without overheating. If the filter is too restrictive, if the return air is poorly cleared, or if the ducts are poorly balanced, the internal temperature can rise quickly and trigger safety shutoffs. Conversely, if the fan blows too hard or if some branches are poorly adjusted, the customer may feel less warm air at the vents.

In this installation in Bois-des-Filions, the duct network was complex, with several flexible ducts on the ceiling. We therefore checked the consistency between heat production and air distribution. The key points were:

Return air

The metal return air duct to the left of the furnace was essential for the system’s proper operation. Insufficient return air can cause low airflow, overheating, and reduced performance.

Distribution plenum

The plenum above the furnace needed to be inspected to detect leaks, poorly sealed joints, and air loss in the basement.

Flexible ducts

Flexible ducts can be very useful in tight spaces, but they must be well stretched, properly supported, and free of crushing. A duct that is too bent or compressed increases air resistance.

Filtration

We checked the filter condition and recommended an appropriate maintenance routine. A filter that is too dirty or dense can reduce the performance of an electric furnace and increase the risk of safety limit triggers.

Intervention performed: correction of the heating sequence and reconditioning

After diagnosis, we proceeded with the necessary corrections. The goal was to restore full heating capacity, improve the device’s reliability, and reassure the customer about the overall condition of their system.

The intervention included:

• safe power shutdown of the furnace;
• opening of service panels;
• inspection of electrical connections;
• tightening of accessible terminals;
• relay and sequencer checks;
• correction of unstable operation during a heating stage;
• electrical component testing;
• fan verification;
• safety limit checks;
• inspection of the plenum and visible ducts;
• blowing temperature test;
• complete heating cycle after reassembly.

In this case, the repair did not require a complete furnace replacement. The fault was due to a combination of unstable heating sequence, connections needing correction, and a need to validate the airflow. Once these issues were fixed, the furnace responded more consistently to demand.

Result: more stable heat and better distribution throughout the house

After the intervention, the SmartComfort electric furnace was tested through a complete cycle. The blowing temperature became more consistent, the fan operated more regularly, and the heating stages engaged correctly. The customer immediately noticed an improvement in comfort, especially in areas that previously received less warm air.

The most important result was stability. An electric furnace that heats intermittently can quickly create discomfort, but also less efficient electricity consumption. By restoring the normal operating sequence, the system was able to produce more consistent heat without running the fan unnecessarily during long cycles.

What this electric furnace repair teaches us about residential central systems

An electric furnace repair must always consider the entire HVAC system. The unit may be mechanically sound but lose performance due to poor airflow, a faulty relay, a restrictive filter, or a weakened connection. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, we often see central systems that have been modified over renovations: added ducts, thermostat changes, basement transformations, installation of a central heat pump, or partial adjustments without full balancing.

Mistakes to avoid with a central electric furnace

An electric furnace is robust, but it must be properly maintained. Several mistakes can reduce its lifespan or harm comfort:

• leaving a dirty filter in place for too long;
• installing a filter that is too restrictive without checking the airflow;
• closing several ventilation grilles to “push” the air elsewhere;
• ignoring persistent lukewarm air;
• assuming the thermostat is always the cause;
• waiting for the circuit breaker to trip before calling;
• ignoring relay or fan noises;
• forgetting to check for crushed flexible ducts;
• running the furnace with poorly closed panels;
• replacing the unit without a complete electrical diagnosis.

In this Bois-des-Filions home, the client was wise to request a service call before the situation became a complete breakdown. An unstable heating phase can eventually affect other components if not corrected.

When should you request service for an electric furnace?

We recommend having an electric furnace checked as soon as any of the following signs appear:

• the house no longer reaches the requested temperature;
• The air at the vents is lukewarm instead of hot;
• the fan runs for a long time without result;
• some parts remain cold;
• a hot dust smell persists;
• the system makes repeated clicking sounds;
• the circuit breaker trips;
• the thermostat calls for heat, but the furnace does not respond;
• the air flow seems low;
• electric consumption increases without a clear reason.

These symptoms can be simple to fix when caught early. They become more costly when heating components, relays, or the ventilation motor are stressed too long under poor conditions.

The importance of an AirGreen diagnosis in a crowded mechanical room

The image of this service shows a very common reality: residential mechanical rooms are not always designed to facilitate service. In the same space, you often find the furnace, ducts, wiring, storage, plumbing, air exchanger, central heat pump, or other equipment. To intervene properly, you need to work methodically, protect the area, and understand the full logic of the system.

At AirGreen, we analyze:

• the machine;
• the thermostat;
• the electrical supply;
• the safety devices;
• the heating elements;
• the fan;
• the air return;
• the ducts;
• the distribution;
• the actual building conditions.

This approach delivers a lasting repair rather than a simple temporary restart.

AirGreen for electric furnace repair in Bois-des-Filions and Greater Montreal

This service on a SmartComfort electric furnace in Bois-des-Filions illustrates our way of working: understanding the symptoms, confirming the causes, fixing critical points, and validating the result with concrete measurements. The client regained more stable heating, better air distribution, and a clearer understanding of their system.

We provide services for electric furnace repair, preventive maintenance, central heating diagnostics, duct inspection, air flow optimization, and HVAC modernization throughout the greater Montreal area, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Whether it’s a heating, ventilation, thermostat, relay, electrical component, or air distribution issue, our team uses a precise method to restore comfort quickly and efficiently.
