An electric furnace that was blowing without properly heating in a residential duct network
On the North Shore, AirGreen was called for a central heating problem in a residence equipped with an electric furnace connected to a metal duct network. The installation, located in a confined mechanical space, included a vertical furnace cabinet, a distribution plenum, return and supply ducts, as well as a control panel integrated into the device. The client contacted us because the system seemed to be working but could no longer heat the house evenly.
The main symptom was simple in appearance: the fan started, air circulated through the vents, but the heat produced was insufficient. Some rooms received warm air, others remained cold, and the furnace seemed to run for a long time without reaching the temperature requested by the thermostat. This situation is common in central heating systems when the failure does not completely block the device but gradually reduces its actual capacity.
In this case, our intervention involved a residential electric furnace, probably with a capacity between 10 kW and 20 kW, depending on the size of the cabinet, the duct network, and the typical use of this type of installation. The exact model was not readable on site, so our diagnosis was based on electrical measurements, the operating sequence, the condition of the fan, the heating elements, and the conditions of the air distribution network.
A service call where the problem was not just the thermostat
When we arrived on site, the client explained that the house was taking longer and longer to warm up. The thermostat called for heat, the furnace responded, but the comfort did not follow. The system did not make loud noises nor did it shut down completely. It is precisely this type of situation that requires a thorough analysis: a furnace may appear functional while having lost a significant part of its capacity.
The symptoms observed before our intervention were as follows:
- Warm air at the supply vents, even after several minutes of operation.
- Extended heating cycles.
- Temperature difference between certain rooms.
- Indoor fan functional, but airflow perceived as variable.
- Possible increase in electrical consumption.
- No obvious signs of burning or short circuit.
- Intermittent fault, more noticeable on cold days.
These clues pointed the diagnosis toward several possible causes: one or more defective heating elements, a relay or sequencer that does not properly activate the heating stages, an air restriction, a filter problem, a weakened blower motor, or a faulty thermostat reading.
Mechanical installation inspection

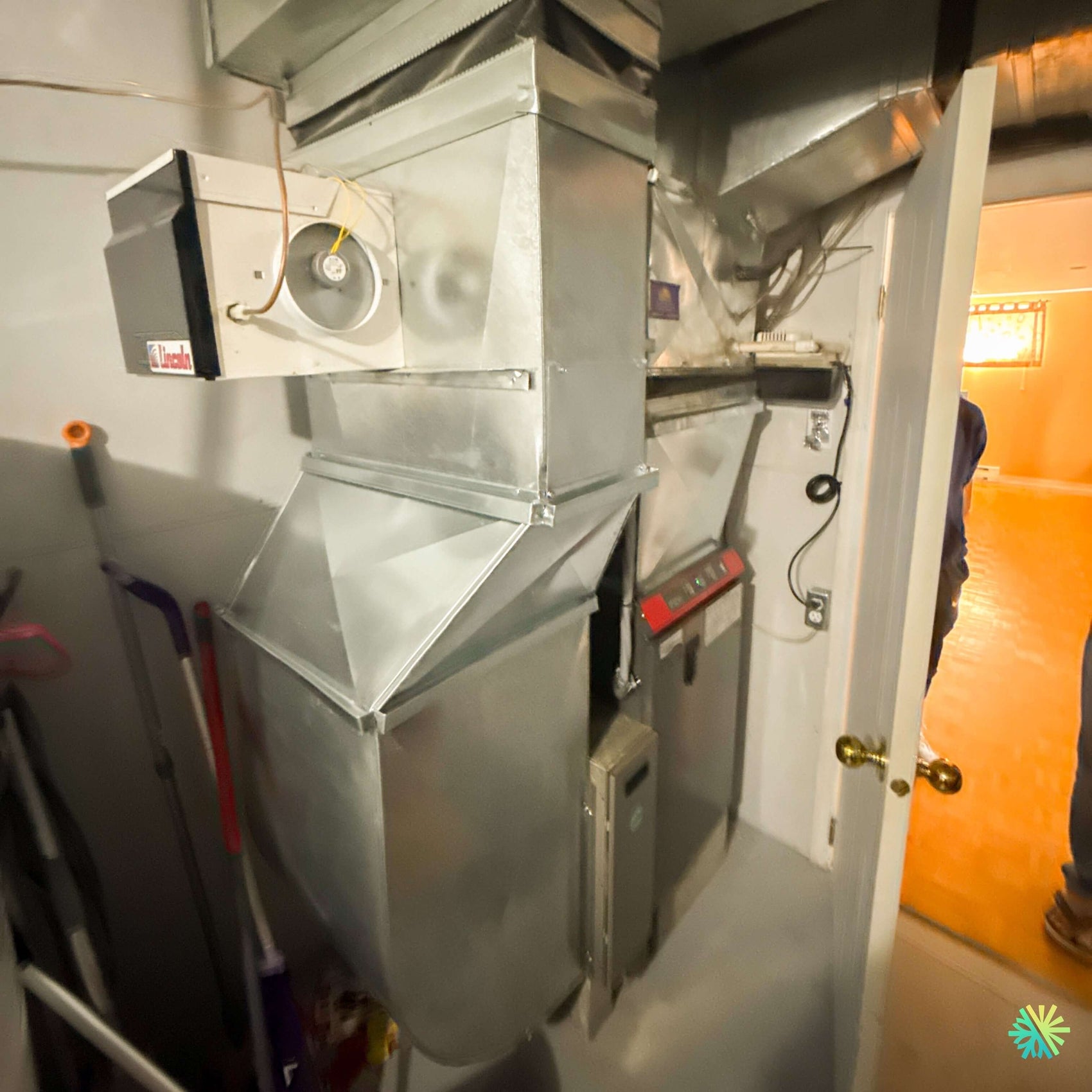

The furnace was installed in a narrow technical room, with visible metal ducts and several custom-made transitions. This type of installation requires checking not only the furnace itself but also the quality of air circulation around the unit.
Duct network and plenum
We first inspected the supply plenum and transitions. The ducts seemed functional, but the tight space around the furnace made access to service panels more difficult. A poor transition or an air leak in a plenum can reduce the amount of warm air distributed to the rooms. In this case, we noted some small air leaks at the joints, but nothing that alone explained the significant heating drop.
Filtration and air return
The filter was loaded with dust and reduced airflow. A dirty filter can cause two opposite but complementary effects: airflow decreases, and the furnace can overheat locally, forcing some protections to limit or stop the operation of the elements. We removed the filter, checked its size, the frame condition, and the airflow direction.
Blower compartment
The blower fan was functional, but its compartment contained a buildup of dust. A dirty blower reduces system efficiency and increases the motor's effort. Even if the motor runs, the wheel can move less air when the blades are clogged.
Electrical diagnosis of the furnace
After the mechanical inspection, we proceeded with electrical tests. In an electric furnace, heat production depends on several components working in sequence: thermostat, control board or relay, sequencers, contactors, heating elements, thermal protections, and the ventilation motor.
Checking the thermostat request
The thermostat was indeed sending a heating request. The communication to the furnace was present and stable. Therefore, the fault did not come from a simple lack of signal.
Heating element testing
We then measured the heating elements. One element was not responding properly when heating was requested. This failure explained the production of lukewarm air: the furnace was operating partially but without activating its full capacity. In a multi-stage electric furnace, it only takes one defective element or activation circuit for the system to appear to be running while delivering insufficient heat.
Sequencer and relay check
The inspection also revealed a weakened sequencer, responsible for the progressive activation of the elements. The sequencer’s role is essential: it prevents all heating elements from activating simultaneously and allows the furnace to start in a controlled manner. When this part wears out, some stages do not engage or engage irregularly.
Thermal protection check
We checked the thermal limits to ensure that no safety device was prematurely cutting off the heating due to overheating. The protections were functional, but the airflow restriction caused by the dirty filter and dusty blower could contribute to less stable internal temperatures.
Repair performed by AirGreen
Our intervention was carried out with a comprehensive approach, because replacing a part without correcting the airflow would have only postponed the problem.
Replacement of the faulty sequencer
We replaced the sequencer responsible for the incomplete activation of the heating stages. After installation, we validated the startup sequence and confirmed that the elements responded correctly to the thermostat’s demand.
Heating element circuit correction
The circuit related to the heating element that was not activating was checked, tightened, and put back into service. The electrical connections were carefully inspected to prevent any abnormal heating. In this type of device, a slightly loose contact can cause intermittent failure, loss of performance, or accelerated wear.
Cleaning of the blower compartment
We cleaned the blower compartment and accessible areas to improve airflow. A clean blower allows better heat distribution and reduces mechanical strain on the motor.
Filter replacement
The filter was replaced with a model suitable for the system. We reminded the client that a filter that is too restrictive or too dirty can harm the performance of an electric furnace, especially in an installation with existing ducts.
Airflow check at the grilles
After the repair, we checked several air outlets. The airflow was more stable and the blowing temperature had increased noticeably. The rooms that previously received lukewarm air began to warm more effectively.
Result: more stable heat and more efficient operation
At the end of the intervention, the electric furnace on the North Shore produced more consistent heat. The heating stages activated properly, the fan distributed air better, and the thermostat reached its setpoint within a more reasonable time.
The client noticed a rapid improvement in comfort. Rather than running for long periods with insufficient heat, the furnace could now respond more effectively to the home's needs. This repair also helped reduce the risk of overload on electrical components and prevent a complete breakdown during cold weather.
What this intervention reveals about central electric furnaces
Electric furnaces are often seen as simple devices, but diagnosing them requires true HVAC expertise. When a central system still blows air, it can give the impression of being in good condition. However, a missing heating stage, a dirty blower, or a worn relay can significantly reduce performance.
At AirGreen, we regularly work on systems similar to those in Montreal, Laval, Longueuil, on the North Shore and the South Shore. The most common problems affect heating elements, sequencers, relays, ventilation motors, filters, and ducts.
Mistakes to avoid with an electric furnace
Ignoring lukewarm air at the vents
Lukewarm air does not always mean the furnace is working normally. If the unit runs for a long time without heating the house, the electrical stages and airflow need to be checked.
Replacing the thermostat too quickly
The thermostat is often blamed first. In this case, it was working correctly. The real problem was in the furnace itself.
Using an overly restrictive filter
A very dense filter may seem beneficial for air quality, but it must be compatible with the system's airflow. A poorly chosen filter can create a restriction and harm performance.
Delaying fan maintenance
The blower is at the heart of the system. If it is dirty, even a furnace with functional elements will distribute heat poorly.
Why a complete diagnosis prevents unnecessary replacements
In this intervention, the furnace did not need to be replaced. It needed targeted repair and mechanical cleaning. This is an important distinction. A full replacement is a major investment, while precise diagnostics can extend the system’s lifespan and restore comfort at a lower cost.
We validated:
- Thermostat demand.
- Condition of the heating elements.
- Sequencer operation.
- Electrical connections.
- Thermal protections.
- The blower motor.
- The filter and air return.
- Blow temperature.
- Distribution in the ducts.
This method allows finding the real cause, rather than randomly replacing parts.
A repair adapted to the realities of the North Shore
Homes on the North Shore often have varied mechanical installations: old electric furnaces, centralized systems with ducts added over the years, custom metal transitions, tight mechanical spaces, and successive renovations. Each installation requires precise on-site assessment.
In this case, the space around the furnace was limited, requiring careful intervention. Access panels, ducts, and electrical components had to be handled with caution. A good repair is not just about replacing a part: it must respect the existing installation and improve overall operation.
Practical advice after the repair
To maintain the performance of this electric furnace, we recommended:
- Replace the filter according to the actual system usage.
- Regularly check that the air at the vents is properly warm.
- Have the furnace inspected before the coldest weather.
- Avoid closing too many vents, as this increases pressure in the ducts.
- Monitor abnormally long cycles.
- Schedule blower maintenance if airflow decreases.
These simple actions help prevent breakdowns and maintain stable comfort during winter.
AirGreen, specialist in central HVAC repairs
At AirGreen, we repair and maintain electric furnaces, central heat pumps, duct systems, central air conditioners, and wall units throughout Greater Montreal. Our approach is based on thorough diagnostics, concrete measurements, and lasting repairs.
This intervention on the North Shore shows that a central system that still seems to be working can hide a significant loss of capacity. By identifying the faulty sequencer, restoring the activation of the heating elements, improving air circulation, and replacing the filter, we enabled the client to regain reliable heating without a complete equipment replacement.
