A central heat pump installed high up that required a thorough diagnosis
When a central heat pump starts to lose efficiency, the problem is not always dramatic at first. The client often notices that the house takes longer to cool down, that the system runs longer than usual, or that the air coming out of the ducts seems less cold. In this specific case, our AirGreen team intervened in Laval for a service call on an outdoor central heat pump unit installed high up, on a metal wall mount, very close to a brick wall.

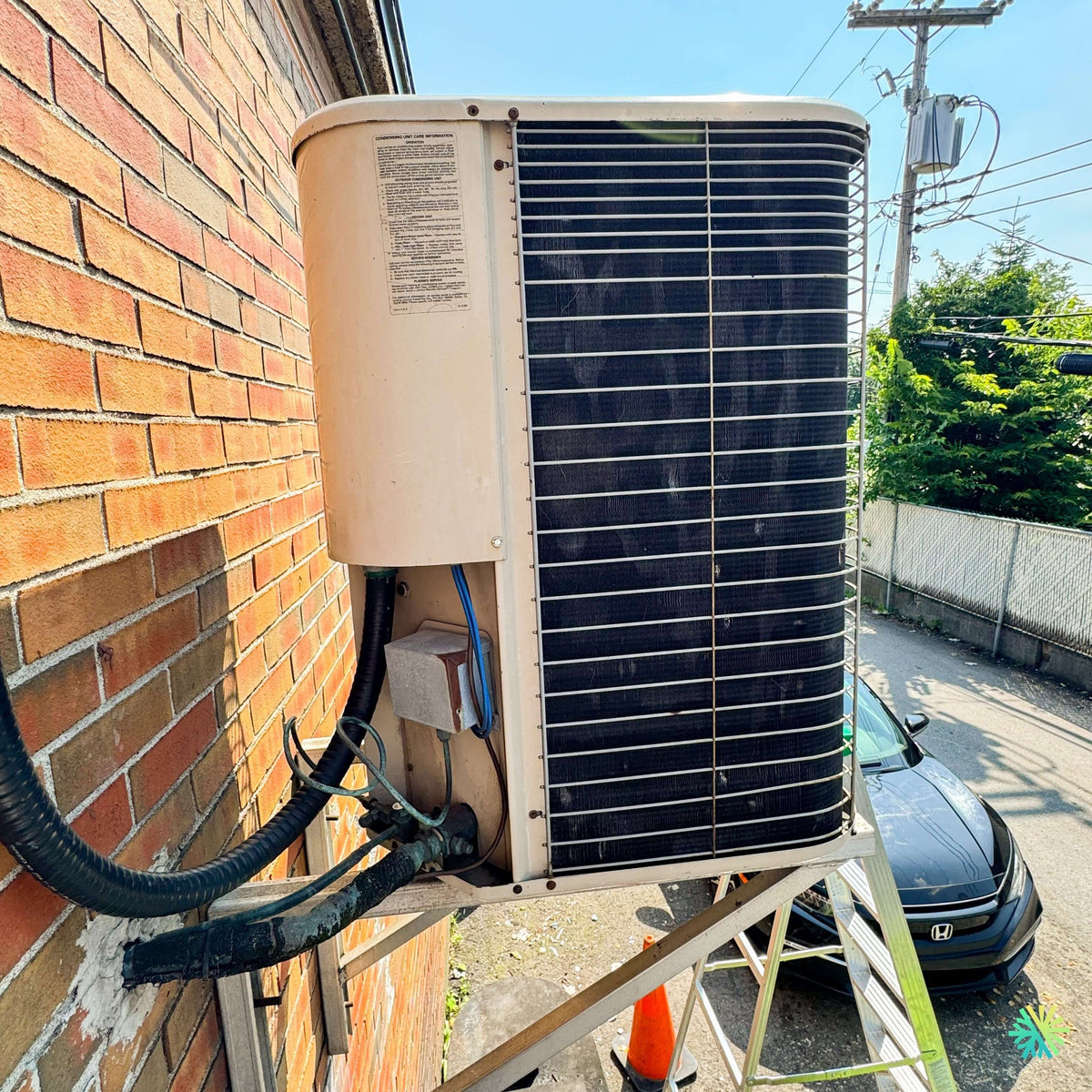

Upon our arrival, several visual elements caught our attention. The outdoor unit was a residential-sized central heat pump condenser, larger than a standard wall compressor, connected to refrigerant lines passing through the masonry. The device was positioned on a high support, which complicated access to the panels, service valves, coil, and electrical compartment. This type of installation requires a structured, safe, and very precise working method, as the technician must be able to diagnose correctly without compromising either the device or the building.
The symptom reported by the client was clear: the heat pump seemed to be working, but the efficiency was no longer there. The system started, the outdoor fan was running, but the indoor temperature barely dropped during hot days. The client had also noticed that the outdoor unit seemed to be working harder than before. In a house in Laval, with significant seasonal variations, a central heat pump must be able to maintain stable comfort, both in cooling and heating when the system is designed to operate in heat pump mode.
Our priority was therefore to determine whether the loss of performance was due to an air circulation problem, coil fouling, an electrical weakness, a refrigerant shortage, a refrigeration restriction, or a combination of several factors.
Visual inspection of the outdoor unit
The first step was a complete inspection of the unit. In the service photo, a dark outdoor coil is clearly visible behind the protective grille. This area is essential: it is where heat exchange occurs. When the coil is blocked by dust, debris, pollen, plant fibers, or deposits accumulated over the seasons, the unit loses its ability to reject or absorb heat efficiently.
In this case, the coil showed signs of buildup and clogging. The proximity of the brick wall also reduced the available clearance space, which can hinder airflow around the unit. A central heat pump needs to breathe. Even when the fan is running, if air does not flow freely through the coil, refrigerant pressures can become abnormal, electrical consumption can increase, and the compressor can be exposed to unnecessary load.
We also checked the condition of the refrigerant lines. The lines were visible under the unit, with insulated sections and fittings showing signs of wear related to age and weather. On an outdoor installation, especially in Laval, Montreal, Longueuil, on the North Shore or the South Shore, cycles of freezing, thawing, rain, and heat accelerate the wear of insulations, ties, supports, and exposed components.
Electrical components check
After securing access to the device, we opened the service compartment to check the electrical components. On a central heat pump, a loss of performance can come from a weakened capacitor, a worn contactor, a loose connection, a damaged wire, or unstable power supply. Even if the system starts, an electrical component nearing the end of its life can prevent the compressor or fan motor from operating at full capacity.
Our technicians performed the following checks:
- Power supply voltage measurement;
- Contactor inspection;
- Starting and/or running capacitor test;
- Checking connections in the electrical compartment;
- Observation of the compressor start-up;
- Verification of the operation of the outdoor fan motor;
- Validation of the general condition of wiring and protections.
The diagnosis revealed that the device needed a comprehensive overhaul rather than a simple isolated intervention. The system was not completely broken, but it was operating under conditions that reduced its efficiency and risked worsening compressor wear if nothing was done.
Refrigeration diagnosis: pressures, temperatures, and actual performance
A central heat pump cannot be diagnosed by sight alone. After visual and electrical inspection, we proceeded with refrigeration readings. Operating pressures must always be interpreted alongside actual temperatures: outdoor temperature, indoor temperature, return air temperature, supply air temperature, coil condition, indoor fan speed, and system load.
In this case, the readings indicated less efficient heat exchange than expected. The dirt buildup on the outdoor coil contributed to this loss of performance. A dirty coil can give the impression of a refrigerant problem, when the real issue is sometimes simply the device’s inability to transfer heat properly. This is a common mistake: adding refrigerant without resolving the airflow restriction can cause an overload, increase pressures, and further reduce the compressor’s lifespan.
At AirGreen, we avoid this type of incomplete diagnosis. Before drawing any conclusions about the refrigerant charge, we ensure that the device is clean, the fan is working properly, the indoor filters are not blocking airflow, and that measurements are taken under reliable conditions.
Technical cleaning of the condenser and correction of critical points
The main intervention consisted of carefully cleaning the outdoor coil. On a unit installed at height, this step must be carried out with caution. It is not simply about spraying the device. Too much water pressure can damage the coil fins, push dirt deeper into the heat exchanger, or cause leaks in the electrical compartment.
We performed cleaning suited to the type of unit, protecting sensitive components and working in the right direction to free accumulated deposits. After cleaning, air circulation through the coil improved significantly. We also checked the visible fins, protective grille, wall mount stability, and conduit passages.
Special attention was given to the refrigeration connections and line insulation. Even when the system is still running, deteriorated insulation on the suction line can cause efficiency losses and unwanted condensation. In an exposed outdoor environment, the insulation must be in good condition, securely fastened, and protected as much as possible.
Result: stabilized performance and healthier operation
After cleaning, electrical tests, and refrigeration checks, we restarted the central heat pump and observed its operation. The readings stabilized, the heat rejection outside was more consistent, and the system regained better cooling capacity. The client noticed that the device no longer seemed to strain in the same way.
The goal was not just to get the device running again, since it was already partially working. The real goal was to correct the conditions that were harming its performance and could lead to a more costly breakdown. A central heat pump that runs for a long time with a clogged coil can suffer premature compressor wear, increased electricity consumption, and reduced comfort throughout the house.
What this intervention in Laval shows about the maintenance of central HVAC systems
A central heat pump is a complete system. The outdoor unit is only part of the whole. It works with an indoor unit, a duct network, a thermostat, electrical controls, and sometimes an auxiliary system. When a problem occurs, the entire operation must be analyzed rather than focusing on a single part.
Common mistakes to avoid
In this type of situation, some mistakes can be costly for the owner:
Waiting for the breakdown to be complete
When a system gradually loses efficiency, many owners wait until the device completely stops working before calling. Yet, it is often during this period of weakened operation that internal damage develops. A compressor working under abnormal pressure for several weeks can eventually fail, whereas targeted maintenance could have extended the system’s lifespan.
Confusing low refrigerant with lack of maintenance
A system that cools poorly is not automatically low on refrigerant. A dirty coil, a clogged indoor filter, a weakened fan, or a duct problem can produce similar symptoms. That’s why our technicians always perform a series of checks before recommending a refrigerant correction.
Neglecting the location of the outdoor unit
Installation at height may be necessary in certain urban or residential configurations, especially when ground space is limited. However, it requires safe access for maintenance and special attention to air clearances. A unit too close to a wall, fence, hedge, or other obstacle can lose efficiency.
Forgetting the condition of the lines and insulation
Refrigerant lines are essential to the proper functioning of a central heat pump. Damaged insulation, exposed fittings, vibrations, or deterioration around the wall penetration must be monitored. In this intervention in Laval, checking the lines was an integral part of the diagnosis.
Why AirGreen acts differently
Our approach is based on a complete understanding of the residential CVAC system. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, we regularly see central heat pumps that are not actually broken but have been operating under unfavorable conditions for too long. The role of a good diagnosis is to distinguish a real breakdown from a set of factors that reduce performance.
During this service call, our team combined visual inspection, electrical measurements, refrigeration readings, technical cleaning, and performance validation after intervention. This method helps avoid unnecessary repairs and guides the client toward the right decisions: immediate repair, preventive maintenance, seasonal follow-up, or planning a replacement when the device’s age justifies it.
Comfort restored without excessive intervention
The final result was a cleaner, better-ventilated, more stable, and more efficient central heat pump. The client received a clear explanation of the system’s condition, the corrections made, and points to monitor for upcoming seasons. This transparency is important, especially with older devices, as the owner must be able to decide whether to continue maintaining the equipment or start planning for a future replacement.
A well-executed intervention is not limited to replacing a part. It involves understanding why the system is no longer performing, correcting the real cause, and protecting the client’s investment. In this case in Laval, cleaning the condenser, checking components, and analyzing operation restored healthier functioning to the central heat pump while reducing the risk of breakdowns during peak demand periods.
