A central heat pump installed high up, difficult to access, and a breakdown that required more than a simple restart
In Ville Mont-Royal, our AirGreen team was called for a performance issue on a central heat pump installed outdoors, on a metal wall mount, near a brick foundation. Upon arrival, several elements caught our attention: the unit was positioned above dense landscaping, near a basement window, with significant vegetation around the base and more limited technical access than a traditional ground installation.
The customer reported a situation that had gradually become uncomfortable: the house was no longer cooling efficiently, operating cycles seemed longer than usual, and the air blown by the central system no longer reached the expected temperature. At times, the outdoor unit would start, but performance remained low; at other times, the system would stop quickly, as if it were unable to maintain stable operation.
In a residential area like Ville Mont-Royal, where many houses have central systems connected to existing ducts, a HVAC repair must be approached methodically. A central heat pump is not just an outdoor condenser: it is part of a complete system including the indoor coil, furnace or central fan, ducts, controls, thermostat, refrigerant circuit, electrical supply, and condensate drainage. An apparent outdoor failure can sometimes stem from an indoor problem, and vice versa.
Symptoms observed before our intervention
The customer had noticed several typical signs of a central heat pump losing efficiency:
- a gradual decrease in cooling capacity;
- longer cycles, without real improvement in indoor comfort;
- a slightly louder outdoor noise during startup;
- air temperature not cold enough at the registers;
- a feeling that the system "struggles" without producing the usual output;
- a concern about the age of the device and the possibility of a major breakdown.
These symptoms can be caused by several factors: lack of refrigerant, dirty outdoor coil, air restriction, fan problem, weakened condenser, worn contactor, unstable control board, poorly calibrated thermostat, abnormal pressure in the refrigerant circuit, or compressor weakness. Our priority was therefore not to jump to a conclusion but to follow a complete diagnosis.
An outdoor access that required a safety approach

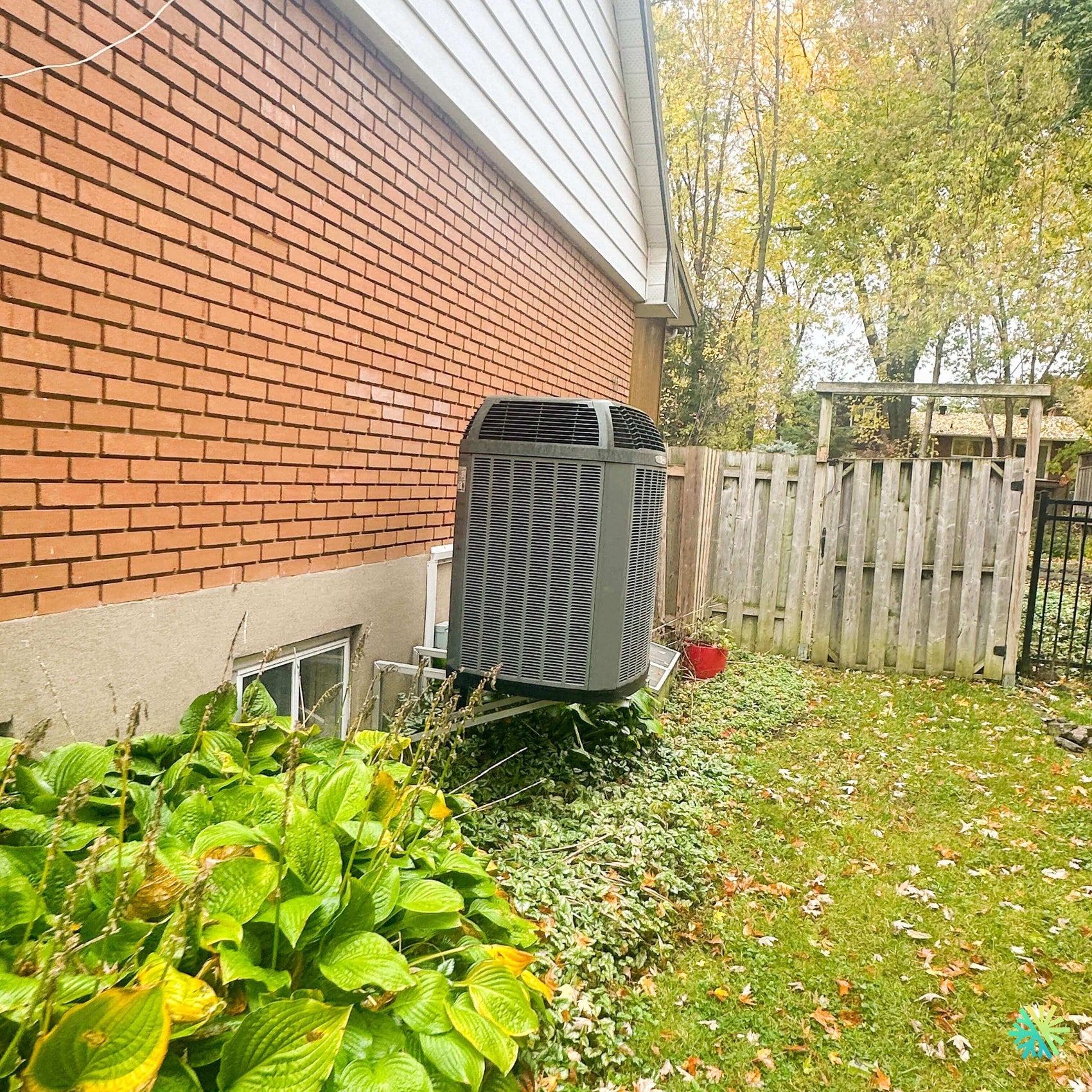

The outdoor unit was installed on a wall mount, above a vegetated area. This type of installation is common when you want to clear the ground, avoid snow buildup, or protect the unit in a narrow yard. However, this makes some interventions more delicate.
Even before opening the unit, we secured the workspace. The plants around the base limited access to the lower side of the unit, and the clearance around the condenser was not optimal for a quick inspection. We made sure to check:
- the sturdiness of the wall mount;
- the available space around the service panels;
- the visual condition of the refrigerant lines;
- the presence of vibrations transmitted to the wall;
- the accessibility of the electrical disconnect switch;
- the clearances around the outdoor grille;
- the general condition of the visible wiring.
In an outdoor HVAC installation, access is often an underestimated detail. However, poor access can complicate maintenance, increase diagnostic time, and sometimes prevent effective repair without partial disassembly. In this particular case, our team was able to intervene without moving the unit, but the location required precision and good planning.
Visual inspection of the central heat pump
The first step was to inspect the outdoor unit. The condenser showed normal signs of seasonal exposure: dust, leaves, plant debris, and light buildup on the fins. In Montreal, Laval, Longueuil, on the North Shore as well as on the South Shore, this type of dirt buildup is common, especially when the unit is located near trees, hedges, perennial plants, or fences that reduce natural air circulation.
We checked the condition of the outdoor coil. A central heat pump must be able to reject heat efficiently in cooling mode and absorb outdoor energy in heating mode. If the coil is even partially blocked, operating pressures can become unstable. The compressor then works harder, efficiency drops, consumption increases, and internal protections may eventually shut down the unit.
The inspection also focused on the outdoor fan. Insufficient rotation speed, a worn motor, or a weakened capacitor can cause poor heat dissipation. In this case, the fan was running, but we needed to confirm if its electrical components were receiving the correct values and if the start was stable.
Electrical check: contactor, capacitor, and power supply
After safely cutting the power, we opened the service panel. Many service calls on central heat pumps start with an electrical check because many failures show similar symptoms: the unit tries to start, produces a humming noise, goes into safety mode, or runs intermittently.
We tested:
- the voltage at the disconnect switch;
- the supply voltage at the contactor;
- the condition of the connections;
- the presence of superheat or signs of electrical arcing;
- the condition of the contactor;
- the capacitor’s capacity;
- the control signals from the thermostat;
- the continuity of safety circuits.
The capacitor showed a weakened value compared to its nominal capacity. This type of component plays a crucial role in starting and running the fan motor and compressor, depending on the system configuration. When it begins to lose capacity, the unit can still operate but less stably. Starts become more difficult, the compressor may draw more current, and the system may seem “tired.”
Refrigeration diagnosis: pressures, temperatures, and actual performance
Once the electrical part was stabilized and secured, we proceeded with a refrigeration diagnosis. On a central heat pump, measuring just one pressure is not enough to conclude a refrigerant shortage. Several data points must be compared: outdoor temperature, indoor temperature, suction pressure, discharge pressure, superheat, subcooling, condition of the indoor coil, and airflow.
We measured temperatures at the registers, observed system behavior during operation, then compared the recorded data to normal expectations for this type of equipment. The results indicated a real performance loss, but not a catastrophic compressor failure. The system needed targeted restoration: improved heat transfer, electrical correction, and a full charge check.
Technical cleaning of the outdoor condenser
The outdoor coil had accumulated enough dirt to harm performance. We performed a cleaning suited to the unit’s condition, taking care not to damage the fins. Overly aggressive washing can crush the fins or push debris deeper into the coil. Conversely, too superficial a cleaning gives the impression the unit is clean while airflow remains limited.
Our intervention cleared the exchange surfaces, improved airflow, and reduced the system’s working pressure. For a central heat pump, this step can transform the unit’s behavior: shorter cycles, better efficiency, more stable pressure, and less compressor strain.
Replacement of the weakened electrical component
The weakened capacitor was replaced with a part meeting the required specifications. This fix stabilized startups and prevented progressive deterioration of the compressor or fan motor. A weak capacitor is a relatively simple part, but its impact is major. When neglected, it can lead to a much more costly failure.
After the replacement, we restarted the unit and observed several cycles. The startup was smoother, the outdoor fan ran more steadily, and the system responded better to thermostat demands.
Indoor system and airflow check
A central heat pump heavily depends on indoor airflow. Even if the outdoor unit is in good condition, a dirty filter, a dirty indoor coil, a weakened blower motor, or unbalanced ducts can reduce overall performance.
So we checked the filter condition, air circulation, return temperature, and supply temperature. The customer had already replaced the filter recently, which helped maintain an acceptable airflow. However, we recommended monitoring the replacement frequency, especially during heavy use periods in summer and winter.
A central system can sometimes give the impression that the outdoor unit is responsible for all the problems, while the real slowdown comes from poor air circulation inside. That’s why our HVAC diagnostics always include a full system reading, not just an inspection of the condenser.
A complete HVAC repair to restore comfort and prevent a more costly breakdown
After cleaning, replacing the electrical component, and checking cooling operation, the central heat pump returned to much more stable behavior. The temperatures measured at the air outlets improved, cycles became more consistent, and the client noticed a gradual return of comfort in the home.
What actually fixed the problem
The failure wasn’t caused by a single dramatic element but by a combination of common factors in aging central systems or those exposed to demanding outdoor conditions:
A partially blocked outdoor coil
Nearby vegetation, leaves, and debris reduced heat exchange. Even moderate obstruction can make the system work harder.
A weakened capacitor
The component wasn’t completely dead, but it no longer provided the necessary stability. This is exactly the kind of fault that causes intermittent symptoms.
A need for comprehensive validation
The system needed to be analyzed entirely: outdoor, indoor, thermostat, power supply, airflow, and cooling performance. This method prevents unnecessary replacements.
Mistakes to avoid with a central heat pump
During this service call in Ville Mont-Royal, several important points are worth noting for homeowners with a central system.
Do not wait for the compressor to stop completely
When a central heat pump starts losing power, cycling unusually, or struggling to start, it’s best to act quickly. A small electrical issue or a dirty coil can eventually damage the compressor if the system keeps running under stress.
Do not let vegetation overgrow the outdoor unit
Plants around a condenser may seem harmless, but they can reduce airflow, retain moisture, and complicate service access. Adequate clearance around the unit makes maintenance easier and improves performance.
Do not replace parts without a complete diagnosis
Replacing a random part can be expensive and may not solve anything. At AirGreen, we prioritize a structured approach: electrical measurements, operational tests, pressure observations, airflow validation, and mechanical inspection.
Do not neglect professional cleaning
A simple hose rinse does not always replace a technical cleaning. The fins, coil, and internal areas must be cleaned carefully, especially on systems that have been in operation for several years.
Why this type of service is common in Montreal and surrounding areas
Central systems installed in the greater Montreal area, in Laval, in Longueuil, on the North Shore and on the South Shore, face very variable conditions: humidity, pollen, leaves, dust, snow, ice, freeze-thaw cycles, and long periods of operation in summer. A central heat pump must therefore be regularly maintained to preserve its efficiency.
In Ville Mont-Royal, many homes have outdoor installations in side or back yards, sometimes on wall mounts. These configurations are practical, but they require special attention to clearance, vibrations, support strength, and access for maintenance.
A reassuring and transparent customer experience
The customer wanted to know if the system needed to be replaced immediately or if a repair was still reasonable. After our diagnosis, we clearly explained the condition of the device, the components checked, the measurements obtained, and the corrections made. The conclusion was reassuring: the system could be put back into service with a targeted repair, without unnecessarily replacing the entire installation.
This transparency is essential in the HVAC field. A central heat pump represents a significant investment, and every recommendation must be based on real data, not on a visual impression or a quick guess.
Final result: improved performance and stabilized system
At the end of the service, we confirmed the proper operation of the outdoor unit, the stability of the startup, the consistency of temperatures, and the improvement of indoor comfort. The system was observed in operation to ensure that the repair produced a lasting result.
The customer also received practical advice to avoid another loss of efficiency:
- keep sufficient clearance around the condenser;
- have the system checked before periods of high demand;
- replace the indoor filter regularly;
- monitor unusual noises;
- request HVAC maintenance as soon as a change in performance is noticed;
- avoid blocking air registers in the house;
- do not ignore short cycles or difficult starts.
AirGreen expertise for central heat pumps
At AirGreen, we work on central heat pumps, central air conditioners, electric furnaces, wall systems, multi-zone systems, and many other residential HVAC devices. Our service calls are designed to identify the true cause of the problem, extend the lifespan of the equipment when possible, and help clients make informed decisions.
Whether the problem is an electrical failure, refrigerant loss, a clogged coil, a faulty control board, abnormal noise, a struggling compressor, or lack of performance, we approach each intervention with precision. Our goal is simple: restore comfort, protect the equipment, and provide a lasting solution.
HVAC service in Ville Mont-Royal and throughout the greater Montreal area
This repair in Ville Mont-Royal clearly illustrates the importance of a complete diagnosis on a central heat pump. An outdoor unit that still seems to be working can hide a significant drop in efficiency. By intervening at the right time, it is often possible to avoid a more serious breakdown and restore stable comfort throughout the home.
AirGreen serves Montréal, Laval, Longueuil, the North Shore, and the South Shore for HVAC repair, maintenance, installation, replacement, and diagnostic services for residential systems. For a central heat pump that heats poorly, cools less effectively, makes noise, freezes, starts with difficulty, or operates intermittently, our team can assess the situation and offer a clear, professional solution tailored to the existing installation.
