A central heat pump installed in a narrow passage: a service call where access, coil condition, and electrical stability made all the difference
In Westmount, residential HVAC installations often present a particular challenge: available space. Between stone or concrete walls, narrow side passages, compact backyards, and architectural constraints of older properties, a central heat pump must operate under sometimes demanding conditions. This is exactly the context of this service call carried out by AirGreen, where our team was called to inspect an outdoor unit of a residential central heat pump whose performance had become irregular.
The client contacted us after noticing a drop in comfort in the house: the indoor temperature took longer to stabilize, the outdoor unit seemed to work harder than usual, and a louder noise was heard during operating cycles. The situation did not correspond to a complete breakdown but rather a set of typical symptoms of a central system beginning to lose efficiency: longer cycles, reduced performance, dirt buildup on the outdoor coil, slight vibrations, and possibly electrical instability at startup.

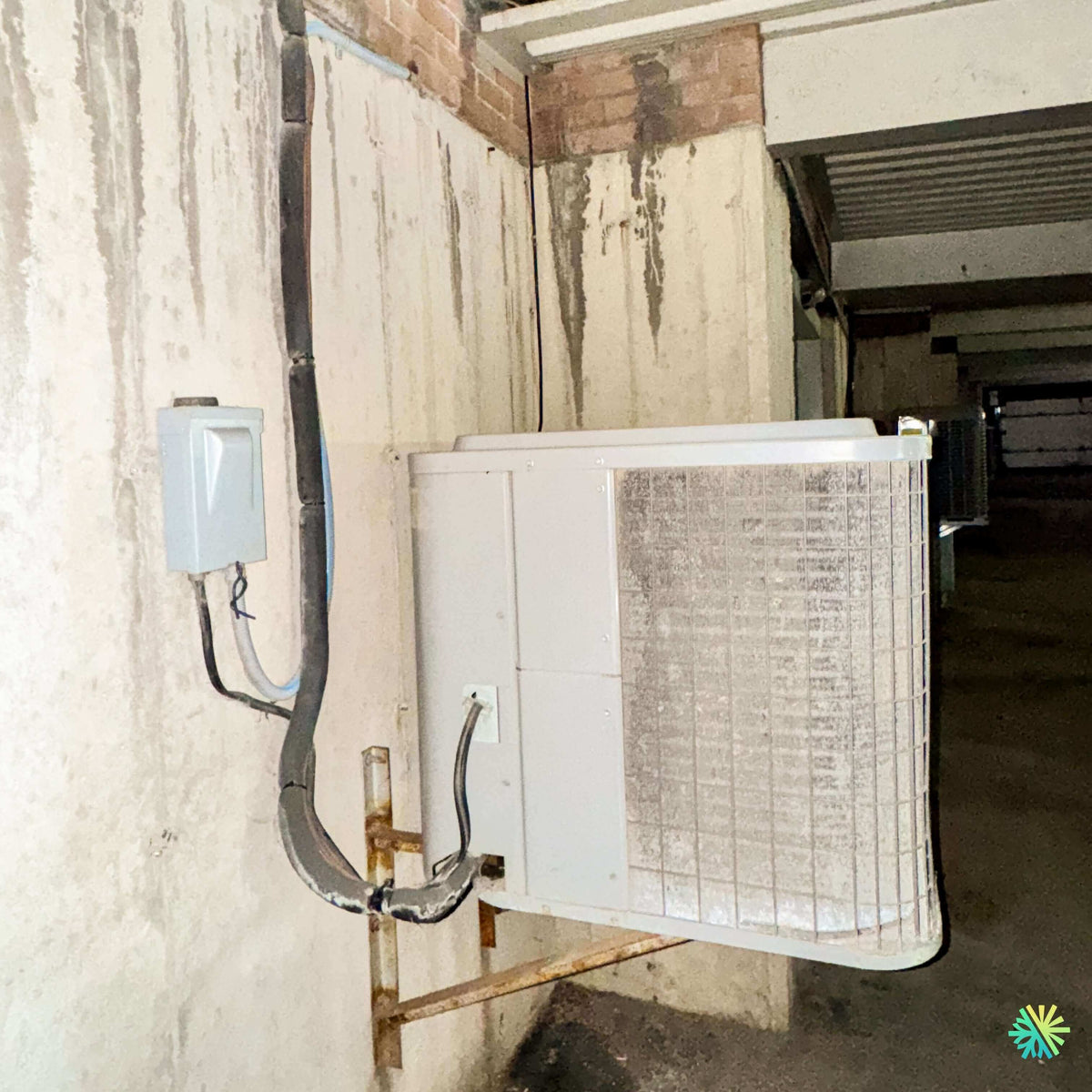

On site, the outdoor unit was installed on a metal wall bracket, in a relatively enclosed space, near a wall showing signs of moisture and runoff. The disconnect electrical box was located nearby, and the refrigerant lines were visible, partially insulated. These elements immediately led us to a comprehensive diagnostic approach: checking not only the heat pump itself but also its environment, power supply, coil condition, lines, fastenings, and ventilation conditions around the unit.
At AirGreen, we know that effective HVAC repair is not just about randomly replacing a part. A central heat pump is a complete system: the outdoor unit, indoor unit, duct network, electrical components, refrigerant, thermostat, and installation conditions all work together. When a single element is neglected, the problem can quickly return.
An outdoor unit exposed to dirt, moisture, and access constraints
The image from this intervention reveals several important clues. The outdoor unit is placed in a passage where air circulation may be less favorable than in an open installation. The outdoor coil shows a visible buildup of dust, deposits, and dirt on the grille. In a central system, this heat exchange surface is essential: it is through this that the heat pump absorbs or releases heat depending on the season.
When the coil is dirty, several problems can arise:
- reduced heating or cooling capacity;
- longer operating cycles;
- increased operating pressure;
- higher electrical consumption;
- premature compressor wear;
- louder fan or unit noise;
- intermittent shutdowns if the system reaches safety limits.
In a neighborhood like Westmount, where several properties are built on compact lots, we often see units installed near walls, under balconies, in side alleys, or close to architectural elements that limit access. This does not mean such an installation is impossible, but it requires more rigorous maintenance and careful inspection of the ventilation around the unit.
Initial diagnosis: understanding the symptoms before intervening
Our first step was to listen to the client and reconstruct the recent behavior of the system. The important information was as follows: the house no longer reached the requested temperature as quickly, the operation seemed noisier, and some cycles appeared abnormally long. No obvious error code was displayed on the thermostat, which indicated that a more detailed on-site inspection was necessary.
We then inspected the outdoor unit of the central heat pump. The machine appeared to be a high-capacity residential unit, compatible with a central installation supplying an entire house through ducts. Although the exact model was not visible in the photo, the unit’s size and observed configuration typically correspond to a central heat pump of about 30,000 to 36,000 BTU, or around 2.5 to 3 tons depending on the indoor setup and the property's heat load.
Our diagnosis focused on five main elements: the condition of the outdoor coil, air circulation, electrical connections, the condition of the refrigerant lines, and mechanical vibrations. This method helps us avoid hasty conclusions. An unusual noise can come from a fan motor, a poorly secured panel, an aging support, abnormal pressure, fan imbalance, or simply a unit working hard due to a clogged coil.
Inspection of the outdoor coil and air circulation
Coil clogging was one of the most visible issues. In a central heat pump, the outdoor coil must remain clean to ensure optimal heat transfer. Deposits accumulated on the grille reduce the air’s ability to properly pass through the exchanger. In summer, this can cause poor heat dissipation. In winter, it can reduce the machine’s ability to extract energy from the outside air.
We then conducted a thorough inspection of the coil, taking into account the immediate environment. Nearby walls, foot traffic dust, moisture, and runoff deposits can contribute to faster clogging than on an installation exposed in an open space. This type of setup often requires more frequent maintenance than a unit installed on an open site.
Electrical check at the disconnect box
The disconnect box visible near the outdoor unit is a crucial element. On a central heat pump, a stable power supply is essential for the proper operation of the compressor and fan motor. We checked the overall condition of the box, the presence of moisture, the integrity of the connections, and the stability of the power supply.
In HVAC service calls, electrical problems can sometimes mimic a mechanical failure. A worn contactor, a weakened capacitor, a loose connection, or irregular voltage can cause hard starts, intermittent shutdowns, or louder noise. Our team therefore checked the starting components, connections, and electrical values to ensure the machine was receiving the proper operating conditions.
Inspection of refrigerant lines and insulation control
The visible refrigerant lines on the installation were also inspected. Damaged or aging insulation can cause efficiency losses, especially when the suction line is exposed to temperature variations. We checked the condition of the insulation, the stability of the fittings, and the presence of signs that might suggest a refrigerant leak, such as oily traces near the connections.
In this case, the goal was to confirm that the performance drop was not due to a loss of refrigerant charge. A central heat pump can continue to operate even with an imperfect charge, but its efficiency decreases, the compressor works harder, and cycles become less effective. That is why checking pressures, temperatures, and the behavior of the refrigerant circuit is part of our procedure when a customer reports a performance drop.
Vibration reduction and support inspection
The unit was installed on a metal bracket fixed to the wall. This type of mounting is common when floor space is limited, but it must remain solid, stable, and well-leveled. Slight vibration can be amplified by the support, especially if the anchors age, if the structure shows corrosion, or if the unit runs harder due to an air restriction.
We inspected the mounting points, the device panels, and contact areas to identify possible sources of noise. In many cases, a noise perceived as a compressor problem is actually caused by a loose panel, a vibrating grille, a poorly cushioned base, or a support transmitting vibrations to the wall.
Intervention performed: cleaning, adjustments, and operational tests
After the diagnosis, the intervention took place in several stages. We first secured the power supply before carrying out checks and cleaning. The outdoor coil was carefully cleaned to restore better air circulation. This step must be done correctly: overly aggressive cleaning can damage the fins, while superficial cleaning does not solve the problem thoroughly.
We then checked the accessible electrical components: connections, contactor condition, capacitor, power supply, and fan motor response. The panels were inspected and tightened as needed to reduce vibrations. The refrigerant lines were examined, and the insulation was evaluated to determine if future correction would be recommended.
Once the checks were completed, we restarted the system and observed its behavior over a full cycle. The operating noise was more stable, the airflow through the coil had improved, and the system responded better to the thermostat’s demand. The customer noticed a concrete improvement: the central heat pump no longer seemed to be straining the same way, and the cycles were more regular.
What this central heat pump repair in Westmount teaches owners
This type of service call highlights an essential point: a central heat pump can lose a lot of efficiency without being completely broken. This is often when owners hesitate to call a specialist. As long as the system still heats or cools somewhat, people sometimes think the situation can wait. However, a unit that is overworking for several weeks or months can develop more costly problems.
A dirty coil can cause serious symptoms
A dirty outdoor coil is one of the most underestimated problems in central heat pump repair. It can cause reduced efficiency, increased energy consumption, abnormal operating pressure, and premature compressor fatigue. In many cases, the customer believes the heat pump is low on refrigerant or that the compressor is faulty, when the main cause is an air restriction.
In Montreal, Laval, Longueuil, on the North Shore and the South Shore, outdoor conditions can vary greatly: urban dust, leaves, pollen, ice, snow, humidity, alley debris, masonry work, or construction dust. For a unit installed in a narrow passage like in Westmount, these factors can accumulate more quickly.
The installation environment directly influences performance
A central heat pump not only needs to be properly connected. It also needs to breathe. When an outdoor unit is placed near a wall, under a structure, or in a confined space, air circulation can become a critical factor. Insufficient clearance can cause hot air recirculation in summer or limit heat exchange in winter.
During our intervention, the immediate environment of the unit was carefully evaluated. Signs of moisture on the wall and proximity to vertical surfaces can affect the overall condition of the installation. We explained to the client the elements to watch for: dirt buildup on the grille, unusual noise, clearance around the device, condition of the support, and the importance of preventive maintenance.
Electrical checks are essential
In HVAC repair, electricity should never be considered a minor detail. A central heat pump stresses important electrical components at every start. A weak capacitor or worn contactor can cause difficult starts, power loss, or intermittent shutdowns. In some cases, the system seems to work but operates under poor conditions.
That’s why our technicians systematically check electrical values, connection conditions, and component responses. A well-done intervention often detects a problem before it causes a complete breakdown.
Why AirGreen prioritizes a complete diagnosis
Our approach is based on a simple idea: repair for the long term, not just get the device running again. A service call for a central heat pump should help understand the root of the problem. Replacing a part without checking the condition of the coil, electrical supply, pipes, and installation conditions may give a temporary result, but rarely a satisfactory one in the long run.
In this case in Westmount, the success of the intervention came from the combination of several actions: complete inspection, targeted cleaning, electrical verification, visual check of the refrigeration circuit, vibration reduction, and final test under real conditions. The client not only got a machine restarted; they received a clear explanation of the condition of their system and the steps to take to preserve its performance.
Mistakes to avoid with a central heat pump
Several mistakes often come up during our service calls:
Waiting for the machine to break down completely
A drop in performance is already a warning. The longer the unit works hard, the greater the risk of damaging major components.
Cleaning only the visible surface
A simple quick rinse of the grille is not always enough. The coil must be cleaned methodically to restore airflow without damaging the fins.
Ignoring new noises
A change in noise can indicate vibration, a worn motor, a loose panel, a support problem, or abnormal pressure.
Neglecting the space around the unit
Even an excellent central heat pump can lose efficiency if air circulation around the outdoor unit is poor.
Automatically assuming a refrigerant leak
A drop in performance does not always mean a leak. The diagnosis must confirm pressures, temperatures, and the overall condition of the system before any conclusion.
A concrete result: comfort restored and customer reassured
At the end of the service, the central heat pump was running more consistently. Cleaning the coil and the adjustments made improved the performance of the outdoor unit. The customer gained a better understanding of their system, the likely causes of the performance drop, and the preventive measures to apply.
For AirGreen, this is exactly what good HVAC service should accomplish: restore comfort, protect the equipment, avoid unnecessary replacements, and provide the customer with clear information. Whether in Westmount, elsewhere in Montreal, in Laval, in Longueuil, on the North Shore or on the South Shore, our goal remains the same: to offer precise, professional, and lasting central heat pump repair.
When to schedule a service call for a central heat pump?
A homeowner should contact an HVAC specialist as soon as they notice any of the following signs:
- the house takes longer to heat or cool;
- the outdoor unit becomes noisier;
- cycles are longer or more frequent;
- ice appears abnormally;
- the unit stops and then restarts;
- the circuit breaker trips;
- the electricity bill increases without explanation;
- the outdoor coil appears clogged;
- a vibration is transmitted to the wall or structure.
These signs do not always mean the repair will be major. On the contrary, a quick intervention often resolves the problem before it becomes costly.
AirGreen: expertise in residential HVAC repair in Greater Montreal
AirGreen regularly works on central systems, wall-mounted heat pumps, MultiZone heat pumps, air conditioners, electric furnaces, ducted systems, air exchangers, and other residential HVAC equipment. Our field experience allows us to tailor each diagnosis to the actual installation context: building type, access, equipment age, clearances, installation quality, electrical condition, and symptom history.
This repair in Westmount demonstrates the importance of a thorough approach. A dirty outdoor unit, installed in a confined space, can quickly lose efficiency. With a complete inspection and targeted corrections, it is possible to restore reliable performance and extend the system's lifespan.
For a central heat pump repair in Montreal, a service call in Laval, an HVAC inspection in Longueuil, an intervention on the North Shore or a repair on the South Shore, AirGreen focuses on precision, transparency, and quality of work performed.
