Water stains under the indoor unit: an HVAC service call where drainage and internal maintenance were at the heart of the problem

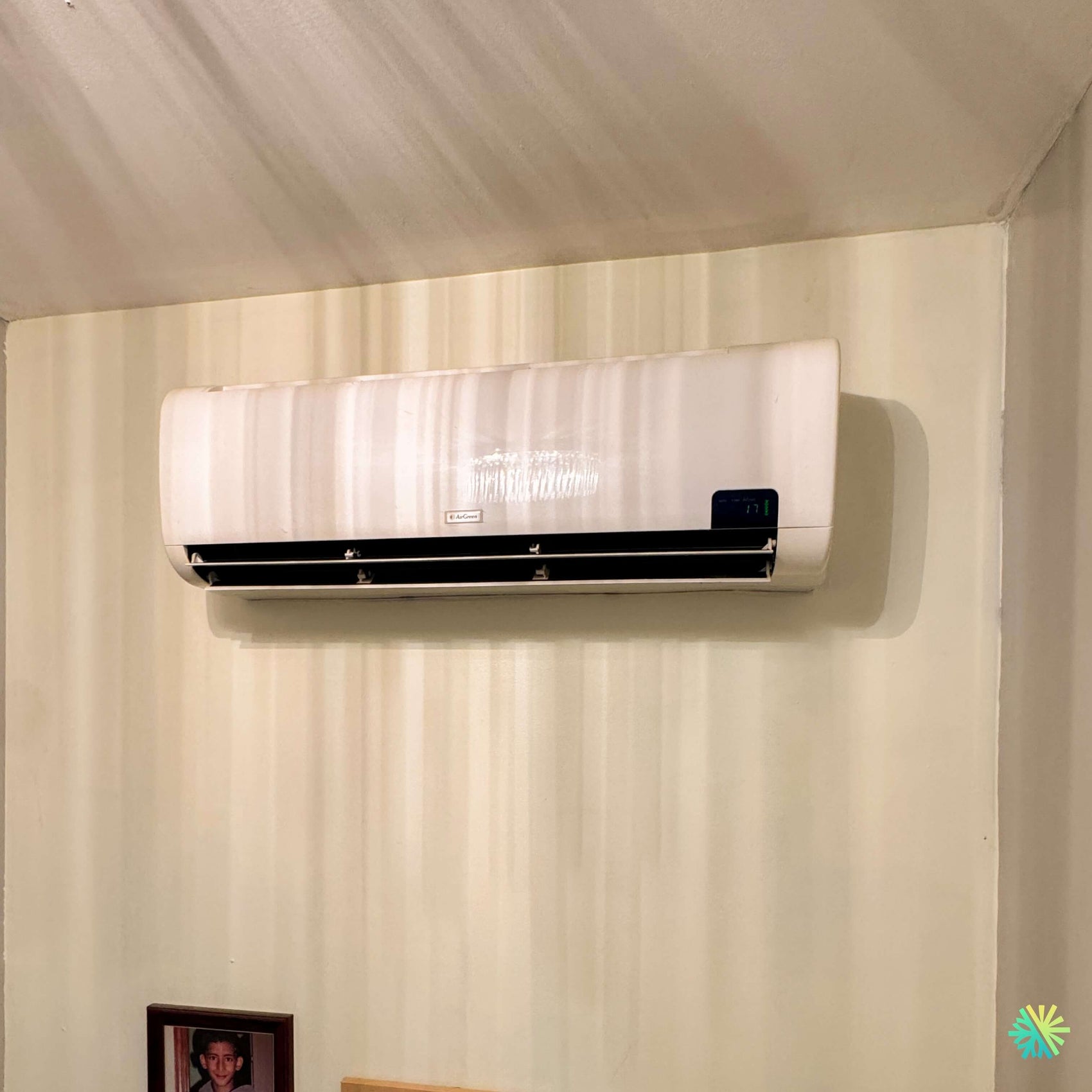

In a home in the Plateau-Mont-Royal, we were called for an AirGreen wall-mounted heat pump repair whose symptoms were visible as soon as entering the room: long vertical streaks on the wall directly under the indoor unit. The device was installed high on the wall, near the ceiling, in a typical residential setup of Montreal apartments where space is limited and the wall unit becomes the main equipment for comfort in summer and mid-season.
The client contacted us because the heat pump was still running but intermittently leaking water. The flow was not constant: some days, nothing seemed abnormal; then, during extended air conditioning use, drops appeared under the unit and ran down the wall. This type of situation must be addressed quickly because a condensate leak can damage paint, cause drywall to swell, create musty odors, and affect indoor air quality.
The unit in question was an AirGreen wall-mounted heat pump, compact residential size, visually corresponding to an approximate capacity of 12,000 BTU, used to cool and heat a main area of the home. Since the full nameplate was not the central visible issue, our diagnosis focused on critical elements related to drainage: condensate pan, drain, indoor coil, ventilation fan, drainage slope, and general condition of the indoor unit.
In this type of service call in Montreal, especially in neighborhoods like Plateau-Mont-Royal, Rosemont, Villeray, or Outremont, we often observe wall units installed in older spaces where walls, ceilings, and drainage routes impose certain constraints. A wall-mounted heat pump can operate mechanically while leaking water if the drainage is blocked, the pan is dirty, the evaporator is very dirty, or the condensate pipe slope is no longer sufficient.
Symptoms observed on site
From the visual inspection alone, several elements pointed us toward a condensate problem rather than an electrical or refrigeration failure. The wall under the unit showed long, irregular downward stains typical of a leak coming from inside the heat pump. The water seemed to have flowed from the lower part of the casing, then spread vertically on the wall surface.
The client described three main symptoms to us:
An intermittent water leak
Water did not flow right from the start. It appeared mainly after some time running in cooling mode. This is an important clue: when the warm, humid air in the room passes over the cold evaporator coil, moisture naturally condenses. This water must fall into the drainage tray, then be evacuated outside through the condensate pipe. If this path is partially blocked, the tray gradually fills until it overflows.
A drop in comfort during long periods of use
The client had also noticed that the device seemed less efficient when running for several hours. This symptom often accompanies internal clogging: a neglected filter, a dirty fan, or a partially blocked coil limits airflow. When air circulates less well, the device works longer, produces more condensation, and becomes more likely to leak.
A slight damp smell
Without being very strong, a damp smell was noticeable near the unit. This led us to suspect an accumulation of organic dirt in the tray or drain. In a wall-mounted heat pump, stagnant water combined with dust can create a viscous deposit that eventually blocks the drainage.
Why does a wall-mounted heat pump leak inside?
A water leak inside does not necessarily mean the device is irreparable. In the vast majority of cases, the problem comes from the drainage system or internal maintenance. For this service in Plateau-Mont-Royal, we explained the most frequent causes to the client so they could fully understand the diagnosis.
Blocked condensate drain
This is the most common cause. The drain pipe can become blocked with dust, algae, deposits, insects, or residues accumulated in the tray. Even a partial blockage is enough to cause overflow after prolonged use.
Clogged condensate tray
The tray located under the coil collects the water produced by condensation. When it is dirty, the water drains poorly, deposits move toward the drain outlet, and then a blockage forms.
Dirty indoor coil
A clogged coil changes the airflow and can promote irregular condensation. The water no longer always falls correctly into the tray and can follow unexpected paths inside the unit.
Overly dirty filters
Clogged filters reduce airflow. In air conditioning, this can lower the coil temperature too much, cause initial frost, then abnormal drainage when the ice melts.
Poor drain slope
In older buildings in Montreal, the condensate pipe may run through a wall, ceiling, or hard-to-access exterior outlet. Over time, slight movement, vibration, or sagging can reduce the slope and slow drainage.
Insufficient insulation of refrigerant lines
In some cases, condensation can also appear on a poorly insulated refrigerant line. We always check whether the water traces actually come from the indoor unit or from an element around the device.
Our diagnosis: confirm the exact source of the leak
A serious HVAC repair is not limited to wiping water or quickly blowing into the drain. On this AirGreen wall-mounted heat pump, we followed a precise sequence to avoid masking the problem without fixing it.
Filter and air return inspection
We first opened the indoor unit to check the condition of the filters. They showed dust buildup, which reduced airflow. A dirty filter is not always the sole cause of a leak, but it strongly contributes to operational imbalance.
We also checked the upper air intake because the unit was installed near the ceiling. When the space between the unit and the ceiling is limited, dust can accumulate faster on the top of the casing and reduce the efficiency of the air return.
Evaporator coil check
The indoor coil was inspected to spot signs of dirt buildup, previous frost, or misdirected condensation. The coil showed traces of accumulation that justified cleaning. A clean coil allows condensation water to flow evenly down to the tray rather than overflowing or running along the internal walls.
Condensate tray inspection
The tray showed typical deposits from a regularly used air conditioning unit. This mixture of dust, moisture, and residues can become sticky and slow down the flow. We checked the tray outlet, as this is often where the blockage starts.
Drain test
We performed a controlled flow test to verify if the water drains properly. The drainage was slow, confirming a partial blockage. This perfectly explained the intermittent behavior: water accumulated during use, then overflowed when the tray could no longer handle the volume of condensate.
Unit operation check
Once the initial elements were inspected, we restarted the unit to observe its real behavior in cooling mode. We monitored airflow, condensation formation, drainage, and the absence of drops at the front of the casing.
Cleaning, unclogging, and restarting: a precise repair to protect the wall and restore comfort
After confirming the problem, we carried out a complete intervention on the indoor unit. The goal was to restore reliable drainage, improve airflow, reduce odor risks, and prevent the leak from returning after a few days.
Cleaning of filters and accessible internal surfaces
The filters were carefully cleaned and then put back in place after proper drying. We also cleaned accessible internal surfaces to remove deposits contributing to general dirt buildup. A wall-mounted heat pump installed in a living space naturally accumulates dust, textile particles, sometimes light kitchen grease if the area is open, and microdebris related to normal occupancy.
Regular maintenance limits these accumulations and improves both comfort and the system’s lifespan.
Condensate tray cleaning
The condensate tray was cleaned to remove deposits responsible for slowing the drainage. This step is essential: unclogging only the pipe without cleaning the tray can give a temporary result. Remaining dirt then moves toward the drain outlet and recreates the blockage.
We carefully cleaned the tray’s outlet area, as it is the most sensitive point. A small blockage there is enough to cause a visible leak inside.
Condensate drain unclogging
The drain was methodically unclogged to restore smooth flow. After the intervention, a new water test was performed to confirm that the liquid was properly leaving the unit without backflow. This test is an essential step: it’s not enough to assume the drain is clear; it must be proven under real conditions.
In this case, the drainage clearly improved after cleaning. The water left the tray regularly, without abnormal accumulation.
Slope and positioning check
We also checked the unit’s positioning and the apparent slope of the drainage. In several homes in Plateau-Mont-Royal, old walls, successive renovations, and duct passages can create less direct paths. Here, the slope required special attention, but the partial blockage remained the main cause of the leak.
We recommended monitoring the drainage during the next extended cycles, especially on very humid days when condensate production is higher.
Operation check after repair
Once cleaning and clearing were completed, we restarted the AirGreen wall-mounted heat pump. The unit was tested in cooling mode to validate several points:
- Airflow was more consistent.
- Condensation water fell properly into the tray.
- The drain evacuated without backup.
- No drops came out of the front panel.
- The musty odor was reduced.
- Overall operation was more stable.
The customer noticed the unit blew better and the air noise was more uniform. This improvement is common after internal cleaning, as the turbine and filters play a direct role in comfort.
Parts replaced and elements corrected
In this intervention, no major parts like an electronic board, fan motor, or sensor had to be replaced. The problem was mainly due to dirt buildup and drainage. However, we corrected the elements necessary for proper operation:
Components restored
- Filters cleaned
- Condensate tray cleaned
- Drain cleared
- Drain outlet checked
- Indoor coil inspected and surface cleaned
- Operation tested in cooling mode
- Flow verified after intervention
This approach helped avoid unnecessary replacement while fixing the actual problem damaging the wall.
The importance of acting before the wall is damaged
Visible stains under the unit indicated that water had already leaked several times. Even if the leak seems minor at first, damage can progress quickly. Water can penetrate behind the paint, soften drywall, create persistent stains, and promote odors.
In a residential building in Montreal, a wall-mounted heat pump leak can also worry occupants below if the water reaches a shared floor or wall area. That’s why we recommend never waiting when a wall unit starts leaking inside.
Mistakes to avoid after a wall-mounted heat pump leak
After this type of repair, we always explain to the customer what actions to avoid. Several improvised interventions can worsen the problem.
Do not block the opening or tilt the unit yourself
Some occupants try to adjust the unit’s tilt or seal an area where water appears. This can shift the problem without fixing it and make the flow even more unpredictable.
Do not use the device intensively if water is leaking
If the drain is blocked, continuing to run the air conditioner for hours can cause the tray to overflow and increase damage.
Do not clean the interior with harsh household products
Unsuitable products can damage plastics, leave strong odors, or damage certain components.
Do not assume a water leak means a refrigerant leak
A condensate leak is much more common than a refrigerant leak in this type of situation. The diagnosis must distinguish between the two.
Don’t neglect the filters
Clean filters reduce system pressure, improve airflow, and limit problematic condensation formation.
Maintenance tips for an AirGreen wall-mounted heat pump
To prevent recurrence, we recommended regular maintenance adapted to the actual use of the device. A heat pump used daily in summer should be maintained more often than one used occasionally.
Clean the filters regularly
During intensive use periods, cleaning every few weeks may be necessary, especially in a home with dust, pets, textiles, or frequently open windows.
Watch for signs of moisture
An unusual smell, a drip under the unit, a mark on the wall, or internal water noise are signs not to ignore.
Schedule a professional cleaning
Professional cleaning goes beyond the filters. It targets the coil, the pan, the fan, and the drainage. This improves comfort, reduces odors, and prevents leaks.
Check the drain before the high season
Before hot and humid periods, a partially clogged drain can go unnoticed. As soon as the air conditioning runs for several hours a day, the problem becomes visible.
An HVAC repair adapted to the realities of Plateau-Mont-Royal
This intervention demonstrates the importance of an accurate diagnosis of wall-mounted heat pumps installed in Montreal housing. In Plateau-Mont-Royal, buildings often have particular configurations: high or sloped ceilings, old walls, complex pipe passages, tight spaces, and installations that have sometimes been adapted over the course of renovations.
Our role is to consider all these elements. An effective repair is not limited to the device; it takes into account the building, the drainage path, the client’s usage, and installation constraints.
At AirGreen, we handle HVAC service calls and repairs in Montreal, Laval, Longueuil, on the North Shore and the South Shore, for wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and other residential equipment. In this case, the problem was localized, repairable, and clearly related to condensate drainage.
The final result: an AirGreen wall-mounted heat pump that properly drains its water, a wall protected against new leaks, improved airflow, and a customer reassured about the condition of their system.
