A Goodman wall unit leaving visible marks even before announcing its failure

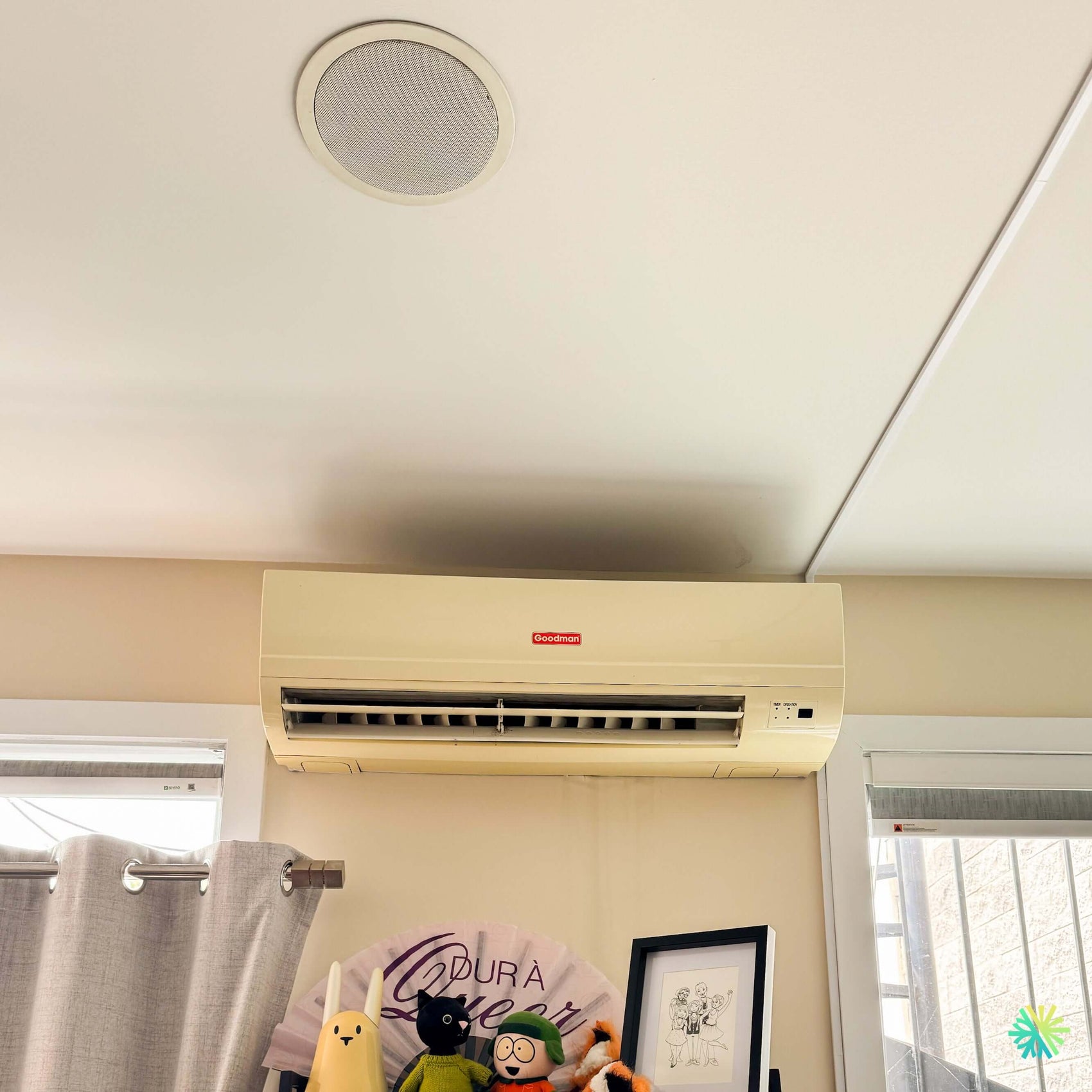

In Delson, our AirGreen team was called for a problem affecting a Goodman wall heat pump installed in a bright residential room, between two windows, close to the ceiling. From the visual inspection, one element immediately caught attention: a dark area above the unit on the ceiling, indicating that the device was not only facing a drop in performance but also an issue with air circulation, dust accumulation, and possibly particle backflow onto the ceiling surface.
The customer had noticed that the unit was still working, but comfort was no longer stable. The blown air seemed less powerful, the requested temperature was reached more slowly, and a dark mark had gradually formed above the heat pump. This combination of symptoms is common on older wall units: the device does not necessarily break down overnight, but it shows visible signs that its internal operation is deteriorating.
In this case, the Goodman unit was an indoor wall-mounted mini-split unit, connected to a residential HVAC system. The exact model and BTU capacity were not readable from the visible front panel, but the unit’s format corresponded to a small to medium capacity residential wall heat pump, typically used to cool and heat a main room, a bedroom, an office, or a compact open area. The apparent age of the unit, its beige color, the design of the front panel, and the presence of an older air grille indicated that a full diagnosis was necessary before concluding it was just surface dirt.
The context of the service call in Delson
The customer contacted us because the Goodman unit was no longer delivering the same performance as before. In cooling mode, the room felt heavier, especially on hot days. In heating mode, the air sometimes felt lukewarm rather than truly hot. The fan was working, the vents were opening, but the airflow was not consistent. The dark stain on the ceiling was also concerning, as it gave the impression that the unit was projecting dust or that the air was not circulating properly around the device.
This type of problem requires a precise approach. A mark on the ceiling above a wall-mounted heat pump can have several causes:
- dust accumulation in the fan;
- dirty indoor heat exchanger;
- filter too loaded or poorly maintained;
- turbulent air blowing toward the ceiling;
- air circulation disturbed by the unit’s location;
- humidity that holds particles on surfaces;
- light condensation related to poor airflow;
- prolonged use without complete technical cleaning.
It would have been too simple to tell the client that only the filters needed washing. In fact, when dust reaches the ceiling above a wall unit, it often means that particles have already passed through several internal areas of the device. Filters trap some contaminants, but they do not fully protect the fan, the heat exchanger, the drainage pan, and the distribution vents.
Visual inspection: an aging facade and signs of weakened airflow
The Goodman wall-mounted heat pump was installed just below the ceiling, with a relatively short distance between the top of the device and the upper surface. This setup is not uncommon in homes in Delson and the South Shore, especially when the unit is placed above a window or decorative wall. However, when a device is too close to the ceiling or accumulates a lot of dust, air can rise and deposit particles on the surface above.
We observed several clues:
- a dark mark on the ceiling, directly above the unit;
- a facade yellowed by time;
- an open supply grille, but with visually irregular airflow;
- indoor vents that appeared less clean;
- a unit installed in an area exposed to light, curtains, and household dust;
- a room with windows on both sides, which can influence thermal loads and temperature readings.
These elements guided us toward a diagnosis combining internal cleaning, fan verification, temperature control, and drainage inspection.
HVAC Diagnosis: understanding whether the problem came from the air, the cooling, the heating, or the control
Our technician first confirmed that the unit responded to commands. The system started, the indoor fan activated, and the distribution vents moved. This first step ruled out a complete control failure or a totally interrupted power supply.
Filter inspection
The filters were loaded with fine dust. On a Goodman wall unit of this generation, dirty filters can quickly reduce the volume of air drawn in. When suction is limited, the unit works under poor conditions: the indoor coil exchanges heat less effectively, the turbine works harder, and the blowing temperature becomes less stable.
A dirty filter can also create turbulence that pushes certain particles to unusual areas. This often explains why marks appear around or above the unit.
Indoor turbine inspection
The turbine was one of the most important points of the intervention. In a wall-mounted heat pump, the turbine is responsible for pushing the treated air into the room. When it is dirty, even if the compressor works well, the customer experiences a loss of performance.
We found that the turbine had a significant accumulation. It was not just an aesthetic issue. Dust stuck in the fins reduced the air movement capacity and could create irregular airflow. This situation explains both the lack of comfort and the formation of marks on the ceiling.
Indoor heat exchanger inspection
The Goodman indoor heat exchanger also showed signs of dirt buildup. The exchanger fins must be clear to allow good heat transfer. When they are blocked, the unit can produce less cold air in cooling or less warm air in heating, even if the other components are working.
In some cases, a dirty heat exchanger can also promote excessive condensation, residual humidity, odors, or partial freezing in cooling mode. Here, our analysis confirmed that the priority was to restore air circulation before considering more costly repairs.
Drainage and humidity check
We also checked the drainage area. Even if no major leak was visible in the photo, a dirty wall-mounted heat pump can retain moisture in its condensation tray. This moisture promotes dust adhesion and can increase odors or marks on the wall.
The drainage was inspected to confirm that water could drain normally in cooling mode. This step is essential, especially in older installations.
Intervention carried out: technical cleaning and reconditioning of the Goodman unit
After the diagnosis, we proceeded with a targeted intervention. Our goal was to restore airflow, improve heat transfer, and reduce particle projection onto the ceiling.
Cleaning of filters and accessible surfaces
The filters were removed, cleaned, and inspected. We also cleaned accessible areas of the front panel, the louvers, and the air outlets. This step is not always sufficient, but it prepares for deeper work and immediately reduces some airflow restriction.
Fan cleaning
The fan was thoroughly cleaned to remove deposits accumulated on the fins. This work requires precision. A poorly cleaned fan can remain unbalanced, generate vibration noise, or continue to blow irregularly. Once the fan is cleared, the airflow becomes more constant and air distributes better in the room.
Heat exchanger cleaning
The indoor heat exchanger was carefully treated to improve airflow between the fins. This step restored the unit’s better heat exchange capacity. In a wall-mounted heat pump, performance directly depends on this exchange: if air does not properly pass through the coil, the system consumes more energy for a lower result.
Function check after reassembly
After the intervention, we restarted the Goodman unit in ventilation mode, then in cooling and heating modes depending on the available test conditions. The airflow was stronger, more consistent, and the unit responded better to controls. The discharge temperature was more consistent, and the client could see that the unit no longer gave the same impression of weakness.
Result: better airflow, improved comfort, and a clear explanation of the ceiling stain
The intervention allowed the Goodman wall-mounted heat pump to be returned to a more stable operating condition. The client understood that the ceiling stain was not accidental: it was linked to disturbed air circulation and internal buildup that projected or displaced particles onto the upper surface.
We recommended cleaning the ceiling stain only after restoring the unit. Cleaning the surface without addressing the cause would have simply masked the problem temporarily. Once the unit was cleaned and the airflow restored, the risk of the mark quickly returning was greatly reduced, provided regular maintenance is followed.
The service call allowed to:
- restore better airflow;
- reduce turbulence above the unit;
- improve comfort in heating and cooling;
- clean critical internal components;
- check the drainage;
- reassure the customer about the device's functional condition;
- avoid a hasty replacement;
- provide concrete recommendations to extend the system's lifespan.
What a wall-mounted heat pump repair in Delson reveals about maintaining older systems
An older Goodman wall-mounted heat pump can still provide good service when properly maintained. However, it should not be judged solely by the fact that it starts. A device can turn on, blow air, and show normal operation while having lost much of its actual efficiency.
Signs to watch for on a Goodman wall unit
Owners in Delson, Montreal, Laval, Longueuil, the North Shore, and the South Shore should request a service call when the following signs appear:
- black or gray stains on the ceiling or wall near the unit;
- reduced airflow;
- less cold air when cooling;
- less warm air when heating;
- smell at startup;
- fan noise or vibration;
- louvers that move poorly;
- device running longer than before;
- persistent humidity in the room;
- filter that gets dirty very quickly.
These symptoms may indicate a simple need for cleaning, but also a mechanical weakness, a drainage problem, a poorly influenced sensor, or the beginning of a failure of an internal component. Diagnosis helps distinguish maintenance from a real repair.
Common mistakes to avoid
The first mistake is cleaning only the visible front. A wall-mounted heat pump may look acceptable on the outside while the fan and heat exchanger are heavily loaded inside.
The second mistake is repainting or cleaning the ceiling without correcting the unit's airflow. If the cause comes from the fan or the heat exchanger, the stain is likely to return.
The third mistake is leaving the filters in place for too long. Filters must be cleaned regularly, especially in homes with curtains, pets, dust, frequently open windows, or significant air circulation.
The fourth mistake is to conclude too quickly that the device must be replaced. An old Goodman unit can sometimes regain satisfactory performance after a complete technical cleaning and proper inspection.
Why AirGreen always checks the environment around the unit
A wall-mounted heat pump does not operate in isolation. Its location greatly influences its performance. In this case in Delson, the unit was located near the ceiling, between two windows, in an area decorated with curtains and wall objects. These elements can alter air circulation, trap dust, and affect the comfort sensation.
Our technicians always analyze:
- the distance between the unit and the ceiling;
- the presence of nearby windows;
- the direction of the airflow;
- the arrangement of furniture;
- curtains and textile surfaces;
- visible marks on walls or ceilings;
- the cleanliness of the filters;
- the apparent age of the device;
- the actual behavior of the airflow.
This approach helps us avoid incomplete diagnoses. In many cases, the cause of the problem is not a single defective part but a combination of dirt buildup, location, and insufficient maintenance.
HVAC expertise available in Delson and throughout Greater Montreal
AirGreen regularly provides repair services for wall-mounted heat pumps, wall air conditioners, central heat pumps, electric furnaces, MultiZone systems, air exchangers, and HVAC accessories. Our teams travel to Montreal, Laval, Longueuil, the North Shore, the South Shore, and municipalities such as Delson, Candiac, Sainte-Catherine, Saint-Constant, and La Prairie.
In the case of this Goodman wall-mounted heat pump in Delson, the service demonstrated the importance of a complete technical intervention. The problem was not limited to a stain on the ceiling. The mark was the visible symptom of a device that needed to be cleaned, checked, and reconditioned.
A successful repair means a device that breathes better
After our intervention, the Goodman unit blew better, responded more efficiently, and distributed air more steadily. The client regained better comfort without having to immediately replace the equipment. This distinction is important: a good HVAC repair does not aim to replace what can be fixed; it identifies the real cause and confirms the result.
In Delson, this Goodman wall-mounted heat pump needed a careful diagnosis, technical cleaning, and reconditioning. The intervention helped extend the device's lifespan, improve indoor comfort, and provide the client with practical advice to prevent the problem from recurring.
