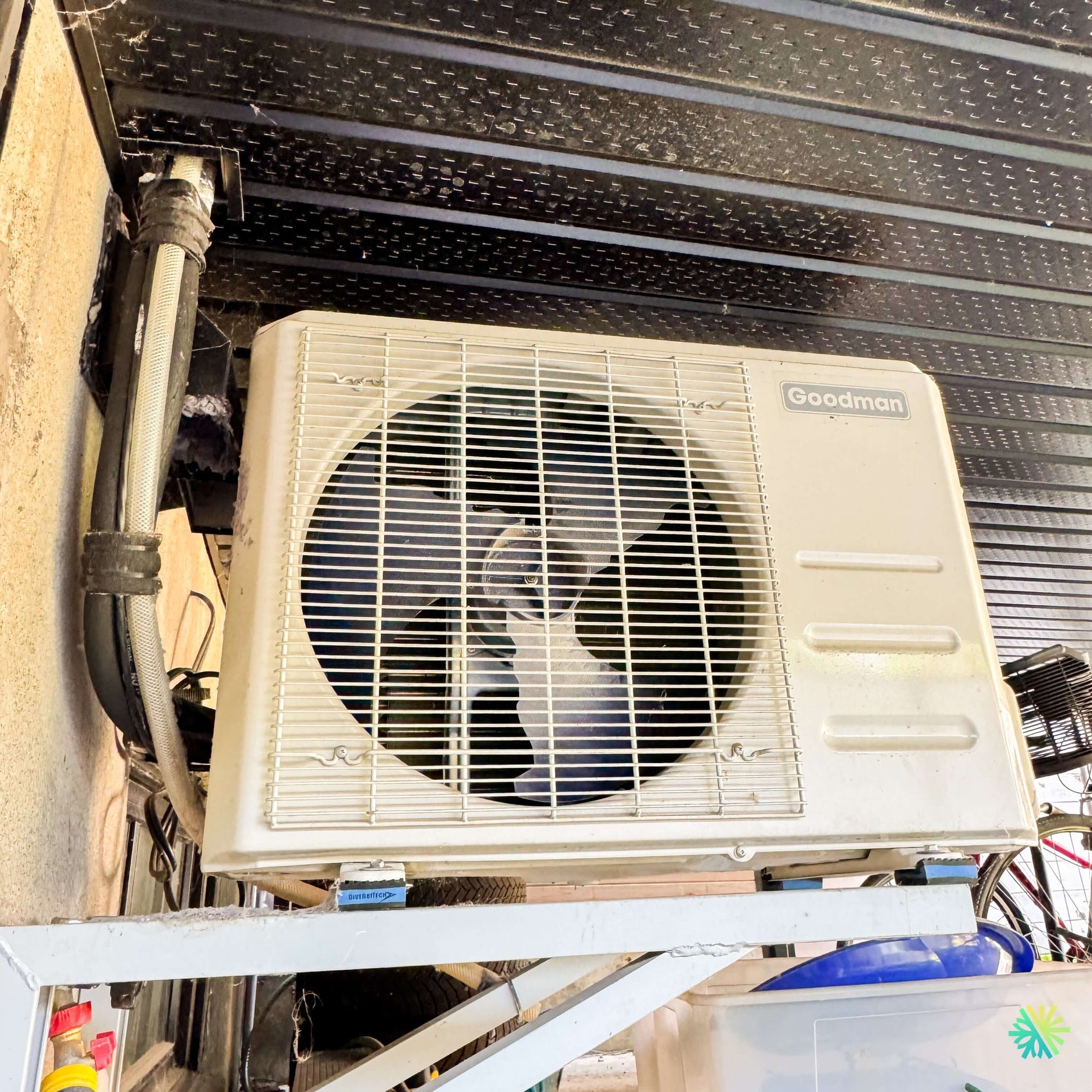

A Goodman outdoor unit installed under a balcony, with restricted access and a performance issue to resolve
In La Prairie, our AirGreen team was called for a performance issue on a Goodman wall-mounted heat pump whose outdoor unit was installed under a balcony structure, on a metal support, in a partially cluttered space exposed to dust. The client contacted us because the system was no longer responding as before: the air conditioning seemed less effective, the outdoor fan produced a louder noise, and the device took longer to stabilize the indoor temperature.
On site, the situation was immediately revealing. The Goodman unit, recognizable by its logo on the front panel, was placed in an environment that often complicates HVAC diagnostics: low ceiling, limited clearance above, stored objects nearby, ducts and cables tight against the wall, dusty outdoor grille, and restricted technical access. In this kind of setup, a wall-mounted heat pump can still operate but gradually lose efficiency due to insufficient outdoor airflow, a worn fan, a weakened condenser, a dirty coil, or a restriction in the refrigerant circuit.
Our intervention had to go beyond a simple visual inspection. It was necessary to understand why this Goodman heat pump in La Prairie had lost performance and determine whether the failure was due to an electrical, mechanical, refrigerant issue, or a combination of installation-related factors.
A compact wall-mounted heat pump in a demanding environment
The observed outdoor unit corresponds to a typical configuration of a mini-split wall-mounted heat pump: compact condenser, front axial fan, side refrigerant connections, communication wiring, and insulated ducts connecting the outdoor unit to the indoor unit. Even though the exact model and BTU capacity were not readable in the photo, the device’s format suggests a residential wall installation, likely used to cool and heat a main area of the house.
This type of system is very popular in Montreal, Laval, Longueuil, on the North Shore and the South Shore, because it offers good energy efficiency, relatively flexible installation, and precise comfort by zone. However, contrary to what many owners think, a wall unit is not independent of its environment. The outdoor unit must breathe. It must draw in and expel air without excessive recirculation. If hot or cold air remains trapped under a structure, if dust blocks the coil, or if the fan grille is obstructed, the system can quickly lose its efficiency.
In La Prairie, the Goodman unit was located under a balcony or platform, with limited vertical clearance. This constraint can worsen several problems: heat buildup in cooling mode, less effective clearance in heating mode, amplified noise, harder-to-detect ice formation, and more complex maintenance.
Symptoms observed before our intervention
The customer described a progressive situation. The heat pump was still working, but it no longer provided the same level of comfort. The reported symptoms included:
- a drop in cooling power;
- longer running time to reach the requested temperature;
- more audible outdoor noise;
- irregular outdoor ventilation at times;
- a feeling that the system is struggling;
- less stable performance on hot days;
- a doubt about the general condition of the outdoor unit.
These symptoms often point the diagnosis toward three categories of causes: an air circulation problem, an electrical problem, or a refrigeration problem. In many cases, all three can be related. For example, a dirty outdoor coil increases system pressure, which strains the compressor. If the outdoor fan is weakened, the pressure increases even more. If the condenser is weak, the motor may have difficulty starting or run at insufficient speed. The result felt by the customer is simple: less comfort, more noise, and more uncertainty.
Initial inspection: access, clearance, and condition of the unit
Before opening the device, we started by assessing the installation environment. The location under a black structure, proximity to the wall, and presence of objects around the unit required a cautious approach. A heat pump placed under a balcony is not automatically problematic, but it must meet minimum clearance conditions to allow adequate air circulation and safe access to components.
We inspected:
- the front grille of the fan;
- the condition of the fan blade;
- signs of accumulated dust;
- the metal support;
- possible vibrations on the structure;
- the refrigerant fittings;
- the line insulation;
- the visible cables;
- the available space for air discharge;
- traces of oil or moisture that could indicate a leak;
- the general condition of the Goodman casing.
The grille showed a visible accumulation of dust and dirt. The casing also showed signs of prolonged exposure to a confined environment. This observation is not enough to conclude a failure, but it indicates that technical cleaning and a fan check were necessary.
Electrical diagnosis: confirming the health of the motor and starting components
We then proceeded with electrical checks. On a wall-mounted heat pump, the operation of the outdoor fan is essential. If it does not run at the correct speed or starts with difficulty, the compressor may operate under poor conditions. The device can then lose power, overheat, go into protection mode, or produce abnormal cycles.
Our tests focused on:
- the power supply to the outdoor unit;
- the connections at the terminal block;
- signs of oxidation or overheating;
- the operation of the fan motor;
- the startup stability;
- the capacitor values when present according to the design;
- the control signals between the indoor and outdoor units;
- the compressor response during a cooling demand.
The diagnosis identified a weakness in the outdoor ventilation section. The motor was still running, but the ventilation performance was not optimal. This situation explained the increased noise and loss of efficiency. When the fan does not move enough air, the outdoor unit cannot properly reject heat in cooling mode. The system continues to operate, but with more effort and less result.
Coil cleaning and airflow correction
A major part of the intervention involved cleaning the outdoor coil and ventilation area. Effective HVAC cleaning is not just about removing visible dust from the grille. It requires accessing the areas where air actually passes through the exchanger, removing fine debris, checking the condition of the fins, and ensuring that water or cleaning products do not harm electrical components.
In this case, we proceeded cautiously due to limited access and the proximity of stored materials. The grille, fan, and coil were treated to improve airflow. We also checked that nothing around the unit encouraged recirculation of expelled air. In a space under a balcony, poor air discharge can create a vicious cycle: the unit expels hot air, this air gets trapped, then the unit draws in already warmed air again. Efficiency drops, the compressor strains, and the client experiences less effective cooling.
After cleaning, the outdoor ventilation was more consistent and the unit breathed better. This was confirmed when restarting.
Refrigeration check: avoid jumping to conclusions
When a wall system loses performance, many owners immediately think of a refrigerant shortage. This hypothesis is possible, but it should never be treated as a given. Adding refrigerant without confirming operating parameters can mask the real problem, increase costs, and cause overload.
For this Goodman heat pump in La Prairie, we evaluated the system's behavior after correcting the airflow. We observed temperatures, cycles, compressor response, and overall stability. The unit did not show the most obvious signs of major refrigerant loss, such as a complete inability to cool, abnormal ice formation, or extreme performance drop immediately after startup. The main issue was related to dirt buildup, lack of clearance, and weakened outdoor ventilation.
This distinction is important. A good HVAC diagnosis helps avoid unnecessarily charging for refrigerant recharge when the real cause lies in heat exchange or a ventilation component.
Restart and result validation
After the repairs, we restarted the heat pump and observed its behavior over several minutes. The outdoor fan ran more steadily, the noise was better controlled, and the cooling response was more consistent. The client noticed that the unit no longer seemed to be straining in the same way.
We also took the time to explain the installation limits. Since the unit is placed under a structure, more regular maintenance is recommended. The client should avoid storing objects too close to the condenser, keep the area clear, and monitor any changes in noise or performance. These tips are especially important on the South Shore, where wall systems can run intensively in summer and be used for heating during the intermediate seasons.
What this Goodman repair reveals about wall-mounted heat pumps installed in tight spaces
Outdoor clearance directly influences performance
A wall-mounted heat pump, even a good quality one, cannot deliver its optimal performance if the outdoor unit lacks air. Installation under a balcony, in an open garage, in a narrow yard, or near a wall can create difficult conditions. Manufacturers always provide minimum clearances around outdoor units, and these clearances are not just theoretical. They allow the system to transfer heat properly.
In the case of this Goodman unit, the location was not necessarily impossible, but it required greater attention to maintenance. A buildup of dust or a slight restriction can have a bigger impact than with a unit installed in an open space.
Signs to watch for before a complete breakdown
The repair in La Prairie showed that signs of a breakdown often appear before the system stops completely. Owners should request a service call when they notice:
- a noisier outdoor fan;
- slower cooling;
- less stable heating;
- longer cycles;
- a very dirty outdoor grille;
- a new vibration;
- an overheating smell;
- a unit that seems to operate without providing the expected comfort.
Waiting for the device to stop working completely can turn a simple repair into a more costly intervention. A fan motor that strains, a clogged coil, or abnormal pressure can affect the compressor, which is one of the most important components of the system.
Common mistakes to avoid
During our service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we often see the same errors around wall-mounted heat pumps:
- placing trays, boxes, or furniture too close to the outdoor unit;
- believing that a visibly clean grille means the coil is clean too;
- ignoring a fan noise that gradually changes;
- requesting a refrigerant recharge without a complete diagnosis;
- cleaning the unit with water pressure that is too strong;
- neglecting the insulation of refrigerant lines;
- letting cables or ducts poorly attached vibrate against the casing;
- postponing maintenance because the system is still working.
In this case, the intervention corrected the situation before a more serious breakdown. Cleaning, electrical tests, and fan validation restored a healthier operating base for the system.
HVAC expertise adapted to the realities of residential installations
Each residential installation has its own constraints. In La Prairie, the Goodman unit was not just a device to repair; it was part of a real environment, with a balcony, storage space, a metal support, and limited access. It is precisely in these situations that AirGreen’s field experience makes the difference.
Our work is not limited to replacing parts. We analyze the entire system: location, ventilation, noise, access, electrical condition, compressor behavior, refrigerant circuit, and the customer’s usage habits. This approach ensures a more lasting result and avoids incomplete diagnoses.
Final result: improved performance and reassured customer
At the end of the service call, the Goodman wall-mounted heat pump was operating with better stability. The outdoor airflow had been improved, the main components had been checked, and the customer had a better understanding of the causes of the performance loss. Indoor comfort was restored more consistently, and the recommendations given will help extend the unit’s lifespan.
This intervention in La Prairie demonstrates the importance of an accurate HVAC diagnosis, especially for wall-mounted heat pumps installed in tight spaces. An outdoor unit needs air, maintenance, and monitoring. When properly diagnosed and well maintained, it can continue to provide reliable comfort, even in a more complex setup.
