An HVAC intervention on an LG Inverter V outdoor unit that was no longer delivering full performance
In Mercier–Hochelaga-Maisonneuve, AirGreen was called for a LG wall-mounted heat pump repair installed on a residential terrace, against a brick wall. The visible equipment is an outdoor unit LG Inverter V, connected to an indoor wall unit by refrigerant lines protected in a vertical red line cover. The electrical disconnect box is placed nearby, and the installation is in a relatively tight outdoor space, between a window, a balcony railing, and the brick wall.
The client noticed a drop in performance: the heat pump started, the indoor unit blew air, but the temperature no longer dropped as quickly in cooling mode and the heating mode seemed less stable during cooler evenings. The device did not show a complete failure, which made diagnosis more delicate. In many cases, a wall-mounted heat pump that "still works" can actually be losing efficiency due to a communication problem, reduced heat exchange, a dirty outdoor coil, a bad electrical contact, or a refrigerant issue.
Our mandate was therefore to identify the exact cause, correct the defect, and validate that the LG heat pump could regain stable operation without unnecessarily replacing equipment that was still repairable.

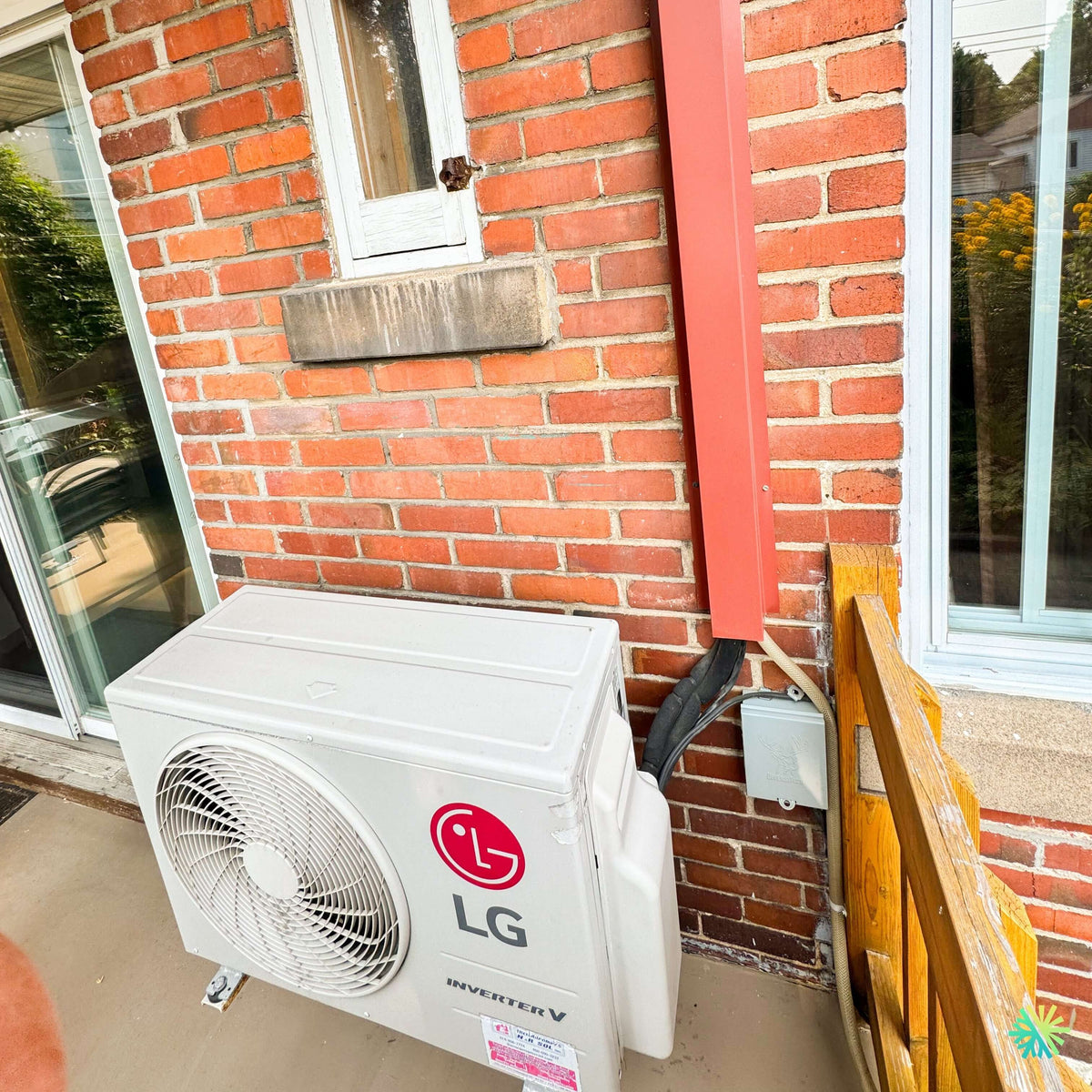

An LG wall-mounted heat pump in a compact outdoor configuration
The outdoor unit photographed is an LG Inverter V, a very common range in residential mini-split installations. The exact model and BTU capacity were not clearly visible in the image, but the configuration corresponds to a common residential wall-mounted heat pump, generally in the range of 12,000 to 18,000 BTU depending on the associated indoor unit and the needs of the served room.
This type of equipment is popular in Montreal, Laval, Longueuil, on the North Shore and the South Shore, because it allows air conditioning and heating of a specific area without ductwork. In residential neighborhoods like Mercier–Hochelaga-Maisonneuve, we often find these units on balconies, side walls, back terraces, or small yards, with space constraints that directly influence diagnosis and maintenance.
Several technical elements needed to be monitored on this installation:
- proximity to the brick, which can retain heat in the sun;
- limited clearance around the outdoor unit;
- vertical line cover exposed to weather;
- disconnect box accessible but close to the lines;
- refrigerant lines passing through the wall;
- unit installed near a balcony railing;
- possible exposure to dust, leaves, pollen, and urban debris.
These details are important because a wall heat pump heavily depends on the quality of outdoor heat exchange. If the outdoor unit breathes poorly, if the fan struggles, if the coil is clogged, or if the connections are unstable, performance quickly drops.
Symptoms reported by the customer
The customer did not describe a total shutdown, but rather irregular behavior. The heat pump seemed to respond to the remote control, but the expected comfort was no longer there. The room took longer to reach the requested temperature, and the outdoor unit sometimes seemed to start then slow down abnormally.
The observed and reported symptoms included:
- less effective air conditioning;
- longer cycles than usual;
- air blown less cold at the indoor unit;
- sometimes irregular outdoor operation;
- outdoor fan that seemed to slow down or restart;
- slightly louder noise near the outdoor unit;
- performance varying according to outdoor temperature;
- impression that the system was working without producing its usual output.
These signs can point to several causes. An LG Inverter wall heat pump naturally adjusts its speed according to demand, but when a customer notices a clear difference from usual operation, the entire system must be checked: power supply, communication, ventilation, cleanliness, pressures, discharge temperature, and condition of the lines.
Visual inspection of the LG outdoor unit
We started with a visual inspection of the outdoor unit. On a mini-split system, the outside is often the best starting point when there is a loss of performance. The compressor, fan, coil, electronic boards, valves, and connections are all exposed to significant temperature and humidity variations.
We checked:
- general condition of the LG cabinet;
- cleanliness of the outdoor coil;
- fan rotation;
- clearance in front of the grille;
- stability of the unit on its supports;
- vibrations transmitted to the balcony;
- condition of the refrigerant lines;
- line insulation;
- passage through the line cover;
- visible electrical box and connections;
- oil traces that may indicate a refrigerant leak;
- signs of oxidation or moisture.
The outdoor coil showed an accumulation of dust and fine debris. Nothing spectacular at first glance, but enough to reduce heat exchange efficiency. In an urban environment, dirt can gradually build up between the fins, especially when the unit is installed near a brick wall and a terrace.
Technical diagnosis: confirm the cause before repairing
A performance drop is not fixed by randomly adding refrigerant. On a wall-mounted inverter heat pump, the cause must be confirmed methodically. A poor approach can cause overload, mask an electrical problem, or lead to unnecessary costs for the customer.
Electrical and communication check
We first checked the power supply and communication between the indoor and outdoor units. LG Inverter systems use precise electronic logic. A weakened, oxidized, or poorly tightened connection can cause intermittent behaviors: incomplete starts, unexpected stops, intermittent codes, or reduced power.
The checks included:
- power supply voltage at the disconnect box;
- condition of accessible terminals;
- tightening of connections;
- condition of wiring;
- no visible overheating;
- communication continuity;
- unit response during an air conditioning demand.
An outdoor connection needed retightening and resecuring. This type of defect is not always visible to the customer but can affect operational stability, especially after several seasons of exposure to cold, rain, humidity, and vibrations.
Checking the outdoor coil
The outdoor coil must reject or absorb heat depending on the mode used. In air conditioning, it rejects heat outside; in heating, it captures energy from the outdoor air. If the fins are dirty, the heat pump must work longer to achieve the same result.
We inspected:
- coil fins;
- presence of dust;
- blockage by debris;
- airflow at the front and sides;
- condition of the grille;
- fan noise;
- discharge temperature.
Cleaning the coil was necessary to restore more efficient heat exchange.
Checking the refrigerant lines
The refrigerant lines exit the outdoor unit, rise towards the line cover, then enter the brick wall. Pipe insulation is essential, especially in air conditioning. Damaged insulation can cause condensation, loss of efficiency, corrosion, and accelerated aging.
We checked:
- line insulation;
- crushed or exposed areas;
- protection inside the line cover;
- wall passage;
- no signs of oil;
- condition of accessible fittings.
No obvious major leak was visually observed. Operational measurements then guided the repair towards a combined problem of outdoor air circulation and electrical contact, rather than a significant refrigerant leak.
The repair: cleaning, reconnection, and performance restoration
After confirming the probable causes, we proceeded with a targeted intervention. The goal was to restore performance without unnecessarily replacing the outdoor unit.
Technical cleaning of the outdoor coil
The coil was carefully cleaned to remove buildup that was hindering heat exchange. On an outdoor wall-mounted heat pump unit, aggressive methods should be avoided. Too high water pressure or improper tools can bend the fins and worsen the problem.
Steps performed:
- equipment safety measures;
- inspection of the grille and coil;
- controlled cleaning of exchange surfaces;
- airflow check;
- fan inspection;
- visual inspection after cleaning;
- restart in test mode;
- observation of unit behavior.
After cleaning, the unit breathed better and the fan could move air more efficiently through the coil.
Correction of the electrical connection
We then corrected the connection that showed potential instability. The connections were checked, tightened, and secured. On an inverter unit, this step is essential: a simple bad contact can cause symptoms resembling a circuit board or compressor failure.
We validated:
- tightening of terminals;
- voltage stability;
- absence of abnormal heating;
- start-up response;
- communication between units;
- operation after several cycles.
No major replacement of circuit board or compressor was required. The problem was fixed at the source, with a more economical and sustainable approach for the customer.
Check of the outdoor installation
We also inspected the general position of the unit. The equipment was installed in a usable space, but clearance should always be respected as much as possible. A unit too close to obstacles or exposed to dirt buildup can lose efficiency.
Our recommendations to the customer:
- keep the front of the unit clear;
- avoid storing objects near the fan;
- do not cover the unit with an unsuitable tarp;
- monitor pipe insulation;
- clean leaves or debris around the base;
- do not use a high-pressure hose directly on the fins;
- have the system inspected before the cooling season.
Result: LG heat pump stabilized and comfort restored
After the intervention, we tested the heat pump in cooling mode. The outdoor unit started normally, the fan operated more steadily, and the indoor unit regained a more consistent blowing temperature. The customer noticed a gradual improvement in comfort in the served area.
The results obtained:
- better external heat exchange;
- more regular cycles;
- more stable operation of the LG unit;
- reduced noise related to system effort;
- secured electrical communication;
- improved air conditioning performance;
- reduced risk of intermittent failure;
- informed client about signs to watch for.
This repair prevented premature replacement or unnecessary refrigerant recharge. The system needed a complete diagnosis, technical cleaning, and targeted correction, not a rough intervention.
What this LG repair in Mercier–Hochelaga-Maisonneuve teaches about maintaining wall-mounted heat pumps
An LG wall-mounted heat pump can offer excellent performance for many years, but it must be properly maintained. Outdoor units installed on balconies or terraces are exposed to particular conditions: urban dust, leaves, humidity, vibrations, heat reflected by brick, and sometimes limited access.
Common mistakes to avoid
When an LG Inverter V system loses performance, some actions can worsen the situation. We recommend avoiding:
- repeatedly resetting the circuit breaker without diagnosis;
- adding refrigerant without a full test;
- cleaning the coil with too much pressure;
- blocking the air outlet with patio furniture;
- ignoring damaged pipe insulation;
- letting leaves accumulate around the unit;
- improvising by closing the line cover with unsuitable tape;
- waiting for the compressor to fail before calling.
An inverter system is precise. When it slows down, modulates, or stops, it often does so to protect its components. Proper diagnosis helps understand if this behavior is normal or hides a real defect.
When to call AirGreen for an LG wall-mounted heat pump
A service call is recommended when:
- the air conditioning becomes less efficient;
- the outdoor unit makes more noise;
- the outdoor fan does not run normally;
- the indoor unit blows air without effectively cooling or heating;
- an error code appears;
- the circuit breaker trips;
- oil traces appear near the fittings;
- the pipe insulation deteriorates;
- the system runs longer than before;
- comfort becomes irregular.
These symptoms can result from simple neglected maintenance, but also from an electrical problem, an electronic board, a fan motor, a refrigerant leak, or poor heat exchange. A professional check prevents hasty conclusions.
The importance of outdoor cleaning
Several owners clean the indoor unit filters but completely forget the outdoor unit. Yet, on a wall-mounted heat pump, both parts work together. If the outdoor unit cannot properly expel or absorb heat, the indoor unit will not provide the expected comfort.
A well-done exterior cleaning allows:
- improve efficiency;
- reduce cycle duration;
- limit compressor effort;
- reduce certain noises;
- improve air conditioning stability;
- prepare the system for the hot season;
- extend the device's lifespan.
In Mercier–Hochelaga-Maisonneuve, as elsewhere in Montreal, Laval, Longueuil, on the North Shore and South Shore, units installed near streets, balconies, and brick walls deserve special attention.
Repair or replace an LG wall-mounted heat pump?
In this case, repair was clearly the best option. The LG Inverter V unit was still responding properly, the compressor was working, and the symptoms were explained by fixable problems. Replacing the equipment would have been premature.
A repair is relevant when:
- the compressor starts properly;
- the main parts are functional;
- the electronic board shows no confirmed defect;
- the problem is related to maintenance, wiring, or an accessible component;
- the system regains stable performance after correction;
- costs remain reasonable compared to the value of the device.
Replacement becomes more logical when breakdowns repeat, the compressor is defective, electronic boards are no longer available, a major leak is confirmed, or the device no longer meets the home's comfort needs.
AirGreen: HVAC repair in Mercier–Hochelaga-Maisonneuve and Greater Montreal
This service on a LG wall-mounted heat pump in Mercier–Hochelaga-Maisonneuve illustrates our approach: observe, measure, confirm, repair, and test. An outdoor unit that just looks dirty may hide a contact problem. A system that still blows air may actually be losing performance. A good diagnosis allows choosing the right intervention without unnecessarily replacing costly components.
AirGreen works on LG wall-mounted heat pumps, wall air conditioners, multi-zone heat pumps, central heat pumps, electric furnaces, air exchangers, humidifiers, dehumidifiers, and other HVAC equipment throughout Greater Montreal: Montreal, Laval, Longueuil, North Shore, and South Shore.
For this client, the repair helped stabilize operation, improve air conditioning, secure connections, and restore confidence in the equipment. A well-diagnosed and well-maintained wall-mounted heat pump can continue to provide reliable comfort even after several seasons of use.
