An LG outdoor unit installed high up causing noise, unstable performance, and loss of comfort
During a residential service call on the North Shore, our AirGreen team intervened for a LG wall heat pump whose operation had become irregular. The client had been using the system for several seasons, mainly for air conditioning in summer and as auxiliary heating during cooler periods. For some time, the device no longer responded as before: the air blown inside seemed less cold, the outdoor unit produced more vibrations, and some cycles stopped before the room reached the requested temperature.
The installation had an important particularity: the LG outdoor unit was mounted on a metal wall bracket, high up, on a brick facade, in a covered balcony space. This configuration is very common in residential buildings in the greater Montreal area, especially in dense sectors where ground space is limited. However, it requires special attention during an HVAC diagnosis, as the proximity of the wall, balcony ceiling, railing, and curtains or screens can directly affect air circulation around the condenser.

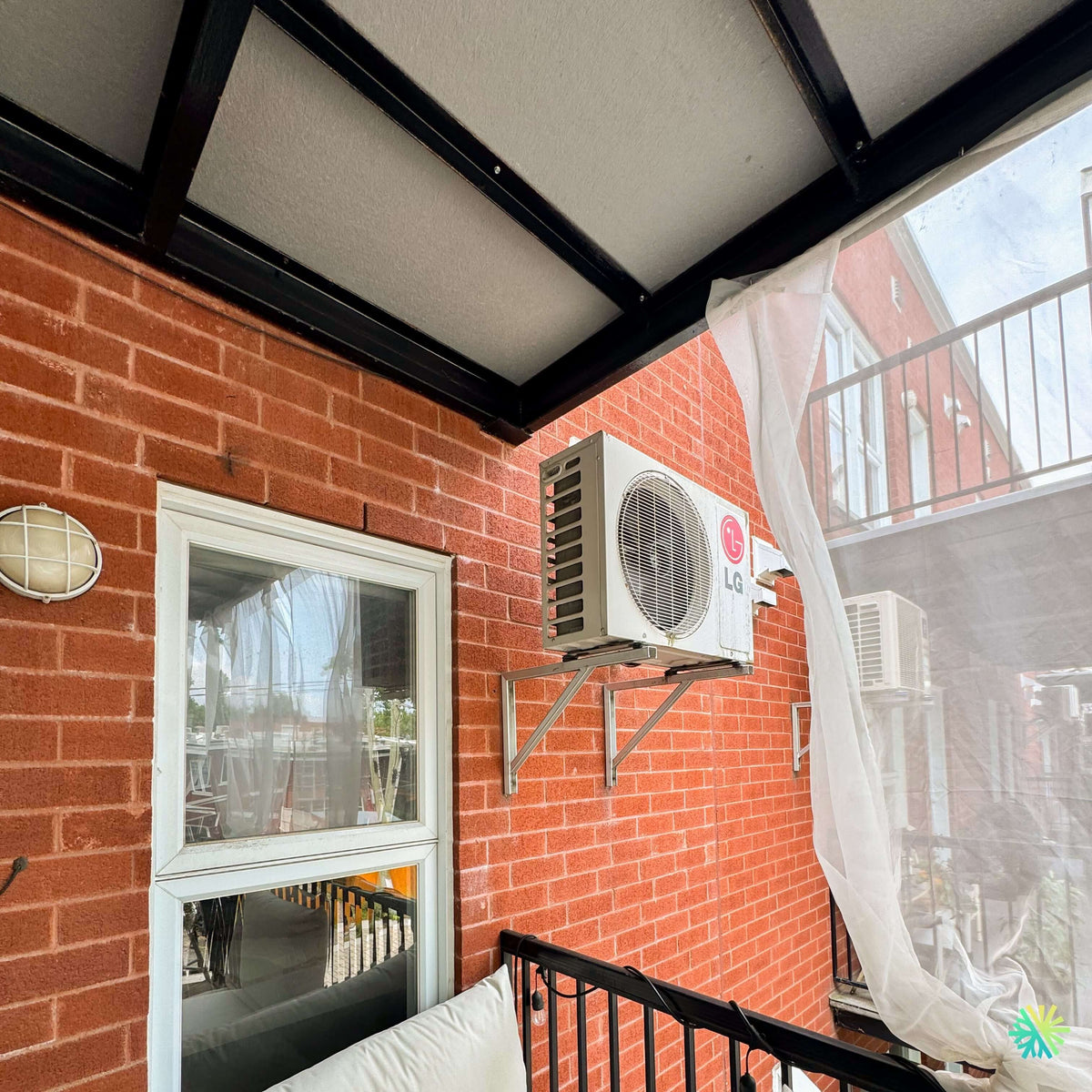

In the photo, you can see a compact LG outdoor unit, residential type, connected to a wall-mounted indoor unit. This type of system generally corresponds to a mini-split wall heat pump, often installed to air condition a main room, a condo, an apartment, or a floor. The exact model was not readable on the front, but the device’s size corresponds to a typical capacity of about 12,000 to 18,000 BTU, according to the nameplate and the paired indoor unit.
Symptoms observed before the intervention
The client described a progressive problem. The LG heat pump had not completely stopped, but its performance had decreased. This type of situation is common: the device still works enough to give the impression that it is not broken, but not enough to provide real comfort.
The reported symptoms were as follows:
- less effective air conditioning during hot days;
- longer cycles to reach the requested temperature;
- perceptible vibrations on the wall mount;
- outdoor noise louder than before;
- sometimes irregular starts and stops;
- indoor air less cold after a few minutes of operation;
- feeling that the outdoor unit was working harder;
- customer concern about a possible compressor failure.
These signs can come from several causes: dirty outdoor coil, reduced outdoor ventilation, weakened fan motor, faulty sensor, unstable electronic board, lack of refrigerant, loose electrical connection, poorly stabilized wall mount, or simple dirt buildup preventing the device from exchanging heat properly.
At AirGreen, we don’t replace parts randomly. An effective HVAC repair always starts with a complete analysis of the system’s behavior.
Inspection of the LG outdoor installation
The first step was the inspection of the outdoor unit. On a wall-mounted heat pump, the outdoor unit plays a central role: in cooling mode, it releases heat outside; in heating mode, it captures heat from the outside air. If this unit breathes poorly, the whole system loses performance.
In this case, the device was mounted on a metal structure installed against a brick facade. The support seemed sturdy, but several elements needed to be checked:
Clearance around the condenser
The condenser was installed in a covered balcony space, with a ceiling above, a railing in front, and another unit visible further away. This setup can work properly, but only if the hot air expelled by the outdoor unit does not flow back directly to the coil. When a condenser recycles some of its own hot air, the air conditioning becomes less efficient and the compressor has to work harder.
Condition of the outdoor coil
The coil showed an accumulation of dust, urban particles, and fine dirt. On a unit installed high up, customers rarely notice this buildup because the device looks clean from a distance. However, even a moderate layer of dirt can significantly reduce heat exchange.
Wall mount stability
Wall mounts sometimes transmit vibrations to the building structure, especially when a device ages or when anti-vibration pads compress over time. We checked the anchors, level, contact points, and vibration transmission to the brick wall.
Ventilation grille and outdoor fan
The front grille and the fan were inspected to check that no debris, rubbing, or visible imbalance was affecting the operation. An outdoor fan that does not move enough air can cause a pressure increase and a loss of efficiency.
HVAC diagnosis: distinguishing a performance issue from a major failure
After the visual inspection, we started the system and observed its behavior under real conditions. Diagnosing an LG heat pump requires precision, especially when the unit uses inverter technology. These systems modulate their power according to demand; therefore, it is necessary to analyze the operating trend rather than a single measurement point.
Blow temperature check
We measured the incoming and outgoing air at the indoor unit. The temperature difference was insufficient at the start of the test, confirming the customer's complaint: the machine was running, but its efficiency was reduced.
Observation of the outdoor unit
The outdoor unit started, but its operation seemed more laborious than expected. The fan was running, but heat exchange was limited by the coil’s dirtiness and less favorable airflow in the balcony space.
Electrical connection inspection
Accessible connections were checked for any signs of overheating, oxidation, or poor contact. An imperfect connection can cause intermittent interruptions, especially when the unit works harder on very hot days.
Refrigeration circuit check
We evaluated the behavior of the refrigeration circuit to determine if there were obvious signs of refrigerant shortage or restriction. No immediate indication pointed to a significant leak. The symptoms corresponded more to a combination of dirty outdoor coil, reduced outdoor ventilation, and vibrations transmitted by the wall mount.
Intervention performed on the LG wall-mounted heat pump
Once the main cause was identified, we carried out a targeted intervention. The goal was to restore the unit's efficiency, reduce noise, and ensure safe operation without recommending premature replacement.
Technical cleaning of the outdoor condenser
The outdoor coil was carefully cleaned to clear the fins and allow better airflow. This step is essential for a wall-mounted LG heat pump installed at height, as the unit can accumulate particles that the customer cannot easily inspect.
A clean condenser allows:
- better heat dissipation in air conditioning mode;
- a reduction in compressor effort;
- a more stable operating temperature;
- Fewer abnormally long cycles;
- Better overall efficiency;
- A reduced risk of overheating during heatwaves.
Vibration check and correction
We then worked on the vibration points. Wall mounts must be tightened well, but they must also limit mechanical transmission to the structure. Some contact points were adjusted and the supports were checked to reduce noise noticeable inside.
In buildings in Montreal, Laval, Longueuil, on the North Shore and the South Shore, vibrations of a wall-mounted condenser are a common cause of service calls. The problem does not always come from the compressor; it can come from the mount, the wall, the anchors, the pads, or a slight imbalance amplified by the structure.
Outdoor fan validation
The fan was observed after cleaning to confirm it moved air more evenly. The grille was cleared, and the space around the unit was inspected to reduce obstacles to airflow.
Performance tests after cleaning
After the intervention, the LG heat pump was restarted in cooling mode. Measurements showed a clear improvement in performance. The air blown inside was cooler, cycles were more consistent, and the outdoor unit seemed to operate with less effort.
Observed results:
- Better blowing temperature;
- Reduced outdoor noise;
- Less noticeable vibrations;
- More stable operation;
- Better heat exchange at the condenser;
- No immediate indication of major compressor failure;
- Indoor comfort restored more quickly.
Why this type of problem is common with LG wall-mounted heat pumps installed on balconies
Balcony installations are convenient, but they create specific conditions. The outdoor unit may be protected from some weather, but it can also lack clearance if the space is enclosed, covered, or cluttered.
Hot air recirculation
In cooling mode, the outdoor unit expels hot air. If this air gets trapped under a covered balcony or near a wall, the unit can reabsorb some of this heat. The system then loses efficiency.
Progressive coil fouling
Fine particles, city dust, pollen, and construction debris can accumulate in the fins. A dirty outdoor unit can still operate, but it becomes less efficient.
Vibrations on wall mounts
A wall mount must be properly installed and maintained. Over time, normal vibrations from the compressor and fan can become more noticeable, especially if the supports loosen or the pads lose their effectiveness.
Difficult access to maintenance
When a unit is installed at height, many clients delay maintenance because access seems complicated. However, it is precisely this type of installation that benefits most from regular inspection.
Mistakes to avoid with an outdoor unit installed at height
During this intervention, we also reminded the client of some good practices. Several simple actions help prevent a new loss of performance.
These should be avoided:
- hanging curtains, screens, or mosquito nets too close to the unit;
- placing objects in front of the ventilation grille;
- letting dust accumulate on the coil;
- ignoring vibrations that increase over time;
- washing the unit with excessive water pressure;
- removing panels without proper equipment;
- assuming that a noise automatically means a defective compressor;
- delaying service when the air conditioning becomes less effective.
An LG wall-mounted heat pump can offer excellent efficiency when it breathes well and its components are clean. Diagnosis helps distinguish a simple maintenance issue from a more costly breakdown.
An AirGreen intervention focused on the real cause of the problem
This repair on a LG wall-mounted heat pump on the North Shore demonstrates the importance of a comprehensive approach. The client feared a major failure, but the analysis showed that the system could be restored to performance through targeted cleaning, airflow verification, and vibration correction.
At AirGreen, we regularly work on LG systems and other brands of wall-mounted heat pumps throughout the greater metropolitan area: Montreal, Laval, Longueuil, North Shore, and South Shore. Each installation has its particularities. A unit on a balcony, a unit on a wall mount, a unit on the ground, or a unit near a fence are not diagnosed in exactly the same way.
In this case, the intervention helped restore comfort, improve air conditioning performance, and reassure the client about the overall condition of their system. The LG heat pump did not need to be replaced immediately; it required precise HVAC service, performed with the right tools and the correct method.
