Repair of a Mitsubishi Wall-Mounted Heat Pump in Chomedey

A delicate intervention on a Mitsubishi wall unit installed above a large piece of furniture

In Chomedey, in the Laval area, our AirGreen team was called for a service call on a Mitsubishi wall-mounted heat pump installed in a residential living room. Upon arrival, one detail was obvious: the indoor unit was positioned very high on the wall, just above a large solid wood piece of furniture, with several decorative objects placed directly under the unit. This setup is not uncommon in older houses and condos in Montreal, Laval, Longueuil, the North Shore, and the South Shore, but it always complicates technical access, especially when inspecting the drain, turbine, louvers, filters, and internal components.

The client contacted us because their Mitsubishi Electric wall-mounted heat pump was no longer delivering its usual performance. The unit would turn on, the ventilation still worked, but the blown air seemed less powerful, the temperature dropped more slowly in cooling mode, and a slight vibration noise was heard during certain cycles. The client also feared a possible water leak, as they had noticed unusual moisture near the wall under the unit on warmer days.

Our mission was clear: to determine whether the problem was due to lack of maintenance, a slowed condensate drain, an electrical component, a worn-out ventilation motor, or a more serious issue related to the refrigeration circuit.

Equipment identification: a Mitsubishi Electric wall-mounted heat pump

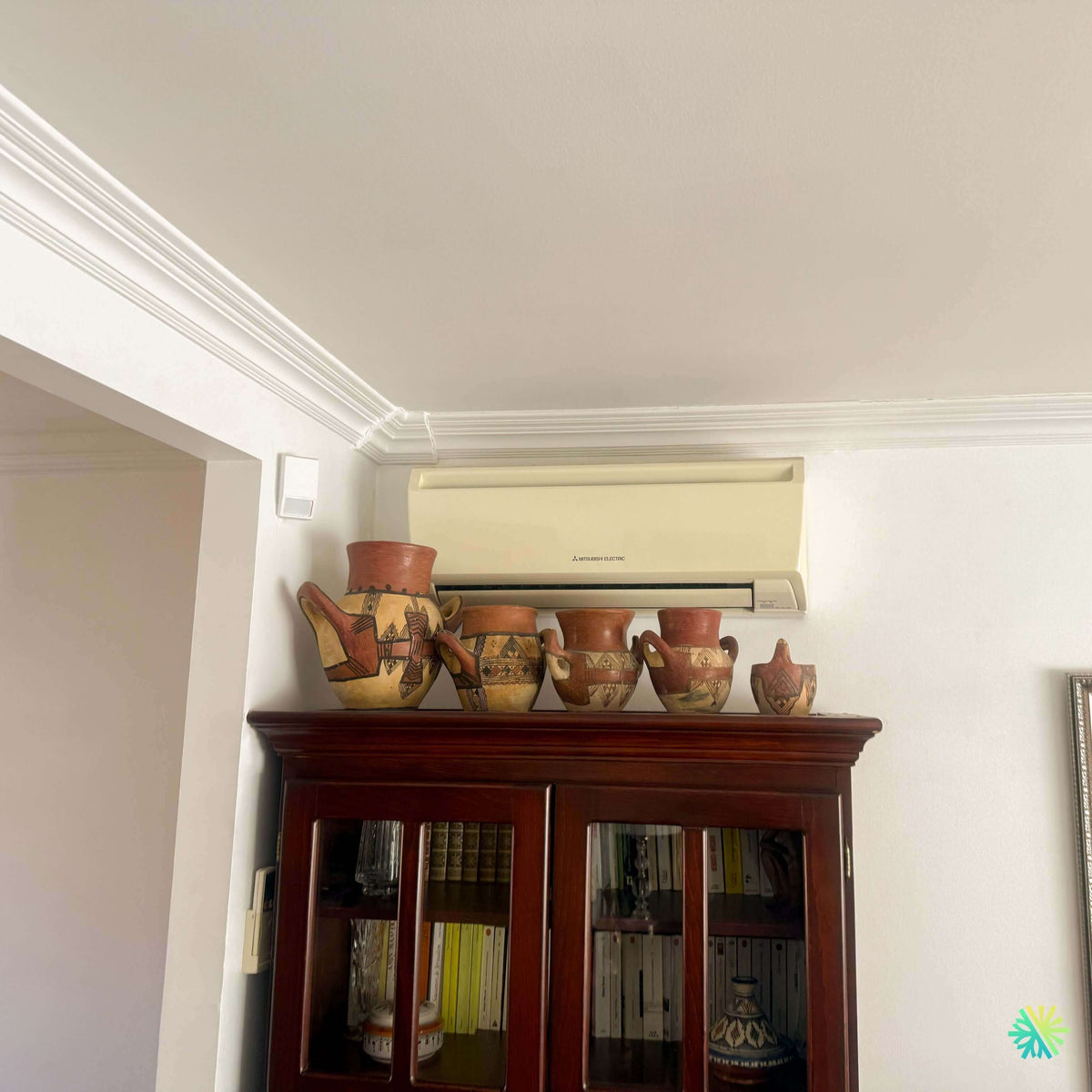

The on-site image showed a Mitsubishi Electric wall-mounted indoor unit, a mini-split type, installed near the ceiling. This is therefore a wall-mounted heat pump, not a central system, PTAC, ducted, or cassette unit. This type of device is very common in houses and condos in Chomedey, especially when occupants want to cool and heat a main area without installing a full duct network.

The exact capacity of a Mitsubishi device must always be confirmed with the nameplate of the indoor and outdoor units, but the observed size typically corresponds to a residential unit of about 9,000 to 15,000 BTU, depending on the installed combination. This capacity level often suits a main room, living room, open area, or partial floor, provided the installation is properly sized and maintenance is performed regularly.

Symptoms observed before the diagnosis

During our discussion with the customer, several elements helped us guide the diagnosis:

• the ventilation seemed weaker than before;
• cold air was present but less effective;
• the device took longer to reach the requested temperature;
• a slight noise appeared when the turbine accelerated;
• the customer had noticed a possible trace of moisture;
• the unit was installed in a hard-to-reach place;
• no permanent error code was displayed.

These symptoms do not automatically point to a major failure. On a Mitsubishi wall heat pump, a drop in performance can be caused by dust accumulation on the filters, a dirty turbine, a partially blocked evaporator, a slowed condensate drain, a sensor affected by dirt, or an obstruction in the airflow.

The particular challenge: access above the furniture

The furniture placed directly under the unit made the intervention more delicate. Before opening the device, surfaces had to be protected, ensuring that no decorative objects risked being damaged, and working precisely in a confined space. This kind of detail may seem secondary, but in HVAC repair, the installation environment matters a lot.

A poorly accessible wall unit can complicate:

• removing the filters;
• opening the front panel;
• inspecting the condensate tray;
• cleaning the turbine;
• testing the drain;
• checking the connections;
• observing the behavior of the louvers.

In this case, the location of the unit also explained why regular maintenance had probably been less thorough over the years. When a device is hard to reach, filters are often cleaned less frequently, and internal components accumulate dust, moisture, and residues more quickly.

Initial inspection of the indoor unit

After securing the work area, we proceeded to open the wall unit. The filters showed a visible accumulation of dust. It was not a complete blockage, but enough to limit airflow and force the heat pump to work longer.

The evaporator also showed signs of fouling. On a wall unit, the evaporator is essential for heat transfer. When the fins are partially covered with dust, the machine can still operate, but its efficiency decreases. The customer then feels a drop in performance, even if the device does not break down.

We then inspected the fan. This is often where the problem becomes more serious. A fan can spin normally while moving less air if its blades are coated with dust stuck by moisture. This can produce a bearing noise, slight vibration, or less uniform ventilation.

Diagnosis, technical cleaning, and restoration of the Mitsubishi system

Our diagnosis confirmed that the main problem came from a combination of three factors: internal fouling of the unit, a less efficient fan due to dust buildup, and a condensate drain that was starting to slow down. There was no immediate indication justifying a major component replacement such as the compressor, electronic board, or fan motor.

Verification of operating mode and controls

Before any mechanical intervention, we verified the remote control settings: selected mode, requested temperature, fan speed, flap orientation, and unit behavior at startup. This step is important because a heat pump in automatic mode or with an improperly setpoint can sometimes seem ineffective without being defective.

In this case, the settings were consistent. So the problem did not come from user error. The machine responded correctly to commands, but its actual performance was reduced by physical constraints inside the unit.

Filter cleaning and evaporator inspection

The filters were removed, cleaned, and inspected. We then performed targeted cleaning of the accessible surfaces of the evaporator. The goal was to clear the fins without damaging them. Excessive pressure or an inappropriate product can bend the fins, move dirt into the condensate tray, or cause odor problems later.

In Mitsubishi wall systems, maintenance quality plays an important role in performance stability. A clean filter helps, but it is not always enough. Fine dust passes through over time, especially in a living room where there is movement, heating, humidity, cooking nearby, or pets.

Cleaning the ventilation turbine

The turbine was one of the key elements of this intervention. Its dirtiness largely explained the reduced airflow and the slight noise reported by the customer. A dirty turbine does not push air as efficiently. The machine may then run longer, consume more, and give an impression of weakness.

We carefully cleaned the turbine, considering the limited access caused by the furniture. This step requires patience, as the turbine contains many small fins where dust accumulates. Once cleaned, the rotation was smoother and the ventilation more stable.

Condensate drain test

The customer had mentioned a concern related to humidity. We therefore checked the condensate tray and the drain flow. During air conditioning, a wall-mounted heat pump removes a significant amount of moisture from the indoor air. This water must drain without restriction. If the drain slows, water can accumulate in the tray, create odors, or eventually overflow.

We tested the flow and found that it was not completely blocked but lacked smoothness. The drain was cleared and then tested again. After the intervention, the water drained properly, greatly reducing the risk of future leaks.

Noise and vibration check

The noise reported by the customer mainly came from the dirty turbine and irregular airflow. After cleaning, we restarted the device at several fan speeds. The sound was more stable, without abnormal vibration. We also checked that the flaps opened properly and that nothing was rubbing against the front panel.

In some cases, noise from a wall unit can be caused by a wall bracket, a deformed plastic part, a weakened motor, or a more significant imbalance of the turbine. Here, the improvement after cleaning indicated that the problem was related to dirt buildup rather than a defective part.

Why no major parts were replaced

A good HVAC repair does not mean replacing parts unnecessarily. In this intervention in Chomedey, the checks showed no failure of the electronic board, ventilation motor, or sensor. The system responded well, the outdoor compressor seemed to operate normally, and the problem was consistent with insufficient maintenance of the indoor unit.

So we did not replace any major components. The intervention mainly involved cleaning, clearing, testing, and putting the device back into better operating conditions. This is often the best solution when the machine is still mechanically sound.

Result after the intervention

After restarting, the difference was clear. The airflow was more consistent, the device reached the requested temperature faster, and the vibration noise had decreased. The client was able to see that the problem was not a major breakdown but a gradual buildup of dirt affecting the performance of their Mitsubishi heat pump.

Comfort was restored in the main room, and the client received clear recommendations to prevent the problem from returning too quickly.

Practical advice given to the client

We recommended cleaning the filters more regularly, especially during heavy use periods. For a wall unit located above furniture, it is also important to ensure safe access to the device, without fragile objects directly under the unit during maintenance periods.

We also advised monitoring certain signs:

• sudden drop in airflow;
• musty smell;
• water drops under the unit;
• fan noise;
• frost on the unit;
• cycles that are too long;
• difficulty reaching the requested temperature.

These signs should not be ignored. A minor problem can often be fixed quickly if addressed early. Conversely, a neglected drain or a very dirty fan can lead to water damage, persistent odors, or premature wear.

Mistakes to avoid with a Mitsubishi wall-mounted heat pump

The first mistake is to think that a device that is still blowing air does not need service. A unit can operate while having lost a significant part of its efficiency. The second mistake is to immediately assume a refrigerant shortage. Low airflow can mimic some symptoms of a refrigeration problem, but the real cause is often found in the indoor unit.

The third mistake is cleaning only the filters. Filters are important, but the turbine, evaporator, and drain also play a major role. Finally, avoid improvised cleanings with harsh products or uncontrolled water jets, especially when the unit is installed above furniture or sensitive objects.

An intervention representative of our expertise in Laval

This repair in Chomedey clearly illustrates how we work at AirGreen. We take the time to observe the installation, understand the symptoms, protect the client’s space, identify the real cause, and verify the result after the intervention. In the field of HVAC maintenance and HVAC repair, every detail matters: access, device age, level of dirt buildup, drainage, noise, ventilation, and the overall system behavior.

We regularly service wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, electric furnaces, and many other residential and commercial equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore.

AirGreen for Mitsubishi service calls in Chomedey and Greater Montreal

A Mitsubishi wall-mounted heat pump is a reliable piece of equipment, but it must be properly maintained to preserve its performance. When a device becomes less efficient, produces unusual noise, or shows signs of moisture, a professional diagnosis helps avoid poor decisions and extends the system’s lifespan.

In Chomedey, this intervention helped restore the device to more stable ventilation, better efficiency, and safer condensate drainage. For the client, the result was clear: regained comfort, eliminated worry, and a better understanding of the true condition of their machine.
