A GREE ducted installation designed to preserve aesthetics while improving comfort
In Repentigny, we completed an HVAC installation where the goal was clear: to provide uniform comfort inside without imposing the visible presence of wall units in living spaces. The choice naturally leaned towards a GREE ducted solution, also called ducted conduit, slim duct, ducted conduits or ductable system, a configuration especially appreciated when the client wants to combine performance, discretion, and architectural integration.
Unlike a classic wall-mounted heat pump, the ducted system allows the indoor unit to be hidden in a technical space, a false ceiling, an attic, or a suitable area, then distributes air through a network of ducts. The result is discreet: only the supply and return grilles are visible. For a residence in Repentigny, this type of installation is an excellent option when you want to maintain a clean interior finish while benefiting from efficient heating and cooling.

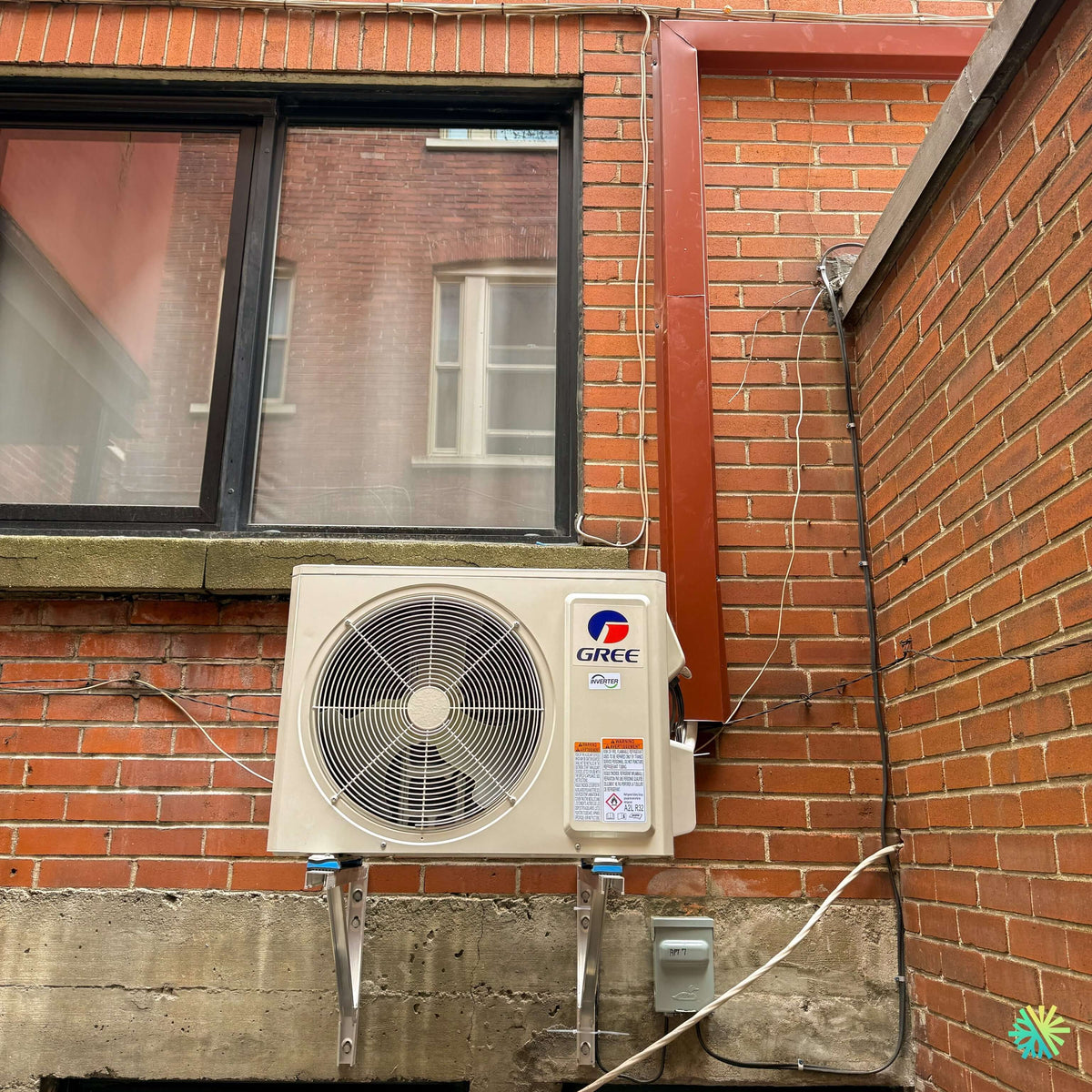

In the photo of this project, you can see the GREE outdoor unit installed on wall mounts, securely fixed to the brick wall. The passage of refrigerant pipes and cables is protected by a brown exterior cover, chosen to better blend with the existing facade. In an urban or semi-urban environment like Repentigny, this attention to detail matters a lot: a good installation is not just about the machine’s operation, it must also respect the building’s appearance, service access, electrical safety, and overall durability.
Why a ducted system in Repentigny?
The Repentigny area includes many single-family homes, condominiums, duplexes, triplexes, and buildings renovated over the years. In this type of residential market, heating and air conditioning needs vary greatly from one project to another. Some clients want to air condition an open area, others want to improve the comfort of several rooms, while some owners are looking for a solution more discreet than a visible wall unit.
In this project, the main advantage of the GREE All Match Slim Duct R32 system was its ability to integrate elegantly. The ducted system allows for a more balanced air distribution, especially when the duct design is well calculated. However, this type of installation requires a more thorough analysis than a simple wall replacement: available space, duct routing, required static pressure, indoor unit position, condensate drainage, noise level, and future access for HVAC maintenance must be validated.
At AirGreen, we pay special attention to these elements because they directly determine customer satisfaction after installation. A well-chosen but poorly integrated device can cause problems with noise, airflow, condensation, or maintenance. Conversely, a correctly sized and precisely installed system provides stable, discreet, and lasting comfort.
The GREE choice: a ducted range suited for residential and multi-zone projects
The GREE ducted range offered by AirGreen includes several configurations, including low static pressure models, high static pressure models, as well as the GREE All Match Slim Duct R32 series. Available capacities may vary depending on the models, with options commonly used in residential projects: 9,000 BTU, 12,000 BTU, 18,000 BTU, 24,000 BTU, 30,000 BTU, and 36,000 BTU.
This flexibility allows the solution to be adapted to the reality of the building. A small closed space does not have the same requirements as a whole floor, an open area, or a dwelling with several zones to serve. For this reason, we avoid general recommendations without inspection. The right model depends on several factors:
- the area to heat and cool;
- the insulation level;
- the building orientation;
- the ceiling height;
- the quantity and quality of windows;
- the possible location of the indoor unit;
- the length and complexity of the duct network;
- the static pressure needed to ensure good airflow.
The GREE All Match Slim Duct R32 systems are particularly interesting for customers looking for a visually cleaner solution than a wall unit, while maintaining the efficiency of a modern heat pump. The refrigerant R-32, used in some recent models, offers a more current approach for HVAC installations, with good energy performance and a design adapted to today's efficiency requirements.
A clean, safe, and durable outdoor installation
In this installation in Repentigny, the outdoor unit was mounted on sturdy wall supports to raise it off the ground. This approach offers several important advantages in our Quebec climate. In winter, it helps protect the unit from snow buildup, ground ice, and water splashes. It also facilitates access for maintenance and reduces risks related to an unstable base.
The brick wall required precise work. The mounting had to be solid, well aligned, and suited to the weight of the unit. The supports were carefully installed to ensure good stability. We also paid attention to the clearance around the unit to allow adequate air circulation. An outdoor unit that is too cramped, too close to an obstacle, or poorly ventilated can lose performance and suffer premature wear.
The brown cover visible on the facade also plays an important role. It protects the refrigeration lines, communication wiring, and insulation from weather, UV rays, and light impacts. Its color matches the building, giving a much cleaner finish than an exposed line. In a professional HVAC installation, these details make a real difference, both in appearance and longevity.
The importance of the refrigeration line and drainage
In a ducted system, the path between the outdoor unit and the indoor unit must be designed with rigor. Refrigerant lines must be protected, properly insulated, and installed according to the manufacturer's specifications. Poor insulation, inadequate slope, or poorly protected routing can cause efficiency losses, unwanted condensation, or long-term service problems.
Condensate drainage is another critical point. In air conditioning, the indoor unit removes moisture from the air. This water must be reliably drained. Depending on the indoor configuration, a gravity drain may suffice, but in some cases, a condensate pump is necessary. For ducted systems, we always assess the available slope, the possible exit point, and the accessibility of the drainage system for future maintenance.
A customer often sees the outdoor unit, the grille, or the thermostat. However, the real performance depends greatly on what is hidden: ducts, connections, insulation, drainage, wiring, static pressure, and balancing. This is precisely where the expertise of a qualified HVAC installer becomes essential.
The technical challenges of a GREE ducted system and the solutions applied by AirGreen
Designing a duct network that breathes properly
One of the main challenges of a GREE ducted duct is to ensure a good balance between discretion and airflow. A duct network that is too restricted can create noise, reduce comfort, and force the device to work harder. A network that is too long or poorly sized can cause significant pressure loss. Conversely, a well-calculated design allows air to be distributed more gently and evenly.
For this type of project, we pay particular attention to the available static pressure. GREE models can be offered in low static pressure or high static pressure, depending on the length of the network and the number of air outlets. The choice is not just a matter of BTU capacity. A device with good capacity can perform poorly if the static pressure is not suited to the ducts.
In this installation in Repentigny, our approach was to prioritize a durable solution rather than a layout that is simply quick to execute. We analyzed the routing of the lines, the location of the outdoor unit, the protection of the connections, and the service logic. The goal was to deliver a clean, functional, and accessible installation.
Adapting the solution to the existing building
Projects in existing buildings often require more thought than new constructions. In Repentigny, as in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we frequently encounter brick walls, limited mechanical spaces, condominium restrictions, closed ceilings, restricted access, and high aesthetic requirements.
In this case, the presence of the brick wall and the side space required careful planning for the outdoor routing. The protective cover allowed the lines to be neatly grouped while providing a consistent finish. The position of the outdoor unit was chosen to ensure good service access and adequate ventilation, while avoiding an installation that is too low.
We also paid attention to the immediate environment: clearances, proximity to windows, installation height, cable routing, and the location of the electrical disconnect switch. These details are essential to follow good installation practices and facilitate future maintenance.
Performance, efficiency, and grant eligibility
GREE ducted systems can offer an excellent solution for homeowners looking to reduce their energy consumption while improving their comfort. Several models in the range are designed to provide good heating and cooling performance, with some configurations suited for cold temperatures that can operate down to about -30 °C depending on the model.
Eligibility for a grant, especially under programs like Hydro-Québec’s LogisVert, depends on the exact model installed, its capacity, certification, AHRI number, and the rules in effect at the time of installation. For this reason, we always verify the information before providing a final estimate. A system can be very efficient, but the exact grant amount must be confirmed according to the technical sheet and the applicable program criteria.
At AirGreen, we help customers understand this part of the process. We provide the necessary documents after installation so the customer can submit their application when the model is eligible. This transparency is important because the subsidy should never be presented as a simple automatic discount without verification.
Mistakes to avoid with a ducted system
A ducted system can deliver remarkable results, but only if the installation is well designed. Several mistakes should be avoided:
Choosing based only on BTU
Capacity is important, but it is not enough. The duct network, static pressure, airflow, noise, and interior layout must also be considered. An oversized unit can cause short cycling, while an undersized unit may run constantly without achieving the desired comfort.
Neglecting maintenance access
A hidden indoor unit must remain accessible. Filters, the drain, connections, and service components must be inspectable. An overly closed installation can complicate HVAC maintenance and increase future costs.
Installing ducts that are too small
Undersized ducts can cause excessive noise, poor air distribution, and reduced performance. We favor a balanced design, with well-placed grilles and a logical path.
Forgetting exterior aesthetics
The exterior passage of the lines must be protected and well finished. The choice of cover, its alignment, color, and positioning strongly influence the final appearance. In this project, the brown cover allows for a much more harmonious integration with the brick.
Underestimating drainage
Condensate must be drained reliably. In a ducted system, poor drainage can cause water damage, odors, or system shutdowns. This is a point we always check.
A solution suited for homeowners who want invisible comfort
Customers who choose a ducted heat pump often look for a more discreet result than traditional wall-mounted solutions. This type of system is particularly relevant for:
- houses where interior aesthetics are a priority;
- high-end renovations;
- homes where multiple wall units are to be avoided;
- long or divided rooms requiring better distribution;
- projects with a false ceiling or available technical space;
- owners who want a centralized solution without redoing the entire building.
In Repentigny, this project illustrates this logic very well. The GREE outdoor unit is visible but installed neatly. Inside, comfort can be distributed discreetly, with minimal visual presence. For many owners, this is exactly the compromise they are looking for: efficiency, relative silence, careful integration, and daily comfort.
The AirGreen approach: clear estimate, careful installation, after-sales service
Our role is not limited to installing a machine. We support the client in choosing the right system, in the technical analysis, in understanding the available options, and in the complete installation. For GREE ducted projects, this approach is particularly important because success depends as much on the design as on the device itself.
We are a GREE Elite dealer, which allows us to work with in-depth knowledge of GREE systems, including low and high static pressure ducted models, All Match solutions, and the new configurations with R-32. Our teams are trained to work on complex installations, diagnose the real constraints of the building, and propose a suitable solution.
In our projects in Montréal, Laval, Longueuil, on the North Shore, the South Shore and in Montérégie, we often find that clients particularly appreciate three things: the clarity of the estimate, the cleanliness of the installation, and the availability of after-sales service. These elements are essential, especially when it comes to an integrated system that must remain efficient for many years.
A final result consistent with the client’s expectations
At the end of this installation in Repentigny, the result met the project priorities: a solidly installed GREE outdoor unit, well-protected outdoor routing, a visual finish suited to the building, and an indoor solution designed to provide discreet comfort. This type of project demonstrates that a ducted installation requires a combination of skills: technical calculation, clean work, practical sense, and knowledge of the real constraints of Quebec buildings.
For a homeowner comparing different options for a heat pump, wall air conditioner, central system, or ducted system, this installation shows a very interesting alternative. Ducted systems are not always the simplest solution, but when well designed, they can offer a level of comfort and discretion that is hard to achieve with other configurations.
Why this installation matters for readers preparing their project
If you are a homeowner in Repentigny or elsewhere in Greater Montreal, this project offers several useful lessons. First, you should not choose a system based solely on a product sheet. The building must be evaluated. Then, options should be compared based on actual use: a wall unit may be perfect for an open area, while a ducted system might better suit a project where aesthetics and even distribution are priorities.
Finally, you need to choose a team capable of managing the entire project: model selection, technical validation, outdoor unit installation, line routing, duct protection, startup, client explanations, and post-installation follow-up. This continuity is what ensures a reliable result.
At AirGreen, we prioritize well-sized, well-explained, and well-installed solutions. This GREE All Match Slim Duct R32 Ducted System installation in Repentigny is an excellent example: a modern, discreet HVAC solution tailored to the specific requirements of a Quebec residential building.
