An under-window installation that required much more than a simple unit replacement
At Sainte-Catherine, we installed a FRIEDRICH ZoneAire® Premier PTAC in a room where the unit had to be integrated directly beneath a large window, through the exterior wall. This configuration is common in condominiums, apartments, seniors' residences, hotels, and certain multi-unit buildings on the South Shore, but each installation has its own constraints.

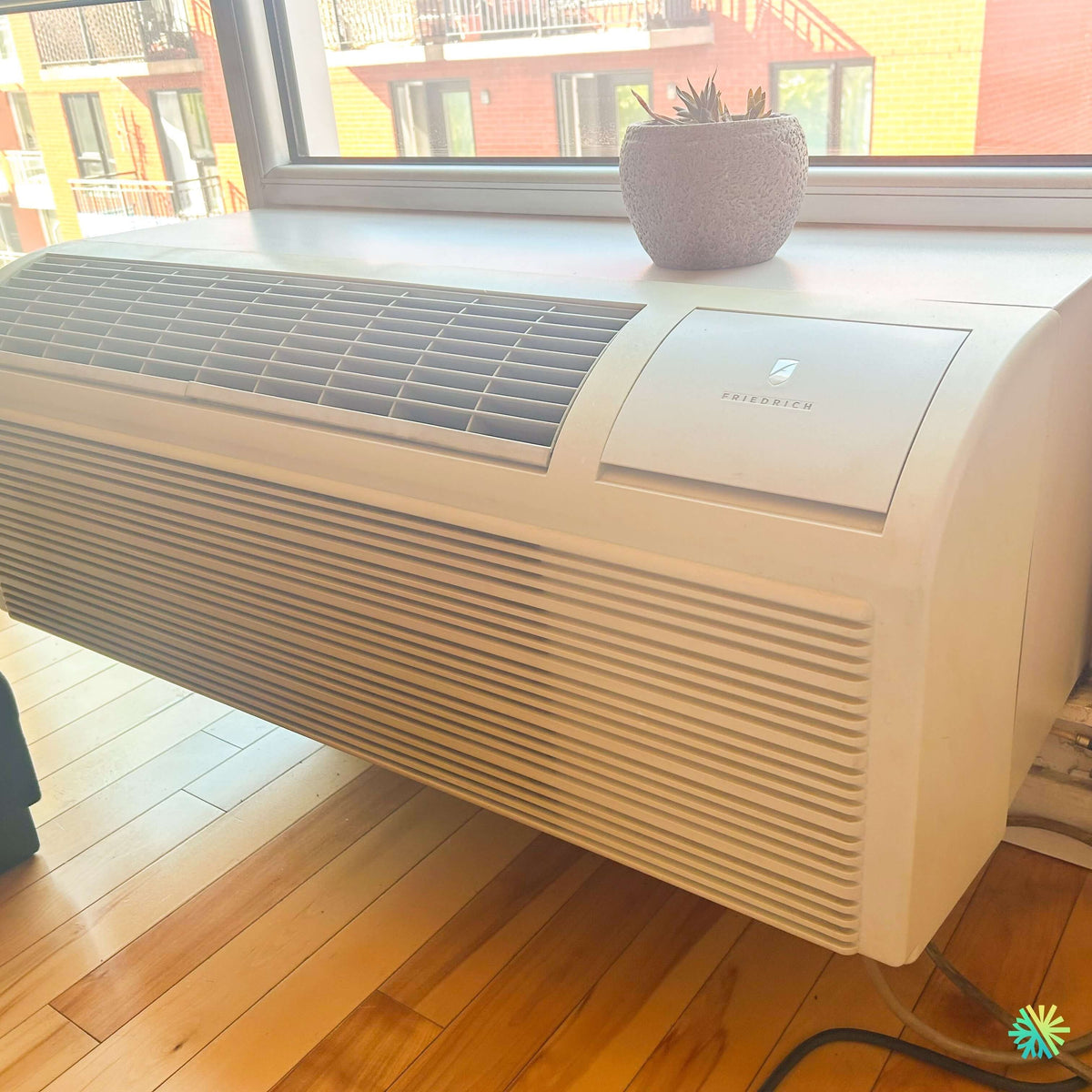

In the project photo, the PTAC occupies the full width of its wall opening. Its white front blends with the window frame, while its low position keeps the upper walls completely clear. No duct network, wall-mounted unit near the ceiling, or exposed refrigerant piping is required in the room.
This apparent simplicity nevertheless conceals several crucial technical steps. A through-the-wall PTAC must be properly supported, connected to the appropriate electrical circuit, installed in a compatible sleeve, and sealed to prevent air and water infiltration. The system must also maintain the necessary slope to drain condensate outside.
In this Sainte-Catherine project, our work therefore did not consist solely of placing a new unit in an existing opening. We had to ensure that the FRIEDRICH ZoneAire Premier could operate steadily, quietly, and safely without compromising the wood flooring, interior finish, or building envelope.
What the room configuration indicated to us before the work
The unit is installed directly beneath a large window. This arrangement allows the treated air to rise in front of the glass surface, where heat loss is often more noticeable during the winter.
The PTAC front has two clearly distinct functional zones:
- a large front grille primarily used for air intake;
- an air outlet located on the upper left side;
- a control compartment protected by a flap on the upper right side;
- a removable front panel providing access to the filters and internal components.
The wood floor required particular attention. Even a slight condensate leak could gradually stain the planks, lift the finish, or damage the structure beneath the unit. We therefore had to check the drainage, chassis stability, and joint between the sleeve and the wall.
The power cord visible on the right side also shows that the power supply had to remain accessible without being crushed against the cabinet or trapped underneath the unit.
FRIEDRICH ZoneAire Premier: a PTAC lineup offered in several configurations
The name ZoneAire® Premier refers to a complete family of PTACs. The front panel alone does not reveal the exact capacity, voltage, or heating type. For this reason, we always verify the nameplate and full model number before ordering a replacement unit.
In the current lineup, FRIEDRICH distinguishes between:
- PDE models, designed for cooling with electric heating;
- PDH models, which combine a heat pump with auxiliary electric heating;
- versions powered by 208/230 volts;
- certain versions at 265 volts, primarily intended for specific applications.
According to the technical data published by FRIEDRICH, the current lineup covers approximate cooling capacities ranging from 7,000 to 14,800 BTU/h. Heat pump versions offer different heating capacities, while the electric heating elements can provide approximately 6,800 to 17,000 BTU/h, depending on the model and selected power cord.
Because the exact capacity of the pictured unit is not legible, we do not arbitrarily assign it a capacity of 9,000, 12,000, or 15,000 BTU. This distinction is important because two visually identical PTACs may require very different electrical circuits and protection.
Standardized dimensions make replacement easier without guaranteeing compatibility
PTACs are often designed around a relatively standardized opening. For the ZoneAire Premier, FRIEDRICH indicates a cabinet generally no larger than 42 inches wide by 16 inches high, with a total depth of approximately 21 1/4 inches, depending on the sleeve and wall thickness.
These dimensions make certain replacements easier, but they are not enough to confirm that a new unit can be inserted directly into an old sleeve.
We also check:
- the actual wall depth;
- the condition of the metal sleeve;
- the position of the exterior grille;
- clearance around the condenser;
- attachment points;
- drainage;
- compatibility between the exterior grille and the new chassis;
- the presence of corrosion or deformation.
A 42-inch-wide unit may physically fit into an opening without being properly ventilated or supported. That is why we never base a replacement solely on the width of the front panel.
Inspection and Preparation of the Wall Sleeve
The sleeve is the structure into which the PTAC is inserted. It must support the unit's weight while maintaining a lasting separation between the inside of the dwelling and the outdoors.
Before installation, we inspect its condition along its entire depth. A clean interior section can conceal rust near the exterior grille, where water, snow, and moisture accumulate.
We specifically look for:
- signs of corrosion;
- perforations;
- a sagging bottom;
- loose fasteners;
- a reverse slope;
- a cracked old sealant;
- gaps between the sleeve and the structure;
- residue that could block condensate drainage.
When replacing a unit, we also remove debris left by the old appliance. Dust, pieces of insulating foam, and old seals can prevent the new chassis from being fully inserted or create uneven pressure on its base.
A slight outward tilt protects the building
During cooling, moisture removed from the air turns into condensate. The system must manage this water without allowing it to return to the room.
The manufacturer's documentation provides various drainage methods, including holes located at the back of the sleeve and drainage accessories suited to the building's configuration. It also describes a system that uses condensation water in the outdoor section before draining off the excess.
An improperly angled installation can cause:
- water draining onto the interior floor;
- a water noise in the unit;
- water accumulating in the pan;
- persistent moisture;
- corrosion;
- odors;
- damage to the wall below the window.
For this installation in Sainte-Catherine, the proximity of the wood floor made this inspection particularly important.
Seal around the perimeter without trapping the unit
The PTAC must be removable from the sleeve for maintenance or replacement. Therefore, we must not permanently bond the chassis to the structure.
Sealing is instead carried out around the sleeve and at the points specified by the manufacturer. Depending on the width of the gaps, we may use suitable insulation, compressible seals, and a sealant compatible with the wall materials.
Our goal is to prevent:
- cold air from bypassing the unit;
- exterior moisture from penetrating the wall;
- insects from entering through the openings;
- rainwater from infiltrating behind the façade;
- vibrations from being transmitted to adjacent materials.
A clean interior seal is not enough if the exterior is poorly protected. We therefore inspect both sides of the opening whenever access is possible.
In Sainte-Catherine, where winter temperatures can make any infiltration quickly noticeable, this finish directly contributes to comfort near the floor and window.
A power supply that must match the exact model
A PTAC connection must never be improvised based on the shape of the existing outlet. The voltage, amperage, plug, cord, and electric heating capacity must be compatible.
In the ZoneAire Premier range, cords and subbases may vary according to 15-, 20-, or 30-amp configurations. FRIEDRICH offers cords corresponding to heating elements of approximately 2.5, 3.5, or 5 kW, depending on the voltage and model.
Before powering on, we verify:
- the unit’s complete number;
- its nominal voltage;
- the amperage indicated on the nameplate;
- the circuit breaker capacity;
- the type of outlet;
- the continuity of the grounding;
- the condition of the cord;
- the compliance of the existing power supply.
Changing only the plug to make a unit fit an incompatible outlet can create an overload, damage the heating element, or compromise circuit protection.
We also avoid using extension cords. A PTAC must be connected to a power supply designed for its actual load, particularly when it uses an electric heating element.
Air circulation suitable for installation under the window
The FRIEDRICH ZoneAire Premier draws air in through the front and redistributes it through the upper grille. To maintain good performance, both areas must remain unobstructed.
In this room, the unit is installed at a height that leaves the front air intake fully accessible. However, any future modifications must preserve this space.
We recommend not placing directly in front of the PTAC:
- a sofa;
- a bulky armchair;
- a dresser;
- a bed;
- a thick curtain;
- boxes or decorative objects.
An obstruction can reduce airflow, increase noise, and cause already conditioned air to recirculate.
The plant visible on top adds a decorative touch, but we recommend not watering a plant directly above an electrical appliance. An overflow could enter the control panel or the air outlet grille. It is better to move the pot before watering and make sure nothing is blocking the air outlet.
Functions designed for the comfort of a single zone
A PTAC allows you to control the room in which it is installed independently. This feature is particularly useful in a home where some rooms are occupied at different times.
Depending on the version, the ZoneAire Premier may offer:
- multiple fan speeds;
- automatic speed selection;
- memory that retains the settings after a power failure;
- protection against excessively short compressor cycles;
- a room freeze-protection function;
- diagnostic codes;
- compatibility with certain wall thermostats;
- washable filters accessible from the front.
FRIEDRICH's current documentation specifically describes three fan speeds, reusable filters, a compressor time delay, and parameter memory after a power interruption.
These functions are useful, but their availability depends on the generation and exact model. We validate them using the manual for the installed unit, not one for another unit with a similar front panel.
Commissioning after installation
Once the chassis has been inserted, secured, and connected, we carry out a series of checks.
We check in particular:
- the fan startup;
- the operation of the various fan speeds;
- the response of the controls;
- the production of cold air;
- electric heating, when present;
- heat pump mode, if the model is equipped with it;
- the absence of excessive vibrations;
- the stability of the front panel;
- the direction of the airflow;
- condensate drainage;
- the absence of drafts around the sleeve;
- the behavior of the electrical circuit.
We also listen when the compressor starts and stops. A metallic noise, rubbing, or vibration transmitted to the frame may indicate a poorly seated chassis, an outdoor grille contacting the unit, or a fastening that needs adjustment.
Key points for a successful PTAC replacement on the South Shore
The right number of BTUs depends on the room, not just the old appliance
Automatically replacing an old PTAC with a unit of the same capacity is not always the best approach. The building may have been renovated, the windows may have been replaced, or the old appliance may have been incorrectly sized from the outset.
We consider, among other things:
- the room’s area;
- the ceiling height;
- the glazed surface area;
- exposure to sunlight;
- the floor of the dwelling;
- the quality of the insulation;
- the number of occupants;
- heat-producing appliances;
- residential or commercial use;
- the presence of another heating system.
An oversized PTAC can quickly reach the desired temperature and then shut off before sufficiently dehumidifying the air. An undersized appliance may run continuously and fail to maintain comfort on the hottest days.
Subsidy: eligibility must not be assumed
The fact that a model has a heat pump function does not automatically guarantee its eligibility for financial assistance.
For residential installations covered by LogisVert, Hydro-Québec requires, among other things, that heat pumps installed as of November 26, 2025, be ENERGY STAR® certified and that the exact model be recognized in the official list of eligible appliances.
For a FRIEDRICH PTAC, we therefore need to know:
- the complete model number;
- the PDE or PDH configuration;
- the installation date;
- the applicable certification;
- whether the model appears on the official list;
- the type of building;
- the program’s other conditions.
The mention of “ZoneAire Premier” is not enough to confirm eligibility for a subsidy. We avoid promising an amount before validating the nameplate and the requirements in effect.
Mistakes that shorten a PTAC’s lifespan
Several issues observed during our HVAC services in Montreal, Laval, Longueuil, the North Shore, and the South Shore result from poor initial installation rather than a defect in the appliance.
Among the most common mistakes:
Keep a rusty sleeve
The new PTAC may be efficient, but it will remain vulnerable if its support structure allows water to enter.
Seal only the interior face
Outdoor water can continue to circulate behind the sleeve and gradually damage the wall.
Use the old outlet without checking the circuit
Two appliances of identical dimensions can have very different heating elements and amperage.
Block the grille with furniture
Insufficient airflow can reduce performance, increase the internal temperature, and quickly load the filters.
Placing water-containing objects on top
A flowerpot, humidifier, or container can leak directly onto the electrical controls.
Neglecting filter cleaning
A clogged filter reduces airflow and can lead to lower capacity, increased noise, and longer cycles.
Recommended maintenance after our installation
The front filter should be inspected regularly, especially during periods of intensive use. In a home with pets, renovation work, or a lot of dust, cleaning intervals should be shortened.
We also recommend:
- keep the grilles clear;
- periodically check that there is no water on the floor;
- monitor changes in noise;
- clean the front panel with a non-abrasive product;
- do not spray cleaner directly into the openings;
- inspect the outdoor grille after winter;
- remove leaves or debris that hinder ventilation;
- have the unit inspected when its capacity decreases.
The owner must be able to remove the filters without moving heavy furniture. This easy access encourages regular HVAC maintenance and helps maintain airflow.
A compact installation carried out with the rigor of a complete system
This Sainte-Catherine project shows why a PTAC should not be treated as a simple appliance that can be slid into a wall.
The result depends on several elements working together:
- the correct BTU capacity;
- the correct voltage;
- a sound sleeve;
- the correct slope;
- functional drainage;
- continuous sealing;
- a compatible outdoor grille;
- a code-compliant electrical connection;
- complete commissioning.
The FRIEDRICH ZoneAire® Premier fits neatly beneath the window while preserving direct access to the controls and filters. Its through-the-wall installation frees up the upper part of the room and eliminates the need to add a duct network.
