A compact installation that required precise coordination between the wall, electrical systems, and existing heating
At Saint-Liboire, our AirGreen team installed a GENERAL ELECTRIC Zoneline PTAC in a wall opening located directly below a large window. This configuration makes it possible to cool and heat a room without installing a duct network or a separate condenser on the façade. However, it requires meticulous execution, particularly when the new unit must coexist with an electric baseboard, existing interior finishes, and electrical components installed nearby.

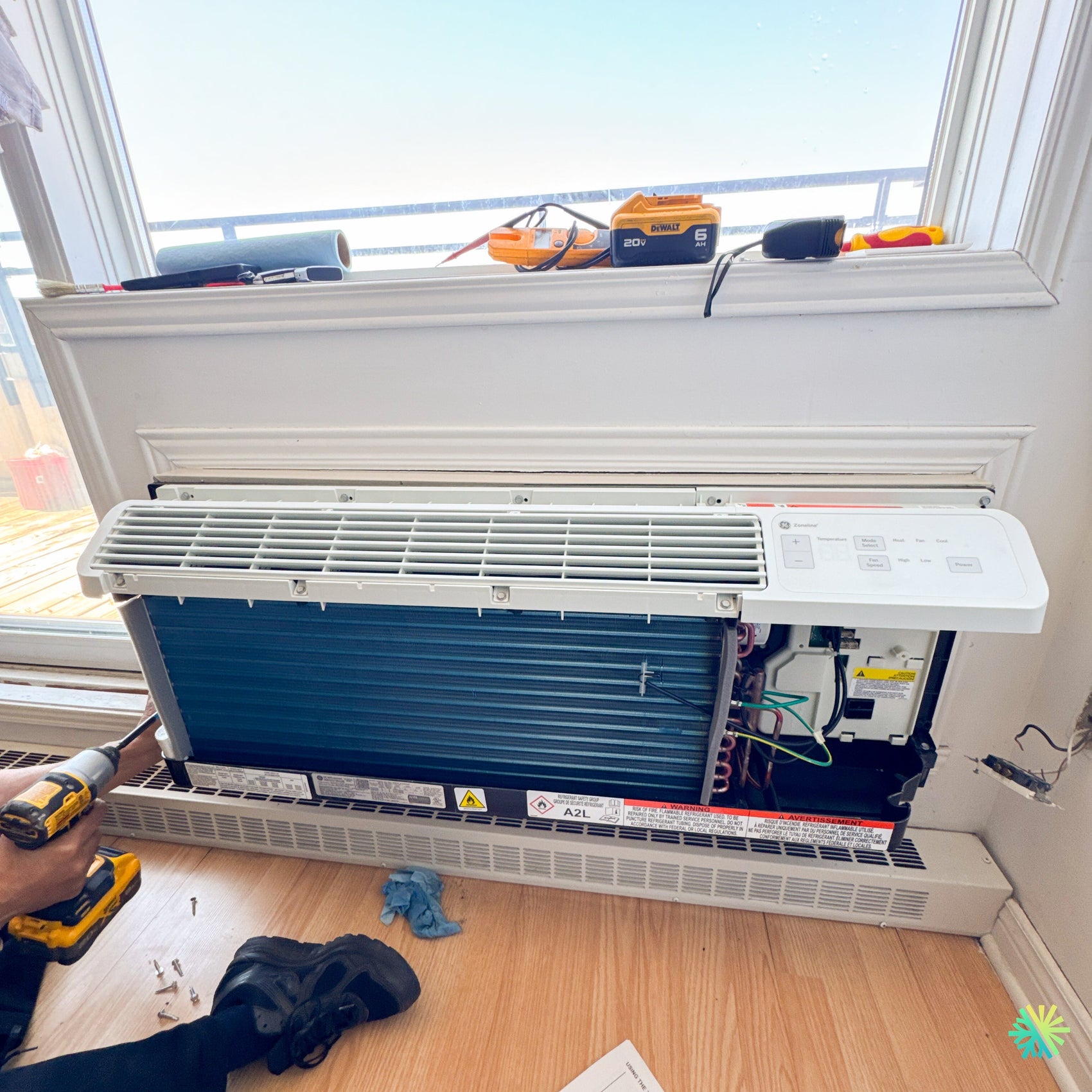

The photograph taken during our work shows the PTAC before its façade was fully reinstalled. The large blue indoor coil is visible, along with the refrigerant lines, electrical compartment, grounding wires, integrated controls, and safety labels relating to the class refrigerant A2L.
This open stage is essential. It allows us to inspect the internal components, check the fasteners, and carry out the necessary tests before the unit regains its finished appearance.
The project also involved an important consideration: a long electric baseboard was located immediately below the PTAC. We therefore had to avoid obstructing the baseboard’s natural convection while ensuring that the air blown by the Zoneline could circulate freely throughout the room.
Why retain a PTAC solution in this Saint-Liboire property
A PTAC, or packaged terminal air conditioner, contains the main components required for air conditioning and, depending on its configuration, heating within a single chassis. One part of the unit conditions the indoor air, while the rear of the chassis exchanges heat with the outdoor air through the wall.
In this project, the existing opening was a logical location for the GENERAL ELECTRIC Zoneline. This allowed the owner to avoid several more invasive interventions:
- no duct network to build;
- no refrigerant piping to run through the walls;
- no separate condenser to mount on the balcony or façade;
- no new wall penetration away from the existing opening;
- no additional interior space to reserve for a wall-mounted unit.
Individual temperature control was also an advantage. The controls visible on the upper-right section of the PTAC allow users to select the mode, temperature, and fan speed directly on the unit.
This independence works well for bedrooms, rental units, offices, residences, lodging establishments, and rooms that do not necessarily follow the same occupancy schedule as the rest of the building.
An under-window installation that leaves no room for guesswork
Positioning the PTAC beneath a window may seem natural, but this area is often more complex than a standard interior wall. It may include several layers of finish, a sill, trim, a lintel, insulation, and an old metal sleeve whose condition is not visible until the previous unit is removed.
On this installation in Saint-Liboire, we paid particular attention to the trim surrounding the opening. The chassis had to fit without putting excessive pressure on the finish or leaving a gap that could cause water infiltration.
A poor connection between the wall and the sleeve can cause:
- cold drafts around the PTAC;
- increased electricity consumption;
- condensation on interior surfaces;
- water infiltration during wind-driven rain;
- damage to the drywall or trim;
- vibrations transmitted to the window frame;
- reduced comfort near the unit.
We therefore inspect the sleeve along its entire depth, not just its visible interior edge.
The wall sleeve must support the weight without deforming the chassis
A PTAC is much heavier than a simple ventilation grille. Its sleeve must be securely attached to the building structure and remain straight enough for the unit to fit without force.
A deformed sleeve can cause several problems: a panel that is difficult to reinstall, fan rubbing, metal vibration, poor sealing, or difficulty removing the chassis during future HVAC maintenance.
In particular, we check:
- the stability of the opening;
- the condition of the metal surfaces;
- the absence of significant corrosion;
- clearance around the outdoor air intakes;
- the position of the chassis inside the sleeve;
- access to the mounting points;
- the necessary slope for water drainage.
The existing electric baseboard had to continue allowing airflow
The photo shows an electric baseboard heater installed immediately below the PTAC. This proximity required particular coordination.
A baseboard heater primarily heats by convection. Cooler air enters through its lower section, warms upon contact with the heating element, and then exits through the upper openings. If an appliance, trim, or object blocks this airflow, heat distribution becomes less uniform and the temperature inside the baseboard heater may rise.
Our objective was therefore to maintain functional clearance between the two pieces of equipment. The PTAC should not cover the baseboard heater’s upper grille or prevent air from circulating.
We also took into account the interaction between the two systems. When the GENERAL ELECTRIC Zoneline is operating in heating mode and the baseboard heater is controlled by a separate thermostat, both heat sources may operate simultaneously.
This situation is not necessarily problematic, but it must be understood by the user. An inconsistent setting can lead to unnecessary energy consumption. For example, if the baseboard heater is set to a higher temperature than the PTAC, it may take over continuously and reduce the energy benefits of heat pump mode, when that mode is present in the installed configuration.
We therefore recommend establishing a simple strategy:
- use the PTAC as the primary heating source when conditions permit;
- keep the baseboard heater as supplemental or backup heating;
- avoid two conflicting setpoints;
- keep all supply grilles unobstructed;
- do not install a long curtain in front of the units.
A visible electrical opening to the right of the work area
An open electrical box appears on the wall to the right of the PTAC. This situation confirms the importance of coordinating the HVAC and electrical work before the installation is finally closed up.
The presence of a nearby outlet never guarantees that it has the required specifications. Different GENERAL ELECTRIC Zoneline units may require different voltages, plugs, and electrical protection.
We always check the nameplate to confirm:
- the rated voltage;
- the required current;
- the maximum permitted protection;
- the connection type;
- grounding;
- outlet compatibility;
- the circuit capacity;
- the presence of a suitable disconnect device.
The complete model and detailed electrical specifications are not sufficiently legible in the photograph to be published with certainty. We therefore avoid assigning a precise wattage or amperage based solely on the appearance of the unit.
This check protects the building against overloads, overheated outlets, and repeated circuit-breaker trips.
No makeshift adapter for powering a PTAC
A PTAC must not be connected to a household extension cord or to an adapter chosen solely because its plug fits into the outlet. The circuit must meet the requirements of the manufacturer and the applicable Code.
We also examine the condition of the existing connection. A discolored, loose, or heat-damaged outlet must be replaced before commissioning.
The blue coil inspected before reassembly
The large coil visible at the front plays a central role in treating indoor air. Its many fins increase the heat-transfer surface area, allowing the unit to cool or heat the air passing through it efficiently.
Before replacing the front panel, we check:
- fin alignment;
- the cleanliness of the coil;
- the absence of transport-related damage;
- the stability of its supports;
- the position of the sensors;
- cable routing;
- the absence of contact with the chassis;
- filter clearance.
Even a new unit may have a small area of bent fins after handling. A visual inspection makes it possible to correct these details before they affect airflow.
The front panel must never be used to conceal an unverified problem. At AirGreen, we replace it only after testing and checking the accessible components.
Internal connections and grounding
On the right side of the unit, several green wires are visible. They are part of the grounding system and the bonding of metal components.
We check that the connections are tight and that the conductors are not pinched when the panel is replaced. An improperly positioned cable can rub against a metal edge or be damaged by a removable part.
We also inspect the electrical compartment to confirm that:
- the protective covers are in place;
- the wires do not touch a hot pipe;
- no screws have fallen into the chassis;
- the connectors are properly engaged;
- the conductors do not obstruct the fan;
- the safety labels remain legible.
The photograph also shows several screws that have been removed and carefully placed on the floor near the technician. Their arrangement highlights the importance of a methodical disassembly: each fastener must be returned to the correct location to prevent vibrations and unstable panels.
A refrigerant identified by an A2L classification
A label A2L is clearly visible on the lower section of the PTAC. This classification refers to a refrigerant with low, but not zero, flammability.
In a compliant, intact unit, this feature does not change the customer’s day-to-day use. However, it does change repair and service procedures.
When working on the refrigeration circuit, a technician must, among other things:
- identify the exact refrigerant on the nameplate;
- eliminate ignition sources;
- ensure proper ventilation;
- use compatible instruments;
- perform leak tests in accordance with the manufacturer’s instructions;
- recover the refrigerant into a designated container;
- comply with charge limits and recommissioning procedures.
The A2L designation alone is not enough to determine the exact type of refrigerant. That is why we do not publish an unconfirmed refrigerant reference based on the image alone.
A complete commissioning before putting the living space back in order
Fan and airflow test
We generally begin testing with the fan. This step makes it possible to quickly detect rubbing, noise, or vibration before engaging the compressor.
We check the different speeds and observe air distribution through the large upper grille. Airflow should remain stable along the entire length of the outlet.
Because the unit is located beneath a window, the discharged air also helps treat the area where heat loss is often greatest. In winter, this circulation can reduce the sensation of a cold wall near the glazing. In summer, it helps counter solar heat gains.
Air-conditioning test
During the cooling-mode test, we monitor:
- compressor startup;
- the gradual reduction in supply-air temperature;
- control response;
- fan operation;
- mechanical noises;
- coil behavior;
- condensate formation and drainage.
We avoid judging performance solely by placing a hand in front of the grille. Professional commissioning takes the complete cycle, airflow, and the unit’s response to the controls into account.
Heating test
When the installed Zoneline configuration provides a heating mode, we also verify heat output and the transition between the different modes.
The control panel visible in the photo includes settings for heating, ventilation, and cooling. However, the precise nature of the internal heating system must be confirmed by the complete model: heat pump, electric heating element, or a combination of both.
We check for persistent odors, overheating, and abnormal vibration. A slight odor may sometimes occur when a new heating element is started for the first time, but it should quickly diminish.
Checking drainage and sealing
In cooling mode, the coil removes moisture from the air. The water produced must follow the intended passages in the chassis and sleeve.
An improper slope or a blocked opening can direct condensate into the room. Damage may appear gradually: a swollen baseboard, stained paint, a musty odor, or corrosion beneath the unit.
We ensure that the seal around the sleeve does not block drainage. The building envelope must be sealed without trapping water inside the equipment.
Checking vibrations before installing the faceplate
PTAC vibrations can be amplified when trim touches the chassis or when the sleeve is not properly secured.
In this Saint-Liboire installation, the proximity of the window, trim, and electric baseboard heater multiplied the potential contact points. We therefore checked the unit while it was running before replacing the panels.
Common causes of noise include:
- a missing screw;
- a faceplate that is not properly latched;
- a sheet-metal panel touching the wall;
- a slightly deformed sleeve;
- a wire touching a component;
- a blocked exterior grille;
- an inadequately supported chassis.
A correction of a few millimeters can sometimes eliminate a vibration that would otherwise disturb the occupant every time the compressor starts.
Mistakes to avoid after installation
To maintain the performance of the GENERAL ELECTRIC Zoneline PTAC, the user should avoid several common mistakes.
Place furniture in front of the unit
A sofa, bed, or dresser can block the air intake or outlet. The PTAC needs clear space to treat the entire room.
Allow a curtain to cover the grille
A curtain can be drawn toward the unit or redirect warm air against the window. It can also interfere with the electric baseboard heater below.
Neglect the filter
A dirty filter reduces airflow, increases energy consumption, and can promote coil icing in cooling mode.
Block the exterior grille
The rear section of the PTAC must exchange air with the outdoors. A grille blocked by leaves, snow, balcony items, or an overly restrictive screen directly hinders performance.
Setting the baseboard and PTAC without coordination
Two systems set to different temperatures can work against each other. A consistent heating strategy improves comfort and limits unnecessary expenses.
Recommended maintenance for this type of unit
Periodic HVAC maintenance makes it possible to check components that are not accessible during routine cleaning.
The service may include:
- filter cleaning;
- controlled coil washing;
- condensate pan inspection;
- drainage passage clearance;
- fan inspection;
- electrical connection check;
- sleeve inspection;
- vibration check;
- examination of the seals around the opening.
The unit must remain removable. Do not apply silicone to its removable façade or build permanent trim that would prevent the chassis from being removed.
Capacity, performance, and subsidy eligibility
The Zoneline range includes several capacities and configurations. The BTU capacity, performance ratings, and heating type must be confirmed using the complete model number and the corresponding technical documentation.
We do not claim specific performance or eligibility for financial assistance without this confirmation. Subsidy programs generally apply criteria related to certification, equipment type, capacity, and the building. A PTAC does not automatically become eligible simply because it can heat and cool.
For this installation in Saint-Liboire, no specific subsidy is confirmed by the information visible in the photo.
An execution adapted to the building’s reality
This project illustrates the importance of considering the entire installation area: the PTAC, sleeve, window, trim, electric baseboard, power supply, and wall finish.
The final result should be clean and discreet, but the real quality lies behind the façade. It depends on the checks performed while the coil, wires, and fasteners are still visible.
At AirGreen, we apply this same rigor to our packaged terminal air conditioner, heat pump, wall-mounted air conditioner, and central system installations in Montréal, Laval, Longueuil, the North Shore, and the South Shore. We adapt each HVAC installation to the building rather than imposing the same method on every property.
