Installation of a GENERAL ELECTRIC Zoneline PTAC under a window in Yamaska

Precise integration into a residential space where every clearance mattered

At Yamaska, we installed a GENERAL ELECTRIC Zoneline PTAC in a configuration that required much more precision than a simple unit replacement. The system had to fit beneath a large window, above a long existing grille, and immediately beside decorative trim, a curtain, a hardwood floor, and a wall outlet.

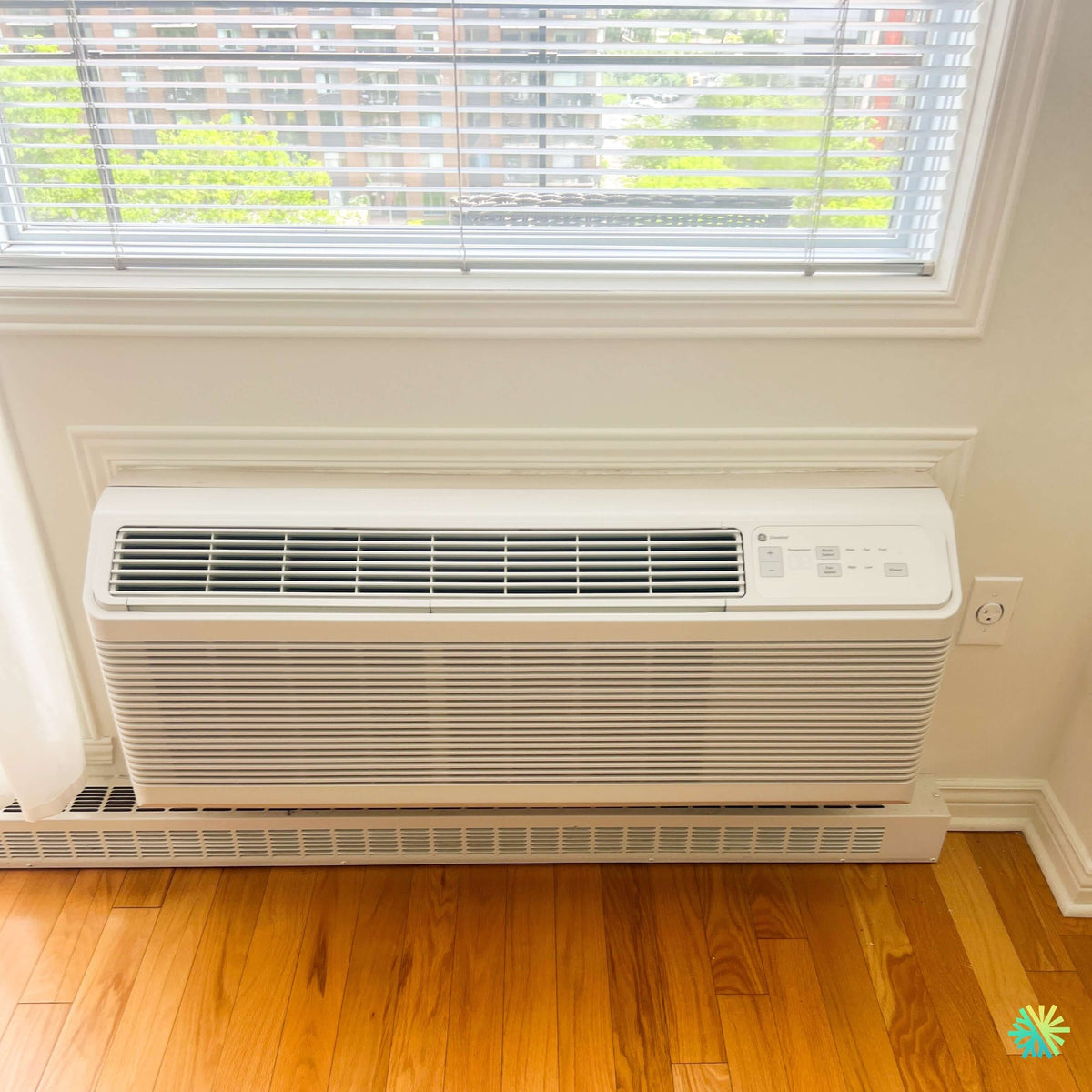

The final photo shows a clean, balanced result: the GE Zoneline PTAC is centered beneath the window, its front panel remains fully accessible, and the upper air outlet remains unobstructed. The unit does not protrude unnecessarily into the room and respects the wall’s architectural layout.

This installation illustrates an important reality in HVAC: even when a packaged unit uses an existing wall opening, the quality of the result depends on alignment, sealing, drainage, electrical supply, airflow, and interior finishing.

Why a PTAC was suitable for this location

A PTAC, or packaged terminal air conditioner, combines several components normally divided between an indoor unit and an outdoor unit in a single chassis:

• the compressor;
• the indoor coil;
• the outdoor coil;
• the fans;
• the controls;
• the drainage system;
• the heating elements provided according to the selected configuration.

The front section of the system handles indoor air, while the rear section communicates with the outdoors through a wall sleeve. There is therefore no need to install a separate outdoor unit on a support, balcony, or slab.

In this Yamaska residence, this solution made it possible to maintain a compact installation beneath the window. This type of unit is particularly suitable for apartments, residences, independent rooms, offices, lodging establishments, and buildings where each space must be able to control its own temperature.

The GENERAL ELECTRIC Zoneline also features controls directly on the front panel. The temperature, mode selection, and fan buttons remain easily accessible without requiring an additional wall controller in a standard installation.

What the photo tells us about the completed configuration

The white Zoneline front panel blends discreetly into a room with light-colored walls. The lower grille provides the air intake, while the long upper opening distributes treated air throughout the room.

Several visible details confirm the importance of carefully measured installation.

An installation directly beneath a large window

The lower edge of the window and its trim occupy considerable width. The PTAC therefore had to be positioned low enough not to touch the finish, yet high enough to comply with the wall opening and the grille beneath the unit.

The upper clearance must allow air to exit freely. Installing the unit too close to the window sill can cause the air to bounce immediately back toward the unit, disrupt temperature readings, and reduce distribution toward the center of the room.

We also took the horizontal blinds into account. They must not hang in front of the air outlet when the system is operating. A blind or curtain moving in the airflow can create noise, limit circulation, and distort perceived comfort.

Preserving the decorative trim

The wall includes interior trim that visually frames the area beneath the window. Rather than unnecessarily removing finishing elements, we integrated the PTAC into the available space.

This approach requires precise measurements before installation:

1. chassis width;
2. front-panel height;
3. sleeve depth;
4. window-sill position;
5. space needed to remove the front panel;
6. clearance for air intake and discharge;
7. control accessibility.

An error of just a few centimeters can prevent filter removal or require the woodwork to be modified after installation.

A long existing grille beneath the system

A metal grille extends beneath the PTAC and continues toward the left side of the wall. Before installation, it was essential to ensure that the new unit would not compromise the function of this existing element.

In such a configuration, we always determine whether the grille belongs to a convection system, perimeter heating, an architectural enclosure, or an older installation. We avoid blocking it without understanding its purpose.

The Zoneline front panel sits visually above this structure while maintaining a uniform installation. This coordination between the new equipment and the existing elements contributes both to functionality and to the final appearance.

GENERAL ELECTRIC Zoneline: a standard format that still requires a complete assessment

The GE Zoneline series is available in several capacities and configurations. Depending on the complete reference, it may be an air-conditioning unit with electric heat or a model incorporating a heat pump function.

The common capacities in this family generally range from smaller sizes intended for bedrooms to models of approximately 12,000 to 15,000 BTU, used for larger spaces. However, it is not possible to confirm the exact capacity from the front panel alone.

Two PTACs with nearly identical dimensions may have:

• different cooling capacities;
• different power consumption;
• heating elements with different capacities;
• different electrical circuit requirements;
• different energy efficiency;
• different control functions.

At AirGreen, we use the nameplate and the manufacturer's complete reference to confirm the actual capacity. We never determine the BTU rating simply from the unit's width.

An electrical circuit suited to the installed model

The wall outlet visible to the right of the unit does not, on its own, indicate how the PTAC is powered. Several GE Zoneline models operate on a dedicated 208 or 230 volt power supply, depending on their configuration and power supply kit.

The connection must correspond precisely:

• to the voltage indicated on the nameplate;
• to the unit's maximum amperage;
• to the circuit-breaker capacity;
• to the conductor gauge;
• to the plug or connection type;
• to the auxiliary electric heating capacity.

An inadequate power supply can cause circuit-breaker trips, overheated connections, or limited heating. The fact that a plug fits into an outlet is never sufficient electrical validation.

Direct access to the controls

The control panel is located in the upper-right section of the Zoneline. Its position is clear and accessible, allowing the occupant to adjust the temperature without moving furniture or lifting a grille.

We also check the operation of each control during commissioning:

• temperature increase and decrease;
• mode selection;
• fan speed;
• continuous or automatic fan operation;
• compressor response;
• stop when the setpoint is reached.

The technical steps of our installation in Yamaska

Wall sleeve inspection

The sleeve is the structure that passes through the wall and holds the PTAC chassis. Its condition directly affects stability, drainage, and watertightness.

Before inserting the unit, we check:

• its interior width and height;
• the presence of rust or deformation;
• its anchoring to the wall;
• the slope toward the outside;
• the condition of the seals;
• compatibility with the GE chassis;
• the condition of the exterior grille.

An old sleeve should not automatically be reused. It may appear acceptable indoors while being corroded on the outside.

Exterior grille inspection

The grille located behind the unit protects the system while allowing air to enter and exit. It must be compatible with the installed model and must not cause excessive restriction.

An unsuitable grille can recirculate the hot air discharged by the condenser. The PTAC then operates under more demanding conditions, which can reduce its capacity and increase its electricity consumption.

In a building, the exterior grille may sometimes have to comply with a uniform appearance required by the owner or condominium association. We take this constraint into account without compromising the required airflow.

Chassis positioning and leveling

The chassis must slide into the sleeve without being forced. Lateral pressure can deform the housing, cause the fan to rub, or transmit vibrations to the wall.

We also check the slope toward the outside. This helps manage condensation and prevents water from returning to the room.

A unit that appears perfectly level is not necessarily positioned correctly. The reference to follow remains the method prescribed for the sleeve and the models concerned.

Perimeter sealing

The space around the sleeve is a sensitive point for air and water infiltration. In Yamaska, this inspection was especially important because the installation was located directly beneath a window.

Air leaks can come from:

• the sides of the sleeve;
• the upper joint;
• the lower corners;
• old, cracked caulking;
• an opening that is too large;
• a poor connection between the grille and the exterior wall.

Proper sealing reduces cold drafts near the floor and prevents the system from continuously compensating for losses that do not originate in the room itself.

Putting the PTAC into service after installing the front panel

Once the chassis is installed, we do not limit ourselves to confirming that the display lights up. We carry out a series of tests to verify actual operation.

Airflow verification

Air is drawn in through the large lower front grille, passes through the filter and the indoor coil, and then exits through the upper grille.

We make sure that:

• the filter is correctly positioned;
• the front panel is fully snapped into place;
• no packaging remains inside the unit;
• the fan produces no friction;
• the airflow remains uniform across the entire width;
• the upper grille is not directed against the trim.

A poorly secured panel can allow some air to bypass the filter. Dust then accumulates directly on the coil, gradually reducing performance.

Cooling test

In cooling mode, we check compressor startup, the drop in supply-air temperature, and operating stability.

We pay attention to noises that could indicate:

• vibration in the sleeve;
• a front panel that is not properly latched;
• an unbalanced fan;
• contact with a metal component;
• a loose outdoor grille.

Heating test according to the configuration

When the model includes a heat pump function or electric heating, we check the transition to heating mode and the unit’s response.

In Quebec’s climate, some PTACs use auxiliary electric heating when the heat pump’s capacity becomes insufficient. The available power depends on the model and the installed electrical setup.

A PTAC should not be presented as the automatic equivalent of a low-temperature heat pump. Its heating capacity must be evaluated based on its technical data and the actual role it will play in the building.

The final result: a clean, accessible installation

The result achieved in Yamaska preserves the room’s appearance. The PTAC is installed in line with the window, with a clean front panel and direct access to the controls.

The hardwood floor remained intact, the trim was preserved, and the system does not require any outdoor unit visible from the room. The front panel can be removed for maintenance without dismantling the wall finish.

The installation also offers several practical advantages:

• independent temperature control;
• easy access to the filter;
• easier future chassis replacement;
• no exposed refrigerant lines in the room;
• limited space requirements;
• airflow distributed across a wide area.

Practical tips for maintaining the performance of a GE Zoneline

Clean the filter before it becomes completely clogged

The filter is the indoor coil’s first line of protection. How often it needs to be cleaned depends on room usage, the presence of pets, construction work in the building, and the amount of dust.

A clogged filter can cause:

• reduced airflow;
• increased noise;
• less effective air conditioning;
• insufficient dehumidification;
• a frozen coil;
• longer cycles;
• increased electricity consumption.

The filter must be put back in place only when it is clean and completely dry.

Do not place furniture in front of the front panel.

The large lower grille must remain unobstructed. A sofa, bed, suitcase, or piece of furniture placed too close can restrict air intake.

The upper outlet must also remain clear. In this installation, it is especially important to prevent the white curtain or blinds from hanging in front of the airflow.

Watch for drainage-related signs

A damp smell, unusual water noise, or a mark on the floor should be checked promptly. The problem may be caused by a clogged drain, a dirty pan, an inadequate slope, or infiltration around the sleeve.

Waiting until a significant amount of water appears can damage the floor, trim, and inside of the wall.

Have the coils and fans inspected

Even with a well-maintained filter, dust can accumulate on internal components. Professional HVAC maintenance makes it possible to clean accessible surfaces without spraying product or water onto the electrical controls.

We also inspect the motors, sensors, connections, condensate pan, and sleeve condition.

Do not assume subsidy eligibility

Eligibility for financial assistance programs depends on the exact reference, system type, building, and rules in effect when the application is submitted.

A unit bearing the Zoneline name is not automatically eligible for a heat-pump subsidy. We must verify the technical specifications, applicable certification, and recognized equipment list before confirming an amount.

At AirGreen, we prefer to provide verifiable information rather than include an uncertain financial incentive in the estimate.

Expertise applicable in Yamaska and Greater Montreal

This GENERAL ELECTRIC Zoneline PTAC installation in Yamaska demonstrates the importance of a comprehensive approach: chassis selection, sleeve inspection, electrical verification, condensate management, airflow, and finishing.

We carry out this same level of verification for PTAC installations and replacements in Montreal, Laval, Longueuil, the North Shore and the South Shore. We also work on wall-mounted heat pumps, multi-zone systems, central systems, and air-conditioning equipment for residential or commercial buildings.

Every project begins with an analysis of the available space and the building’s actual constraints. In Yamaska, the challenge was not simply to make a new unit work. It had to be integrated beneath a window, preserve the finish, and ensure lasting access for maintenance. The final result meets all three objectives.
