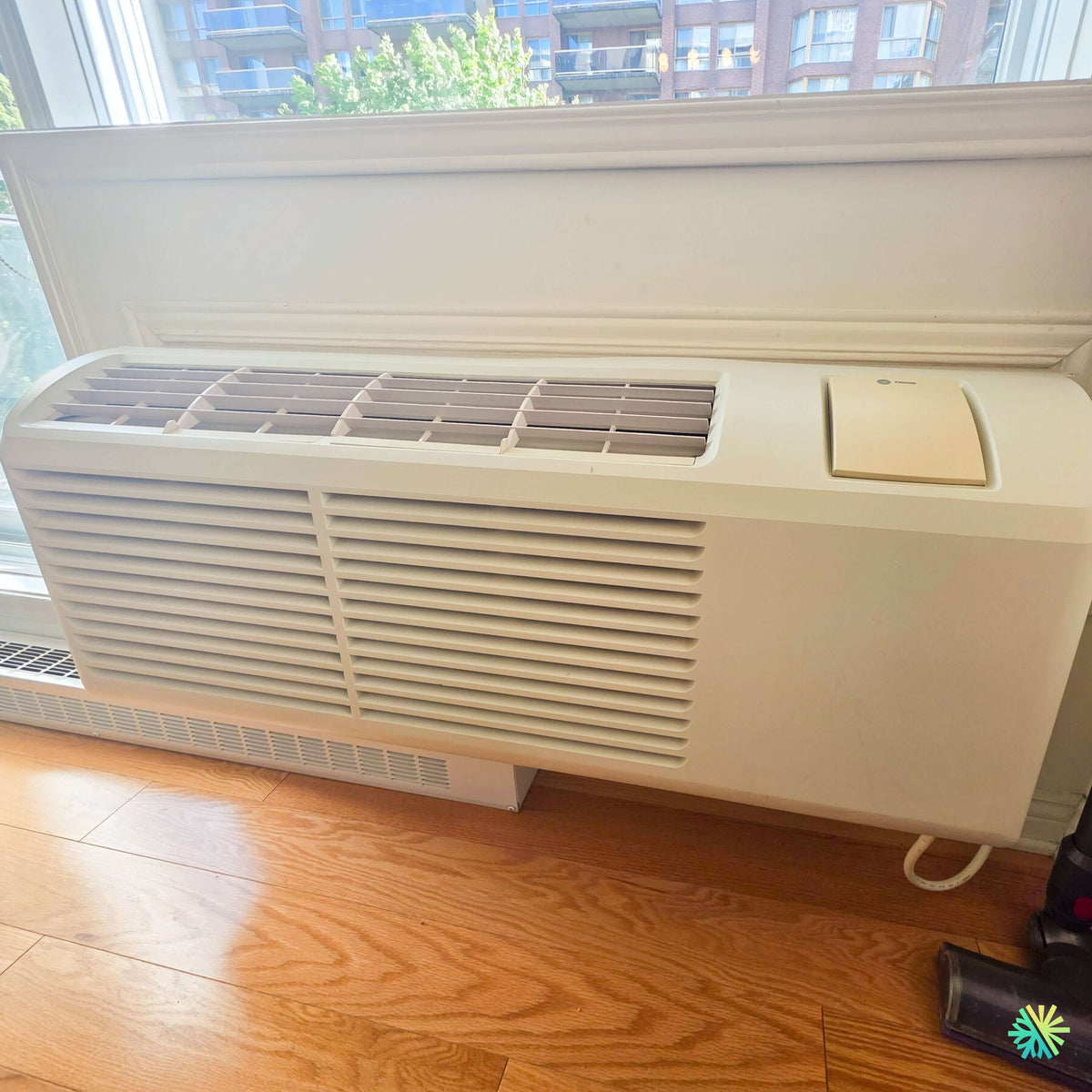

A carefully integrated PTAC in a residential room where every clearance had to be respected
In Sainte-Hélène-de-Bagot, our AirGreen team installed a TRANE ProSpace PTAC in a wall opening built directly beneath a large window. The result visible in the photo shows a fully enclosed unit, properly positioned against the wall and ready to provide air treatment for the room.
This installation stands out because of the PTAC's large indoor front panel, its air-return grille spanning almost the entire width, its adjustable air outlet on top, and its control compartment protected by a small cover on the right. The entire unit is integrated beneath the window without adding a separate outdoor unit to the building's façade.
A PTAC, or packaged terminal air conditioner, may seem simpler to install than a ductless wall-mounted heat pump. However, its performance and durability depend directly on the quality of the wall sleeve, airflow, the opening's airtightness, drainage, and the electrical connection.
At this property in Sainte-Hélène-de-Bagot, we also had to consider the proximity of an electric baseboard heater, the wood floor, the window, and furniture that could eventually be placed in front of the unit. All these elements affect the PTAC's day-to-day operation.
Why the TRANE ProSpace was suitable for this wall opening
The TRANE ProSpace is designed to be installed in an opening through the exterior wall. The chassis houses the main air-conditioning components and, depending on the exact version, the components required for heating.
Indoor air is drawn in through the large front grille. It then passes through the filter and coil before being redistributed through the outlet on top of the unit. The rear section of the PTAC connects to the outside to allow the necessary heat exchange.
This configuration helps limit work in the building:
- no ductwork network to add;
- no exposed refrigerant line between two units;
- no independent condenser to install on a wall bracket;
- no central mechanical space required;
- local temperature control in the room;
- direct access to the unit for HVAC maintenance.
In certain dwellings, rental buildings, rooms, or small commercial spaces, this autonomy represents a significant advantage. Each room can be managed separately without changing how the rest of the building operates.
An indoor front panel designed for everyday use
The photo shows a simple front panel composed of three main sections.
The large return-air grille
The lower central section contains a large horizontal grille. This allows the unit to draw a significant volume of air from the room.
This area must remain clear. A piece of furniture, bed, dresser, or armchair placed directly in front of the PTAC can reduce airflow, increase noise levels, and decrease the unit’s ability to maintain a stable temperature.
An obstruction can also cause:
- increased electricity consumption;
- reduced cooling performance;
- uneven heat distribution;
- faster filter buildup;
- increased strain on the fan;
- a risk of coil icing under certain conditions.
During our HVAC installation, we therefore ensure that the location allows sufficient airflow toward the front.
The adjustable air outlet on top
The large upper opening of the TRANE ProSpace is equipped with adjustable louvers. These allow air to be directed toward the center of the room rather than straight at the window or wall.
This feature is particularly useful when the PTAC is located beneath a window. Warm or cool air must be able to leave the unit without being immediately redirected toward a nearby surface.
Incorrectly adjusted louvers can cause discomfort near the unit. Conversely, proper positioning helps distribute air over a greater distance.
The protected control compartment
On the right side of the unit, a small cover protects the controls. This design reduces the risk of accidental changes while keeping the settings accessible.
Depending on the exact model configuration, the controls may allow you to select:
- desired temperature;
- cooling mode;
- heating mode;
- ventilation;
- fan speed;
- automatic operation.
The complete model number and detailed specifications are not visible in the photo. We therefore cannot reliably assign a specific BTU capacity, voltage, energy rating, or heating type to this particular unit.
At AirGreen, these details are always confirmed on the nameplate before commissioning.
The wall opening and sleeve: the foundation of any PTAC installation
The PTAC unit sits in a wall sleeve, a metal enclosure installed through the wall. This sleeve supports the chassis and helps separate the indoor section from the section exposed to outdoor conditions.
A successful installation requires the sleeve to be:
- securely fastened;
- compatible with the unit’s dimensions;
- free of significant deformation;
- protected against corrosion;
- properly oriented;
- free of any obstruction;
- watertight around its perimeter.
A sleeve that is too tight can put pressure on the chassis and create vibrations. A sleeve that is too large can let outdoor air through and compromise the unit’s stability.
We also check that the back of the PTAC is not blocked by an unsuitable exterior grille, a balcony object, leaves, snow, or an overly restrictive screen. The outdoor section must be able to exchange heat freely.
A watertight seal that protects the wall without blocking water drainage
The area around the sleeve must prevent water and outdoor air from entering the building. However, the passages provided for drainage must never be covered with sealant.
When the PTAC operates in cooling mode, moisture contained in the air condenses on the indoor coil. This water must be directed to the collection and drainage areas specified by the manufacturer.
Improper installation can cause:
- water flowing onto the floor;
- stains on the wall;
- deterioration of the trim;
- corrosion inside the chassis;
- damp odors;
- water noises;
- an accumulation of dirt in the condensate pan.
In a room with a wood floor, like the one visible in Sainte-Hélène-de-Bagot, a slow leak can cause significant damage before the problem is even noticed. Checking the drainage is therefore an integral part of our commissioning process.
The window’s proximity: a thermal advantage and an installation challenge
Windows are often areas of heat loss in winter and solar heat gain in summer. Installing the PTAC beneath the glazing makes it possible to treat the air near this sensitive area.
In cooling mode, the unit can quickly reduce the heat accumulated near the window. In heating mode, air movement can reduce the sensation of a cold wall.
However, this arrangement requires several precautions:
- The air outlet must not be blocked by the windowsill;
- The curtains must not fall onto the grille;
- The trim must not touch any vibrating part;
- The finish around the sleeve must remain watertight;
- Access to the front panel must remain possible;
- The chassis must not support the weight of the window or its trim.
The decorative trim visible above the TRANE ProSpace creates a clean transition between the opening and the rest of the wall. However, it must not prevent removal of the front panel during future maintenance.
The electric baseboard heater visible behind the unit
An electric baseboard heater is visible in the lower-left part of the photo. It appears to extend behind or immediately adjacent to the PTAC.
This situation requires particular attention because an electric baseboard heater operates primarily through convection. Air enters from below, warms up, and then exits through the upper section.
The PTAC must not block the baseboard heater's openings or cause excessive heat buildup between the two pieces of equipment.
We therefore check:
- the clearance between the PTAC and the baseboard heater;
- the condition of the convection grille;
- absence of direct contact;
- air circulation around the units;
- the position of the cables;
- the possible interaction between the two heating systems.
When the baseboard heater and the PTAC have separate controls, the setpoints must be coordinated. Two units set to different temperatures may operate simultaneously and unnecessarily increase electricity consumption.
When the PTAC is used as the primary heating source, the baseboard heater can generally be retained as supplemental heating, depending on the system's capacity and the building's needs.
Complete commissioning to ensure the performance of the TRANE ProSpace
Electrical inspection before start-up
A PTAC may require a specific electrical supply. Depending on the version, the voltage, outlet, cord, and circuit-breaker protection may vary.
The presence of a visible cord in the lower-right section does not establish that the unit operates from a standard residential outlet. We always confirm the requirements based on the complete model.
The checks include, in particular:
-
Nominal voltage
It must correspond to the power supply available in the building. -
Circuit capacity
The wiring and circuit breaker must support the unit's load. -
Connection type
The plug and outlet must be compatible without an improvised adapter. -
Grounding
It must be continuous and compliant. -
The condition of the cord
It must not be pinched under the chassis or come into contact with a sharp surface. -
The presence of an auxiliary electric heater
An electric heating element can considerably increase the circuit's demand.
Using an extension cord is not recommended for this type of unit. A permanent connection or an appropriate outlet must be provided in accordance with the manufacturer's requirements and the applicable Code.
Ventilation tests
We begin commissioning with the fan. This step allows us to check the airflow before activating the compressor or heater.
We check:
- motor start-up;
- the different speeds available;
- airflow stability;
- absence of rubbing;
- vibration level;
- air outlet direction;
- control response.
A mechanical noise may come from the fan, but also from a poorly secured front panel, trim touching the chassis, or a slightly deformed sleeve.
Air-conditioning tests
When indoor conditions allow for a reliable test, we activate cooling mode and observe the unit's complete operation.
We specifically check:
- compressor start-up;
- the decrease in supply-air temperature;
- cycle regularity;
- outdoor fan operation;
- no abnormal noise;
- condensate production and drainage;
- thermostat response;
- air circulation across the entire width of the grille.
We do not judge performance solely by the sensation of cool air. A thorough check considers temperature, airflow, compressor operation, and unit stability.
Heating tests
When the installed TRANE ProSpace includes a heating function, we also test this mode.
The exact technology must be confirmed using the complete reference number. Depending on the version, heating may rely on a heat pump, an electric element, or a combination of both.
We check:
- supply-air temperature;
- switching from cooling mode to heating mode;
- thermostat operation;
- no overheating;
- no persistent electrical odor;
- fan stability;
- coordination with the existing baseboard.
Checking vibrations in the structure
A PTAC contains a compressor and several fans. Slight vibrations are normal, but they must not be amplified by the wall or window.
Common causes of noise include:
- an improperly supported chassis;
- a deformed sleeve;
- an inadequately secured front panel;
- trim touching the unit;
- a wire or cable touching sheet metal;
- a blocked outdoor grille;
- a loose screw.
In a bedroom or living room, vibration transmitted to the structure can become more bothersome than normal fan noise. We therefore observe the unit during several operating phases before completing the installation.
Filter access and routine maintenance
The large front panel of the TRANE ProSpace must remain removable. The user must be able to access the filter without removing permanent trim or moving a heavy piece of furniture.
A dirty filter can significantly reduce the PTAC’s performance. It lowers airflow and may increase cycle times.
Signs of a clogged filter include:
- weaker airflow;
- higher noise level;
- less even temperature;
- increased energy consumption;
- dust buildup;
- possible coil icing during cooling.
Cleaning frequency depends on the environment. A home with pets, renovation work, or heavy use may require more frequent inspection.
Professional HVAC maintenance may also include:
- cleaning the coil;
- inspecting the fan;
- clearing the drain;
- checking the condensate pan;
- checking the electrical connections;
- inspecting the wall sleeve;
- checking the seals;
- checking for vibrations or corrosion.
Mistakes to avoid after installation
To maintain the unit’s efficiency, several habits should be avoided.
Do not place furniture in front of the grille
The front panel must be able to draw air freely from the room. Furniture installed too close reduces airflow.
Covering the upper outlet with a curtain
A long curtain can trap warm air against the window or be drawn toward the grille.
Storing objects on the unit
The top of the PTAC must not be used as a shelf. Objects can block the air outlet, vibrate, or fall into the grille.
Closing the louvers
The air outlet must remain sufficiently open. Fully closed louvers increase resistance to airflow.
Neglecting the outdoor section
The rear grille must be kept clear of snow, leaves, and objects stored near the wall.
Setting the baseboard heater and PTAC to incompatible temperatures
The two systems must operate according to a consistent strategy to avoid excessive energy consumption.
BTU capacity, efficiency, and subsidy eligibility
The TRANE ProSpace range may include several capacities and configurations. The photo does not show the nameplate or the complete model number.
We therefore cannot confirm precisely:
- BTU count;
- voltage;
- heating capacity;
- efficiency rating;
- refrigerant type;
- official sound level;
- eligibility for a subsidy.
These characteristics must be verified using the unit’s exact reference.
Having a heating mode does not automatically mean that the PTAC qualifies for a financial assistance program. Programs such as those offered in Quebec impose specific criteria concerning certification, efficiency, installation type, and the building.
For this project in Sainte-Hélène-de-Bagot, no specific subsidy can be confirmed based on the available information.
A clean, accessible result adapted to the room
Once closed, the TRANE ProSpace PTAC fits neatly beneath the window. Its white front blends with the trim, while the controls remain accessible on the right. The large front grille allows air intake, and the upper outlet can be adjusted according to the room’s layout.
The success of this installation depends on more than the final appearance. It relies on the work done behind the panel: checking the sleeve, verifying the power supply, inspecting the drainage, reducing vibrations, and conducting complete tests.
At AirGreen, we install, replace, and maintain PTAC units, heat pumps, wall-mounted air conditioners, and central systems in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
Every building has its own constraints. In Sainte-Hélène-de-Bagot, the combination of the window, electric baseboard heater, wood floor, and wall opening required an HVAC installation adapted to the room’s layout—not simply mechanically inserting the unit.
