Replacing a standalone unit in a location where every clearance mattered
At Sainte-Madeleine, we worked on a TRANE ProSpace PTAC installation located directly beneath a window, near a glass door providing access to a balcony and just a few centimeters from an electric baseboard heater. This compact arrangement clearly illustrates the reality of many apartments, condos, and multifamily buildings: the space available for the heating and cooling system is determined by the existing architecture, not the other way around.
The TRANE ProSpace occupies a wall opening here located between a side wall and a patio door. Its upper section distributes conditioned air into the room, while its large front grille provides air intake. The control panel is integrated into the top on the right side, beneath a cover bearing the TRANE logo.
At first glance, this type of project might look like a simple unit replacement. In practice, a PTAC installation requires a series of precise checks: wall sleeve dimensions, electrical supply, slope toward the outside, condition of the rear grille, airflow, proximity to heat sources, and future access to the filters.
At AirGreen, we consider all these factors before confirming that a new unit can be installed in an existing opening.
Why a PTAC was suitable for this Sainte-Madeleine room
A PTAC, or packaged terminal air conditioner, combines the main components needed to condition a room’s air in a single chassis. It does not have a separate outdoor unit like a traditional wall-mounted heat pump.
The rear section of the PTAC passes through the wall and exchanges heat with the outdoors. The indoor section draws in the room air, filters it, cools or heats it depending on the unit’s configuration, and then redistributes it through the upper grille.
This solution is particularly suitable when the owner wants to:
- keep an existing wall opening;
- avoid installing visible refrigerant lines;
- independently control the temperature of a room;
- limit work inside the walls;
- replace an older standalone unit;
- do not install a separate condenser on the balcony or façade;
- preserve access to an adjacent exterior door.
In this project, the presence of the glass door on the right considerably reduced the possibilities. A large wall-mounted unit or an installation encroaching on the passage would have interfered with the normal use of the room. The PTAC made it possible to concentrate heating and cooling in the opening already provided beneath the window.
What the image reveals about the existing configuration

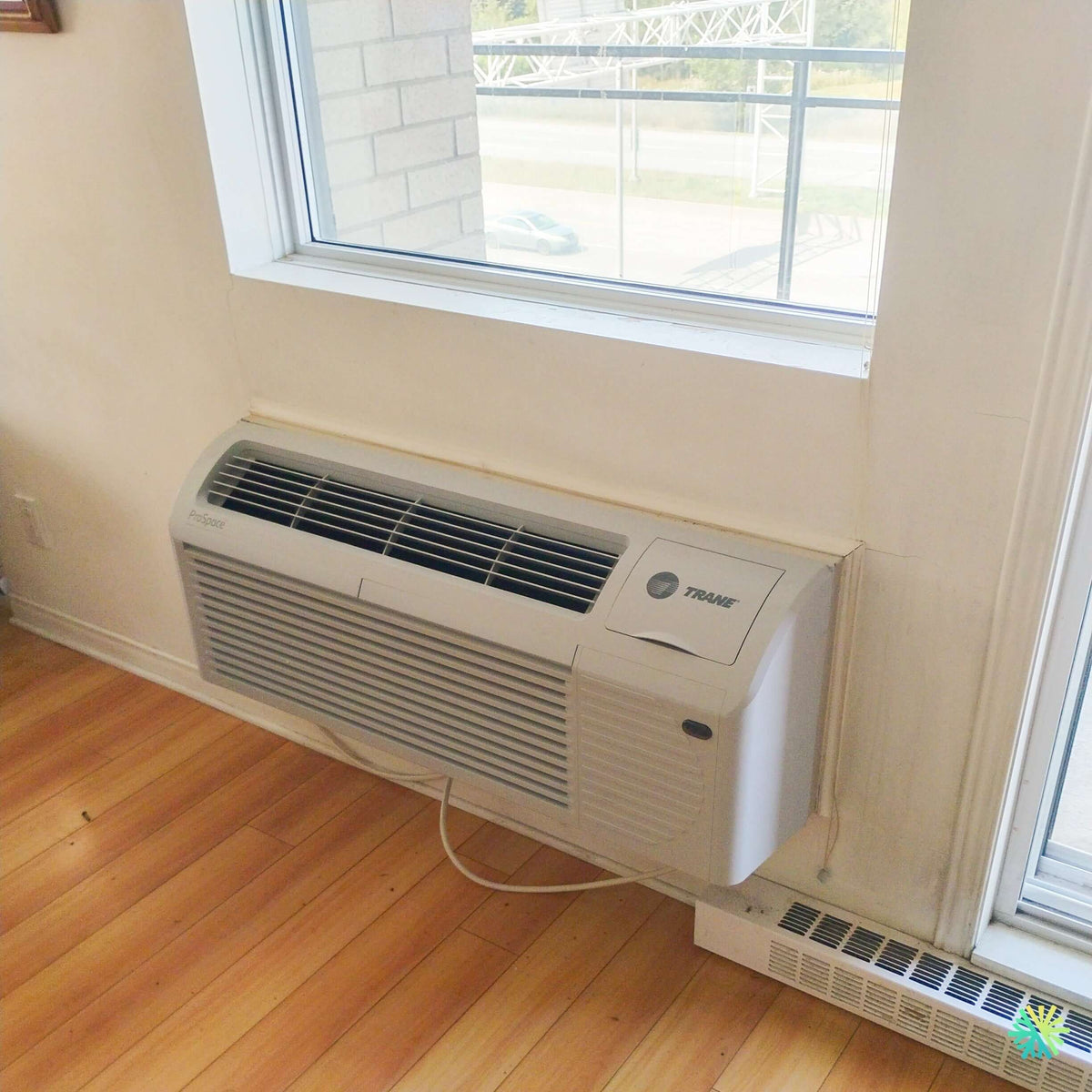

The photograph shows a residential setting with a wood floor, a large window, a patio door, and an electric baseboard running along the bottom of the wall.
The TRANE ProSpace is installed at a low height, like most PTACs. Its chassis fits into a sleeve that passes through the exterior wall. The interior front is slightly rounded, with a large horizontal grille in the center and an air outlet directed upward.
Several constraints were visible:
- very little space between the unit and the right wall;
- immediately adjacent to the balcony door;
- electric baseboard running beneath the right side of the unit;
- window positioned directly above;
- exposed power cord;
- no room for furniture in front of the system;
- wall finish that had to be adjusted to fit the PTAC’s contour.
This configuration required a stable and precise installation. The unit could neither touch the door frame, exert pressure on the wall finish, nor block the natural convection of the electric baseboard.
An installation near a patio door requiring precision
Installing a PTAC near an exterior door creates several particular challenges. The door must continue to open freely, and the passage must remain safe.
We must also consider temperature variations near the glazing. A large patio door can represent a significant thermal load in summer when the sun shines directly on the glass. In winter, it can be a source of heat loss, especially if the seals are aging or the glazing is less efficient.
The system is therefore located in an area where heating and cooling needs can be high. This does not mean that you should automatically choose the unit with the highest BTU capacity. Excessive capacity can cause short cycling, while insufficient capacity can force the unit to run almost continuously.
To choose the right capacity, we consider, among other factors:
- the area of the room;
- the ceiling height;
- the glazed area;
- the orientation of the window and door;
- the level of insulation;
- the floor of the dwelling;
- air infiltration;
- the number of occupants;
- the use of the room;
- the presence of supplemental electric heating.
The complete model number and exact capacity of the TRANE ProSpace are not sufficiently legible in the photograph. We therefore avoid assigning a specific capacity based solely on the unit’s exterior dimensions.
The wall sleeve: the component often overlooked during replacement
When an old PTAC is replaced, the first question should not be only: “Is the new unit the same width?”
The wall sleeve is an essential part of the installation. It supports the chassis, separates the indoors from the outdoors, and directs air toward the rear grille. Its condition directly affects system performance.
We check:
- the interior width and height;
- the wall depth;
- the condition of the sheet metal;
- the presence of corrosion;
- the stability of the sleeve;
- the seals around the opening;
- compatibility with the outdoor grille;
- the slope toward the outside;
- the absence of deformation.
Two units with generally similar dimensions may use different airflow paths. The rear grille must allow outdoor air to enter and exit without excessive recirculation.
An improperly matched grille can redirect the expelled hot air toward the condenser’s air intake. The compressor then operates under more difficult conditions, particularly on hot days. This situation can reduce cooling capacity and increase the risk of a protective shutdown.
The slope toward the outside and condensate drainage
In cooling mode, the indoor coil removes moisture from the air. The condensate must remain in the areas specified by the manufacturer and be directed outside according to the unit’s design.
The PTAC sleeve should generally have a slight slope toward the outside. This slope is subtle but essential.
An incorrect slope can cause:
- water flowing onto the floor;
- moisture buildup in the wall;
- marks beneath the unit;
- deterioration of the trim;
- odors;
- corrosion;
- noisy operation caused by accumulated water.
In a room with a wood floor like the one shown in the photograph, any leak must be taken seriously. Even a small amount of repeated water can affect the boards, joints, and bottom of the wall.
We therefore check the unit’s positioning before considering the HVAC installation complete.
Sealing around the PTAC in Quebec’s climate
A PTAC passes through the building envelope. An improperly sealed installation can create a permanent opening between the indoors and outdoors, even when the unit is turned off.
At Sainte-Madeleine, as elsewhere in Montérégie and Greater Montreal, temperature variations between seasons are significant. Infiltration around the sleeve can cause noticeable discomfort in winter.
Possible signs include:
- a draft around the façade;
- a cold wall near the unit;
- condensation on the interior finish;
- odors from outside;
- dust or insects entering;
- increased heating needs;
- frost formation under certain conditions.
We pay particular attention to the joints between the sleeve, wall, exterior grille, and interior façade. The decorative panel must never be considered the sole barrier against infiltration.
The proximity of the electric baseboard heater
The electric baseboard heater visible beneath the right side of the PTAC is another important feature of this installation.
A baseboard heater warms the air through convection. Cold air enters through the lower openings, warms inside, and then exits through the top. An obstruction can reduce this circulation and create a concentration of heat.
We must therefore prevent:
- the PTAC blocks the baseboard heater’s air outlets;
- the power cord rests on the baseboard heater;
- a curtain covers both appliances at the same time;
- the heat from the baseboard affects the PTAC sensor;
- both systems heat continuously at a high setpoint;
- objects are placed between the PTAC and the door.
The photo shows that the baseboard heater runs partially beneath the unit before continuing toward the patio door. This situation requires checking the clearances and using the heating system thoughtfully.
How to coordinate the PTAC and the baseboard heater
When the PTAC offers a heating mode, the baseboard can be used as supplemental heat, depending on the model’s specifications and the home’s needs.
A common strategy is to set the baseboard slightly below the temperature requested on the PTAC. It then operates only when the main system can no longer maintain the setpoint.
However, the exact strategy depends on:
- type of heating built into the ProSpace;
- unit capacity;
- outdoor temperature;
- desired comfort level;
- operating cost;
- the room’s insulation.
A baseboard thermostat installed very close to the PTAC may also receive its hot air directly. This should be taken into account when the two appliances appear to operate irregularly.
Commissioning the TRANE ProSpace and tips for maintaining its efficiency
Once the chassis is installed in its sleeve, we commission the unit. This step involves more than simply confirming that the appliance turns on.
Airflow check
We check that air is drawn in properly through the large front grille and distributed evenly through the upper outlet.
The top of the PTAC must remain unobstructed. A curtain, blind, or object placed too close may deflect the air directly against the window.
This can cause:
- poor distribution in the room;
- recirculation of conditioned air;
- an inaccurate temperature reading;
- longer cycles;
- uneven cooling or heating;
- unnecessary energy consumption.
In this installation, the window is directly above the unit. We therefore recommend not allowing a blind to descend over the discharge grille when the PTAC is operating.
Control check
The control panel of the TRANE ProSpace is located under a cover on top of the front panel. This arrangement protects the controls while allowing quick access.
Depending on the unit version, the settings may include:
- mode selection;
- temperature;
- fan speed;
- heating;
- cooling;
- ventilation;
- automatic operation.
We explain the difference between the modes to the customer to avoid contradictory settings.
The ventilation mode, for example, does not necessarily provide cooling. It circulates air without activating the compressor. This function can be useful for circulating air, but it does not replace cooling mode on a hot day.
Noise and vibration check
The compressor of a PTAC is located in the same chassis as the indoor components. The noise level is therefore generally more noticeable than that of a wall-mounted heat pump whose compressor is installed outdoors.
Normal operation should not, however, produce:
- metallic rattling;
- constant rubbing;
- significant vibration of the front panel;
- knocking at startup;
- electrical whistling;
- abnormal humming;
- excessive resonance in the wall.
We observe the unit’s behavior at startup, during ventilation, and when the compressor is activated. A vibration may be caused by a poorly seated chassis, a loose front panel, or a component coming into contact with the sleeve.
Cord and power supply inspection
The power cord is visible in front of the bottom of the unit. It must be positioned so that it does not become an obstacle or come into contact with the electric baseboard heater.
A PTAC should not be powered using a household extension cord. The circuit must meet the requirements on the nameplate.
We check in particular:
- voltage;
- the type of outlet;
- the condition of the plug;
- circuit capacity;
- electrical protection;
- the absence of overheating;
- the cord’s integrity.
The required electrical power may vary depending on whether a heating element is present. Two similar-looking units may require different circuits.
Access to filters and routine maintenance
The large front grille of the TRANE ProSpace contains or protects the filtration and air-intake areas. These components must remain accessible.
Basic HVAC maintenance generally includes:
- removing the filters;
- cleaning or replacing them depending on their type;
- dusting the grille;
- visually inspecting the heat exchanger;
- checking for unusual noises;
- monitoring condensation;
- inspecting the plug and cord.
The frequency depends on the environment. A room occupied daily, the presence of pets, renovations, or intensive use may require more frequent cleaning.
Why a dirty filter quickly affects a PTAC
The fan must move air through the filter and indoor coil. When the filter is clogged, airflow decreases.
Possible consequences include:
- less effective cooling;
- uneven heating;
- extended cycles;
- more pronounced airflow noise;
- dust buildup on the heat exchanger;
- risk of the coil freezing under certain conditions;
- increased energy consumption.
Cleaning the filters is one of the simplest ways to preserve a PTAC’s performance.
Common mistakes to avoid
Our experience with self-contained installations in Montréal, Laval, Longueuil, on the North Shore, and on the South Shore enables us to identify several recurring mistakes.
-
Choosing a unit solely because it fits the opening.
The compatibility of the sleeve, outdoor grille, and power supply must also be confirmed. -
Neglecting the slope toward the outside.
An improper tilt can cause indoor leaks. -
Placing furniture in front of the front panel.
Air intake becomes insufficient. -
Leaving a curtain in front of the air outlet.
Room comfort decreases, and air recirculates near the window. -
Using an extension cord.
The unit must be connected according to the manufacturer’s requirements. -
Operating the baseboard heater and the PTAC without coordination.
The systems may interfere with each other or consume energy unnecessarily. -
Ignoring a new vibration.
An unusual noise may indicate a loose front panel, a dirty fan, or an improperly positioned chassis. -
Waiting before having a water leak checked.
The wall and floor may sustain damage. -
Replacing the unit without inspecting the outdoor grille.
An incompatible grille can significantly reduce performance.
Energy efficiency and eligibility for subsidies
The exact efficiency of a PTAC depends on the complete model, its capacity, its heating type, and its year of manufacture.
The name TRANE ProSpace alone cannot confirm:
- the number of BTUs;
- energy efficiency;
- heating capacity;
- presence of a heat pump;
- certification number;
- eligibility for an assistance program.
Québec subsidy programs often target specific categories of heat pumps and require a model listed on an approved list. A PTAC that provides heating and cooling is not automatically eligible for the same assistance as a ductless wall-mounted system or a central heat pump.
We recommend checking the complete model number, the AHRI reference when available, and the requirements of the current program before calculating financial assistance.
A solution suited to multi-unit buildings
PTACs are common in buildings where each dwelling or room must have its own system.
For a property manager, this configuration offers several advantages:
- individual control by occupants;
- no central system;
- possibility of replacing components individually;
- interior access for part of the maintenance;
- reuse of existing openings;
- reduction of visible ductwork on the façade.
It also entails responsibilities. Sleeves, exterior grilles, seals, and drainage systems must be inspected periodically. Replacing only the chassis without checking the rest of the installation may shift the problem rather than solve it.
The result of our work in Sainte-Madeleine
The installation of the TRANE ProSpace PTAC in Sainte-Madeleine had to fit within a very compact area between the window, the patio door, and the electric baseboard heater.
We took into account:
- existing wall opening;
- unit positioning;
- access to the controls;
- air circulation;
- proximity to the electric heating;
- power supply;
- chassis stability;
- condensation management;
- of future maintenance.
The ProSpace fits beneath the window without occupying the central space of the room. Its front remains accessible, and the adjacent door can continue to be used normally.
This installation demonstrates that a PTAC can be a practical solution, provided its integration is assessed as a whole. The visible dimensions represent only part of the work. Technical compatibility, electrical safety, watertightness, and commissioning quality determine the reliability of the result.
