A central installation in a Montréal-Nord basement where every detail mattered
In Montréal-Nord, AirGreen carried out the installation of a GREE FLEXX Air Handler electric furnace, a central solution designed to supply an existing or newly adapted duct network, with the goal of improving air distribution throughout the property. This type of project requires a very different approach from a simple wall installation: here, it is not just about placing an indoor unit, but properly integrating a central device in a mechanical room, connecting the airflow to the ventilation network, validating service clearances, securing electrical connections, and preparing the system for reliable performance over several years.

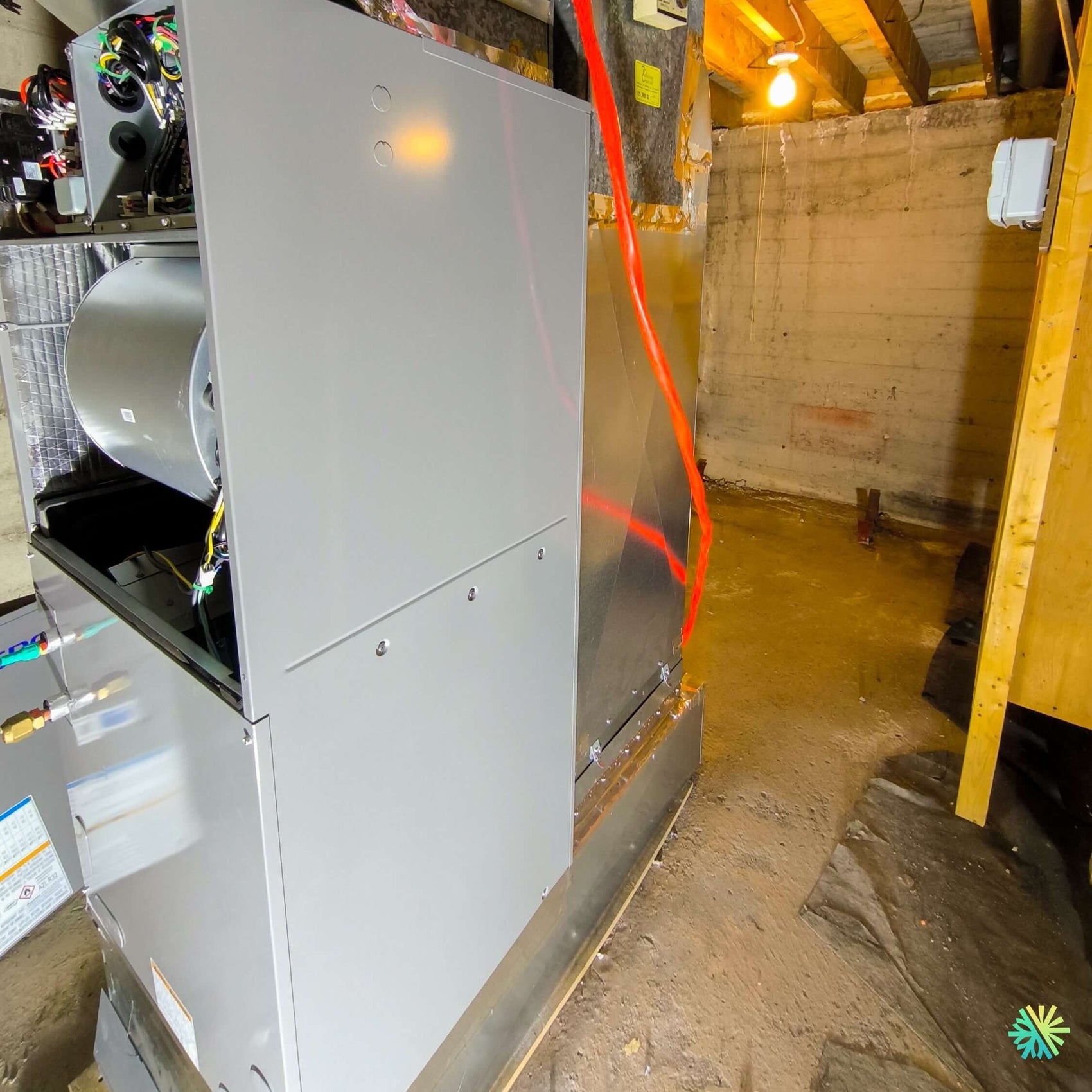

The construction site photo shows an installation in a raw basement, with concrete walls, exposed wood structure, narrow mechanical area, metal ducts, and technical access to the unit. This context is common in several properties in Montreal, especially in neighborhoods where houses have been renovated in stages over the years. The available space is not always ideal, ducts sometimes need to be adjusted on site, and coordination between the furnace, plenum, air return, and electrical accessories must be done precisely.
The GREE FLEXX is a central platform designed to fit replacement projects as well as more comprehensive installations. The GREE FLEXX Ultra R32 range is presented as a central heating and air conditioning system using R32 refrigerant, compatible with 24 V control and a multi-position indoor unit, which facilitates integration into different mechanical spaces. In a basement in Montréal-Nord, this versatility is particularly useful: height, width, structure, and circulation constraints around the equipment directly influence the quality of the installation.
Why choose a GREE FLEXX Air Handler electric furnace for this type of project
A central electric furnace or air handler is used to move conditioned air through the home's ducts. When paired with a compatible central heat pump, it can be part of a complete heating and cooling system. In some projects, it replaces an older, noisier, less efficient, or poorly suited electric furnace for the duct network. In other cases, it is integrated into a hybrid solution or a full HVAC system upgrade.
The GREE FLEXX Ultra R32 series can reach up to 19 SEER2, 12.5 EER2, and 10.5 HSPF2 depending on the installed combination, and GREE indicates a heating range from -22 °F to 75 °F as well as a cooling range from 5 °F to 129 °F for this platform. These figures should always be interpreted according to the exact model, the associated outdoor unit, the AHRI number, and the actual building conditions. At AirGreen, we validate these elements before presenting a final recommendation, especially when a client wants to know potential eligibility for a subsidy or compare several central options.
For this installation in Montréal-Nord, the choice of a GREE FLEXX Air Handler was part of an overall comfort strategy: rather than just adding a wall unit in a room, the client wanted a solution capable of better managing air circulation through the ducts. This approach is often relevant when the property already has central distribution or when the project aims to modernize an existing system without multiplying visible units in the rooms.
The main challenge: integrating a central unit into a confined mechanical room
The basement where the unit was installed had several visible constraints: a narrow workspace, an open structure, existing ducts, a nearby concrete wall, and limited circulation space. This type of environment requires methodical work. A misalignment when positioning the furnace can complicate the connection to the plenum, cause pressure losses, make filter access difficult, or hinder future HVAC maintenance interventions.
Our team therefore worked taking into account several priorities:
- maintaining convenient access to service panels;
- aligning the unit with the duct network;
- preserving the necessary clearances around the equipment;
- strengthening metal transitions;
- limiting air loss at the joints;
- preparing the unit for stable use in heating and ventilation;
- keeping an installation clean despite a rough basement environment.
In a central HVAC installation, the unit itself is only part of the equation. Performance also depends on the duct network, the quality of transitions, static pressure, fan speed, air return, filtration, and the thermostat. That is why AirGreen never treats an electric furnace as a simple mechanical replacement. We analyze the complete system.
An installation that requires precision in connections
The photo shows the unit with an open panel during work, illustrating an important step: internal checks and connections must be made before complete closure and final testing. On a GREE FLEXX electric furnace, wiring, controls, the fan, any electrical elements, and control connections must be installed carefully. The goal is to achieve safe, stable operation compatible with the building's needs.
The plenum and metal transitions
One of the most visible elements in this project is the transition to the main duct. A poorly designed transition can create turbulence, noise, and uneven air distribution. We therefore paid special attention to the alignment and sealing of the joints. In homes in Montréal-Nord, where several duct networks have been modified over the course of renovations, this step is often decisive.
Access to the panels
A central furnace must remain accessible. The customer must be able to replace or have the filter replaced without difficulty, and our technicians must be able to access the internal components during maintenance or diagnostics. Installing the unit too close to a wall, post, or obstacle can make each intervention longer and more costly. In this project, we therefore maintained a service logic from the installation stage.
Ventilation and airflow
The final comfort depends on the actual airflow, not just the announced capacity of the device. A house can have excellent equipment but a disappointing result if the duct network is too restrictive, if the air return is insufficient, or if the fan speed is not well adapted. This is especially true for central systems in the older areas of Montréal, Laval, Longueuil, the North Shore, and the South Shore, where each property often has its particularities.
Available capacities and the importance of proper sizing
GREE FLEXX and FLEXX Ultra R32 products are offered in several central capacities. The range presented by AirGreen notably includes configurations of 2, 3, 4, and 5 tons, associated with capacities commonly designated as 24,000, 36,000, 48,000, and 60,000 BTU depending on the models. This variety allows better adaptation of the system to the building, but it also makes sizing even more important.
Choosing a furnace that is too small can lead to a lack of airflow or an overworked auxiliary heater. Choosing a furnace that is too large can create a different discomfort: air circulation noise, poorly balanced cycles, too high static pressure, premature wear, or poor distribution between floors. At AirGreen, we always evaluate several elements before recommending a capacity:
- area served;
- building insulation;
- number of floors;
- condition of the ducts;
- number of air outlets;
- available air return;
- heating needs;
- air conditioning needs;
- compatibility with a central heat pump;
- electrical constraints.
In this project in Montréal-Nord, the mechanical environment also forced us to consider the physical installation of the device. A good device poorly placed can become a source of problems. A properly sized device, installed neatly and connected methodically offers a much more stable result.
What this GREE FLEXX installation brings to the comfort of a home in Montréal-Nord
More uniform comfort thanks to the central network
One of the great advantages of an Air Handler electric furnace is the ability to distribute air to several rooms from a central network. For a homeowner who wants to avoid a room-by-room solution, this approach can offer more uniform comfort. The temperature is better distributed, distant zones can be better supplied, and the house maintains a more discreet aesthetic since there is no visible wall unit in each space.
In a property in Montreal-North, this can be particularly interesting when rooms are separate, bedrooms are spread across different levels, or the client wants to modernize their system without significantly altering the interior appearance. A well-designed central installation can also improve filtration and overall air circulation.
A better foundation for a central heat pump
An Air Handler GREE FLEXX can be integrated into a more comprehensive strategy with a compatible central heat pump. When the system is configured with an eligible outdoor unit and a recognized pairing, it can become an attractive option for homeowners who want to reduce their reliance on electric heating elements while keeping a backup furnace for colder periods.
Hydro-Québec indicates that the LogisVert program specifically targets eligible efficient heat pumps, and that models must be verified using the official tool or the lists of eligible heat pumps. Hydro-Québec also specifies that certain cold climate ENERGY STAR heat pumps may qualify for a $120 incentive per 1,000 BTU/h at -8 °C, subject to program conditions. For a furnace or air handler alone, eligibility should never be assumed: it depends on the complete system, the AHRI number, the installed outdoor unit, and the current criteria.
At AirGreen, we assist our clients with this verification to avoid common mistakes: wrong model number, unreadable nameplate, unrecognized combination, incomplete invoice, or confusion between the indoor unit and the complete system. This is an essential step for homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore who want to take advantage of available incentives when their project qualifies.
Mistakes to avoid when replacing an electric furnace
A central furnace replacement may seem simple from the outside, but several mistakes can reduce the quality of the result. In our experience, the most frequent are the following:
Replacing the device without analyzing the ducts
An old system may have operated for years with an imperfect duct network. Installing a new furnace without checking airflow, returns, and restrictions can reproduce the same problems. AirGreen always evaluates the air distribution as a whole.
Neglecting service space
A device installed too tightly becomes difficult to maintain. In a basement like the one in this project in Montréal-Nord, every inch counts. We think about the installation day but also future service visits.
Poorly sealing transitions
An air leak in a plenum or metal transition can reduce system efficiency and create less comfortable zones. Joints must be clean, solid, and well sealed.
Forgetting electrical compatibility
An electric furnace requires an appropriate power supply. The electrical panel, circuit breakers, conductors, and protections must match the installed configuration. This check is essential before startup.
Installing without a control plan
The thermostat, heating sequences, ventilation, and any external heat pump must work together. Poor configuration can make a high-performance system less comfortable on a daily basis.
The AirGreen approach on this project
For this installation, our team adopted a structured working method. We first assessed the mechanical location, existing ducts, and physical constraints of the basement. Then, we positioned the GREE FLEXX Air Handler to allow a clean connection to the ventilation network while maintaining access to internal components. The transitions were adjusted to limit air loss and promote more direct circulation.
Once the mechanical and electrical connections were completed, we proceeded with the operational checks: system response, fan control, power supply stability, thermostat behavior, and air circulation. This final step is essential. It confirms that the installation is not just “plugged in” but truly ready to meet the customer's needs.
A relevant solution for Montréal-Nord and Greater Montreal
Projects involving electric furnaces, air handlers, central heat pumps, and ducted HVAC systems are very common in Greater Montreal. Houses don’t all have the same layout, and this is precisely where AirGreen’s experience makes a difference. An installation in a basement in Montréal-Nord doesn’t have the same constraints as a new house on the South Shore, a bungalow in Laval, a duplex in Montreal, or a larger property on the North Shore.
We adapt our work to the reality of the building. In some cases, an aging duct network needs to be optimized. In others, the integration of a central heat pump must be prepared. Sometimes, the main challenge is the mechanical space. Sometimes, it’s noise, static pressure, lack of air return, or available electrical capacity. Our goal remains the same: to deliver a HVAC installation that is clean, safe, efficient, and consistent with the client’s real needs.
A discreet installation, but essential for daily comfort
Unlike a wall unit visible in a room, a central furnace often works in the shadows, in the basement. Yet, its role is major. It influences the comfort of every room, the quality of air circulation, temperature stability, and the possibility of adding or optimizing a central heat pump. This installation of a GREE FLEXX Air Handler in Montréal-Nord clearly shows the importance of precise work in a mechanical area that, at first glance, may seem secondary.
For AirGreen, this type of project represents exactly what a successful central installation should be: a well-chosen device, careful integration, clean connections, thoughtful service access, and a system ready to support home comfort for many seasons.
