Installation of a GREE FLEXX Electric Furnace - Air Handler at Old Port of Montreal

A discreet central installation in a compact technical space in the Old Port

In the Old Port of Montreal, our AirGreen team completed the installation of a GREE FLEXX electric furnace with air handler, integrated into a horizontal configuration at height, inside a compact technical space. This type of project demands very precise planning: the unit must be securely installed, the ducts carefully connected, drainage must be reliable, refrigerant lines must be protected, and access to the unit must remain possible for future maintenance.

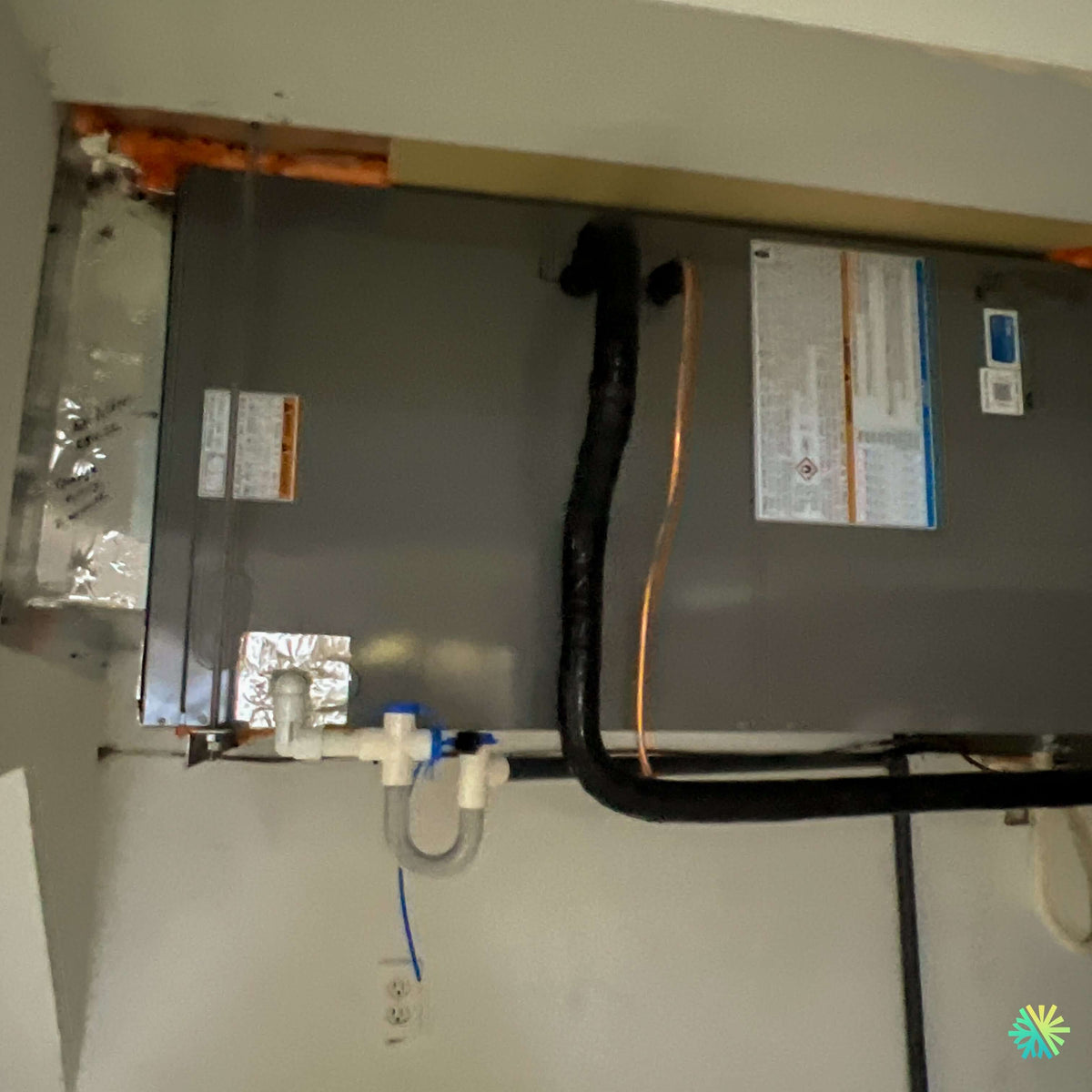

The project photo clearly shows an installation in a ceiling space, with the GREE FLEXX air handler installed horizontally behind a wall opening, connected to an existing duct network. You can see the insulated pipes, the copper tubing, the condensate drainage system with a trap, as well as the unit's access panels. In an area like the Old Port, where many properties are in older buildings, renovated condos, or loft-type spaces, this kind of installation requires HVAC expertise adapted to real architectural constraints.

The client's goal was to obtain a reliable central system capable of distributing air throughout the living space without multiplying visible devices inside. The GREE FLEXX Electric Furnace - Air Handler was therefore a relevant solution, as it allows integrating the comfort of a central system into a discreet configuration, while maintaining an efficient approach for heating and cooling when the unit is paired with the appropriate outdoor system.

A horizontal configuration that requires rigorous execution

Unlike a vertical furnace installed in a traditional mechanical room, a horizontal installation at height presents several challenges. The unit must be perfectly supported, aligned with the duct network, and positioned to allow proper condensation drainage. The slightest miscalculation can cause problems: vibration, noise in the ducts, maintenance difficulties, poor drainage, or insufficient access to components.

In this project in the Old Port of Montreal, our technicians paid special attention to integrating the unit into the existing opening. The unit had to fit into a limited space, with little clearance around the casing. The connection to the ducts had to be clean, airtight, and compatible with the building's configuration. An installation of this type is never simply a matter of placing the device in the right spot; it requires consideration of air circulation, stability, clearances, electrical connections, drainage, and future service access.

One of the most visible elements in the photo is the condensate drainage. The white pipe, accompanied by a trap, plays an essential role when the system operates in cooling mode. The moisture removed from the indoor air must be evacuated without backflow, accumulation, or risk of leakage. In a ceiling or enclosed space, condensate management must be handled with great care. A slow leak can go unnoticed for some time and cause damage to drywall, insulation, or interior finishes. That is why AirGreen places so much importance on this detail.

Why the GREE FLEXX range is well suited for central systems

The GREE FLEXX range is often chosen for central projects where the goal is to modernize the comfort of a residence without necessarily installing wall units in every room. The air handler acts as the indoor component of the system: it circulates treated air through the ducts, participates in heating and cooling distribution, and integrates with home controls.

In a property in the Old Port, this approach is particularly interesting when interior aesthetics are important. Condo, loft, or renovated unit owners often seek a discreet solution capable of offering uniform comfort without affecting the style of the rooms. A well-installed central system helps preserve walls, living spaces, and architectural lines while improving daily comfort.

The BTU capacity of this type of installation must be confirmed according to the complete system pairing, including the indoor unit, outdoor unit, the area to be treated, heat losses, insulation, existing ducts, and the client's actual needs. In our AirGreen projects, we avoid approximate choices. An improperly sized device can generate too much noise, operate inefficiently, or provide uneven comfort from one room to another.

For a central installation, energy performance is not just about the brand name. It depends on the exact matching of components, the applicable AHRI number, the quality of the duct network, airflow, and commissioning. When a client wants to verify eligibility for a subsidy, especially for a configuration with a central heat pump, we always validate the data of the complete system. An electric furnace or an air handler alone is not enough to confirm eligibility; the entire installed system must be analyzed.

Challenges specific to the Old Port of Montreal

HVAC installations in the Old Port of Montreal often require a different approach than that used in a recent single-family home. Buildings may have more complex ceilings, hidden mechanical spaces, condominium constraints, older ducts, or limited technical routes. Every opening, every connection, and every access must be carefully considered.

In this project, with the unit installed high up, access to the service panels had to be planned. You can see in the photo that the technical labels and panels remain accessible, which is essential for future inspections. An installation that works well on the commissioning day but becomes difficult to maintain afterward is not a successful installation. At AirGreen, we always think ahead: filter replacement, connection inspection, drain check, fan maintenance, reading technical data, and service interventions.

Another major challenge was the proximity of the finishing materials. The wall and ceiling around the unit show that the device is integrated into a closed or semi-closed space. This requires great precision in the connections. The drain must be stable, the refrigerant lines must be properly insulated, openings must be protected, and the whole must remain clean once the work is completed.

The duct network: the real comfort factor

In a central installation, comfort depends as much on the ducts as on the device itself. A GREE FLEXX Electric Furnace - Air Handler can provide an excellent mechanical base, but if the ducts are poorly sized, poorly sealed, or poorly balanced, the result will not meet expectations.

In this project, the connection to the duct was handled with care. The plenum and transitions must allow smooth air circulation. Too much restriction can increase static pressure, strain the fan, create noise, and reduce overall efficiency. Conversely, a well-fitted connection helps distribute air more evenly, reduce losses, and maintain more stable comfort in the served rooms.

Owners often first think about the brand of the unit. This is normal, as the brand is visible on the quote. But our field experience in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore shows that a successful central installation relies on several combined factors:

• proper sizing of the unit;
• condition and design of the ducts;
• quality of connection to the plenum;
• airflow control;
• sealing of transitions;
• drainage management;
• maintenance access;
• the complete commissioning.

An HVAC installation designed for efficiency, access, and peace of mind

Condensate management: a critical detail in a ceiling installation

The drainage system visible in the photo is a key element of the project. When an air handler operates in cooling mode, the air’s humidity condenses on the indoor coil. This water must be directed to a reliable drain. In a wall-mounted or floor installation, a drain problem can sometimes be detected quickly. In a horizontal installation integrated into the ceiling, even more rigor is required, as the consequences of poor drainage can be more costly.

We therefore paid special attention to the slope, the trap, the sturdiness of the fittings, and the accessibility of the drain. This step reduces the risks of overflow, suction noise, odors, or backflow. For central systems installed in enclosed spaces, this point is a top priority.

Refrigeration lines and insulation: preserving system performance

We also distinguish refrigeration lines, part of which is insulated in black. This insulation is essential to limit heat loss and prevent unwanted condensation on the pipes. Poorly insulated piping can cause moisture, dripping, reduced efficiency, and a less clean finish.

The quality of refrigerant lines directly influences system performance when paired with an outdoor unit. The routing must be well planned, without excessive bending, with adequate protection, and connections made according to best industry practices. At AirGreen, this work is done by qualified technicians experienced with complex central installations in residential and condominium buildings.

Electricity and controls: a step never to be neglected

An electric furnace requires appropriate power supply and compliant protections. In a configuration with air handler, electrical connections and controls must be installed according to the manufacturer's specifications and applicable Quebec standards. The system must respond correctly to heating, ventilation, and air conditioning demands, without unstable sequences or communication errors.

Commissioning confirms the proper operation of the device. Our technicians specifically check:

• fan startup;
• heating sequences;
• thermostat calls;
• operation in cooling mode when pairing allows it;
• drainage under real conditions;
• unusual noises;
• airflow at the outlets;
• accessibility to panels and the filter.

This structured method is especially important in an installation at the Old Port, where access can become more limited after walls or ceilings are closed.

Mistakes to avoid in a horizontal air handler installation

This project illustrates several common mistakes that owners should avoid when comparing bids for a central HVAC installation.

The first mistake is neglecting service access. A device installed too tightly, without sufficient opening, can become very costly to maintain. The filter, panels, and drain must remain accessible.

The second mistake is underestimating drainage. A missing trap, incorrect slope, or fragile connection can cause water problems. In a ceiling installation, this risk must be addressed from the start.

The third mistake is to believe that replacing a device requires no analysis of the ducts. Existing ducts must be evaluated. A new system may have different needs than the old one.

The fourth mistake is focusing only on price. A cheaper quote may omit important elements: duct adaptation, line insulation, proper support, finishing of openings, control checks, or detailed commissioning.

A result adapted to the urban life of the Old Port

The client wanted a central system capable of providing good comfort without altering the appearance of the main rooms. This constraint is common in units in the Old Port of Montreal, where interior space is often optimized and owners want to maintain a clean finish. Installing a GREE FLEXX air handler overhead fits this reality well, provided the execution is precise.

Once commissioning is complete, the system allows for centralized air distribution, with more uniform comfort and discreet integration. The client benefits from a solution designed for heating and cooling, with a solid technical foundation for years to come.

AirGreen: central expertise for Montreal and its surroundings

AirGreen carries out installations of heat pumps, electric furnaces, air handlers, central air conditioners, and residential HVAC systems throughout Greater Montreal. Our teams work in single-family homes as well as condos, duplexes, triplexes, renovated buildings, and complex technical spaces.

This project in the Old Port clearly reflects our approach: analyze the building, choose a suitable configuration, carefully handle visible and invisible connections, then perform a complete commissioning. The quality of an installation is measured not only by the device installed but also by everything surrounding it: ducts, drainage, electricity, access, insulation, stability, and post-installation service.

For owners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, a central installation like this highlights the importance of working with a team that understands both the building constraints and the technical requirements of the system.
