Installation of a Lennox wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension
Installation of a Lennox wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension. AirGreen ensures comfort, savings, and perfect adaptation to Montreal plexes and the climate conditions of Greater Montreal.

In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A discreet and efficient HVAC installation in a red brick Montreal plex
At AirGreen , we specialize in installing HVAC systems adapted to the architectural reality of Montreal plexes . In this project located in Villeray–Saint-Michel–Parc-Extension , our team installed a Lennox wall-mounted heat pump , an ideal choice for providing comfort and energy savings in a typically urban home.
The advantages of the Lennox wall-mounted heat pump
Lennox wall-mounted heat pumps are renowned for their reliability and consistent energy efficiency, even in harsh climates like Montreal's. Their strengths include:
-
High energy efficiency , Energy Star certified.
-
Heating performance down to -25°C, reducing reliance on electric baseboards.
-
Compact design of the outdoor unit, convenient for tight spaces.
-
Quiet operation , ideal for dense areas where neighbors are close.
The particularities of the installation
The installation presented several challenges that our team was able to address with precision:
-

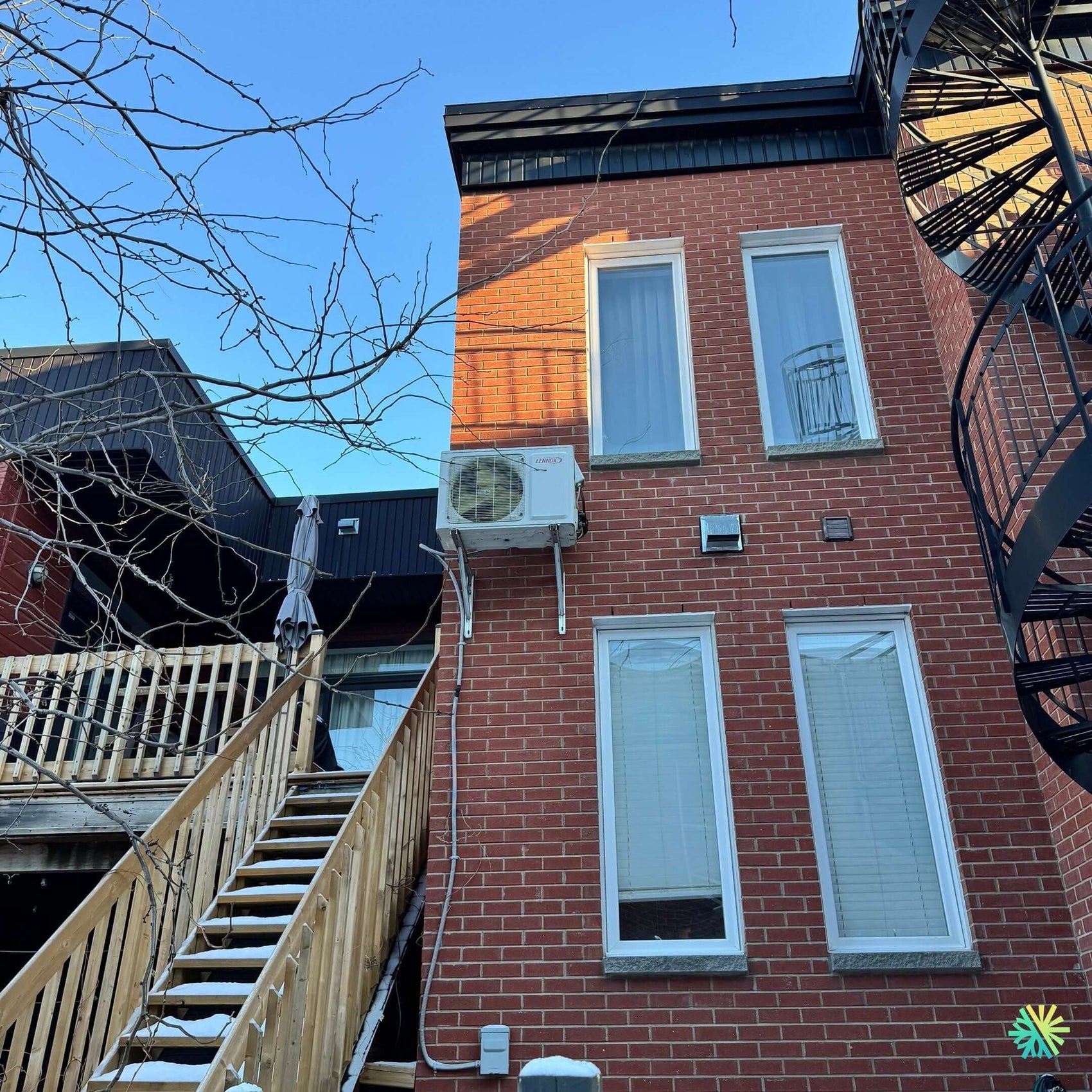

High wall mounting
-
The outdoor unit was fixed to sturdy brackets , anchored securely into the brick facade.
-
This configuration frees up floor space, while protecting the condenser from snow and debris.
-
-
Restricted access and security
-
As the building has a spiral metal staircase and a wooden balcony, we carefully secured the area to protect the occupants and facilitate access for technicians.
-
The use of specialized equipment allowed efficient work despite space constraints.
-
-
Passage of refrigerant and electrical conduits
-
The conduits were concealed in discreet covered wiring on the facade, ensuring both protection from the elements and a neat finish.
-
The wiring was connected directly to the home's electrical panel, in accordance with RBQ standards.
-
-
Gravity drainage of condensates
-
Thanks to the chosen location, a gravity drainage system was installed, avoiding the use of a lifting pump.
-
This solution simplifies maintenance and extends the life of the installation.
-
Challenges and solutions provided
-
Dense urban environment : a compact and quiet installation was required, respecting cohabitation in an apartment building. The Lennox heat pump perfectly meets these requirements.
-
Winter work : despite the presence of snow on the stairs, our technicians protected the intervention area and ensured the safety of the site.
Results achieved for the client
Thanks to this installation, the owner now benefits from:
-
Four-season comfort , with air conditioning in summer and efficient heating in winter.
-
A significant reduction in electricity costs compared to 100% electric heating.
-
An aesthetic integration that respects the character of the Montreal plex.
Why choose AirGreen for your installation in Montreal?
-
Experience with Montreal plexes and condos : we know the structural particularities of these buildings and adapt each installation accordingly.
-
Turnkey service : free estimate, advice on model selection, grant management and complete installation.
-
Grant support : the Lennox range is eligible for Quebec and federal programs such as LogisVert and Greener Homes .
-
Monitoring and maintenance : we offer HVAC maintenance contracts to maximize the lifespan of your equipment.
Recommended maintenance
To ensure optimal performance, we recommend:
-
Cleaning the wall unit filters every two months.
-
A complete annual inspection including refrigerant check and electrical connection verification.
-
Preventive snow removal around the outdoor unit, even if its installation at a height already protects it to a large extent.
Conclusion
This installation of a Lennox wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension demonstrates our expertise in adapting HVAC systems to the realities of Montreal's housing stock. At AirGreen , we put our expertise to work for sustainable comfort and energy efficiency, while respecting the unique architecture of Greater Montreal's neighborhoods.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
