Installation of a Sharp Eco Inverter wall-mounted heat pump in Parc-Extension

Multi-level comfort, careful installation and optimized air circulation in the heart of a Montreal plex

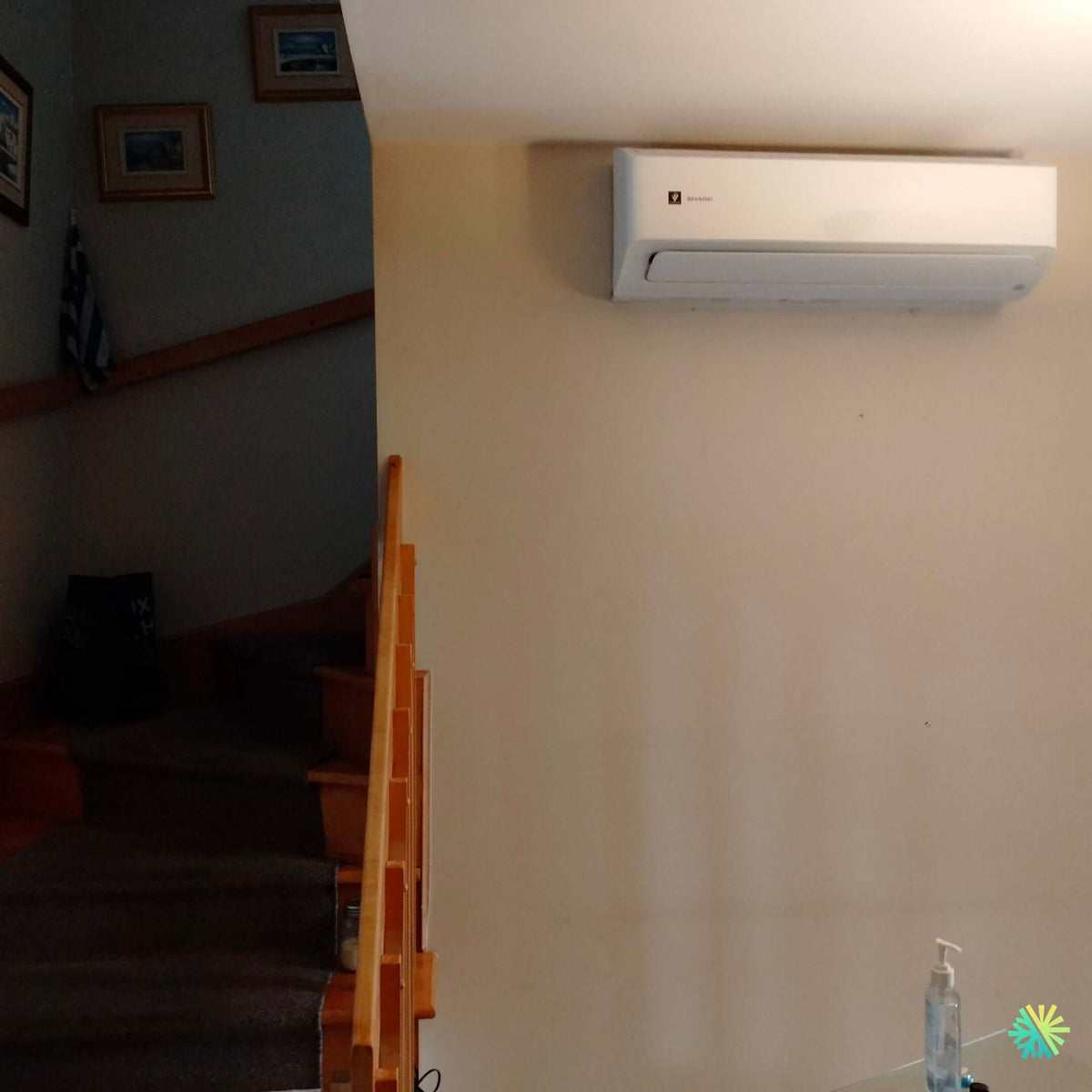

In a Parc-Extension plex, our team installed a Sharp Eco Inverter wall-mounted heat pump judiciously placed on the wall of the main landing, above the stair railing. This strategic positioning allows for powering both the ground floor living area and the upper floor, while keeping the equipment discreet and easily accessible for maintenance. The objective set with the owner: four-season thermal stability , silence , low consumption and aesthetic integration within the interior of a typical Montreal home.

Why a wall-mounted headboard on the landing changes the comfort of a plex

In Greater Montreal's plexes, staircases create a veritable thermal chimney : hot air rises naturally, cool air descends. By installing the interior header on the landing, we harness this dynamic to:

• quickly diffuse the cold to the upper rooms in summer and bring the coolness back down without aggressive drafts;

• stabilize the heating in mid-season, the temperate air being distributed better between the levels;

• avoid dead zones often encountered when the unit is confined to a corner of the living room.

Motorized shutters direct airflow along the corridor axis and toward the staircase. Moderate fan speed limits noise while generating gentle, even airflow. The result: consistent comfort and longer cycles, resulting in better seasonal efficiency (SEER2/HSPF2).

The safe bet of a Sharp Eco Inverter for Montreal

The Sharp Eco Inverter wall-mounted range is particularly well suited to the needs of urban housing:

• Fine modulation inverter compressor : reduced consumption and precise maintenance of the setpoint;

• Air quality technology (Plasmacluster type ionicity depending on the series) appreciated in high occupancy housing;

• Low noise levels inside and outside, essential in adjoining buildings;

• Efficient defrost management for Montreal 's cold periods, with low temperature capacity maintenance according to sizing.

For an average plex, a range of 9,000 to 18,000 BTU covers most scenarios. We always size based on the actual heat load (orientation, insulation, inertia, internal inputs) to avoid oversizing and short cycles .

Technical course: clean, short and designed to last

The installation follows a short path logic between the indoor unit and the outdoor unit, in order to:

• reduce pressure losses on copper connections;

• improve system responsiveness ;

• limit the visual footprint both inside and outside.

Our key steps:

• Controlled drilling with watertight wall pass-through and careful insulation;

• Nitrogen brazing of the connections to avoid internal oxidation;

• Nitrogen pressure test then deep vacuum (< 500 microns) until stabilization;

• Load balance based on actual length, with recording of values.

Condensate is drained by gravity to the outside, simplifying maintenance and eliminating the risk of pump noise. The dedicated power supply and external disconnect near the condenser ensure safety and ease of service.

Interior integration: performance without visual compromise

The unit is installed under the ceiling , perfectly level, away from lateral obstacles to allow the suction to breathe . This height:

• maximizes useful stratification in air conditioning;

• frees up circulation and preserves the aesthetics of the stairwell;

• allows quick access for cleaning filters .

The controller is set for a gradual temperature ramp , avoiding sudden variations. The shutters are programmed so that the flow follows the axis of the staircase, then distributes itself in the upstairs corridor. The flow settings are recorded in our commissioning sheet to facilitate maintenance visits.

Acoustics and vibrations: total discretion

In a staircase, the slightest vibration can be transmitted to the structure. We control this by:

• fixing the back plate to a load-bearing area and respecting the tightening torques;

• checking for the absence of resonance after switching on, with the shutters open/closed;

• ensuring that the blowing does not directly hit the railing or a nearby wall, which would cause whistling .

These precautions ensure discreet operation in traffic, even at night.

Electrical Safety and HVAC Compliance

Each AirGreen installation follows good HVAC practices:

• Dedicated circuit breaker for the main panel;

• Protected communication cable and discreet routing;

• Validated grounding and watertight connections ;

• Complete documentation for the manufacturer's warranty and for possible subsidies .

We provide the customer with the commissioning sheet (vacuum values, pressures, blowing/return temperatures, operating intensity) as well as our operating advice .

HVAC Maintenance: Maintaining Performance Throughout the Seasons

To maintain performance and air quality :

• Rinse filters every 4 to 8 weeks during periods of heavy use;

• Dust the outdoor heat exchanger in spring and fall;

• Check the condition of the external insulation , the silent blocks and the tightness of the terminal blocks every year;

• Schedule HVAC maintenance by our technicians before summer and before winter (pressure, temperature, defrosting, and connection checks).

Regular maintenance extends the life of the compressor, keeps consumption low and ensures healthier indoor air.

Tips for using a multi-story home

• Realistic instructions : in air conditioning, a setpoint around 23–24°C maintains comfort and sobriety; in heating, favor gentle modulation .

• Fan mode : during heat waves, leaving the ventilation on low continuously promotes circulation between levels.

• Doors : Keep circulation doors half-open to aid diffusion, especially in the evening.

• Sensors : avoid placing an additional probe or thermostat in a draft or opposite the ramp.

Common pitfalls avoided by our method

1. Unit too low , blowing directly onto the occupants of the landing: installation under the ceiling avoids discomfort.

2. Unnecessarily long connection routes : pressure losses and noise - we optimize the route .

3. Condensate pump installed by default: maintenance source — gravity drainage is preferred.

4. Rough tightening : vibration risks — torque-controlled and systematic resonance control.

5. Neglected settings : short cycles — logged fan and shutter settings .

Grants and support

Depending on the performance selected (certified yields, maintenance of low-temperature heating capacity), the installation of a heat pump may be eligible for assistance programs. We support households in Montreal , Laval , Longueuil , the North Shore and the South Shore in verifying criteria , collecting evidence (serial numbers, installation photos, detailed invoice) and submitting files. Our goal: to maximize financial assistance when conditions are right.

What the owner of Parc-Extension remembers

• Uniform comfort on both levels, without unpleasant drafts;

• Silence in the stairwell and adjacent rooms;

• Controlled energy bills thanks to inverter modulation;

• Aesthetic integration : no visible chute in the circulation areas, discreet passage to the exterior;

• Simple maintenance : accessible filters and gravity condensate drainage.

Our commitment at AirGreen: to propose and install HVAC solutions adapted to local architecture, with clean, measurable and sustainable execution . From Montreal to Laval , from Longueuil to the North Shore and the South Shore , we deploy the same rigorous method: precise sizing , careful implementation , documented commissioning , and ongoing maintenance .
