Installation of a Sharp Eco Inverter wall-mounted heat pump in Rosemont–La Petite-Patrie

A compressor installed on a flat roof, on rails and anti-vibration bases, for reliable service in summer and winter

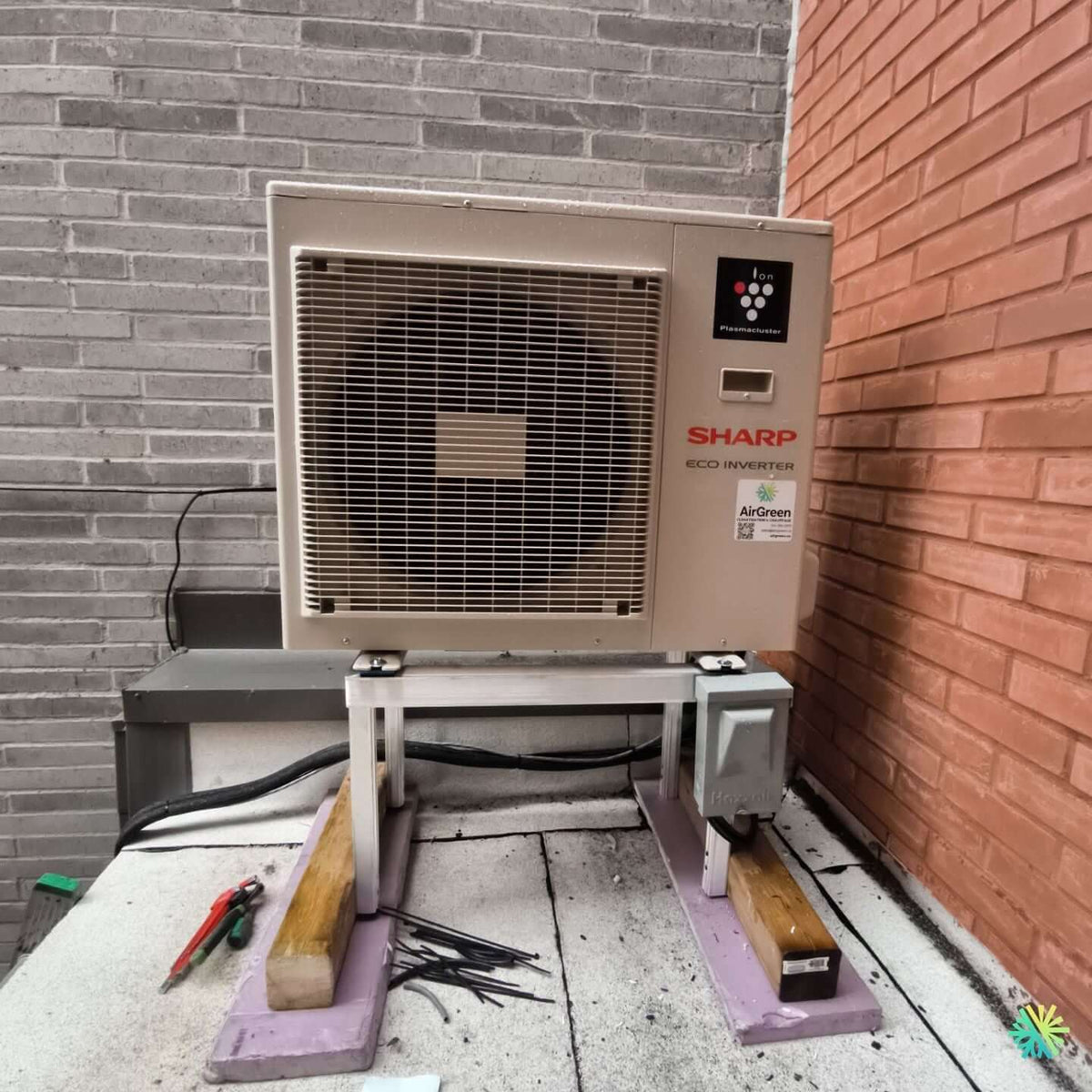

In a typical Rosemont–La Petite-Patrie plex, our AirGreen teams have just installed a Sharp Eco Inverter wall-mounted heat pump . The outdoor compressor is located on a flat roof , between two brick walls, mounted on aluminum rails placed on protective soles to preserve the membrane and eliminate vibrations. This project illustrates how we approach urban projects in Montreal: optimizing the location , ensuring the durability of the work and delivering a quiet and efficient result in accordance with the rules of the art in HVAC installation .

Client background and objectives

The owner wanted to upgrade his air conditioning system and benefit from efficient supplemental heating during cold snaps. His priorities:

• clean integration on the roof without piercing the membrane;

• low noise levels to preserve the peace and quiet of occupants;

• an assembly resistant to Montreal winters (snow, frost, thaw cycles);

• compatibility with financial aid criteria where the model allows.

The Sharp Eco Inverter range , known for its precise modulation and Plasmacluster technology (air quality on the indoor unit), meets these expectations. Depending on the scalability of the residence, we select a suitable power (usual range 9,000–18,000 BTU for a standard day zone), then we validate the connection lengths permitted by the manufacturer.

Why a rail mounting with soles?

Installing a compressor on a flat roof imposes a double requirement: protecting the membrane and isolating vibrations . Our solution:

• Aluminum rails : rigidity, flatness and fine adjustments for perfect level.

• Distribution soles (composite/elastomer): they diffuse the load, avoid membrane sanding and serve as anti-vibration .

• No through-fixing : the membrane remains intact; we thus avoid any risk of infiltration.

• Useful height : the compressor is raised to clear blown snow and allow rainwater to flow into the drains.

• Maintenance access : the free space on the front and sides complies with the clearances recommended by Sharp to ensure airflow without recirculation.

This assembly is ideal for the roofs of Montreal plexes and is silent from the inside: the pads reduce the transmission of vibrations to the structure.

Management of clearances in an urban niche

The compressor is located between a red brick wall and gray siding. We position the unit to:

• preserve the rear clearance (air intake of the exchanger) to avoid any recirculation ;

• provide a free air passage at the front of the machine (where hot air is expelled);

• maintain sufficient lateral clearance for maintenance (disassembly of panels, cleaning of the battery).

These precautions guarantee stable performance in summer and winter, even in a recess.

Refrigerated connections and routes

On a plex, the optimal route is to cross the nearby wall and follow the shortest line to the inner head. Our best practices:

• Continuous insulation of closed foam connections, UV protected on the outside;

• Anti-chatter collars and supports to eliminate pipe noise in the wind;

• Expansion loop when the sunshine is marked;

• Drain the inner head by gravity whenever possible; otherwise, use a silent condensate pump with a check valve and trap.

We keep the line lengths within the manufacturer's range to avoid additional charges and preserve the COP .

Power supply and safety

In the immediate vicinity of the compressor, we install an off-load disconnect switch (waterproof box) accessible for work. The dedicated line, protected at the electrical panel , follows a protected and waterproof path to the roof. Key components:

• Circuit breaker rating according to the nameplate;

• Cable and conduits approved for outdoor use;

• Rigorous grounding and sealing at the roof crossing.

Commissioning: AirGreen procedure

1. Controlled flares and tightening torques respected with a torque wrench.

2. Deep vacuum with micron controller then resistance test to validate the seal.

3. Readmission of factory fluid ; possible adjustment according to the actual length of the connections.

4. Measurements in cooling and heating modes: intensity, delta-T , superheat/subcooling.

5. Acoustic and airflow checks to confirm absence of recirculation.

6. User settings : eco instructions, night mode , shutter oscillations, automatic restart after failure.

Result for the occupant

• Four-season comfort ensured by a responsive, modulating and discreet heat pump .

• Perceived silence inside thanks to anti-vibration pads and precise fan alignment.

• Preserved aesthetics : no membrane perforation, discreet paths, neat rails.

• Easy maintenance : clear access to the compressor, disconnect switch within easy reach, clean cover.

Urban operating advice

• Snow removal : Maintain a clear perimeter of 30–60 cm in winter to ensure air intake.

• Water management : check that roof drains remain clear; avoid the accumulation of ice blocks directed towards the machine.

• Vegetation/objects : Keep away any light material that could be sucked into the exchanger.

• Stable setpoint : let the heat pump modulate (fewer back and forths, better efficiency).

• Seasonal cleaning of the external battery (without high pressure), tightening check and visual inspection of the insulators .

HVAC Maintenance: What We Plan

An annual HVAC maintenance by AirGreen includes:

• cleaning and disinfection of the interior evaporator (turbine, tray, filters);

• gentle washing of the external exchanger and straightening of the fins if necessary;

• control of refrigeration parameters and intensity ;

• checking the condensate pump when it exists;

• electrical safety tests and inspection of the disconnect switch .

This monitoring prevents yield losses , extends the lifespan of the equipment and guarantees controlled bills.

Grants and Compliance

High-performance wall-mounted heat pumps may be eligible for assistance programs ( Energy Star model, validated low-temperature performance, matching AHRI number ). We support our customers in verifying eligibility , preparing files and monitoring until payment, whether you are in Montreal , Laval , Longueuil , on the North Shore or the South Shore .

Common mistakes… and our approach to avoiding them

• Membrane perforations : we favor sole plates and controlled ballast rather than through-fixing.

• Air recirculation in an alcove: we respect the clearances and orient the unit so that the intake remains free.

• Structural vibrations : rigid rails + pads, and level control.

• Wild path of connections: hooding, regular support and UV protection.

• Missing or poorly positioned disconnect switch : we install it within sight of the device, in accordance with the requirements.

Why choose AirGreen for flat roof installation?

• Roofing expertise : knowledge of bituminous and TPO/EPDM membranes, compliance with permissible loads , long-lasting protection.

• Finishes : aligned rails, clean cables, accessible disconnector.

• Turnkey service : BTU sizing, HVAC installation plan, coordination with condominium or owner, then scheduled HVAC maintenance .

• Coverage of Greater Montreal : rapid interventions in Montreal , Laval , Longueuil , North Shore and South Shore .

In short

This Sharp Eco Inverter heat pump installation on a flat roof in Rosemont–La Petite-Patrie demonstrates that careful installation, respecting clearances and the membrane, results in a reliable , quiet and durable system. With AirGreen, every detail counts: from the rail to the vacuum , from the disconnect switch to the sole plates . Your comfort and the health of your roof go hand in hand.

Considering a similar project? Our team will assess your structure, size the correct BTU , verify grants , and install a durable solution to help you navigate Greater Montreal's humid summers and harsh winters without stress.
