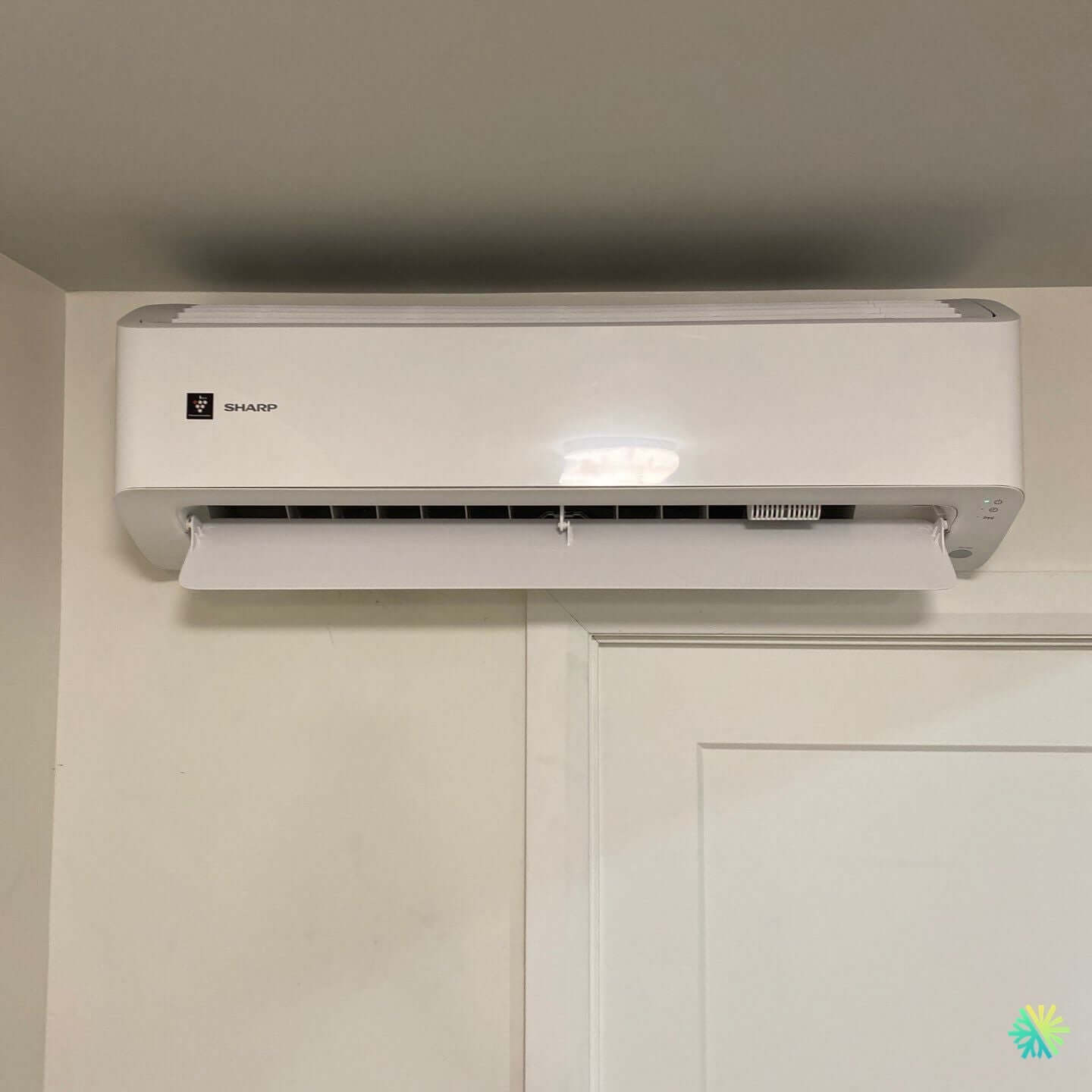

An interior head perfectly placed above a door: uniform comfort, discreet breath, neat aesthetics
In a typical Villeray–Saint-Michel–Parc-Extension apartment, we are installing a Sharp wall-mounted heat pump to provide efficient air conditioning in the summer and effective heating in the off-season. The main room is a dual-aspect room, with an interior door located near the air return area. Our priority: directing the airflow without annoying drafts and maintaining very low noise levels , while ensuring a clean and durable HVAC system .
Why the Sharp wall solution here
-
Inverter technology : continuous modulation to maintain the setpoint smoothly, thus saving energy and stable comfort.
-
Air treatment : multi-stage filtration and ionization specific to the Sharp range, for careful indoor air quality every day.
-
Compactness and design : a sleek silhouette that fits above a door without encroaching on circulation space.
-
R-32 / R-454B depending on version : new generation refrigerants with low GWP , aligned with current environmental requirements of the Quebec market.
Expected result: wide and uniform blowing , low consumption and a machine that is easy to maintain for long seasons of use in Montreal .
Choosing an indoor location: the key to comfortable airflow
Height and clearances
-
Installation under ceiling with sufficient upper clearance to facilitate suction.
-
Above the door , the unit stays out of shock zones and frees up walls for furnishings.
-
The vertical sweep angle is oriented to evacuate the air under the ceiling in cold mode, then downwards in hot mode in order to avoid the stratification effect .
Breath direction
-
In cooling , we set a wide horizontal sweep to sweep the room without pointing directly at the relaxation area.
-
In heating , we lower the shutter slightly so that the tempered air descends along the walls and mixes effectively, which eliminates the sensation of cold feet.
Maintenance access
-
Fully unobstructed front hood: filters accessible in 10 seconds , ideal for regular HVAC maintenance by the occupant.
Refrigeration and drilling path: short, clean, protected
Direct drilling
-
Rear outlet behind the inner head, limiting the visible length of capping inside.
-
Total length of connections estimated ≈ 3 to 5 m up to the outdoor unit, which optimizes efficiency (reduced pressure losses).
Connections and finishes
-
Continuously insulated copper tube , torque-expanded fittings, finishing tape to seal the insulation ends.
-
On the outside, a light-colored capping protects against UV rays and provides a clean, long-lasting finish.
Condensate management: simplicity and reliability
-
Priority gravity drain : constant slope towards the outside to evacuate condensates without using a pump.
-
Discreet passage at the back of the unit; exit point designed to avoid marks on the facade and prevent the backflow of odors.
-
In environments with a risk of frost , we validate the exposed length and, if necessary, provide a protected path .
Power supply and communication
-
Dedicated circuit sized according to the nominal amperage of the Sharp R-32 wall-mounted range model.
-
Accessible disconnect box near the condenser, certified cable and sheath, verified earthing .
-
Inter-unit communication cable routed with refrigeration lines for a compact, hum -free layout.
Commissioning: AirGreen method
Sealing and vacuum
-
Calibrated flares , visual and palpation control.
-
Deep vacuum until stabilization (micron monitoring).
-
Leak test and pressure check before fluid release.
Functional checks
-
Measurements of supply/return temperatures , intensity , superheating/subcooling .
-
Control of sweeping and sensors (recovery probe, defrosting).
-
Validation of sound level and absence of vibrations.
Result in comfort and acoustics
-
Soft and even blowing throughout the room, without any “cold jet” felt.
-
Quiet operation: the micro-variations of the inverter compressor avoid sudden increases in speed, crucial in adjoining apartments in Montreal .
Recommended sizing for this type of space
In a condo/plex living room with open kitchen, standard insulation:
-
9,000 to 12,000 BTU if limited volume and north orientation.
-
12,000 to 15,000 BTU if the living area is more open or there is strong sunlight.
We carry out sizing to validate the thermal load in order to avoid oversizing (short cycles, sawtooth comfort) as well as undersizing (machine running at full speed).
Good usage practices (to be given to the customer)
-
Stable setpoint (22–24°C in summer; 20–22°C in heating) rather than frequent variations.
-
Use Dehumidification mode in humid mid-season to improve comfort without overcooling.
-
Direction of the shutters : upwards in air conditioning to throw the air along the ceiling; lower in heating to bring it down to the level of the occupants.
-
Leave a clear area of 1 m in front of the head to encourage recovery and avoid dust deposits on nearby obstacles.
HVAC Maintenance: Simple and Crucial
What the occupier does
-
Filters : Vacuum/rinse every 4–8 weeks during use.
-
Wipe the hood and visually check the drain .
What we do
-
Annual inspection : tightening, search for micro-leaks, refrigeration parameters, deep cleaning of the evaporator and fan.
-
Gentle rinsing of the outdoor battery (spring and late summer) to maintain high yields .
Grants and Eligibility
New generation wall-mounted heat pumps (R-32 / R-454B) designed for extreme cold are generally eligible for programs available in Quebec. Eligibility depends on seasonal performance and the exact reference . We support our customers in Montreal, Laval, Longueuil, North Shore and South Shore : verification of criteria, AHRI certificates , parts submission and follow-up.
Common mistakes to avoid (AirGreen feedback)
-
Stick your head to the ceiling: suction deteriorates, comfort drops.
-
Blow directly into a narrow corner: cold/hot areas and guaranteed complaints.
-
Neglecting the drain: insufficient slopes = risk of drips and odors.
-
Connections that are too long or unnecessary bends: pressure losses, reduced efficiency.
-
Non-dedicated power cable : untimely tripping, electrical non-compliance.
Why AirGreen for your installation in Villeray–Saint-Michel–Parc-Extension
Our teams are experts in the constraints of plexes and condos in Greater Montreal . We combine field engineering , clean finishes , grant assistance, and maintenance to ensure long-term performance. Our promise: a clean, safe, documented HVAC installation designed for your daily life.
Express FAQ
Can I close the door under the head without affecting the airflow?
Yes, we check the blowing angle so that the door does not hinder the recovery or cause unpleasant turbulence.
And in winter, does the inside of the head really get hot?
Yes: in heating mode , the heat pump reverses the refrigeration cycle. Extreme cold models maintain useful capacity even in negative temperatures.
How long does it take to install a setup like this?
Typically one day for a short route with back drilling, testing and instrumented commissioning.
Conclusion
This installation of a Sharp wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension illustrates our approach: strategic placement above a door, short path , gravity drain , and fine adjustments for consistent, quiet comfort. With regular HVAC maintenance , the unit maintains its efficiency and quietness—just what residents of Montreal's densely populated neighborhoods are looking for.
