A compact wall-mounted head to tame attic rooms and ensure four-season comfort

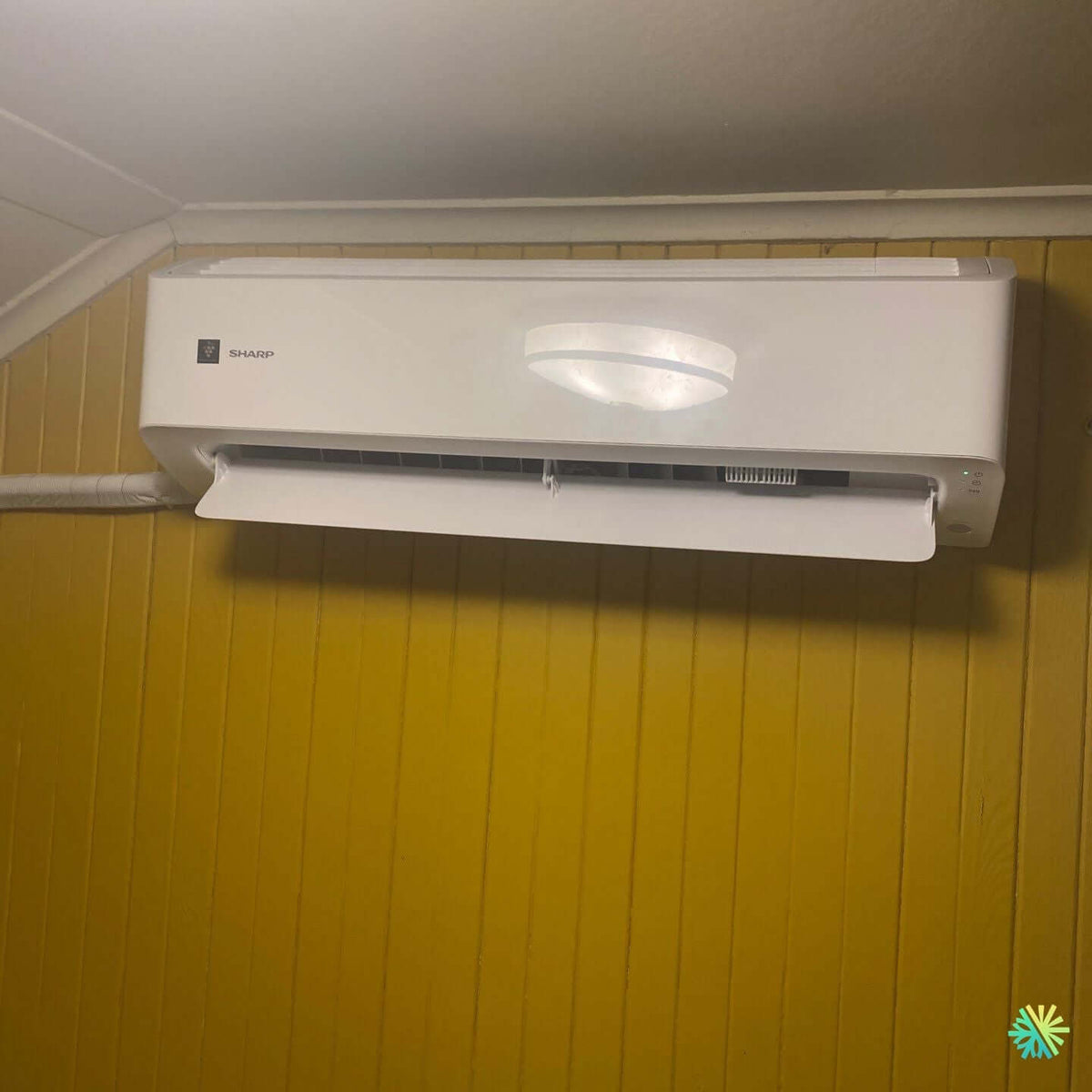

In a typical Rosemont–La Petite-Patrie plex, our AirGreen team installed a Sharp wall-mounted heat pump (model from the ZU1 R-32 range ) to stabilize the comfort of a small attic room on the top floor. The space, warm with its yellow paneled walls and sloped ceiling , suffered from overheating in the summer and a lack of even heat in the winter. Thanks to a carefully designed HVAC installation —short refrigeration path, discreet white capping , and gravity-assisted condensate drainage —the room immediately becomes pleasant, quiet, and energy-efficient.
Context: a demanding attic room
Attics and mansards in Montreal's housing stock are often real headaches: low ceiling height, sloping walls, niches, corners, and limited technical ducts . Here, the client's objective was clear: to obtain a stable temperature at all times for mixed use (reading, teleworking, spare bedroom), without encroaching on aesthetics.
Why the Sharp R-32 wall-mounted solution is essential
Sharp (ZU1 R-32 range) perfectly meets Montreal's constraints:
-
Inverter technology for fine and quiet modulation of the compressor.
-
Low temperature performance adapted to the climate of Greater Montreal (efficient heating during prolonged cold weather).
-
R-32 refrigerant , more efficient and low charge, reducing the environmental footprint.
-
Intelligent air filtration and diffusion , ideal for atypical volumes (attics, mezzanines).
-
Simple design : the white facade and central strip blend naturally with the interior finishes.
Concrete result: a sensation of a stable 22°C without drafts, with controlled consumption, summer and winter, in Montreal, Laval, Longueuil, North Shore and South Shore .
Design and implementation: our technical choices
Inner head positioning
-
Place at the top of the wall , just under the ceiling, to promote the Coandă effect (the air follows the ceiling then descends gently).
-
Orientation of horizontal shutters to avoid direct jets on the occupant and to sweep the entire length of the room.
-
Compliance with manufacturer clearances above and laterally, despite the roof slope.
Refrigeration and drilling
-
Single wall crossing to the outside, made with vapor barrier sleeve and insulating seal .
-
Estimated length < 3 m to the condenser: an advantage for efficiency and rapid response .
-
White capping matching the woodwork, laid with a line on the top of the paneling, for a clean and durable finish.
Condensate management
-
Gravity drainage to the outside (controlled continuous slope), eliminating the need for a pump and eliminating a maintenance point .
Power supply and compliance
-
Dedicated circuit with appropriate breaker at main panel.
-
Grounding, standard vacuum , leak testing, and pressure verification according to Sharp specifications.
-
Work carried out by certified technicians (RBQ), in compliance with CSA requirements .
Settings: obtaining the right comfort in an atypical volume
Blowing settings
-
Auto mode flow rate for most uses, with manual limitation of maximum speed during quiet evenings.
-
Slightly raised vertical shutter to carry air under the slope and prevent air from projecting onto the paneling.
Deposit strategy
-
Summer: 23–24°C with gentle dehumidification to limit the “heavy room” effect.
-
Winter: 21–22°C , low continuous ventilation to break up stratification due to the sloping ceiling.
Noise and vibrations
-
Checking the anchoring on solid support; anti-vibration pads on the condenser; progressive gear change on start-up Inverter : the system remains almost inaudible in steady state.
Expected performance and savings
-
Typical capacity range of a Sharp ZU1 series head: 9,000 to 18,000 BTU (selected according to calculated heat load).
-
High SEER and advantageous HSPF/SCOP thanks to the R-32 Inverter: lower operating costs vs. old wall-mounted air conditioners or electric baseboards.
-
Noticeable gain in comfort : disappearance of hot/cold zones , drier and cleaner air, improved quality of sleep .
In the attic, the real gains come less from “raw power” than from fine modulation , good air direction and an optimized cooling path . This is precisely what our Sharp configuration offers.
Grants and Eligibility
High-performance, Energy Star-certified R-32 wall-mounted heat pumps are generally eligible for assistance programs in Quebec. Eligibility and amounts vary depending on:
-
installed capacity ,
-
low temperature heating performance ,
-
and the main use (heating vs. air conditioning).
Our team systematically supports clients in Montreal, Laval, Longueuil, North Shore and South Shore to document the installation (photos, specifications) and put together files when programs are open.
Construction site challenges and AirGreen solutions
-
Sloping ceiling / low clearance
→ Selection of a high side location and precise shimming of the support to avoid any short recirculation. -
Discreet path without bulky formwork
→ Thin white capping , aligned with the grooves of the paneling; neat angle towards the wall outlet. -
Condensation management without pump
→ Continuous slope checked with spirit level; flow tests before closing the line. -
Cold protection of the outdoor unit
→ Installation of the condenser away from snowdrifts , rear clearance respected, and free space for defrosting.
Best HVAC Maintenance Practices for a Wall-Mounted Sharp
-
Clean filters every 4 to 8 weeks (more frequently if there are animals/dust).
-
Annual inspection : heat exchange, connections, pressures, electrical tightening, calibration of shutters .
-
Condenser clearance (snow/foliage) winter and summer.
-
Check the drain at the start of the season to prevent droplets.
Regular maintenance maintains seasonal performance , extends machine life and preserves warranty eligibility .
Tips for maximizing energy gains
-
Maintain the same day/night setting in an attic (avoid “stop & go” cycles due to low inertia).
-
Use dry mode during humid summer episodes; perceived comfort increases without excessively lowering the setpoint.
-
In winter, leave the low ventilation running continuously to even out the temperature at the foot of the partitions.
-
Pair the heat pump with blinds or curtains if a gable window receives direct sunlight.
Why AirGreen for your installation in Montreal, Laval, Longueuil, North Shore and South Shore?
-
Accurate sizing (load calculation) and selection of suitable range (Sharp R-32, Fujitsu, Gree, Midea, etc.).
-
Neat finishes : aligned caps, clean drilling, watertight seals, discreet wiring.
-
Standardized commissioning : vacuum drawing, additional load weighing if necessary, protocols and report.
-
After-sales support : preventive maintenance, priority troubleshooting, seasonal usage advice.
Result: a transformed room, intelligent comfort
The installation of this Sharp wall-mounted heat pump (ZU1 R-32 range) in Rosemont–La Petite-Patrie delivers what we promise: silence, thermal stability and energy savings . Attic rooms, often shunned in the summer and cool in the winter, find their full utility here — office, spare bedroom, workshop — with constant comfort and respected aesthetics .
For similar projects in Greater Montreal (Montreal, Laval , Longueuil , North Shore , South Shore ), our team designs and installs HVAC solutions that integrate seamlessly into your interior and perform well in the Quebec climate .
