A Quad-Zone Installation Designed to Transform Home Comfort in Dollard-des-Ormeaux
In Dollard-des-Ormeaux, in Montreal's West Island, our AirGreen team completed a particularly interesting HVAC installation: the setup of a GREE FREE MATCH R32 Quad-Zone heat pump, configured with 4 wall-mounted units to cover several rooms in the house with a single outdoor unit. This type of project requires rigorous planning, as each zone must be designed according to its use, sun exposure, surface area, architectural constraints, and natural air circulation.

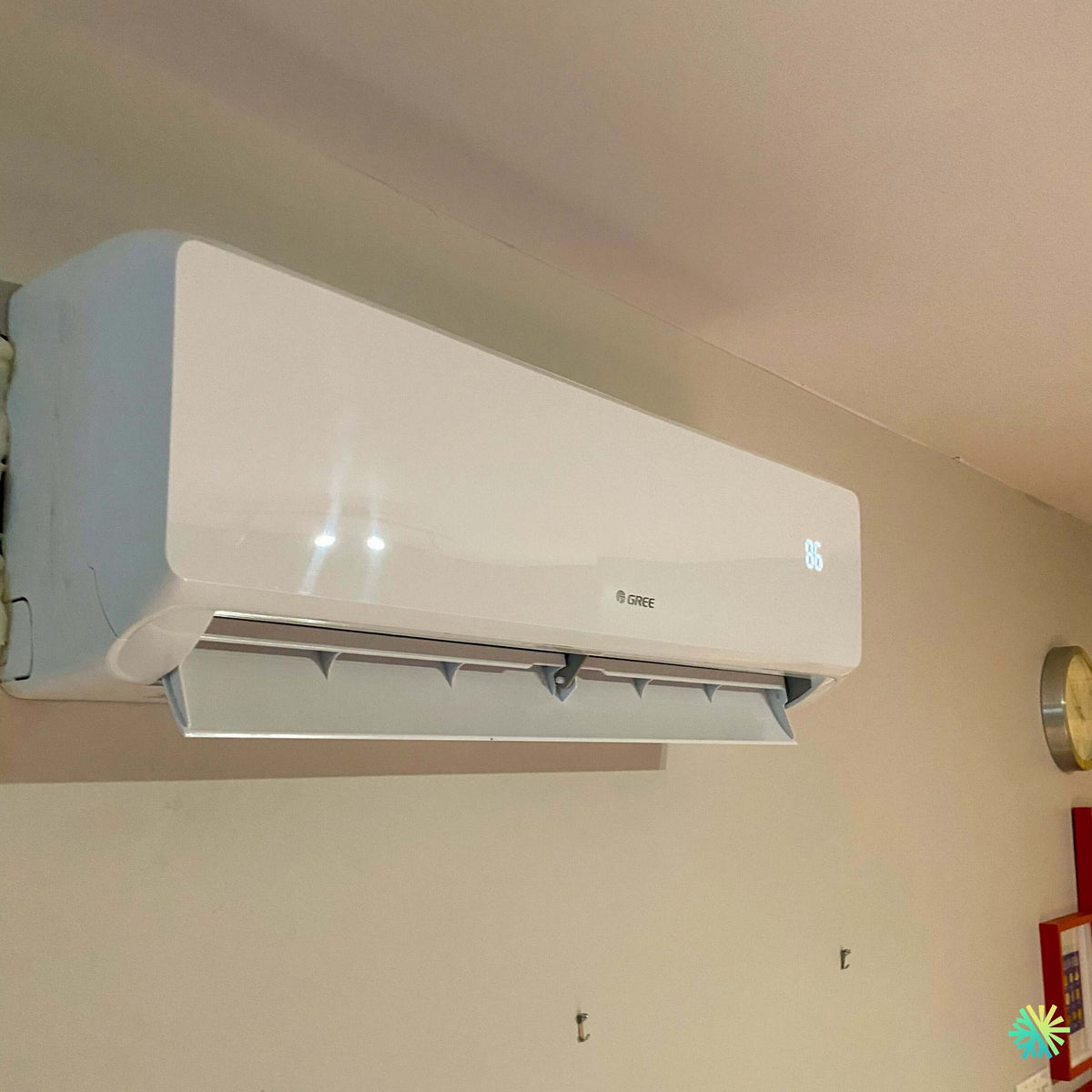

The provided photo shows one of the wall-mounted units installed above an exterior door. This positioning perfectly illustrates the kind of challenge our technicians regularly encounter in homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore: it's not enough to simply mount an indoor unit on a free wall. It requires analyzing the actual space, available clearances, building structure, drainage access, airflow direction, interior aesthetics, and the feasibility of refrigerant line passage.
In this Dollard-des-Ormeaux residence, the client wanted to improve comfort in several distinct zones without multiplying outdoor units. The chosen solution, the GREE FREE MATCH R32 Quad-Zone system, precisely meets this need: a single outdoor unit powers multiple indoor units, each controllable separately. The result is much more precise comfort than a poorly balanced central system or a single wall-mounted unit installed in an open-plan area.
Why choose a GREE FREE MATCH R32 Quad-Zone heat pump for a home in Dollard-des-Ormeaux
The GREE FREE MATCH R32 range is designed for multi-zone installations where flexibility is essential. In the case of this house, the 4 wall-mounted unit configuration allows for treating multiple living spaces with independent temperature management. This represents a tangible advantage for families who don't use all rooms at the same time or who want to avoid overheating or over-cooling sparsely occupied areas.
One outdoor unit, four comfort zones
One of the main advantages of a Quad-Zone heat pump is the reduction of outdoor clutter. Instead of installing four independent systems, AirGreen can install a single outdoor unit connected to four indoor units. This approach is particularly relevant in residential areas like Dollard-des-Ormeaux, where backyards, side passages, fences, balconies, and setbacks can limit options.
This configuration also helps preserve the exterior appearance of the property. For a homeowner, this is an important factor: interior comfort should improve without transforming the facade or yard into an overly visible technical space.
R32 refrigerant: current and high-performance technology
The GREE FREE MATCH R32 model uses R32 refrigerant, which is highly sought after in modern heat pump systems today. This refrigerant allows for good energy performance while meeting new market trends in efficiency and reducing environmental impact.
For homeowners in Dollard-des-Ormeaux, this point is important, as an HVAC installation represents a long-term investment. Choosing a system compatible with new generations of refrigerant provides a more current solution, better aligned with recent industry standards.
Room-by-room control
With four wall-mounted units, each zone can be adjusted according to actual needs. A bedroom can remain at a milder temperature, a living room can be cooled quickly, a family room can be kept comfortable in the evening, and a less-used room can operate at a reduced rate.
This zoning logic helps improve comfort while avoiding energy waste. For many AirGreen clients in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this is often the decisive argument: no longer depending on a single thermostat for the entire house.
A solution adapted to existing homes
In already built houses, it's not always easy to add a complete central system with ducts. A multi-zone heat pump then becomes a very interesting option, as it allows for targeted, less invasive intervention, while offering an excellent level of comfort.
In this project in Dollard-des-Ormeaux, our team had to contend with visible interior constraints, particularly the location of an exterior door and the presence of openings around the installation area. These details directly influence the choice of location for each unit.
A wall-mounted unit installed above a door: precision, clearance, and air circulation
The installation visible in the photo shows a wall-mounted unit positioned above a door. This choice is never improvised. Installing an indoor unit above an opening requires validating several technical elements:
- the strength of the wall support;
- the available space between the top of the door and the ceiling;
- the minimum clearance required for maintenance;
- the ability to direct air without discomfort for occupants;
- the discreet passage of refrigerant lines;
- condensation drain management;
- aesthetic finishing around the work area.
In this specific case, the wall-mounted unit is installed very close to the ceiling, which maximizes available wall space while allowing efficient airflow into the room. Positioning it above the door avoids occupying a more decorative or useful wall for furniture. This is a concrete example of the AirGreen approach: we adapt the installation to the house, instead of imposing a standard solution.
Special attention to interior finishes
In the image, it can be seen that the indoor unit was installed in an area where the door frame shows signs of work or finishing to be completed. In this type of project, it is common for an HVAC installation to integrate with existing renovations or interior adjustments. Our role is to carry out the mechanical, refrigeration, and electrical parts with precision, while maintaining a clean, functional, and aesthetic logic.
We pay particular attention to the alignment of the unit, the cleanliness of the assembly, clearance for louvre opening, filter access, and overall integration into the room. A wall unit is visible every day: its location and finish are as important as its performance.
Technical challenges of a 4-zone system
A Quad-Zone heat pump is more complex than a simple single-zone wall system. Each head must be connected to the outdoor unit by its own refrigerant lines, communication wiring, and drainage. This requires detailed planning before installation.
For this project in Dollard-des-Ormeaux, our technicians evaluated:
- the best route for lines between indoor units and the outdoor unit;
- the total length of the conduits;
- height differences between the heads and the compressor;
- external protection of the conduits;
- the location of the outdoor unit to limit noise and facilitate access;
- the electrical distribution adapted to the system;
- the coordination of the four heads to ensure stable operation.
This preliminary work prevents common errors: incorrect sizing, lines that are too long or poorly protected, insufficient drainage, a poorly positioned outdoor unit, or indoor units installed in locations that create cold or hot spots.
The importance of proper sizing
A GREE FREE MATCH R32 multi-zone system must be carefully sized. It's not enough to choose four heads and connect them. Account must be taken of the thermal load of each room, the surface area, insulation, number of windows, solar orientation, ceiling height, and usage habits.
An underpowered head will constantly run at high speed. An overpowered head can reach the desired temperature too quickly without properly dehumidifying the air. In both cases, comfort can be compromised. At AirGreen, we favor a balanced approach: installing the right capacity in the right place, with consistent air distribution.
Summer comfort: efficient cooling and better dehumidification
In Dollard-des-Ormeaux, summers can be heavy and humid. A properly installed heat pump not only lowers the temperature but also helps remove humidity from the air. This difference is immediately felt in living areas, especially in homes where certain zones become uncomfortable in the late afternoon due to sun exposure.
With four wall-mounted units, the client can cool the necessary rooms without operating the entire house uniformly. This flexibility allows for more stable comfort, especially when family members occupy different zones at the same time.
Winter comfort: modern and efficient auxiliary heating
A GREE FREE MATCH R32 heat pump can also contribute to heating for a large part of the cold season. For homeowners in the Montreal area, this function is a major advantage. It allows for reducing the use of certain traditional heating systems when conditions are favorable, while maintaining a pleasant temperature in targeted rooms.
In a multi-zone system, this localized heating capability is particularly useful. A bedroom, office, or family room can be heated as needed, without necessarily engaging the entire main system of the house.
Customer experience: more control and fewer compromises
The client in Dollard-des-Ormeaux wanted a solution that could meet the real needs of the house. Before the installation, some rooms were more difficult to control than others. This is a situation we often encounter in multi-story homes, extensions, rooms with exterior doors, open living rooms, and bedrooms far from the main system.
After commissioning, each head was individually tested: cooling, heating, ventilation, drainage, remote control response, communication with the outdoor unit, and operational stability. This final check is essential in a multi-zone HVAC installation, as it confirms that all four zones are responding correctly.
Mistakes to avoid in a multi-zone installation
Multi-zone systems perform well when properly designed, but they can disappoint when poorly installed. Here are the mistakes we often see during corrections or inspections:
- choosing head locations based solely on visual appearance;
- ignoring the direction of airflow;
- underestimating the importance of drainage;
- installing the outdoor unit in a difficult-to-access location;
- neglecting the insulation of refrigerant lines;
- incorrectly calculating piping lengths;
- connecting zones without rigorous verification;
- forgetting future maintenance of filters and components.
At AirGreen, we believe that a good installation must remain practical throughout the life of the system. Maintenance, filter access, conduit protection, and the readability of the installation are elements we integrate from the design stage.
Why AirGreen for a GREE installation in Dollard-des-Ormeaux
AirGreen installs HVAC systems throughout the greater Montreal area, including Dollard-des-Ormeaux, Laval, Longueuil, the North Shore, and the South Shore. Our experience with wall-mounted, multi-zone, central, and commercial systems allows us to adapt each project to the reality of the building.
For this project, our role was not limited to installing a machine. We designed a complete solution: zone analysis, system selection, passage planning, head installation, refrigerant connections, electrical connection, vacuuming, pressure testing, commissioning, and explaining operation to the client.
This comprehensive approach is essential with a Quad-Zone - 4-Zone - 4-Head heat pump. Every detail matters, as final comfort depends on the consistency of the whole.
Practical advice for homeowners considering a Quad-Zone heat pump
Before choosing a multi-zone system, it is recommended to consider the actual use of each room. A house does not always need the same capacity everywhere. Some zones require more air conditioning, others more heating, and some simply need occasional support.
Here are some helpful tips:
- prioritize the rooms actually occupied;
- avoid placing a head directly facing a bed or sofa;
- plan for filter cleaning access;
- discuss aesthetic constraints before installation;
- request a complete evaluation of conduit routes;
- check the outdoor location before confirming the project;
- choose an installer experienced with multi-zone systems.
A good system is a balance between performance, comfort, discretion, and durability.
An installation that reflects the current needs of West Island homeowners
This installation in Dollard-des-Ormeaux clearly demonstrates the evolution of homeowner expectations. Today, clients want more flexible, more efficient systems that are better adapted to their daily lives. They don't just want a machine that heats or cools: they want a solution designed for their home, their habits, and their comfort.
The GREE FREE MATCH R32 Quad-Zone heat pump meets this need very well. It allows managing multiple rooms with a single outdoor unit, adjusting the temperature by zone, and enjoying stable comfort for a large part of the year.
For AirGreen, this project is an excellent example of our work in the field: a real installation, in a real house, with concrete constraints and adapted solutions. This is exactly what distinguishes a professional installation from a simple equipment placement.
A durable, clean, and functional result
At the end of the installation, the client has a complete, versatile, and well-integrated system. The head unit visible above the door illustrates the attention paid to intelligent use of space. In a residential environment, this type of choice helps preserve available wall space while ensuring good air distribution.
The success of an HVAC installation relies on sometimes invisible elements: the quality of the vacuum, the tightness of connections, the slope of the drain, line protection, respect for clearances, zone configuration, and final verification. These details ensure reliable long-term operation.
At AirGreen, we know that a multi-zone system must be installed methodically. That's why we place as much importance on planning as on execution.
Conclusion: A GREE FREE MATCH R32 Quad-Zone heat pump perfectly suited for Dollard-des-Ormeaux
This installation of a GREE FREE MATCH R32 Quad-Zone heat pump with 4 wall-mounted heads in Dollard-des-Ormeaux demonstrates the full relevance of multi-zone systems for homes in the greater Montreal area. The client now benefits from more precise comfort, better room management, an aesthetic solution, and a modern system designed to meet current heating and cooling needs.
For homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this type of project represents a serious solution when it's necessary to improve several zones without installing multiple outdoor units. With good design and professional installation, multi-zone technology becomes a lasting investment in home comfort.
