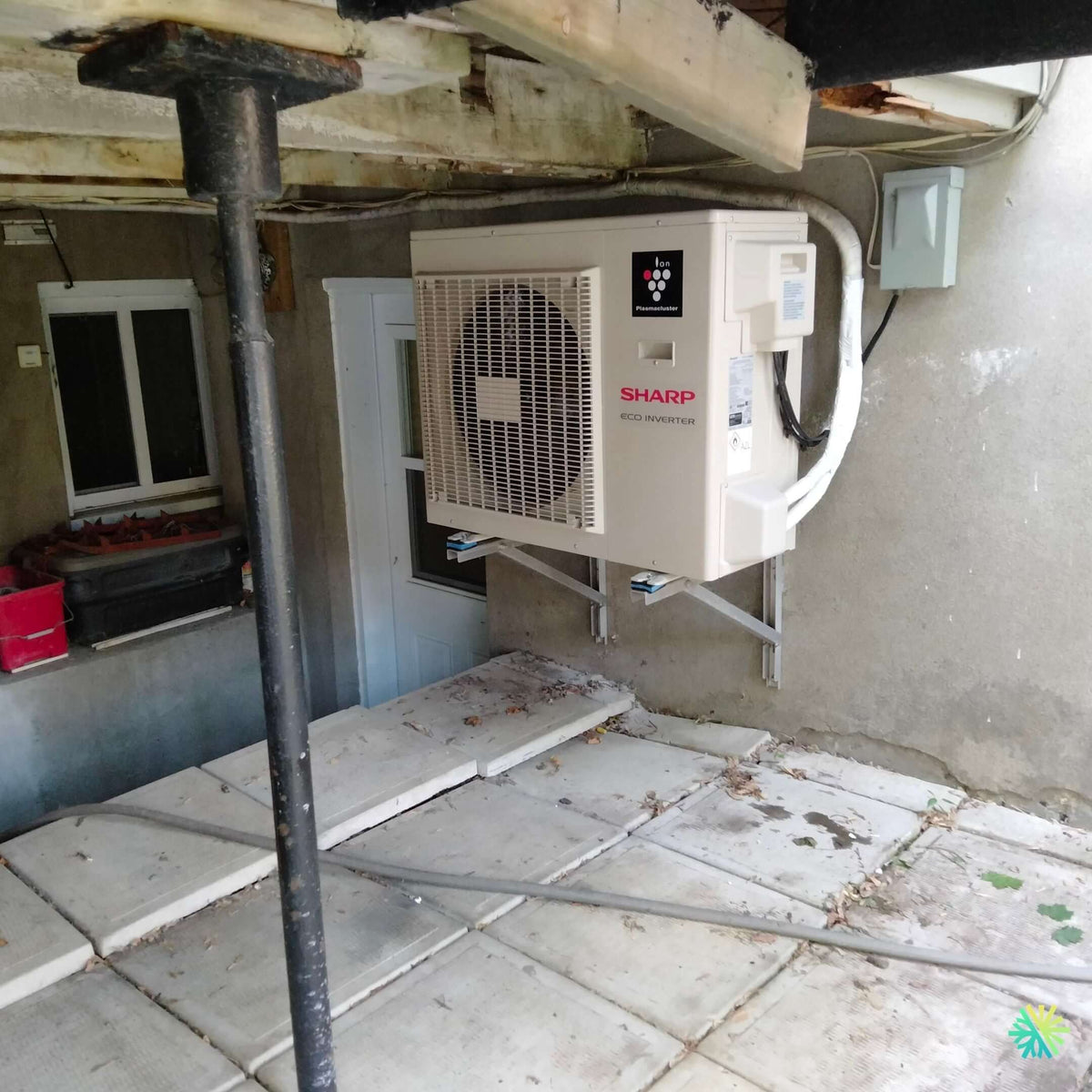

Installation of a Sharp ZU series wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension

A location under a balcony that protects, silences and simplifies maintenance

Homes in Villeray–Saint-Michel–Parc-Extension often have a basement entrance and a wooden deck. By suspending the condenser under the balcony:

• we protect it from direct snowfall and heavy rain;

• we reduce vibration transmission to the yard and neighborhood;

• we preserve air clearances while securing pedestrian crossings.

What we have installed, concretely

• Galvanized wall brackets with reinforcements, anchored in sound masonry;

• Sharp ZU series outdoor unit (inverter, R-32 , suitable for extreme cold) placed level and fixed with stainless steel bolts;

• Capping and UV insulation for refrigerant connections, short route to the inner head;

• Disconnection box in the immediate vicinity, on a dedicated electrical circuit;

• Condensate management on the interior side by gravity when the housing profile allows it, or discreet compact pump as an alternative.

Why Sharp's ZU Series is Relevant in Montreal

Sharp 's ZU series combines inverter electronics with a lower GWP R-32 fluid, with a modulating compressor that finely adjusts the load. In practice:

Comfort and savings

• Reliable heating in mid-season and during severe cold weather thanks to injection control and low-frequency modulation;

• Quiet cooling, ideal for a courtyard-side bedroom or an open area;

• Controlled consumption and long cycles which stabilize the temperature, therefore fewer thermal “roller coasters”.

Sustainability and service

• Protected exchanger, hydrophilic treatment, and easy access for cleaning the fins (comfortable working height under the balcony);

• Parts and filters easily accessible; documentation and serial numbers recorded in the customer file.

HVAC Installation: The AirGreen Steps That Make the Difference

1) Study of the location and choice of location

We start by checking the wall's load-bearing capacity , the condition of the masonry, and the clearances from the balcony and the ground. Under a balcony, there are two risks: the insufflation of stale air if the space is enclosed, and the accumulation of blown snow . Our solution:

• place the unit in an open area , centered between the posts, away from air returns;

• respect the required clearances on the front and sides;

• direct the air outlet so as not to obstruct a nearby door or window.

2) Fixing the brackets and vibration mitigation

The brackets are laser-leveled and then anchored with a sealant adapted to the support. We add:

• anti-vibration pads under the chassis to break the solid transmission;

• tightening to the prescribed torque , check after running in the compressor.

3) Refrigeration and aesthetic route

The route favors the shortest line inward to limit pressure losses. We use:

• dehydrated refrigeration copper , properly brazed, continuous foam insulation;

• a robust, clean and straight white capping , to protect and care for the aesthetics of the backyard;

• a passage inside carefully sealed to prevent any air infiltration.

4) Dedicated electricity and security

We connect the unit to a dedicated circuit , with a circuit breaker and wall disconnect box placed according to code. The cables are discreetly stapled under the balcony to prevent accidental pulling.

5) Vacuum packaging, weighing and commissioning

• Deep vacuum with digital vacuum gauge;

• Leak check, weighing of additional refrigerant if required by overall length;

• Start-up, pressure/temperature control, current and subcooling/superheating;

• Fine tuning of ventilation modes and comfort settings.

Salient details observed on this project

• Suspended unit : frees the floor (slabs), protects against puddles and frost, keeps the traffic area clean;

• Handy disconnect box : safety and accelerated maintenance;

• Continuous capping and clean insulation: UV protection and impeccable finish;

• Height calculated to allow snow to pass through in winter and allow maintenance of balcony drains.

HVAC usage and maintenance tips for lasting results

Seasonal maintenance (customer)

• Clean the interior filters every 4 to 8 weeks during peak season;

• Clear leaves and dust around the outdoor unit;

• Maintain clearance around the condenser (boxes, bins, bicycles away);

• In winter, watch for possible snowdrifts forming under the balcony and clear them if necessary.

Professional interview (AirGreen)

• Annual inspection: cleaning of fins , checking of electrical connections, condensate test, pressure/temperature readings;

• Checking silent blocks and structural tightening;

• Update settings if the use of the accommodation changes (extended teleworking, new windows, etc.).

Grants and Eligibility

Recent high-efficiency R-32 wall-mounted heat pumps are generally eligible for the main assistance programs in Quebec. We assist our customers in putting together a complete file: proof of purchase, installation certificate, technical photos and efficiency sheets. This support is available in Montreal , Laval , Longueuil , as well as on the North Shore and South Shore .

Common Mistakes…and How We Avoid Them

• Unit too low : at AirGreen, the blowing axis remains free, above the sea spray and slush;

• Undersized brackets : we validate static and dynamic load, add reinforcements and pads;

• Discontinuous capping : always continuously protected to avoid stagnant water and UV rays;

• Refrigeration journey too long : sizing upstream to remain within manufacturer limits without unnecessary overload.

What the customer gets in the end

• A well-sized and quiet Sharp system;

• A complete technical file (serial numbers, photos, parameters) for the warranty;

• A local team available for maintenance and after-sales service.

Why AirGreen in Villeray–Saint-Michel–Parc-Extension

Our technicians understand the realities of Montreal plexes: heterogeneous load-bearing walls, wood/metal balconies, basement access, narrow alleys. This field experience translates into clean construction sites, controlled deadlines and measurable comfort from the first start-up. We operate with the same high standards in Montreal , Laval , Longueuil , on the North Shore and South Shore .

In summary

Installing a Sharp wall-mounted heat pump under a balcony is not just a practical choice: it's a technical decision that improves performance , durability and comfort . By combining a ZU series with R-32 with a suspended installation on brackets , we make winter safer, simplify maintenance and preserve the peace of mind of the occupants.

Are you considering a similar installation for your apartment building or condo? At AirGreen, we design, install, and maintain your turnkey HVAC system , with clear monitoring and results you can feel every day.
