Installation of a Broan-NuTone HRV90 air exchanger (HRV90T model, Compact Flex series) in Saint-Clet, in Vaudreuil-Soulanges

A home heated with electric baseboards, no existing ductwork, and a laundry room as the only available location

Saint-Clet is a small agricultural municipality in the Vaudreuil-Soulanges RCM, between Les Cèdres, Coteau-du-Lac, and Sainte-Justine-de-Newton. Fewer than two thousand residents, rows lined with fields, and a housing stock dominated by single-family homes built between the 1970s and 1990s.

These homes share a characteristic that completely changes the design of a ventilation system: they are heated with electric baseboards. No furnace, no central unit, no ductwork. Nothing to connect to.

This is the case of the residence discussed here: a single-story home of approximately 1,400 sq. ft., with three bedrooms, heated entirely by electricity, with a partially finished basement and a laundry room on the main floor.

What electric baseboard heating changes in a ventilation project

In a forced-air home, an installer can connect an air exchanger to the existing ductwork in a few hours. Stale air is extracted through the return plenum, fresh air is injected there, and the main system's fan handles distribution.

In a home with electric baseboard heating, this option does not exist. The unit must have its own complete duct network: ducts to extract stale air where it accumulates and others to deliver fresh air where people breathe it. This is called a fully ducted system, and it is the only viable configuration in this type of building.

This constraint has three consequences homeowners should know before requesting a quote:

• The project takes longer. A complete duct network must be drilled, routed, supported, and sealed, often through finished ceilings.
• Design matters more than the unit. An excellent HRV connected to a poorly designed duct network delivers poor results. The reverse is rarer.
• The result is superior. A dedicated duct network captures pollutants exactly at the source and delivers fresh air exactly where people sleep. No simplified configuration reaches this level.

Readings taken before the work: 56% relative humidity on the main floor in April, 61% in the basement, condensation on bedroom windows during the previous winter, and no continuous mechanical ventilation.

Selected unit: Broan-NuTone HRV90

Airflow calculation

• According to the formula: 0.01 × 1,400 = 14, plus 7.5 × (3 + 1) = 30. Total: 44 CFM.
• According to the reference table (under 1,500 sq. ft., 2 to 3 bedrooms): 45 CFM.

Selected setting: 50 CFM in continuous operation, with a maximum programmed speed of 90 CFM for showers, cooking, and periods of high occupancy.

The HRV90 covers this range without ever being strained. Its 30 lb weight and compact dimensions also make it the only reasonable format for a wall-mounted installation in a laundry room, and Broan offers a dedicated wall bracket (VACCWMK) for this series, designed precisely for this purpose.

Designing a dedicated network from scratch

This is the part of the project that distinguishes a professional installation from an improvised connection.

The trunk-and-branch principle

The HRV90 connections are 4 inches. This diameter is perfectly suitable for an individual branch, but it becomes limiting if you try to run an entire network through it over long distances.

Our design:

1. An immediate transition upon leaving the unit, from 4 inches to a 6-inch main duct, on both circuits—exhaust and supply.
2. The 6-inch main duct covers the primary distance through the ceiling cavity, with as few elbows as possible.
3. The branches resume with 4-inch or 5-inch ducts toward each register, as close as possible to their destination.
4. An accessible balancing damper on each branch, to distribute airflow among the rooms instead of letting the shortest branch take it all.

This layout reduces total pressure loss without multiplying large ducts in finished ceilings. It is the compromise that makes a fully ducted system feasible in an existing home.

Where to place stale-air returns

Stale air is captured where it accumulates, never at random. Three points were selected:

• The main bathroom, in the ceiling, away from the shower stream but within the steam zone.
• The kitchen, in the ceiling and away from the range hood—the goal is to capture moisture and residual odors, not compete with the hood.
• The finished basement, at the lowest and dampest point of the space.

Where to place fresh-air grilles

Fresh air is delivered where people breathe for long periods: bedrooms and the living room.

Two rules we apply without exception:

• Never directly above a bed or in line with an armchair. Even with 66% heat recovery, the incoming air in January remains cooler than the room air. A poorly placed grille creates a draft, and the client eventually blocks it with duct tape.
• Preferably near a heat source—above an electric baseboard, for example—so the fresh air mixes before reaching occupants.

The selected grilles are Whisper-style registers, available in 4, 5, 6, and 8 in. according to the branch diameter, chosen for their quiet operation and finish in occupied rooms.

The length budget: count the elbows, not just the feet

This is what diagrams never show. Every duct resists airflow, and that resistance is not measured solely by straight-line length.

In a flex-duct system, a tight 90° elbow is equivalent, in terms of pressure loss, to several feet of straight duct—often the equivalent of around ten feet, depending on the radius and diameter. A twenty-foot route with four tight elbows can therefore “cost” as much as a well-designed sixty-foot route.

Our design method:

• The layout is drawn before drilling, not improvised as the work progresses.
• Every elbow is included in the total pressure-loss calculation.
• Bends are kept as wide as possible, even if that means extending the route by two feet to avoid a tight elbow.
• The ducts are kept taut, never corrugated or sagging between supports, spaced no more than 1.2 m apart.

This is the work that explains why two installations of the same unit, in two homes of identical size, do not deliver the same airflow rates.

The laundry room: the best and worst location

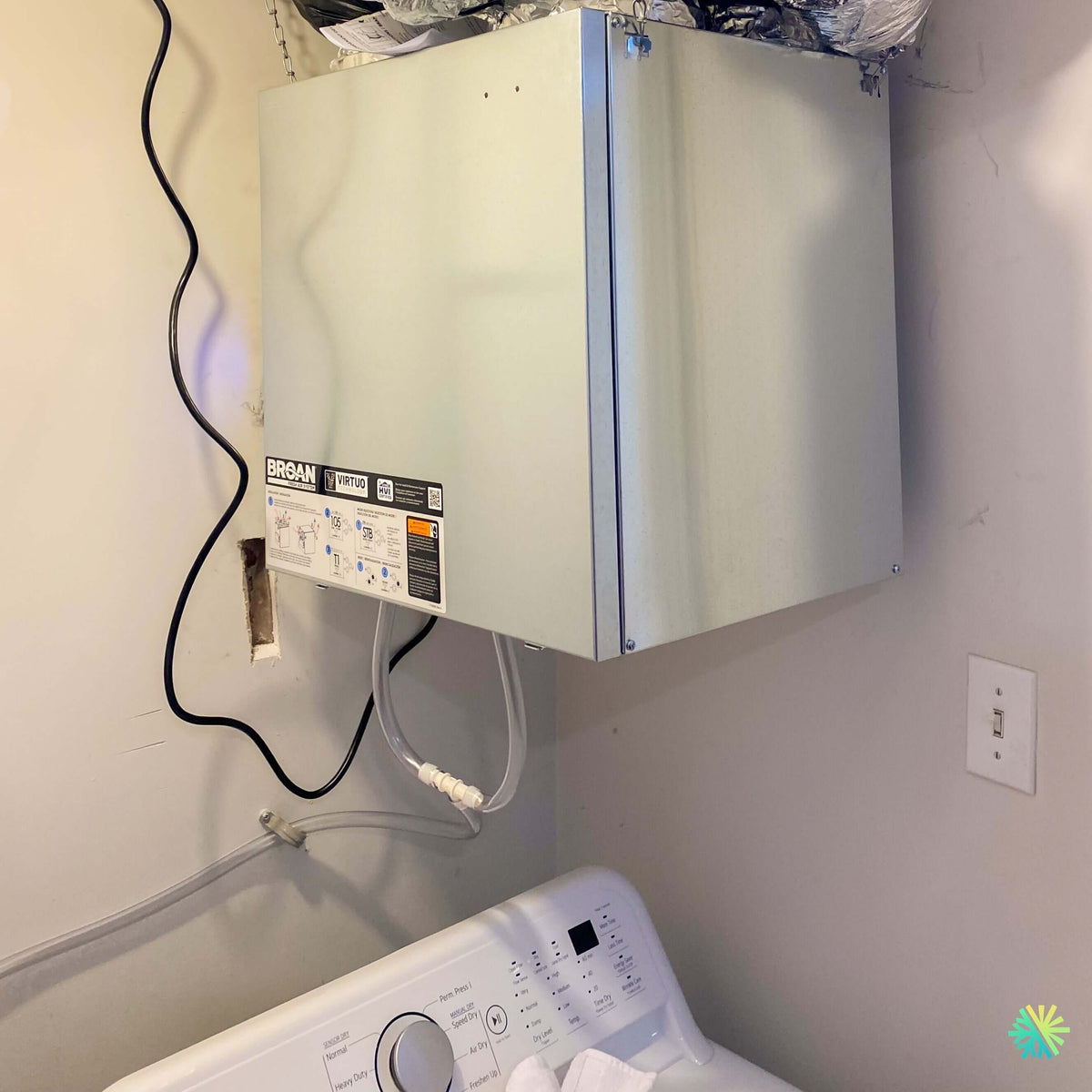

The unit was mounted on the wall, high up, in the corner of the laundry room, directly above the dryer. It is a location worth discussing because it combines advantages and pitfalls.

The case for it

• It is often the only available space in a house without a mechanical room.
• The washer drain is in the immediate vicinity, which resolves the condensate-drain issue.
• An electrical supply is generally already available.
• The room is already utilitarian, so the unit is not visually intrusive there.

The dryer, the number-one enemy of the heat-recovery core

This is the most important warning in this article, and the one we repeat at every job site.

The dryer must never, under any circumstances, be connected to the air exchanger's ductwork. Not its exhaust, not a shared connection, and not a branch connection “just to help.”

The reasons are mechanical and indisputable:

• Lint passes through a dryer filter in sufficient quantities to clog a heat-recovery core within a few months.
• Dryer air is saturated with moisture and hot, causing massive condensation in the core and ductwork.
• A dryer's airflow is incompatible with an HRV's balancing: it throws the system out of balance during every cycle.

The dryer retains its dedicated exhaust, short and rigid, with a downward slope and an exterior flapper vent cover.

A design consideration that follows directly from this shared space: the HRV's stale-air return must not be located in the laundry room when the unit is installed there. Airborne lint is much more concentrated there than elsewhere, and it would end up in the filter within a few weeks. In this house, no return was installed in this room.

High wall mounting

The unit is mounted high, beneath the ceiling, freeing up the workspace below it. Three precautions:

• The mounting transfers the load to the studs, located with a detector, using lag screws. Never into drywall alone.
• Insulating washers are placed between the bracket and the wall to prevent vibrations from being transmitted through the partition.
• The access door must be able to open fully, and the owner must be able to remove the filter from a stable stepladder. We verify this operation with the client before leaving the job site.

The condensate drain to the washer drain

Condensate drains from the unit through a flexible tube, forms a U-shaped trap, and then connects to the washer drain.

Two rules:

• The trap is filled during commissioning and remains accessible without tools so it can be reprimed if it dries out during a period of extreme cold.
• The connection to the drain is made with an interruption, never as a direct watertight connection to a wastewater drainage system, so that no backflow can reach the unit.

Mistakes to avoid

1. Connecting the air exchanger to the dryer ductwork, or placing a stale-air intake in the laundry room. This is the fastest route to a destroyed core.
2. Attempting a fully ducted system without a routing plan, improvising the paths as each opening is drilled.
3. Keeping the fitting diameter constant throughout the entire network instead of using a larger-diameter main trunk.
4. Adding multiple tight elbows without accounting for them in the pressure-loss calculation.
5. Placing a fresh-air vent above a bed, guaranteeing that the grille will be blocked by the occupant before winter ends.
6. Omitting balancing dampers on the branches, leaving remote rooms without useful airflow.
7. Securing the unit to the drywall without locating the studs.
8. Installing the unit too high for the filter to be accessible, making maintenance impossible from the first year onward.

What Saint-Clet adds to our method in homes without ductwork

Five months after commissioning, the relative humidity on the main level stabilized at around 38 % during cold weather, compared with 56% before the work, and the basement at around 42 % compared with 61%. No condensation appeared on the bedroom windows during the following winter.

The homeowners mainly noticed an effect they had not expected: the evening cooking smell no longer reached the bedrooms by bedtime. This was the direct result of an exhaust intake located at the source rather than general distribution.

Applicable subsidies

The Québec government’s Rénoclimat program provides financial assistance of approximately $500 for installing or replacing an HRV or an ERV, provided that the unit appears in the Home Ventilating Institute (HVI) certified products directory. The HRV90 carries this certification, as well as ENERGY STAR certification, which applies when the unit is used in Canada.

Two decisive procedural conditions:

• The initial energy assessment must precede the work. An assessment carried out afterward makes the application ineligible.
• A post-work assessment is required to trigger payment.

The amounts and criteria are periodically revised by the government. We confirm eligibility when preparing the estimate rather than quoting a figure that may have changed.

Maintenance

• Every 3 months: remove and wash the foam filter (SV18883) in warm, soapy water, squeeze it without twisting, and dry it completely before reinstalling it. In a laundry room, this deadline must not be postponed.
• Once a year: rinse the recovery core, reprime the drain trap, and check the airflow rates at the pressure taps on the access door.
• Twice a year: clean the exterior hoods of the HRV and separately check the dryer vent hood flap.
• Every 2 to 3 years: have the branch balancing checked again, especially if renovations have altered the ductwork.
