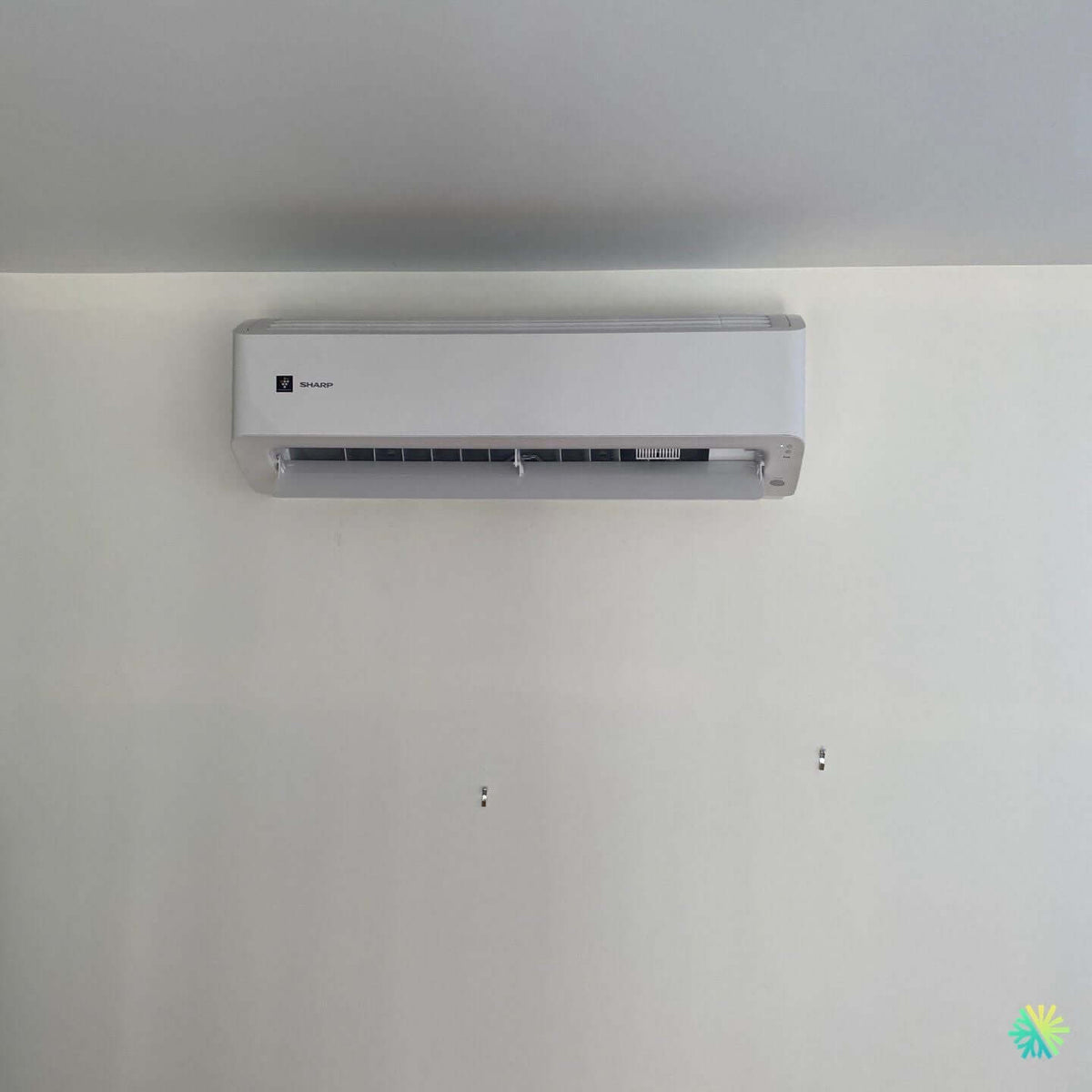

Installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie

An intervention designed for immediate comfort, seasonal efficiency and aesthetic discretion

Client context and objectives

In a bright apartment in the Rosemont–La Petite-Patrie neighborhood, our team is installing aSharp wall-mounted heat pump to provide four-season heating and cooling . The client wanted:

• a quiet and efficient device under low load for summer nights;

• stable additional heating during cold spells;

• discreet integration on a white wall without visible cables;

• easy maintenance and quick filter access.

We are working in a home with standard ceilings. The interior head is positioned at the top, with sufficient clearance under the ceiling to optimize air intake and blowing range.

Why the Sharp wall-mounted heat pump here?

The new generation Sharp ranges (R-32 refrigerant) focus on:

• flexible inverter compressors in modulation;

• management electronics which limit overconsumption in mid-season;

• high-density exchangers promoting efficiency at low temperatures;

• intuitive front maintenance (removable pre-filter, controlled card access).

For a typical Montreal apartment, this approach balances acoustic comfort , seasonality , and operating costs . The brand also offers compatible multi-zone options if you want to upgrade to a second unit later.

Sizing and layout: precision before drilling

The choice of BTU/h capacity is based on three factors: actual surface area and volume, solar exposure, and insulation level. Here, the open living space requires a central supply line to supply the adjacent area (kitchen/hallway). We consider:

• High installation , clear of approximately 6–8 cm below the ceiling to avoid the “air cushion” effect;

• Minimum horizontal distance to the outer wall (short refrigeration path to reduce losses and load drops);

• Standard working height allowing safe maintenance without dismantling furniture.

This configuration increases controlled stratification in heating (warm blown air which gradually descends) and extends the range in air conditioning.

Refrigeration path and condensate management

The layout uses a single bore through the exterior wall behind the head, to maintain an interior without visible capping . Outside, the lines are protected by UV-treated, facade-colored trunking . Condensate drainage operates by gravity , which simplifies operation and eliminates the noise or maintenance of an additional pump. When the minimum gradient is not achievable, we offer a quiet compact pump; here, the configuration allows for direct gravity, therefore less maintenance.

Electricity and protection

The heat pump is connected to a dedicated circuit breaker with an external safety circuit breaker (disconnector), in accordance with current standards. We check:

• cable gauge and size according to the nominal intensity of the group;

• grounding and polarity;

• acceptable voltage drop for the effective length;

• cleared service point for future maintenance.

Refrigeration quality: the steps that make the difference

A sustainable HVAC installation relies on rigor invisible to the naked eye:

1. Calibrated flares : tightening torque respected to avoid micro-leaks.

2. Deep vacuum (≤ 500 microns) with lift control; this step improves compressor longevity.

3. Nitrogen leak test before vacuuming.

4. Fluid release and functional test in cold and hot mode.

5. Measurements : supply/return temperature, absorbed current, and internal static pressure to check free air circulation.

Finish and discretion

Inside, the wall remains clean : no visible pipes, careful horizontal alignment, and uniform distance from the ceiling. The Sharp unit, with its clean lines, fits the decor without weighing down the room. Outside, the matching trunking avoids direct exposure of the insulation and guarantees durability against the freeze/thaw cycles typical of Montreal and the North Shore/South Shore .

Real comfort: what the customer feels

• Air conditioning : the shutter directs a laminar flow over the living area. At half power, the unit remains very quiet , perfect for nighttime use.

• Heating : Sharp defrost algorithm limits interruptions; the warm feeling is regular, without “yo-yo”.

• Air quality : the filters are removed from the front; we explain to the customer a simple monthly HVAC maintenance (vacuum and rinse).

Grants and Eligibility

Some high-performance R-32 wall-mounted heat pumps may be eligible for Quebec programs (depending on the exact model, efficiency, and low-temperature operating range). During the technical visit, we confirm the presence of required certifications and provide, where applicable, the documentary support necessary for the aid application. Our team monitors the evolution of the criteria in order to recommend an optimized solution for Montreal, Laval, Longueuil, the North Shore, and the South Shore .

Preventive maintenance: the recipe for lasting performance

To preserve seasonal yield :

• Clean the pre-filters every 4–6 weeks during peak periods.

• Keep one meter clear in front of the indoor unit.

• Outdoors, ensure a clearance of 30–60 cm around the condenser; in winter, prevent snow accumulation.

• Schedule annual HVAC maintenance (inspection, pressures, coil cleaning, electrical check).

Regular maintenance prevents compressor overload, reduces consumption and extends the life of the equipment.

Salient technical details of this installation

• Type : wall-mounted heat pump ( mini-split ).

• Brand : Sharp (R-32 generation).

• Layout : interior load-bearing wall, uniform clearance under ceiling.

• Route : direct crossing to the outside, short lines protected by UV ducting.

• Condensate : gravity (controlled slope).

• Tests : deep vacuum, leak test, dual hot/cold commissioning.

Common Pitfalls to Avoid (and How We Get Around Them)

• Drilling too low : creates “elbows” and distorts the drain slope; we place the template and check before drilling.

• Unnecessary refrigeration length : reduced efficiency; we optimize the positioning to keep it as short as possible.

• Insufficient clearance under the ceiling : recycles hot air; we respect a minimum clearance to ensure the range.

• Non-dedicated wiring : triggers; we provide a compliant dedicated circuit .

• No micron tests : invisible on the day but costly later; controlled vacuum is systematic at AirGreen.

Result: immediate comfort and predictable savings

Upon switching on, the room quickly reaches the set temperature with a low noise level. In summer, fine modulation prevents short cycles; in winter, the electrical backup is less used, which reduces the energy bill. The installation meets the customer's specifications : visual sobriety , efficiency , and ease of maintenance - the DNA of AirGreen.

And after?

We support the client with:

• an annual maintenance reminder ;

• season-by-season usage advice ;

• the ability to add a second head if a remote room proves difficult to temper.

For residential projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore , our team offers a clear quote, rapid planning , and execution in accordance with best practices.

Frequently Asked Questions (excerpt)

Does the Sharp heat pump heat in very cold weather?
Recent R-32 ranges maintain good performance at low temperatures depending on the specific model. We validate this range during selection to ensure comfort in cold weather.

Is an annual maintenance really necessary?
Yes. Dirty coils and saturated filters increase consumption and reduce lifespan. Annual HVAC maintenance ensures efficiency.

Can we add a second room later?
Depending on the external compressor and the series chosen, a multi-zone upgrade is possible. We check compatibility before the initial choice to avoid any limitations.

The AirGreen commitment

At AirGreen , we combine accurate diagnosis , careful installation , and after-sales support . The result: a Sharp wall-mounted heat pump that blends into your home, reduces your energy costs, and significantly improves your daily comfort —now and for winters to come.
