An interior installation above a passage for uniform comfort without encroaching on space

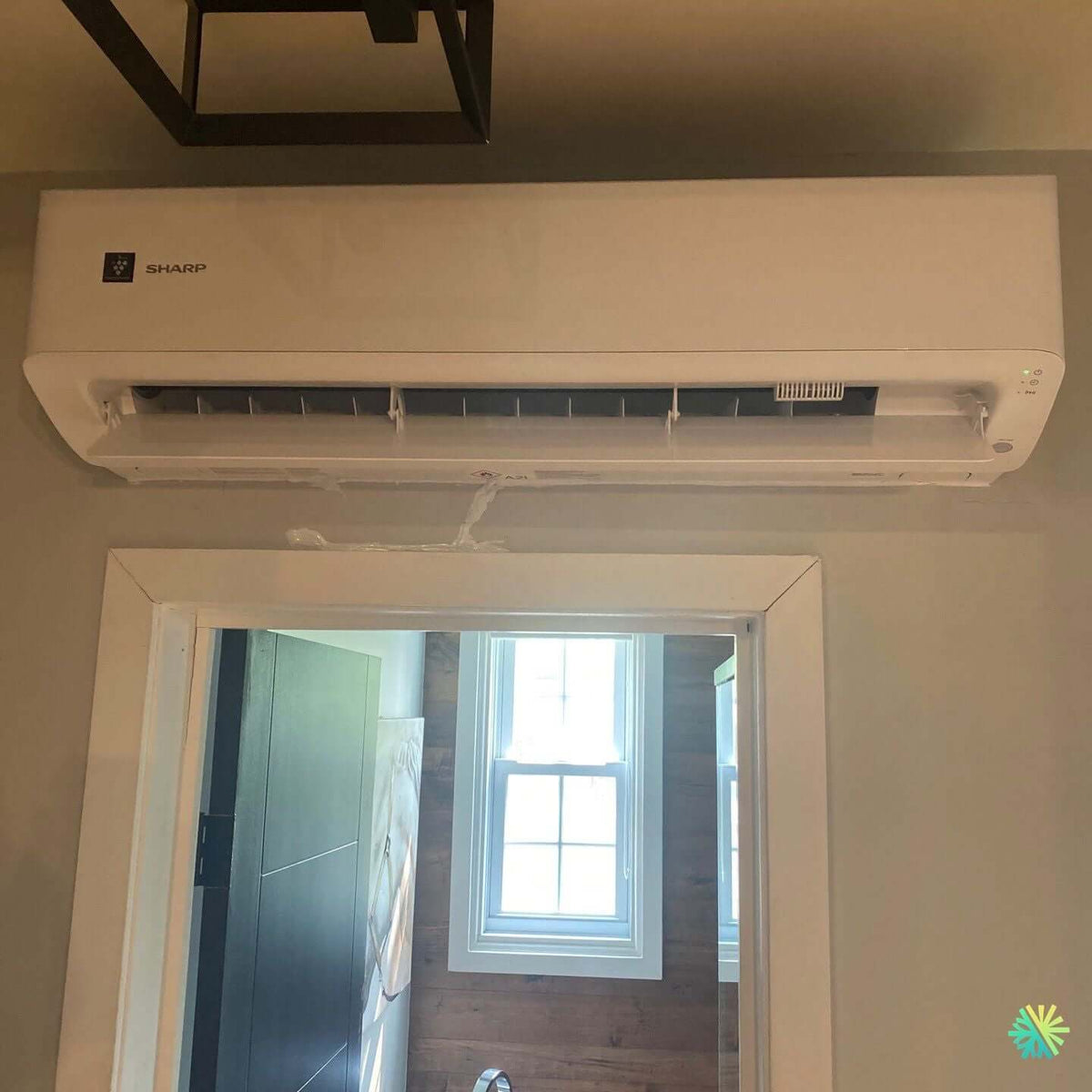

We are working on a cozy duplex in Rosemont–La Petite-Patrie . The owner's goal: to stabilize the comfort of the ground floor in summer and mid-seasons, while preparing the house for the possible addition of a second head upstairs. We propose the installation of a recentSharp wall-mounted heat pump , compatible with R-32 refrigerant, renowned for its discreet operation and precise airflow control. The chosen position – above a door frame between two living rooms – allows for natural irrigation of several zones without hindering circulation or furnishings.
Why this positioning above a door works so well
Installing an interior head high up, centered on a passage, has three concrete advantages:
-
Cross-flow : the main jet sweeps the corridor and “pulls” the cooler/warmer air towards the adjacent rooms.
-
Destratification : the recovery is done at mid-height, limiting pockets of hot air in winter and warm areas in summer.
-
Preservation of aesthetics : no impact on the walls of furniture, no conflict with curtains or light fixtures.
In this project, we set the vanes for a slightly oblique blow to avoid direct impact on occupants when passing through the door, and we memorize this setting on the remote control so that the unit always starts in the ideal position.
Technical details of the HVAC installation
Drilling, crossing and condensate management
The chosen wall has a standard thickness. We make a clean hole with a controlled angle towards the outside to ensure the gravity flow of the condensate. After the crossing, we seal and cap the outlet with an aesthetic bulkhead, then we connect the insulated refrigerant lines and the communication cable to the outdoor compressor (laid away from falling ice and splashes). Inside, a mastic finish ensures airtightness around the outlet, preventing any infiltration or thermal bridge.
Please note: this configuration favors gravity – quiet, reliable, and maintenance-free – rather than a condensate pump. Where architectural requirements dictate, we can integrate a pump, but we avoid it if a gravity path is possible.
Supports, capping and routes
On the outside, the connections are covered in white to match the facade and protect the insulation. The compressor is mounted on anti-vibration brackets that are clear of the ground, which is practical in Montreal for snow and freeze/thaw cycles, and easier to remove. We include silent blocks and adjust the tightening torque to eliminate any risk of buzzing transmitted to the structure.
Dedicated power supply
As with any compliant HVAC installation , the indoor and outdoor units share a dedicated power supply from the panel, protected by a circuit breaker according to the manufacturer's specified rating. A clear label is affixed to the panel, useful for inspection visits or subsequent interventions.
Sizing and capacity
In this semi-open ground floor, a typical capacity of 12,000 to 18,000 BTUs covers the majority of air conditioning and heating needs. Our calculation takes into account the surface area, sunlight, glazing, and the degree of openness between rooms. The recent Sharp range fits perfectly into this range, with fine modulation to avoid oversizing, which can cause short cycles and discomfort.
Result: comfort, silence and control
Upon commissioning, we validate:
-
Fan speed optimized for passage under the door (sound comfort).
-
Precise thermostat with a reduced gap between setpoint and actual temperature.
-
Effective dehumidification mode during humid episodes in Montreal and the South Shore .
-
Daily programming to reduce consumption when away.
The result is discreet , without any unwanted vibration, with an interior facade perfectly aligned with the wall. The finishes are meticulous: caps, collars, slopes and seals comply with our AirGreen standards.
Grants and Eligibility
Recent, high-efficiency wall-mounted heat pumps —like this Sharp —are generally eligible for Quebec's current programs aimed at improving residential energy efficiency. We work with our clients to validate the exact configuration of their home and gather the installation and efficiency evidence needed to submit an application. Our team monitors evolving criteria (seasonal performance, operating temperature, certification) to maximize the potential amount.
Need a cost estimate for Montreal, Laval, Longueuil, North Shore, or South Shore ? We'll prepare a clear file: a technical specification sheet, a detailed invoice, accurate photos, and a form ready to submit.
Good HVAC Operation and Maintenance Practices
A heat pump performs best when a few simple rules are followed:
-
Filters : Vacuum or wash every 4 to 8 weeks depending on dust and the presence of animals.
-
Clearances : Leave 12–15 cm above and free around the unit to facilitate vacuuming.
-
Stable setpoint : avoid juggling the temperature too often; let the inverter modulate.
-
Winter defrosting : do not abruptly interrupt the appliance during a cycle; it is normal for the outside air to blow warm for a short time.
-
Annual HVAC Maintenance **: Deep cleaning of the evaporator, checking drain slopes, electrical checks and fan static pressure. This preventative HVAC maintenance extends the lifespan and maintains efficiency.
What we monitor at installation to avoid common pitfalls
-
Air discharges : no immediate obstacles (prominent lintels, light fixtures) which break the jet.
-
Thermal bridges : meticulous sealing of the wall crossing.
-
Sound effects : wedging of brackets and controlled tightening.
-
Drain : continuous slope, no reverse siphon.
-
Suitable anchors : wood, brick, or reinforced gypsum substrate – we use the right anchor.
-
Height : Mount high enough for air mixing, but not glued to the ceiling to allow the return to breathe.
What's next? Scalability and multi-zones
The owner is considering a second head upstairs. So we have:
-
Reserved the location for a future passage of lines.
-
Positioned the compressor to accept a second circuit if a compatible MultiZone system was later opted for.
-
Planned the required electrical capacity and service space.
This anticipation avoids having to redo the facade and reduces costs when adding a second or third air-conditioned room.
Local case study: optimized air circulation in Montreal plexes
Montreal plexes often have narrow hallways and adjoining rooms . A header above a door directs airflow between the living room, dining room, and kitchen. We orient the vanes so the flow grazes the lintel and extends into the room opposite, then calibrate a medium speed: enough momentum to cross the opening, but without a draft felt when standing under the passage. This approach allows for a more uniform temperature, instead of a cold living room and a lukewarm kitchen.
Why Sharp for this project?
-
Fine modulation and silence appreciated in passage areas.
-
A simple finish that blends well with Rosemont's renovated interiors.
-
Reliability : cards and motors known to be robust, parts available in Quebec.
-
Clear remote control with memory for modes and timers.
If an architectural constraint required one or two additional elbows, the range of pressures available in the Sharp range leaves us a comfortable margin, provided we remain within the total lengths recommended by the manufacturer.
Budget, deadlines and logistics
-
Technical visit : taking measurements, validating the routing and power supply.
-
Installation : generally one day for a single head, including testing.
-
Finishing : exterior cappings, seals, and touch-ups as needed.
-
Documentation : detailed invoice and photos useful for grant applications.
We work throughout Greater Montreal – Montreal, Laval, Longueuil, North Shore, South Shore – with niches tailored to condominiums and townhouses.
Practical tips for getting the most out of your wall-mounted air conditioner/heat pump
-
In summer, use Dry mode on hot days: it improves comfort without excessively lowering the temperature setting.
-
During the off-season, leave the setpoint stable ; the inverter will adjust the speed to maintain balance without overconsumption.
-
Program a comfort increase 30 minutes before your return; no need to turn the ventilation on full blast.
-
Schedule an annual HVAC maintenance in the spring: ideal for starting the air conditioning season with optimal performance .
In summary : This HVAC installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie combines efficiency, discretion and scalability. The positioning above a passageway streamlines air circulation, condensate evacuation is done by gravity and the careful finishing ensures a durable integration. For a similar project in Montreal, Laval, Longueuil, North Shore, South Shore , our team guides you from the choice of capacity to the grant process.
