Installation of a FUJITSU ALTAIR 500 Mini Split wall-mounted heat pump in Dollard-des-Ormeaux, in Montreal's West Island

An indoor installation carried out in a demanding wall renovation context

In the residential area of Dollard-des-Ormeaux, in the heart of Montreal's West Island, our AirGreen team installed a FUJITSU ALTAIR 500 Mini Split wall-mounted heat pump in an indoor space that required particular attention. The project was not just about installing a wall unit: it involved integrating an efficient heating and air conditioning system into a room where the wall already showed signs of work, partially open surfaces, and existing cladding that needed to be carefully managed.

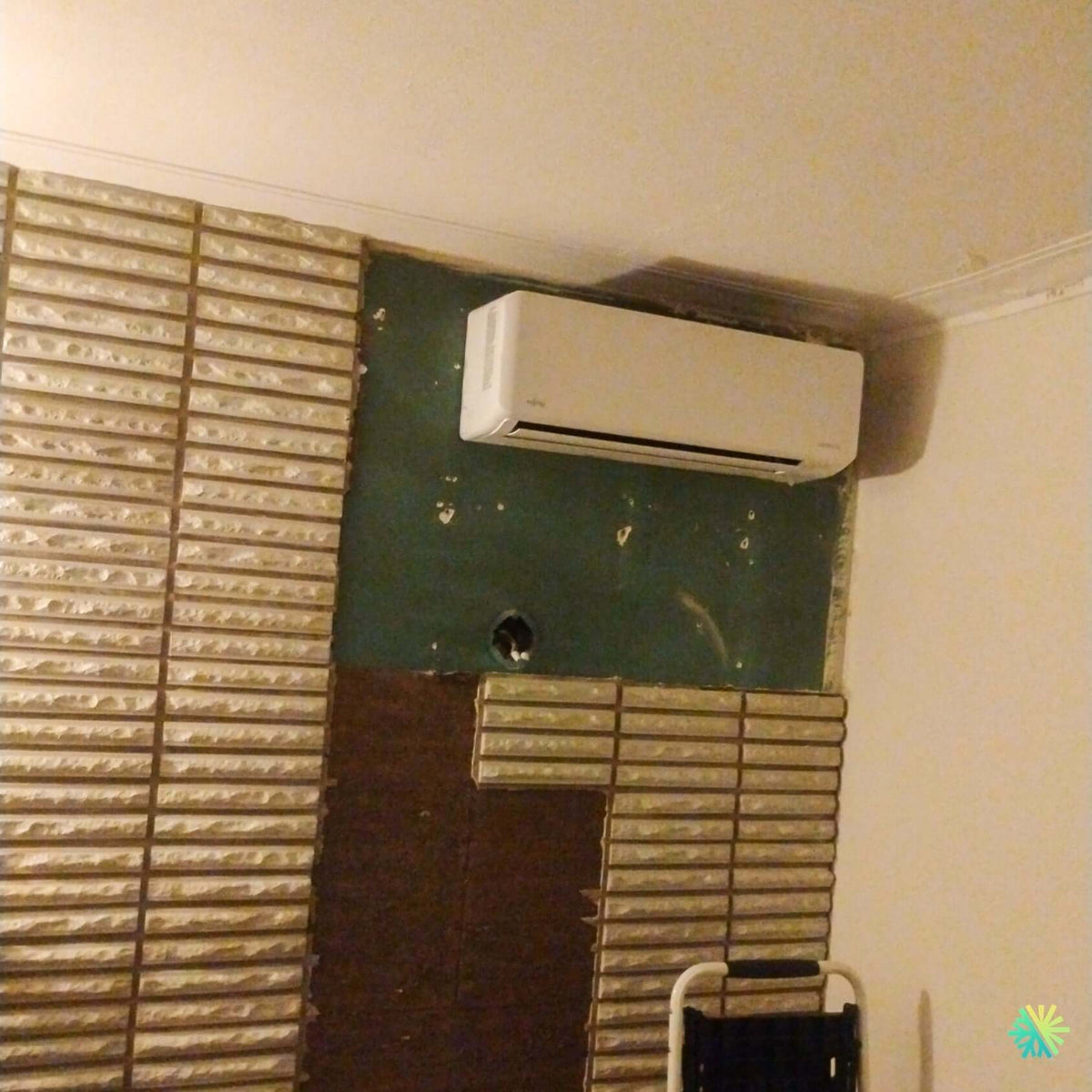

The site image clearly shows a context we often encounter during our HVAC (heating, ventilation, and air conditioning) interventions: an existing house, an interior wall in transition, partially removed decorative panels, a visible technical passage opening, and a FUJITSU indoor unit installed high up, near the ceiling, in a strategic location. This type of installation requires precision, as the appliance must be securely fastened, perfectly leveled, properly connected to the outside, and positioned to ensure good air distribution.

At AirGreen, we know that many homeowners in Dollard-des-Ormeaux, Montreal, Laval, Longueuil, the North Shore, and the South Shore consider a wall-mounted heat pump when renovating a room, improving comfort on a floor, or wanting to replace a less efficient air conditioning solution. This project clearly illustrates the importance of coordinating HVAC installation with the actual state of the building, rather than applying a standard method without considering the context.

A FUJITSU ALTAIR 500 installed in an existing room, with visible constraints

The indoor unit of the FUJITSU ALTAIR 500 was installed at the top of the wall, near the ceiling, in a clear section between two areas of existing cladding. This position allows the treated air to diffuse more efficiently throughout the room, while keeping the appliance discreet and accessible for daily use.

However, the wall had several peculiarities:

• a partially removed old wall finish;
• decorative panels still present on one section;
• an open central area, probably related to a modification or renovation;
• a visible circular technical passage under the unit;
• proximity to a room corner and a ceiling molding;
• limited space to properly align the indoor unit.

In this type of situation, the installation of a Mini Split heat pump cannot be improvised. The mounting plate must be stably installed, the unit must be perfectly straight, and the routing of the lines must be planned to avoid tension, incorrect slopes, or finishes that are difficult to correct later.

Why indoor placement is as important as the outdoor unit

When a client thinks about an HVAC installation, they often first imagine the outdoor unit: its location, its noise, its support, its clearances. However, the indoor unit plays an equally important role in the system's performance. A poorly positioned wall-mounted heat pump can create overly cold zones, an uncomfortable draft, or uneven heat distribution.

In this project in Dollard-des-Ormeaux, the FUJITSU unit was installed high up to promote good air circulation. This positioning is particularly useful when trying to treat a main room or an open area. In air conditioning mode, cool air can naturally spread throughout the space. In heating mode, the flow must be correctly oriented to prevent hot air from remaining concentrated near the ceiling.

Height, orientation, and distance from obstacles are therefore essential. A molding, a wall corner, a tall piece of furniture, a curtain, a shelf, or a corridor opening can influence how air circulates. This is why our technicians always take the time to evaluate the actual room configuration before finalizing the installation.

A wall installation that respects the existing structure

The FUJITSU ALTAIR 500 Mini Split is equipment designed to provide efficient comfort in a compact format. However, even a lightweight indoor unit must be securely fixed. The wall must be able to support the appliance, and the mounting plate must be installed with sufficient precision to avoid vibrations, extraneous noise, or drainage problems.

In this case, with the wall partially open and under renovation, our team had to pay particular attention to the fastening area. An indoor unit must always be installed so that it remains stable, even after several years of use. Normal fan vibrations, temperature variations, and future HVAC maintenance interventions can reveal weaknesses in a poorly prepared fastening.

The goal was therefore to deliver a reliable installation, while allowing interior finishing work to continue around the unit. This coordination is common in renovation projects: the HVAC team intervenes at a specific time, and then wall, paint, finishing, or decoration work can continue.

Managing the technical passage: an essential detail

Below the unit, a circular opening in the wall is visible. This type of passage is generally associated with the routing of refrigerant lines, the condensate drain, or communication wiring between the indoor and outdoor units. Its position must be carefully determined, as it directly influences the quality of the installation.

A common mistake is to drill too low, too high, or with an insufficient slope. The condensate drain, in particular, must be handled rigorously. In air conditioning mode, the indoor unit removes humidity from the air, which creates condensation. This water must be properly drained to the outside or to a dedicated drain. A poor slope or a poorly designed passage can cause leaks, odors, noises, or even wall damage.

In an existing house in Dollard-des-Ormeaux, where walls sometimes have multiple layers of finish or previous renovations, it is necessary to check the possible path before drilling. At AirGreen, we always analyze the technical route to reduce risks and make the installation as clean as possible.

A comfort solution adapted to residences in Dollard-des-Ormeaux and the West Island

The FUJITSU ALTAIR 500 wall-mounted heat pump responds very well to the needs of homeowners who want to improve their comfort without installing a complete central system. In many homes in Montreal's West Island, not all rooms behave the same way: some are warmer due to sun exposure, others colder due to their orientation, insulation, or distance from the main heating system.

A Mini Split heat pump allows for precise zone treatment with great flexibility. It can be used to efficiently cool in summer, heat during cooler periods, and reduce the load on other equipment in the house. This approach is often relevant when an owner wishes to improve the comfort of a living room, an extension, a finished basement, a home office, or a family room.

Practical advantages of a FUJITSU wall-mounted heat pump

FUJITSU is a well-known brand in the field of wall-mounted and Mini Split systems. The ALTAIR 500 range is chosen for its combination of comfort, reliability, and discreet operation. Depending on the exact configuration of the installed model, this type of system can offer several advantages sought by homeowners:

• silent indoor operation;
• good temperature modulation;
• a compact wall-mounted format;
• direct and efficient air distribution;
• simple daily use;
• better comfort management by zone;
• a less invasive solution than a ducted central system.

For existing residences, this flexibility is a major asset. It is not always realistic to add ducts, modify a framework, or open several walls. A wall-mounted heat pump often allows for a quick, clean, and efficient result, provided the installation is carried out correctly.

The role of proper sizing

The choice of a heat pump should never be based solely on the approximate area of the room. Sizing depends on several factors: insulation, solar orientation, ceiling height, number of windows, type of glazing, air circulation, room usage, and occupant habits.

A unit that is too small may run for a long time without achieving the desired comfort. A unit that is too large may reach the temperature too quickly without properly dehumidifying the air, which can make the room less comfortable in summer. At AirGreen, we evaluate these elements before recommending a solution.

In the case of this installation in Dollard-des-Ormeaux, the choice of the FUJITSU ALTAIR 500 is part of a targeted comfort strategy. The appliance was positioned to maximize air diffusion while respecting the constraints of the existing wall. It is this type of analysis that allows for an effective daily result, not just a visually successful installation.

Subsidies and energy efficiency

Many homeowners who contact us in Montreal, Laval, Longueuil, on the North Shore, or the South Shore want to know if their future wall-mounted heat pump may be eligible for financial assistance programs. Eligibility depends on the exact model, its certifications, current requirements, and the specific criteria of the programs available at the time of application.

During our quotes, we help our clients better understand the technical information related to the chosen model, including performance references, required documents, and the general steps to prepare an application when the equipment is eligible. This part is important, as an error in model selection or documentation can complicate obtaining financial assistance.

Energy performance also remains an essential criterion even when no subsidy is confirmed. A well-designed HVAC installation improves comfort while optimizing electricity usage, especially when the heat pump is used intelligently according to the seasons.

Mistakes to avoid during an indoor installation

This project clearly shows why indoor installation must be taken seriously. A wall under renovation may give the impression that it is easier to install the appliance, but this is not always the case. Uneven surfaces, old materials, existing openings, and finishing constraints can complicate the work.

The most common mistakes we recommend avoiding are:

• installing the unit too close to the ceiling, without adequate clearance;
• fastening the appliance to an unstable surface;
• misaligning the wall plate;
• neglecting the condensate drain's slope;
• placing the unit too close to a corner, which limits air diffusion;
• drilling without checking the exterior path;
• forgetting future access for filter cleaning;
• choosing a location that complicates finishing work.

In this installation, the unit was placed with clear logic: keeping the appliance high and efficient, using an appropriate technical passage, preserving the possibility of completing wall work, and maintaining good accessibility for maintenance.

HVAC maintenance after installation

A Mini Split wall-mounted heat pump must be regularly maintained to preserve its performance. The indoor unit's filters must be cleaned, the outdoor unit must remain clear, and the system must be periodically inspected to check drainage, pressure, connections, and the general condition of the components.

In a project like this, where the room appears to be under renovation, it is particularly important to protect the unit from construction dust. Dust from cutting, plaster, paint, or sanding can quickly accumulate in the filters and on internal surfaces. We always recommend limiting the use of the appliance during dusty work and performing appropriate cleaning once the finishes are completed.

Good HVAC maintenance extends equipment life, improves air quality, and reduces the risk of performance loss. It is a simple step, but often neglected by homeowners.

An installation representative of AirGreen's expertise

This FUJITSU ALTAIR 500 installation in Dollard-des-Ormeaux perfectly represents our reality in the field. We don't only work in new homes with perfectly prepared walls. We often intervene in existing buildings, rooms under renovation, spaces with constraints, partially open walls, or configurations that require professional adaptation.

Our role is to transform these constraints into concrete solutions. We analyze the space, choose the right location, carefully install the equipment, and explain good practices to the client. The goal is always the same: to deliver a reliable, clean, and durable HVAC installation.

For homeowners in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this type of project demonstrates that a wall-mounted heat pump can be efficiently integrated even in a renovation context. The result depends on the choice of equipment, but above all on the quality of the installation.

Sustainable comfort, even in a complex renovation project

The FUJITSU ALTAIR 500 Mini Split wall-mounted heat pump installed in Dollard-des-Ormeaux now offers a heating and cooling solution adapted to the room, with an indoor installation designed for air diffusion, appliance stability, and continuity of finishing work.

This project highlights an important truth: in HVAC, invisible details are often as important as what is visible. Drilling, drain slope, fastening, alignment, conduit routing, and coordination with renovation all play a role in final performance.

At AirGreen, we apply this rigor to every client. Whether the project is in Dollard-des-Ormeaux, Montreal, Laval, Longueuil, on the North Shore or on the South Shore, we work with the same demanding standard: installing the right system, in the right place, with a professional finish and a long-term vision.
