Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie
Installation of a Sharp ZU1 in Rosemont–La Petite-Patrie: a discreet, efficient wall-mounted heat pump ideal for Montreal condos, designed by AirGreen, HVAC experts in Montreal and the surrounding area.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

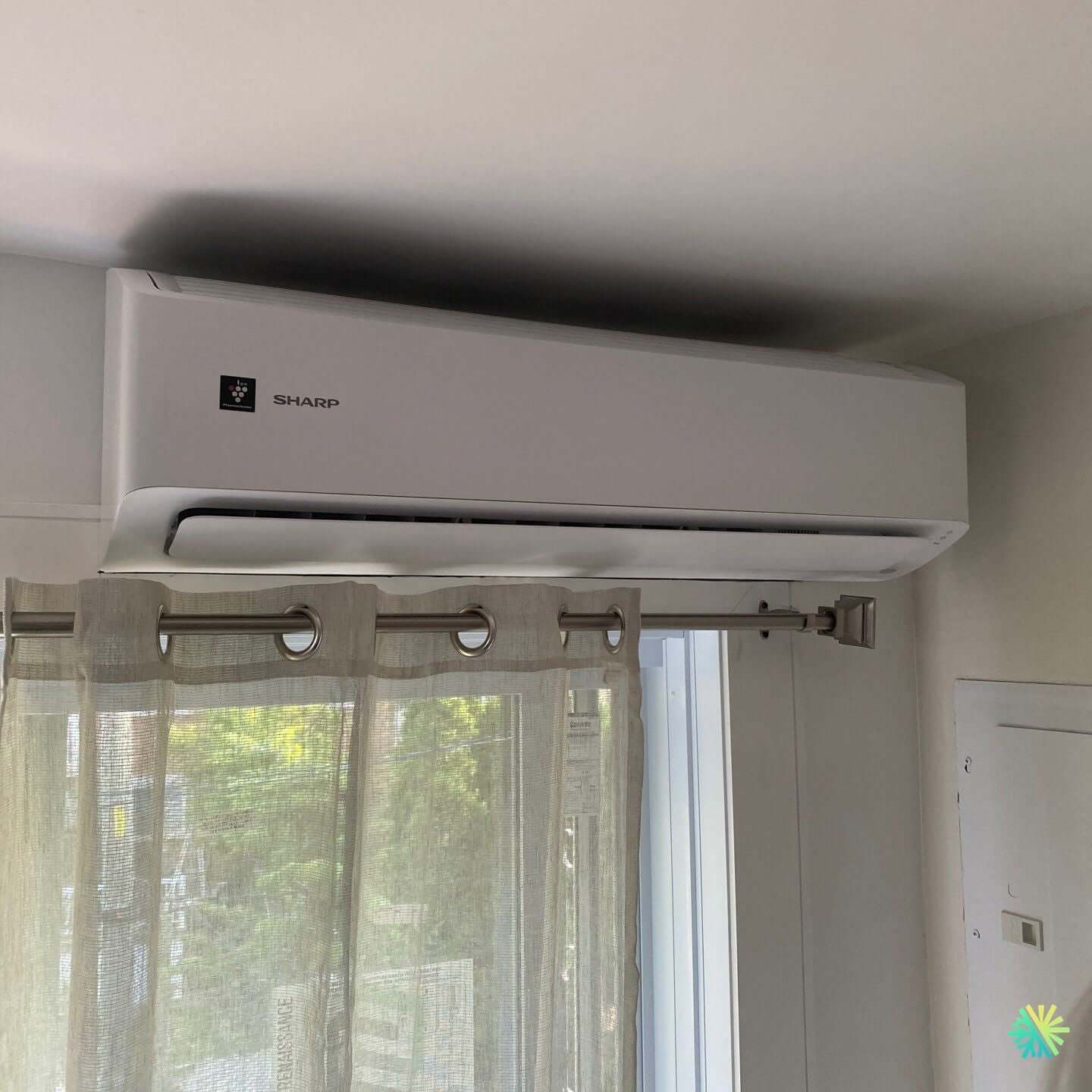

Perfect integration of a Sharp ZU1 heat pump in a bright Rosemont condo
At AirGreen , we recently installed a Sharp ZU1 wall-mounted heat pump in a beautiful condo in Montreal's Rosemont–La Petite-Patrie neighborhood. This dynamic area, with its mix of new buildings and renovated duplexes, is a perfect illustration of Montreal's evolving urban landscape—and the need for modern, energy-efficient, and quiet thermal comfort.
A discreet and elegant HVAC installation suitable for urban spaces
In this project, our client wanted an efficient heating and cooling solution , without compromising interior aesthetics. The Sharp ZU1 was an ideal choice.
This compact wall unit has been positioned above a large window, optimizing air diffusion while remaining perfectly integrated into the minimalist decor of the home.
We have ensured:
-
Maximize air circulation without disrupting curtain layout or natural light;
-
Install the interior head precisely , respecting optimal clearance from the ceiling to avoid any recirculation of hot air;
-
Route the refrigerant and electrical conduits through the exterior wall with a white cover matching the condo finishes, ensuring total discretion;
-
Ensure gravity management of condensates , thus avoiding the need for an additional pump and guaranteeing silent operation.
The Sharp ZU1: four-season performance and comfort
The Sharp ZU1 wall-mounted heat pump is one of the most popular models for Montreal urban condos and plexes . Offering exceptional performance down to -25°C , it ensures stable comfort even during Quebec's harsh winters.
Equipped with R-32 refrigerant , it helps reduce environmental impact while maintaining superior energy efficiency .
Its advantages:
-
Balanced heating and cooling capacity (from 12,000 to 24,000 BTU depending on configuration);
-
Inverter technology for precise temperature control and minimal consumption;
-
Ultra-quiet operation , ideal for residential environments;
-
Sharp's exclusive Plasmacluster ion filters purify the air and reduce household allergens.
An installation by AirGreen: expertise and attention to detail
Our technicians carefully planned and executed each step. Accessing the load-bearing wall above the window required careful handling of the anchors and adequate insulation of the openings to ensure airtightness.
The outdoor condenser, installed on a damped wall support , ensures efficient condensate drainage and protection against vibrations — an essential criterion in co-ownership constructions.
We also checked the refrigerant system pressure , performed a complete leak test , and calibrated the Sharp wireless remote control for easy and intuitive use.
Rosemont–La Petite-Patrie: a typical context for modern HVAC solutions
The Rosemont–La Petite-Patrie neighborhood is characterized by its dense, bright residential buildings , often facing south. This creates an increased need for efficient air conditioning in summer and economical heating in winter .
Thanks to the Sharp ZU1 , our customer now benefits from optimal thermal comfort all year round, without noise, without bulk and with reduced energy consumption .
The long-term benefits of a Sharp heat pump installed by AirGreen
Having a Sharp ZU1 heat pump installed by our teams means benefiting from:
-
From an installation that complies with Canadian energy performance standards ;
-
Access to government subsidies applicable to high-efficiency heat pumps;
-
Local and responsive after-sales service , covering all of Greater Montreal (Montreal, Laval, Longueuil, North Shore and South Shore);
-
Increased durability , thanks to simplified preventive maintenance and a robust design by Sharp.
In conclusion: an installation that combines performance, aesthetics and tranquility
This Sharp ZU1 heat pump installation in Rosemont–La Petite-Patrie perfectly illustrates the AirGreen philosophy: offering personalized, sustainable and aesthetically harmonious HVAC solutions .
Every detail counts—from the position of the interior head to the color of the exterior hood—to ensure an uncompromising comfort experience .
At AirGreen , we believe that the performance of an HVAC system is measured as much by its visual discretion as by its energy efficiency . And this project is a great demonstration of this.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
