A compact and strategic installation for a Montreal building where every clearance counts
In the Plateau-Mont-Royal, outdoor space is often as valuable as indoor space. Between narrow alleys, limited backyards, stairs, fences, brick walls, and sometimes complex access points, a successful HVAC installation requires much more than a simple mechanical connection. This is exactly the type of context where AirGreen's field experience makes all the difference.
For this project, our team installed a MIDEA EVOX G3 2-ton central heat pump in a typical Montreal environment: an exterior brick wall, a restricted passage, a narrow courtyard, and the need to protect the unit from accumulating leaves, snow, and ground debris. The choice of a robust wall mount was the best solution to elevate the unit from the ground, improve airflow, and ensure a clean, durable installation well-suited to the conditions of urban Montreal.
A MIDEA EVOX G3 2-ton central heat pump designed for four-season comfort
The MIDEA EVOX G3 is a very interesting solution for homeowners looking for an efficient, quiet central heat pump suitable for the Quebec climate. In this specific case, the 2-ton capacity perfectly matched the building's needs, providing stable comfort without oversizing the equipment.
Proper sizing is essential. A machine that is too small risks running continuously without achieving the desired comfort. A machine that is too large can lead to short cycles, poorer dehumidification, and premature wear. Before any installation, our team assesses the building's actual needs, interior configuration, insulation, existing ducts, sun exposure, and occupant habits.
In a neighborhood like Plateau-Mont-Royal, where many buildings were constructed long before current energy standards, this step is particularly important. A well-chosen 2-ton central heat pump can offer an excellent balance of performance, comfort, and energy consumption.
What the image reveals about the challenge of this installation

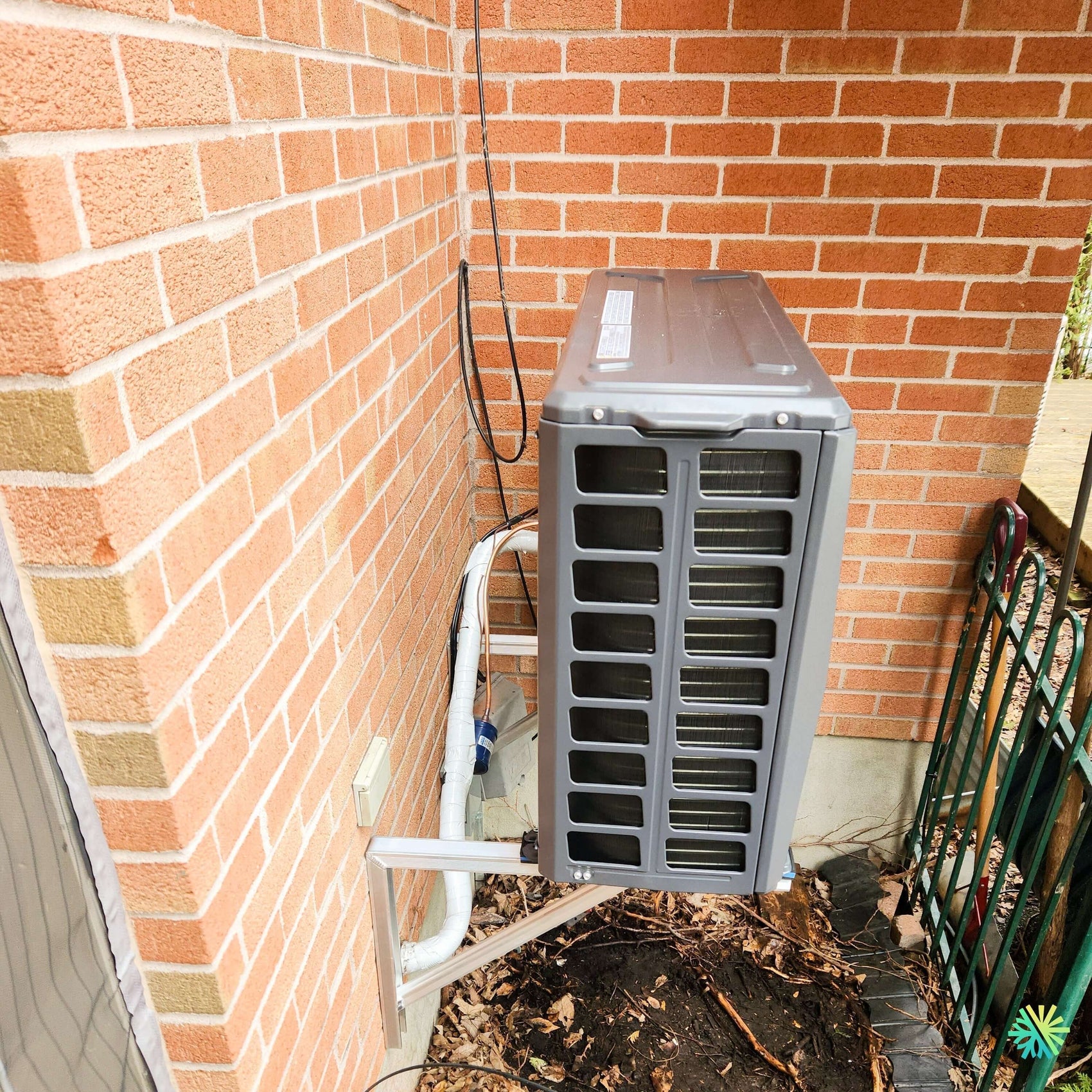

The photo shows a neat installation in a narrow space, between a brick wall and a metal fence. The outdoor unit is mounted on an aluminum wall bracket, which keeps it off the ground and frees up space around the base. This approach offers several concrete advantages:
- reduced risk of obstruction by dead leaves;
- better protection against snow and ice;
- improved clearance for maintenance;
- cleaner installation in a restricted yard;
- reduced risks related to ground moisture;
- better unit stability over time.
We also note the presence of refrigeration lines protected by a white casing, as well as precise routing along the wall. For an HVAC installation in Montreal, this type of finish is not just aesthetic: it protects the components against UV rays, impacts, temperature variations, and premature wear.
Why the wall mount was the best option
In many central heat pump installations in the suburbs, it is possible to place the outdoor unit on a ground-level base. But in denser areas like the Plateau-Mont-Royal, this option is not always optimal. Here, the ground was cluttered with leaves, roots, and limited clearance near the passage. A ground installation would have made maintenance more difficult and exposed the unit to more debris.
The wall mount allowed for a cleaner and more functional installation. However, this type of support must be installed with precision. The brick wall must be assessed, the anchor points must be solid, and the unit must be perfectly level to ensure the proper functioning of the refrigeration system.
At AirGreen, we pay particular attention to these details, as improper fastening can lead to vibrations, noise, mechanical stress, and, in the long term, performance problems.
The routing of refrigeration lines: precision work
One of the most important elements in installing a MIDEA central heat pump is the routing of the refrigeration lines. In this project, the space behind and around the unit was limited, requiring precise planning before final placement.
Our technicians worked to:
- respect the bending radii of the lines;
- avoid unnecessary stress on connections;
- protect pipe insulation;
- maintain clean routing along the wall;
- facilitate access for future inspection or HVAC maintenance.
This level of care is essential to ensure system reliability. A poorly installed line can cause efficiency losses, vibrations, refrigerant leaks, or difficulties during future maintenance.
An installation adapted to the realities of Plateau-Mont-Royal
The Plateau-Mont-Royal has specific characteristics that our team is very familiar with. Houses, triplexes, duplexes, and semi-detached buildings there are often built with significant access constraints. Equipment sometimes has to be carried through a narrow yard, work near a fence, deal with stairs, or install the unit in a location where every centimeter counts.
In this project, the proximity of the wall and fence required particular attention to maintain adequate clearance around the outdoor unit. A heat pump needs sufficient airflow to reject or absorb heat efficiently. Even an excellent appliance like the MIDEA EVOX G3 can lose performance if the installation does not respect the necessary clearances.
Our role is therefore not limited to installing the machine. We must also ensure that the chosen location will allow the equipment to function properly for several years.
What homeowners need to remember before installing a central heat pump
The choice of outdoor location directly impacts performance
A poorly chosen outdoor location can negatively affect the performance of a central heat pump, even if the appliance is of good quality. Air circulation, noise, maintenance access, snow accumulation, drainage, obstacles, and pipe protection must all be considered.
In this Montreal project, the wall mount addressed several of these issues simultaneously. It's a solution we often recommend when the ground is limited, uneven, or exposed to debris.
Existing ducts must be compatible
A 2-ton central heat pump operates with a duct network. Before installation, it is important to check that existing ducts can properly distribute air to different rooms. A high-performing machine will not deliver expected results if airflow is insufficient, ducts are poorly balanced, or certain sections are too restrictive.
In our projects in Laval, Longueuil, on the North Shore and the South Shore, we often encounter older central systems that require detailed inspection before equipment replacement. This step helps avoid comfort problems after installation.
Sizing must never be approximate
It can be tempting to choose a larger heat pump to "be sure" of having enough power. In reality, this is not always a good decision. Excessive capacity can reduce comfort, increase start-up cycles, and impair dehumidification in summer.
In this case, the MIDEA EVOX G3 2-ton represented a coherent choice for the building. This capacity allowed it to meet needs without creating an imbalance in the system.
Future maintenance must be planned from installation
A good installation facilitates maintenance. In the photo, the unit is accessible despite the limited space, and its positioning on a wall mount provides better clearance around the machine. This simplifies inspections, cleaning of the outdoor coil, and seasonal checks.
Regular HVAC maintenance is particularly important in an urban area like Plateau-Mont-Royal, where dust, leaves, pollen, and debris can accumulate quickly around outdoor units.
A clean finish protects the investment
Refrigerant lines, cables, and outdoor accessories must be adequately protected. A clean installation is not just about appearance. It extends the lifespan of components, reduces the risk of breakdowns, and facilitates future interventions.
At AirGreen, we consider the finish an essential part of the job. A well-done HVAC installation must be solid, clean, logical, and durable.
AirGreen's expertise in urban projects in Montreal
This project perfectly illustrates our approach: analyzing the space, choosing a suitable technical solution, installing the equipment with precision, and delivering a reliable result. We regularly carry out similar installations in Montreal, Laval, Longueuil, on the North Shore and the South Shore, with highly varied configurations: wall-mounted units, central systems, multi-zone systems, replacement of existing systems, condo projects, single-family homes, and rental buildings.
Each project requires a different assessment of the terrain. In a narrow courtyard in the Plateau, the main challenge might be clearance. In a house in Laval, it might be integration with an existing furnace. In Longueuil, we might have to deal with an old electrical entrance. On the South Shore or North Shore, access to the panel, length of pipes, or winter protection can become key elements.
This ability to adapt the solution to the building is one of the reasons our clients entrust us with their heat pump, wall-mounted air conditioner, central system, and HVAC maintenance projects.
Mistakes to avoid in an installation like this one
For a homeowner considering a MIDEA EVOX G3 central heat pump, some mistakes can be costly in the long run:
- installing the unit too close to a wall or fence;
- neglecting the minimum height from the ground;
- choosing a capacity without analyzing the building;
- improperly protecting refrigerant lines;
- forgetting future access for maintenance;
- installing a wall mount without checking the wall's solidity;
- neglecting the level of the outdoor unit;
- allowing debris to accumulate around the machine.
These details may seem minor, but they directly influence the system's performance, noise, durability, and ease of maintenance.
A discreet, solid, and well-integrated result
The final result is a compact, clean installation, well adapted to the site's configuration. The MIDEA EVOX G3 2-ton central heat pump is securely fastened, elevated from the ground, and positioned to operate efficiently despite space constraints.
For the customer, this means a reliable system, better protection against debris, more convenient access for maintenance, and increased comfort inside the building. For AirGreen, it's another example of a project where execution quality is as important as equipment selection.
Why the MIDEA EVOX G3 is a relevant choice for Montreal
The MIDEA EVOX G3 stands out for its balance of performance, technology, and accessibility. For homeowners in Montreal and the surrounding areas, it represents a serious option when looking to modernize a central system without compromising comfort.
In a context where energy costs, available subsidies, reliability, and parts availability are important factors, MIDEA is gaining an increasingly interesting position in the residential market. Depending on the exact model and project configuration, an eligible central heat pump can also reduce the net cost through current subsidy programs, when criteria are met.
At AirGreen, we assist our clients in this verification, as eligibility depends on the model, capacity, AHRI number, installation type, and rules applicable at the time of the project.
An installation that reflects our working method
This project in the Plateau-Mont-Royal perfectly summarizes our way of working: a technical analysis before installation, a coherent choice of equipment, real attention to site constraints, and a durable finish.
We know that a successful HVAC installation is not judged only on the day the appliance starts up. It is also judged after several winters, during humid summer days, during maintenance, and when the client finds that their system works as expected without unnecessary complications.
This vision guides our installations of central heat pumps, wall-mounted systems, multi-zone systems, and HVAC solutions throughout the greater Montreal area, including Laval, Longueuil, the North Shore, and the South Shore.
