Installation of a GREE FREE MATCH R32 TripleZone Heat Pump – 3 zones – 3 heads in Terrebonne, on the North Shore

A compact multizone project in Terrebonne: three spaces better controlled with a single GREE outdoor unit

In Terrebonne, this installation of a GREE FREE MATCH R32 TripleZone heat pump was carried out in a restricted outdoor environment, typical of many residential properties on the North Shore: narrow side yard, proximity to a metal exterior cladding, presence of a terrace or balcony, gravel surface, limited circulation around the equipment, and the need to maintain a clean finish despite space constraints.

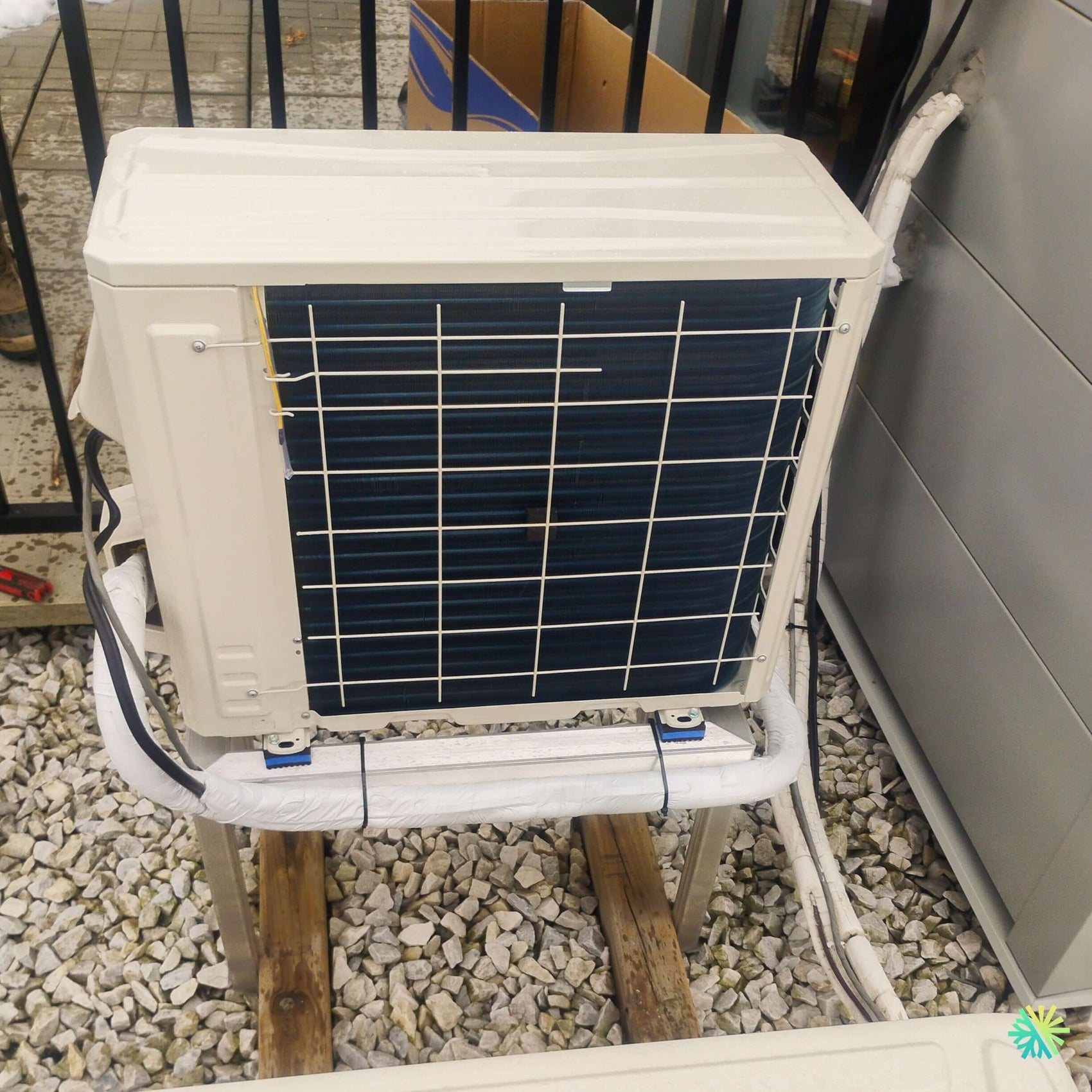

The photo clearly shows one of the most important elements of the project: the outdoor unit was installed on an elevated structure, above the gravel, with sturdy supports and an organized routing of the refrigerant lines. The insulated pipes, visible around the unit, were protected and directed to limit clutter while maintaining reasonable access for HVAC maintenance. This type of detail is essential in a multizone HVAC installation, as a three-head system involves more connections, more planning, and more rigorous execution than a single-zone installation.

The GREE FREE MATCH R32 is a solution particularly suited for homes where comfort varies greatly from one room to another. In this project in Terrebonne, the client wanted a solution capable of managing three distinct zones without installing three different outdoor units. The TripleZone system therefore allows powering three indoor heads from a single outdoor unit, which reduces visual impact, optimizes available space, and offers much more precise control of heating and cooling.

Why a TripleZone heat pump was the right choice for this property

A TripleZone heat pump meets a very specific need: to manage several rooms or areas of a house with different temperatures. In many homes in Terrebonne, some zones receive more sunlight, others are farther from the main area, and some rooms remain uncomfortable despite a central system or an old wall unit.

With three indoor heads, it becomes possible to create more evenly distributed comfort, for example:

• one head for the main living area;
• one head for a bedroom or an office;
• one head for a basement, an extension, or a room that is harder to temper.

This approach allows the client to adjust each zone according to its actual use. A room occupied only in the evening does not need to be air-conditioned all day. A bedroom can be kept at a milder temperature during the night. A home office can be heated or cooled without affecting the rest of the house.

For a property located in Terrebonne, where seasonal variations are significant, this flexibility is a major advantage. The system can serve as an efficient wall air conditioner in summer and an effective heat pump during much of the cold season, depending on the installed configuration and the building’s needs.

An outdoor installation in a tight space: the real challenge of the project

The image reveals a common reality in our work on the North Shore: the outdoor unit cannot always be installed in a large open space. Here, the equipment had to be positioned near an exterior wall, with limited access and a gravel surface. This type of location requires very precise installation.

Our technicians had to consider several constraints:

The height of the outdoor unit

The unit has been raised to prevent it from being directly exposed to snow accumulation, runoff water, or debris that can gather on the ground. On the North Shore, this precaution is especially important because freeze-thaw cycles and winter accumulations can damage a poorly positioned device.

A base that is too low can reduce air circulation, complicate drainage, and accelerate the unit’s clogging. A well-designed base protects the equipment and facilitates inspections.

Stability on a gravel surface

Installing an outdoor unit on a gravel area requires special attention. The ground may be less even than a concrete slab, and vibrations must be controlled. The visible structure under the unit ensures better stability and keeps the device in the proper position.

For a multi-zone heat pump, this stability is even more important because the outdoor unit works with several indoor heads. A well-leveled, well-supported, and properly fixed device contributes to quieter and more durable operation.

The proximity of the building

The unit is placed near a wall, which requires respecting the clearances necessary for air circulation and technical access. An outdoor unit must not be trapped to the point of hindering heat exchange. In this project, the location was planned to maintain a balance between space constraints, accessibility, and performance.

The passage of refrigerant lines

The insulated lines visible in the photo show the care taken in routing the connections. In a 3 zones – 3 heads installation, the pipes must be organized methodically. Each line must be protected, well insulated, properly directed, and installed without excessive tension.

Poor line management can cause performance losses, condensation, unwanted noises, or complications during future service. At AirGreen, we place great importance on this step because it directly influences the system's reliability.

GREE FREE MATCH R32: a multi-zone technology designed for modern homes

The GREE FREE MATCH R32 is designed to offer great flexibility in multi-zone residential projects. The principle is simple: a single outdoor unit can supply several indoor heads, allowing comfort to be adapted according to the rooms rather than imposing a uniform temperature throughout the house.

The refrigerant R32 is part of the new generation of refrigerants used in modern HVAC systems. It is valued for its good thermal performance and its integration into equipment designed to offer better energy efficiency. For homeowners comparing different wall-mounted heat pump solutions in Montreal, Laval, Longueuil, on the North Shore or the South Shore, this type of system represents a very interesting option when multiple zones need to be treated without multiplying the condensers.

The FREE MATCH range is also appreciated for its flexibility. Depending on the chosen configuration, it allows combining different indoor head capacities to better meet the needs of each room. In a house, the needs of an open living room are not the same as those of a bedroom, an office, or a basement. The system must therefore be designed as a balanced whole.

The importance of sizing in a three-head installation

A common mistake in multizone projects is choosing capacities based only on the total house area. This method is too approximate. For a successful installation, each zone must be analyzed separately.

Our technicians specifically evaluate:

• the area of each room;
• ceiling height;
• insulation quality;
• window orientation;
• sun exposure;
• natural air circulation;
• occupancy habits;
• the presence of stairs, corridors, or closed rooms.

In Terrebonne, this analysis allowed planning a configuration adapted to the client's real needs. The goal was not simply to install three heads, but to create a coherent system where each zone receives the right capacity and where the outdoor unit can manage the load efficiently.

Proper sizing improves comfort, reduces short cycles, limits temperature variations, and contributes to a longer equipment lifespan.

An AirGreen execution focused on durability, service access, and finish

Preparation work even before the device arrives

Before installation, our team prepared the project taking into account the available space around the building. In a narrow yard or side area, every decision counts: where to place the unit, how to route the lines, how to avoid blocking the passage, how to protect the insulations, how to preserve access to service panels, and how to reduce vibration risks.

This preparation avoids costly improvisations. It also allows for a cleaner, more predictable, and easier-to-maintain installation for the client.

Supports adapted to outdoor conditions

The elevated support visible in the photo plays a crucial role. It keeps the outdoor unit above the ground, limits direct exposure to accumulations, and improves circulation around the device. The supports must be sturdy, well aligned, and compatible with the equipment's weight.

In a region like Terrebonne, where winter conditions can be demanding, a ground-level installation would rarely be ideal for this type of unit. An elevated base also makes cleaning around the unit easier, especially when leaves, gravel, or snow can accumulate.

Protected and well-organized refrigerant lines

A multizone installation naturally produces more connections than a single-zone installation. This makes finishing even more important. The lines must be properly insulated to limit heat loss and prevent condensation. They must also be secured without being compressed, with a logical path between the outdoor unit and the indoor heads.

In the photo, you can see that the pipes have been grouped and protected. This approach results in a neater installation and reduces the risk of premature damage. It also makes future interventions easier, as technicians can identify and trace the lines more easily.

The role of commissioning

Once the installation is complete, commissioning confirms that the system operates correctly in all three zones. This step includes several checks: starting each indoor head, communication with the outdoor unit, checking heating and cooling modes, verifying drainage, validating controls, and explaining the operation to the customer.

In a TripleZone system, it is important to test the zones separately, then together. The system's behavior can vary depending on the number of heads in demand. Careful commissioning ensures that the installation is not just functional but truly ready for daily use.

What the customer gains daily

After installation, the customer enjoys much more precise comfort. The three zones can be adjusted according to the needs of the day. This flexibility improves the quality of life in the home, especially when occupants do not use all the rooms at the same time.

A GREE FREE MATCH R32 TripleZone system also helps reduce compromises. Instead of overheating one room to make another comfortable, each zone can be treated more directly. This is especially useful in homes where the main area, bedrooms, and secondary rooms respond differently to outdoor conditions.

Practical advice for owners in Terrebonne, Laval, and the North Shore

For owners considering a multi-zone HVAC installation in Terrebonne, Laval, Mascouche, Repentigny, Blainville, or elsewhere on the North Shore, certain points must be checked before choosing a system.

Do not choose based on price alone

A TripleZone installation requires more work, more materials, and more precision than a simple system. An abnormally low price may hide compromises on the quality of supports, line finishing, commissioning, or the time spent analyzing the zones.

Think about future access

The outdoor unit must be able to be inspected, cleaned, and maintained. If it is placed too close to an obstacle or in a hard-to-reach location, HVAC maintenance becomes more complicated.

Plan for winter accumulations

An outdoor heat pump must be installed taking into account snow, ice, and drainage. Height, stability, and clearance around the unit are essential points.

Choose the heads according to the rooms, not just according to the number of zones

Three zones do not mean three identical needs. Each head must be chosen according to the room it serves. It is this precision that allows for truly satisfactory comfort.

Entrust the project to a team specialized in multi-zone

A multi-zone installation requires a good understanding of refrigeration, electricity, drainage, ventilation, and indoor configuration. Field experience makes a significant difference in the final result.

Grants and eligibility: a verification to be done according to the exact combination

Grant programs for heat pumps can vary depending on capacity, configuration, the indoor units used, the outdoor unit, efficiency criteria, and the rules in effect at the time of installation. For a GREE FREE MATCH R32, eligibility must therefore be verified according to the exact combination installed.

At AirGreen, we assist our clients in preparing the required documents when their system is eligible. This can include technical information, the invoice, model references, and the elements needed to facilitate the procedures. For owners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this assistance is often an important factor in choosing an HVAC contractor.

An installation representative of AirGreen's expertise

This project in Terrebonne sums up our approach well: installing a system adapted to the building, not just a device. The GREE FREE MATCH R32 TripleZone heat pump met the client's needs, but the success of the project mainly depended on its execution: choice of location, elevated support, line protection, management of limited space, validation of the three zones, and clean finishing.

AirGreen regularly carries out installations of heat pumps, wall air conditioners, and multi-zone systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each project has its own constraints, but our method remains constant: analyze, plan, install precisely, and deliver a reliable, comfortable, and easy-to-maintain system.

In this residence in Terrebonne, the result is a discreet, efficient, and well-integrated solution, capable of offering independent control in three distinct zones. For an owner who wants to improve comfort without multiplying outdoor units, this type of project represents a very relevant option.
