Installation of a GREE FREE MATCH R32 5-zone heat pump with 5 wall-mounted units in Lorraine

A multi-zone installation designed for precise comfort, room by room

In Lorraine, this installation of a GREE FREE MATCH R32 5-zone heat pump represents exactly the type of project where AirGreen's expertise comes into its own: a centralized outdoor system, capable of independently supplying several indoor spaces thanks to its 5 wall-mounted units. For the owners, the objective was clear: to achieve uniform comfort in several rooms of the house, without having to multiply outdoor equipment or compromise interior aesthetics.

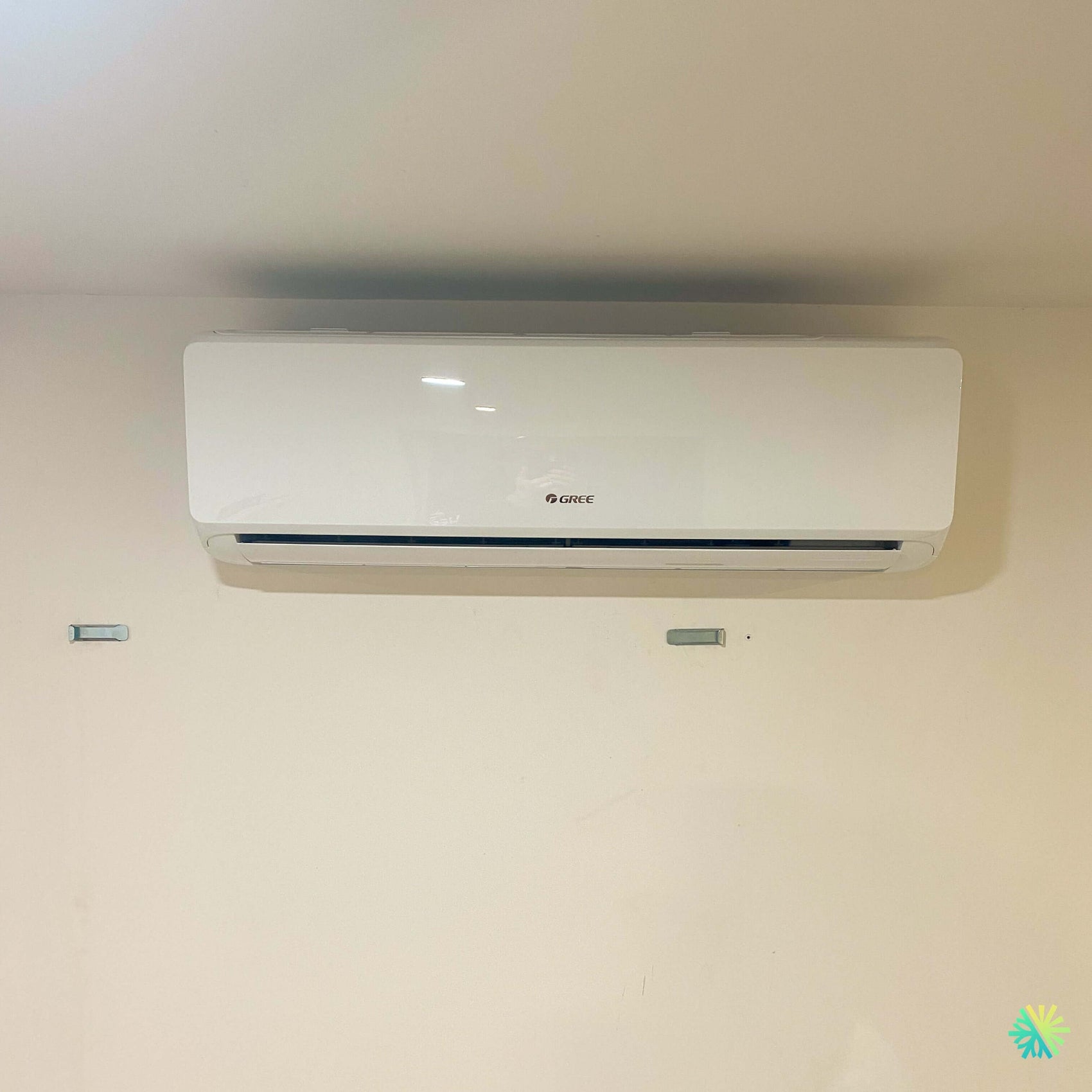

In the provided photo, one of the GREE wall-mounted units is shown installed with a clean and discreet finish. The unit is positioned near the ceiling, well-centered, with adequate clearance to allow for good airflow. This type of detail may seem simple, but it directly influences the performance of an HVAC installation: a poorly positioned wall-mounted unit can create cold spots, uncomfortable drafts, or uneven heat distribution in winter.

At AirGreen, we approach each multi-zone heat pump installation as a custom project. A house in Lorraine does not necessarily have the same constraints as a condo in Montreal, a duplex in Laval, a family residence in Longueuil, a property on the North Shore, or an intergenerational house on the South Shore. The room configuration, insulation, building orientation, ceiling height, location of bedrooms, and occupants' lifestyle must all be taken into account before determining the final placement of each unit.

Why choose a GREE FREE MATCH R32 5-zone for a house in Lorraine

The GREE FREE MATCH R32 series is designed for residential installations where multiple rooms need to be air-conditioned and heated with a single outdoor unit. In this project, the choice of a 5-zone system allows five distinct indoor units to be connected to a single outdoor unit, which simplifies system integration while offering excellent flexibility of use.

For a house in Lorraine, this type of system is particularly relevant when occupants want to separately control the comfort of different areas, for example:

• a master bedroom;
• secondary bedrooms;
• a living room or family room;
• a home office;
• an open-plan area on the ground floor;
• a finished basement.

Each wall-mounted unit can be controlled individually, which helps avoid unnecessarily heating or cooling infrequently used rooms. This approach improves comfort, but it can also contribute to better energy consumption management, especially in homes where needs vary greatly from one room to another.

R32 technology adapted to modern installations

R32 refrigerant is increasingly present in modern residential HVAC equipment. It is recognized for its thermal efficiency and its use in high-performance, new-generation systems. For homeowners, this means they benefit from equipment designed according to current market standards, with an approach focused on efficiency, reliability, and seasonal performance.

In an installation like this, the use of R32 requires rigorous execution: piping lengths, refrigerant connections, condensate drainage, vacuuming, pressure tests, and startup must be performed with precision. At AirGreen, we never treat a multi-zone installation as a simple appliance placement. The proper functioning of a 5-head heat pump depends as much on the quality of the equipment as on the quality of the installation.

An ideal solution for reducing the number of outdoor units

One of the major advantages of a GREE FREE MATCH R32 5-zone system is to reduce outdoor clutter. Rather than installing multiple compressors to serve several rooms, a single outdoor unit can power the five indoor heads. This is particularly appreciated in residential areas like Lorraine, where exterior appearance, available space on the side of the house, and neighborhood considerations are important.

This solution also simplifies maintenance management. A single outdoor unit means less equipment to clear in winter, fewer technical areas to monitor, and a more visually coherent installation.

Specific challenges of a 5-head installation

Installing a 5-zone heat pump requires much more advanced planning than a simple wall-mounted installation. In this project in Lorraine, our team had to pay particular attention to several technical aspects.

Choosing the location of the wall-mounted units

The unit visible in the photo is installed high on the wall, near the ceiling, with a clean horizontal line and a subtle integration. This positioning is important for ensuring good air projection, but also for preventing the airflow from being directed directly at occupants.

For each head, we evaluate:

• the distance from doors;
• natural air circulation;
• the presence of windows or large glazed areas;
• available height;
• existing or future furniture;
• duct passage constraints;
• accessibility for HVAC maintenance.

A wall-mounted unit must be easy to use, easy to clean, and positioned to optimize comfort. In a house with five zones, a placement error in a single room can detract from the overall experience.

Routing of refrigerant lines

With five indoor units, duct planning becomes a central element of the project. Refrigerant lines and condensate drains must be routed logically, safely, and aesthetically. The goal is to limit unnecessary lengths, avoid inadequate slopes for drains, and minimize visual impact both indoors and outdoors.

In high-end residential installations, this work often requires coordination between technical performance and architectural finishing. In Lorraine, as in several projects carried out by AirGreen in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, our team always strives to maintain a clean appearance, especially when units are visible in living areas.

Condensate management

Each indoor unit produces condensate in cooling mode. With five heads, it is therefore necessary to ensure that each drainage system functions correctly. A poor slope, a wrongly positioned pipe, or an improperly protected outlet can lead to drainage problems, odors, or even water damage.

We pay particular attention to this point, as it is one of the most frequent errors in poorly executed installations. A durable HVAC installation is not limited to making the machine work on the day of commissioning: it must remain reliable season after season.

System balancing

A multi-zone system must be thought of as a whole. The outdoor capacity, number of heads, room size, and actual needs must be consistent. The choice of a GREE FREE MATCH R32 5-zone must therefore be validated according to the house's thermal load, interior layout, and insulation level.

In this type of project, we avoid simplistic recommendations. A head that is too strong in a small bedroom can lead to short cycles and discomfort. A head that is too weak in a large open area can run too long without achieving the desired result. The goal is always to find the right balance between capacity, comfort, quietness, and efficiency.

A clean, discreet, and durable installation

One of the important elements visible in the photo is the sobriety of the installation. The GREE wall-mounted unit integrates cleanly into the wall, with a minimal visual presence. In homes where interior aesthetics matter greatly, this aspect is essential. Homeowners want a high-performance solution, but they don't want the equipment to dominate the room.

At AirGreen, we attach great importance to finishing details:

• unit alignment;
• sufficient top clearance;
• clean routing of conduits;
• solid fastening;
• protection of interior surfaces during work;
• complete cleaning of the area after installation;
• explanation of operation to the client.

These details make a big difference in the final perception of the project. A well-installed heat pump should give the impression of having been planned from the outset in the home's design.

Everyday comfort: heating, cooling, and zone control

With a GREE FREE MATCH R32 5-head heat pump, occupants can adapt comfort according to the actual use of the rooms. A bedroom can be kept cooler at night, an office can be heated only during working hours, and a living area can benefit from a different level of comfort depending on the time of day.

This flexibility is one of the great advantages of a multi-zone system. In a family home, not all occupants necessarily have the same preferences. Zone control therefore makes it possible to meet different needs without forcing the entire house to follow a single temperature.

In summer, the system acts as a wall-mounted air conditioner in each zone. In winter, it functions as a heat pump to provide efficient heating. This dual function is particularly useful in the Lorraine region, where temperature differences between seasons are significant.

What homeowners need to know before choosing a 5-zone heat pump

A multi-zone project must be well prepared. Before choosing a model, it is important not to base it solely on the number of rooms. The area, insulation, ceiling height, sun exposure, and interior configuration play a decisive role.

Here are some mistakes to avoid:

Choosing capacities without serious calculation

Sizing should not be approximate. An oversized machine can cost more to buy, offer less stable comfort, and operate with shorter cycles. An undersized machine may not be sufficient during periods of intense heat or severe cold.

Underestimating the complexity of ductwork

In a five-head installation, the routing of refrigerant lines is essential. It is necessary to consider not only the location of the indoor units but also the path to the outdoor unit. Good planning reduces additional costs and improves the finish.

Neglecting future maintenance

Filters must remain accessible. Units must be easy to clean. The outdoor unit must be placed in a location that allows for inspection and maintenance. At AirGreen, we consider these elements from the technical visit, not just at the end of the project.

Comparing only price

Price is important, but a poorly executed multi-zone installation can lead to much higher long-term costs. Refrigerant leaks, problematic drains, noise, poor comfort, repeated service calls: these problems are often linked to an installation that is too quick or poorly planned.

The AirGreen approach for multi-zone projects in Lorraine and Greater Montreal

Our experience in HVAC installation in Greater Montreal allows us to manage various residential projects, from the simple replacement of a wall-mounted air conditioner to the complete installation of a multi-zone heat pump in an entire house. In Lorraine, this project is part of a growing demand for more flexible, efficient, and better-adapted solutions to families' lifestyles.

We regularly work in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, with very different constraints from one building to another. Some houses require a very discreet facade installation. Others need longer duct runs. In some cases, we have to deal with finished walls, low ceilings, finished basements, or specific aesthetic requirements.

In all cases, our method remains the same:

1. Comprehensive assessment of actual needs.
2. Validation of zones to be served.
3. Selection of appropriate equipment.
4. Planning of duct routing.
5. Professional installation by qualified technicians.
6. Complete system verification.
7. Clear explanation of operation to the client.
8. Maintenance tips to ensure equipment durability.

Subsidies and potential eligibility

High-performance heat pump systems may, depending on the exact model, the installed configuration, and the prevailing criteria, be eligible for certain grants or energy efficiency programs. For an installation like this GREE FREE MATCH R32 5-zone, it is important to check precise eligibility at the time of quotation, as programs can change and amounts vary according to the certified characteristics of the equipment.

At AirGreen, we support our clients in this step. We provide the necessary information on the invoice and technical documents when the system is eligible, to simplify the procedures with the relevant programs. This assistance is particularly appreciated by clients who want to compare the real cost after subsidy rather than just the initial price.

Final result: a more controlled, more comfortable, and better-equipped home

The result of this installation in Lorraine is a complete, neatly integrated system capable of meeting the needs of several rooms with a single outdoor unit. The five wall-mounted heads offer individualized comfort, while GREE FREE MATCH R32 technology provides a modern and efficient approach to residential heating and air conditioning.

The indoor unit visible in the photo perfectly illustrates the desired quality: a clean, discreet, well-positioned installation, ready to provide stable comfort daily. It's this type of finish that distinguishes a simple equipment installation from a true professional HVAC project.

For homeowners considering a 5-zone heat pump in Lorraine, Montreal, Laval, Longueuil, on the North Shore or the South Shore, this project demonstrates the importance of choosing a team capable of managing technique, aesthetics, comfort, and durability.

Why entrust your multi-zone installation to AirGreen

A multi-zone heat pump is a significant investment. It must be chosen carefully, installed precisely, and maintained correctly. At AirGreen, we emphasize transparency, quality of execution, and customer support at every step.

Our role is not limited to installing a machine. We help homeowners understand their options, avoid sizing errors, choose the right locations, anticipate technical constraints, and obtain a system truly adapted to their home.

This installation of a GREE FREE MATCH R32 5-zone heat pump with 5 wall-mounted heads in Lorraine perfectly reflects this approach: a complete solution designed for the real comfort of occupants, with a professional finish and particular attention to the details that make a long-term difference.
