A meticulous outdoor installation on wall mounts for reliable performance in Châteauguay
In Châteauguay, AirGreen completed a residential HVAC installation featuring a GREE AIRY R32 wall-mounted heat pump, a modern Mini Split system designed to offer excellent comfort for both heating and cooling. This intervention stood out with a visible particularity from the first glance: the outdoor installation was carried out on solid wall mounts, with two GREE units installed side-by-side on the side facade of the building, each connected by conduits vertically protected against the brick wall.

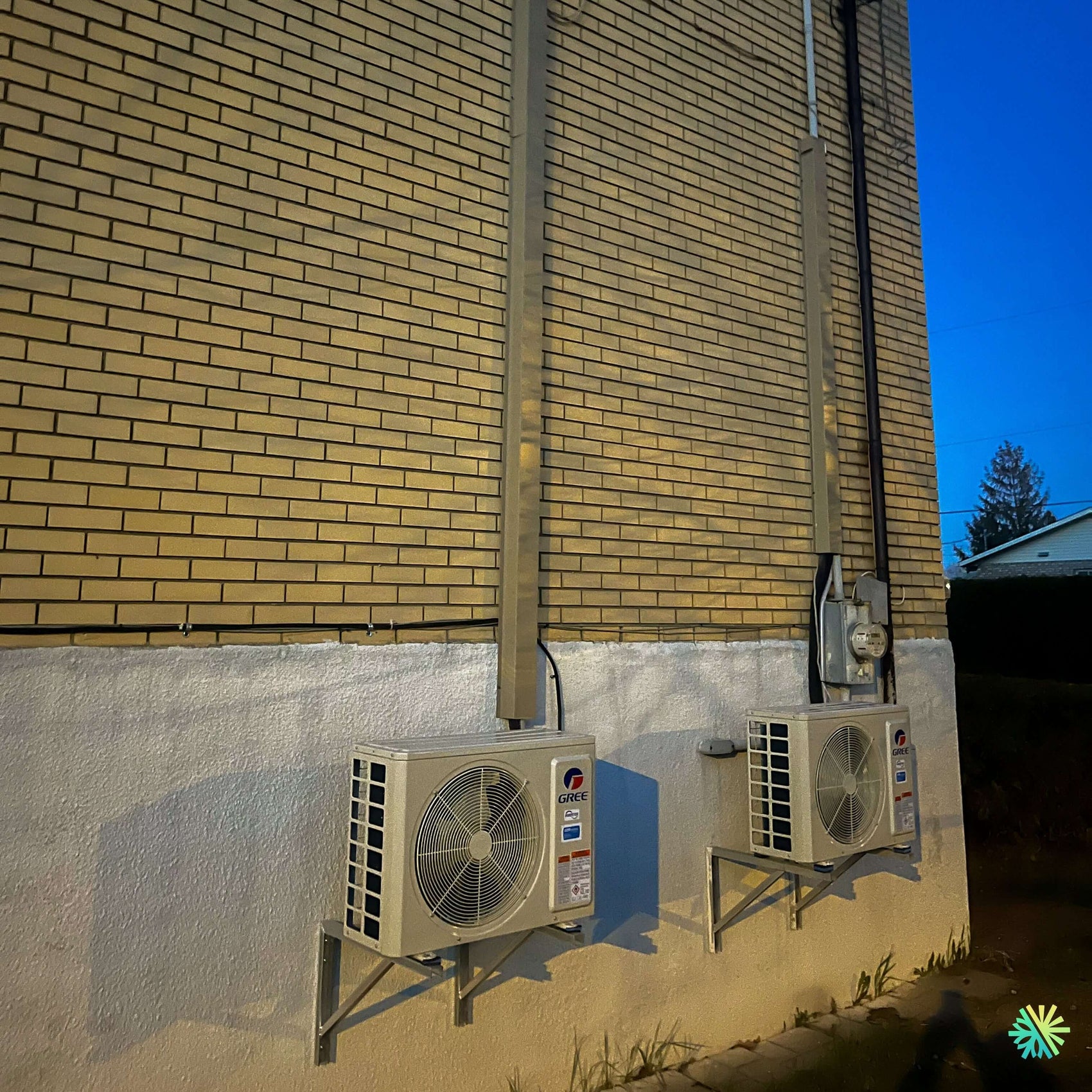

The project photo shows a structured, clean, and durable work. The outdoor units are fixed above the ground on robust metal brackets, which better protects them against snow accumulation, splashes, ice, and certain ground debris. In a region like Châteauguay, where winters can quickly create difficult conditions around outdoor equipment, this technical decision is particularly important.
Installing a wall-mounted heat pump is not limited to choosing the device. Actual performance depends as much on the positioning of the outdoor unit, the quality of refrigerant connections, line protection, condensate drainage, and commissioning as it does on the model installed. For this project, our team paid particular attention to the outdoor integration to combine efficiency, safety, accessibility, and aesthetic finish.
A residential project where the exterior required precise planning
In the image, we note a facade composed of brick cladding on the upper part and a plastered foundation on the lower part. This configuration requires a thoughtful approach. Fixing an outdoor unit to a wall requires choosing the right anchor point, ensuring adequate weight distribution, and respecting the necessary clearances around the device.
In this project in Châteauguay, the choice of wall mounts allowed the units to be lifted off the ground while maintaining a compact installation along the building. This type of mounting is very useful when ground space is limited, when the terrain runs closely alongside the house, or when the client wishes to avoid a ground slab in an area exposed to snow or humidity.
The vertical protective conduits visible in the photo also testify to a long-term planned installation. Refrigerant lines and cables should not be left vulnerable to bad weather, shocks, or temperature variations. Adequate protection improves system durability, reduces the risk of deterioration, and gives the whole a more professional appearance.
Why the GREE AIRY R32 is a relevant choice for a home in Châteauguay
The GREE AIRY R32 model is an interesting solution for homeowners who want to improve the comfort of a main room, a floor, an open-concept area, or a specific zone of the house without installing central ducts. As a Mini Split wall-mounted heat pump, it allows for efficient heating and cooling of a targeted zone, with simple control and a less invasive installation than a central system.
The R32 refrigerant is one of the important elements of this generation of GREE systems. It is known for its efficient thermal performance and improved environmental footprint compared to many older refrigerants. For homeowners who want a current, high-performing, and market-standard solution, this is a notable advantage.
The GREE AIRY R32 also stands out for its inverter operation. This technology allows the system to adjust its capacity according to real demand rather than operating solely in abrupt on-off cycles. The result: more stable temperature, better comfort, reduction of unpleasant variations, and energy use better adapted to the home's needs.
For a residence in Châteauguay, this type of system meets several common needs:
- improving the comfort of a room difficult to heat or cool;
- reducing reliance on a more energy-intensive primary heating system;
- adding efficient air conditioning without major work;
- obtaining independent control in a specific area;
- improving comfort in mid-season;
- enjoying discreet and modulated operation.
An installation on wall mounts: an important technical choice
The outdoor installation visible in the photo clearly shows the use of metal wall mounts. This choice offers several advantages in the Quebec context. By placing the outdoor unit above ground level, direct exposure to accumulated snow, dead leaves, stagnant water, and small obstructions that can hinder air circulation is reduced.
This type of mounting is particularly relevant for a heat pump used for heating. In winter, an outdoor unit must be able to breathe properly. If it is too low or surrounded by snow, its efficiency can decrease, and defrost cycles can become more frequent. By elevating the equipment, operating conditions and access for HVAC maintenance are improved.
However, the installation must be done correctly. The supports must be suitable for the weight of the appliance, installed level, securely fixed, and equipped with elements to reduce vibrations. Poor fastening can lead to noise, vibrations transmitted to the building, or premature wear. In this project, the installation on wall mounts was carried out with particular attention to stability and durability.
Conduit management and refrigerant line protection
The lines connecting the indoor unit to the outdoor unit are essential for the operation of a wall-mounted air conditioner or heat pump. They transport refrigerant, ensure communication between components, and must be protected from the elements. In the photo, vertical covers are neatly installed on the brick wall, from the upper outlet to the outdoor units.
This finish has several objectives:
- protecting refrigerant lines from UV rays and shocks;
- organizing the outdoor path neatly;
- limiting direct exposure of cables;
- preserving the facade's appearance;
- facilitating future inspection;
- reducing the risk of premature deterioration.
In a residential installation, exterior appearance matters a lot. A high-performing system, but installed with disorganized lines, can detract from the building's aesthetics. At AirGreen, we pay particular attention to finishing, because a successful HVAC installation must be reliable and visually clean.
The importance of clearances around outdoor units
A GREE outdoor unit must have sufficient space to draw in and discharge air correctly. On a side facade, it is important to avoid placing it too close to an obstacle, a corner, a fence, or other equipment. The photo shows two units installed with front clearance allowing good airflow.
This detail directly influences efficiency. If the air expelled by the unit returns too quickly to the appliance, the system can lose efficiency. Insufficient clearance can also complicate maintenance, increase perceived noise, and reduce the durability of certain components.
During this project in Châteauguay, our team analyzed the available space to position the units consistently with the building. The result is a compact, yet functional installation that respects the technical needs of the equipment.
An AirGreen achievement combining indoor comfort, outdoor robustness, and professional finish
Preparation before installation
Before installing a GREE AIRY R32 wall-mounted heat pump, our team always conducts an on-site evaluation. This step allows for choosing the best location for the indoor and outdoor units, as well as planning the pipe routing, electrical constraints, and finishing details.
In Châteauguay, the brick exterior wall and the lateral configuration of the building required careful planning. We had to install the units stably, protect the connections, limit visual impact, and ensure reasonable access for future interventions.
Adequate preparation avoids several common problems:
- overly exposed pipes;
- improperly positioned supports;
- vibrations transmitted to the building;
- insufficient clearances;
- unnecessarily long refrigeration paths;
- maintenance difficulties;
- poor condensate drainage;
- uneven exterior finish.
In HVAC, a good installation begins even before the equipment arrives on site. It starts with a precise understanding of the building.
Outdoor installation: stability, level, and protection
Installing outdoor units on wall mounts requires precision. The supports must be well-aligned, securely anchored, and suited to the load. An outdoor unit must remain stable despite normal compressor vibrations, operating cycles, wind, rain, and temperature variations.
In this project, both GREE units were installed at a practical height, above the foundation, while remaining accessible. This arrangement helps protect the appliances against snow and ground moisture. It also allows for an orderly side facade, with protected lines and logically grouped connections.
The visual aspect is important, but it should never override technical requirements. Here, both dimensions have been respected: the system is cleanly integrated, and each unit benefits from a robust installation.
The role of the AIRY R32 system in daily comfort
A wall-mounted heat pump like the GREE AIRY R32 is particularly appreciated for its ability to quickly make an area more comfortable. In summer, it can efficiently cool without relying on a central system. In mid-season, it can provide heating with great flexibility. In winter, depending on the configuration and usage conditions, it can contribute to the overall comfort of the home and reduce the use of other heating sources.
Comfort does not only depend on the temperature displayed on the remote control. It depends on thermal stability, noise level, air diffusion, the location of the indoor unit, and the proper functioning of the outdoor unit. This is why the installation must be consistent from start to finish.
In this project in Châteauguay, the goal was to offer a reliable, high-performing, and easy-to-use solution, with a durable exterior finish. The client now benefits from a system capable of improving indoor comfort while remaining well-protected outdoors.
Commissioning: an essential step after installation
Once the units are installed, commissioning confirms that the system is working correctly. This step includes several technical checks that guarantee the reliability of the installation.
Our technicians specifically check:
- the tightness of the refrigerant connections;
- the quality of the vacuum before startup;
- electrical connections;
- communication between the indoor and outdoor units;
- heating mode operation;
- cooling mode operation;
- condensate drainage;
- the sound level;
- the stability of the appliance on its supports;
- remote control response;
- clearances around the outdoor unit.
These checks are essential. A well-installed but poorly commissioned heat pump can present performance or reliability problems. At AirGreen, we consider this step an integral part of the project, not just a mere formality.
Mistakes to avoid with a Mini Split wall-mounted heat pump
Many homeowners compare heat pump or wall-mounted air conditioner models focusing solely on price. However, the quality of installation directly influences durability and comfort. A high-performing unit can yield poor results if it is improperly positioned, connected, or protected.
The most common mistakes to avoid are:
- installing the outdoor unit too close to the ground;
- neglecting the protection of refrigerant lines;
- choosing a location with poor air clearance;
- fixing wall mounts without considering vibrations;
- installing the indoor unit in a place where airflow will be blocked;
- forgetting future access to filters and components;
- underestimating the importance of condensate drainage;
- choosing an inappropriate capacity for the room;
- entrusting the installation to a team that does not master refrigeration requirements.
A professional HVAC installation helps avoid these problems from the outset. This is particularly important in regions like Châteauguay, Montreal, Laval, Longueuil, the North Shore, and the South Shore, where systems must cope with significant temperature differences between seasons.
Recommended maintenance to preserve performance
After installation, regular maintenance helps preserve system performance. For the indoor unit, it is important to clean the filters periodically to maintain good airflow. For the outdoor unit, the space around the appliance must be kept clear, especially in winter and autumn.
Units installed on wall mounts, as in this project, are better protected against certain ground obstructions, but they must still be inspected regularly. Leaves, blown snow, ice, or debris can hinder airflow if they accumulate near the appliance.
Professional HVAC maintenance also allows for checking coils, drains, connections, the general condition of components, and system operation. This approach helps extend the lifespan of the heat pump and maintain stable comfort.
Subsidies and potential eligibility
Depending on the exact model installed, its capacity, efficiency, and applicable criteria, some heat pumps may be eligible for financial assistance programs. Requirements can vary depending on the period and organizations, particularly for programs related to energy efficiency in Quebec.
AirGreen assists its clients by providing the necessary information when the system is eligible: detailed invoice, model numbers, installation description, and relevant documentation. This assistance helps owners better understand the procedures without confusing the final price, taxes, rebates, and potential subsidy amounts.
An installation representative of AirGreen's approach on the South Shore
This installation in Châteauguay accurately reflects our way of working. We don't just install an appliance. We analyze the location, choose an appropriate mounting method, protect the conduits, check clearances, and ensure complete commissioning.
In this project, the outdoor installation on wall brackets demonstrates an approach focused on durability. The units are raised off the ground, the conduits are protected, connections are organized, and the entire setup remains visually tidy along the building. For an owner, this quality of execution translates into greater peace of mind.
AirGreen carries out this type of project in Châteauguay, but also in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each house has its own constraints, but our priority remains constant: to provide a reliable, clean heating, ventilation, and air conditioning solution adapted to the client's actual needs.
With this GREE AIRY R32 Mini Split wall-mounted heat pump, the client now benefits from a modern, well-installed system designed to offer effective comfort throughout the seasons. The attention paid to brackets, outdoor protection, and the quality of commissioning demonstrates that a successful installation depends as much on on-site expertise as on equipment selection.
