A wall-mounted unit integrated into a room with a low ceiling, between a window and a tall cabinet
This installation of a Fujitsu AIRSTAGE Aquila XLTH dual-zone heat pump in Châteauguay required particularly precise indoor placement. The wall-mounted unit had to be integrated into a room with limited available height, with a window on the left, a tall cabinet or storage element on the right, and two recessed ceiling lights.

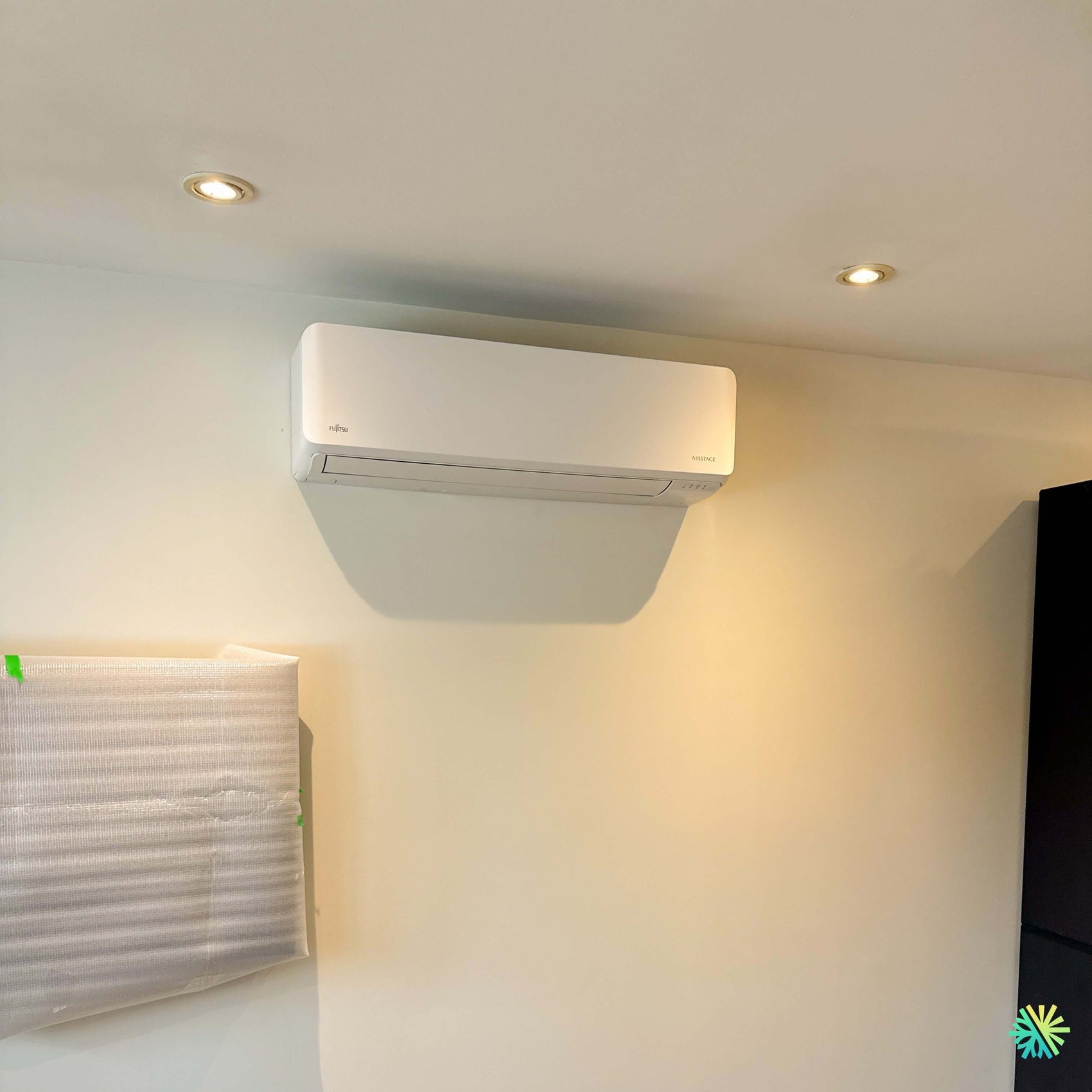

The photograph shows the final result: a Fujitsu indoor unit installed in the upper part of the wall, with clearance maintained below the ceiling and sufficient open space in front of the air outlet. No long line-set cover runs across the room. The unit blends discreetly into the white wall without encroaching on the window or the dark vertical element on the right.
This type of project demonstrates that a successful HVAC installation depends on more than just choosing the heat pump. The location of the indoor unit directly affects air circulation, filter access, condensate drainage, perceived noise, and the room’s final appearance.
In this Châteauguay residence, we also had to account for dual-zone operation. Two indoor units share a single outdoor unit, but each serves a different area of the building. The sizing and positioning of each indoor head must therefore be assessed separately.
Why a dual-zone heat pump was suitable for this Châteauguay property
A dual-zone heat pump can heat and cool two spaces using a single outdoor condenser. This configuration is suitable for homes where a single wall-mounted unit cannot distribute air evenly throughout all the rooms.
The most common situations include:
- a finished basement and a ground floor;
- a living area and a primary bedroom;
- two separate floors;
- an extension added to the house;
- rooms located far from each other;
- two areas with different heating loads.
In the case shown here, the visible unit appears to be installed in a finished room where usable wall space was limited. A window occupies part of the wall on the left, while a tall cabinet reduces the available space on the right. The upper central area therefore offered the best compromise between air distribution, visual integration, and future access to the unit.
With a Fujitsu dual-zone system, each indoor unit can be controlled separately. Occupants can adjust the temperature and airflow according to how each area is used. However, the AIRSTAGE Aquila series documentation indicates that heating and cooling cannot operate simultaneously in different zones.
The two zones can therefore have different temperatures, but they must operate in compatible modes. One unit can be turned off while the other operates, but one zone cannot be heating while the other is cooling.
A relatively low ceiling that required careful positioning
The photo shows that the Fujitsu unit is close to the ceiling without being flush against it. This detail is essential.
Room air generally enters the unit through its upper section. If the casing is installed too close to the ceiling, the air intake may be partially obstructed. This can result in:
- reduced airflow;
- increased noise;
- reduced performance;
- faster buildup of dirt;
- difficult access to the filters;
- less uniform air circulation.
Conversely, installing the unit too low would have reduced the available wall space and could have brought the airflow closer to the window or furniture.
We therefore used the upper part of the wall while maintaining the clearance required for operation and maintenance.
The proximity of the recessed light fixtures
Two recessed light fixtures are visible in the ceiling. Their presence had to be taken into account before drilling and routing the lines.
The light fixtures may indicate the presence of:
- electrical cables;
- junction boxes;
- joists;
- furring strips;
- insulated areas;
- obstacles in the ceiling or wall cavity.
An installation carried out without locating these elements could damage a cable, complicate the drain routing, or require an unattractive route.
In this project, the unit was installed on the wall, sufficiently far from the light fixtures to avoid any visual or technical conflict. The casing does not block the light distribution and is not directly beneath a recessed fixture.
An installation between a window and a piece of furniture
The window to the left of the wall-mounted air conditioner appears to have been protected during the work or temporarily covered. The unit was placed far enough away not to block the opening, frame, or any trim.
The dark cabinet visible on the right creates another constraint. An appliance installed too close to a tall cabinet can encounter several problems:
- obstruction of the airflow;
- difficulty opening the front panel;
- limited access to the side of the unit;
- asymmetrical airflow;
- more complex maintenance;
- reflected noise between the furniture and the wall.
In this installation, a visible clearance remains between the heat pump and the vertical element. This separation promotes better air distribution and keeps the unit accessible.
An unobstructed air outlet toward the occupied zone
The lower part of the Fujitsu unit is completely unobstructed. No curtain, furniture, frame, or other obstacle is installed directly beneath the louver.
This configuration allows the system to direct air into the room with fewer restrictions.
In cooling mode, cool air tends to descend. It is therefore generally useful to project it forward so that it mixes with the ambient air before descending into the occupied zone.
In heating mode, warm air naturally rises. The louver can be directed further downward to deliver heat to the living area.
In a room with a low ceiling, these adjustments are important. Improperly directed airflow can create a concentration of warm air near the ceiling or a cold draft directly on occupants.
An interior finish without visible lines
The photographed installation stands out because there are no long visible lines in the room. The connection appears to have been routed directly behind the unit or through the wall.
To achieve this finish, the passage point must be determined precisely. The following generally need to pass behind the unit:
- refrigerant lines;
- insulation;
- the communication cable;
- condensate drainage;
- the connections required by the configuration.
A hole that is too far away may require the addition of interior trim. An incorrectly positioned passage can also create a bend that is too tight in the piping.
At AirGreen, we aim to minimize visible components without compromising the drain slope or the protection of the lines.
Condensate drainage in a compact wall-mounted installation
In cooling mode, the indoor unit removes moisture from the air. This water collects in a drain pan and must then be discharged.
In an installation where the connections are concealed, the drainage must be tested before the surfaces are fully closed.
An improperly installed drain can cause:
- water running down the wall;
- marks near the window;
- odors;
- overflow of the drain pan;
- moisture in the cavity;
- drainage noises;
- damage to the finish.
When drainage operates by gravity, the pipe must maintain a continuous downward slope. Sagging, rises, and compression must be avoided.
We test the drainage before considering the installation complete.
What the Fujitsu Aquila XLTH system brings to a dual-zone configuration
Multi-zone systems capable of powering several types of indoor units
Fujitsu documentation for the H series features outdoor units rated at 18,000, 24,000, 36,000, and 45,000 BTU/h. Depending on the model, they can be connected to wall-mounted units, Slim Duct units, compact cassettes, or Mid Static Duct units.
This flexibility makes it possible to adapt the system to the building's architecture. For example, a residence may have a wall-mounted unit in an open room and a ducted unit in an area where a more discreet installation is desired.
In the Châteauguay project, the photo confirms the use of a Fujitsu AIRSTAGE wall-mounted unit. However, the exact capacity of this head cannot be determined from its appearance alone.
Several models may share a similar casing. To confirm the BTU rating, consult:
- the model number;
- the nameplate;
- the estimate;
- the invoice;
- the project's technical file;
- the combination with the outdoor unit.
Approved combinations for a dual-zone outdoor unit
The Fujitsu table presents various possible combinations for a condenser that can power two indoor units.
The combinations listed include:
- 7,000 + 7,000 BTU;
- 7,000 + 9,000 BTU;
- 7,000 + 12,000 BTU;
- 7,000 + 15,000 BTU;
- 9,000 + 9,000 BTU;
- 9,000 + 12,000 BTU;
- 9,000 + 15,000 BTU;
- 12,000 + 12,000 BTU.
These combinations are used to confirm equipment compatibility. They must not be used as a substitute for a load calculation.
Fujitsu specifies that the tables are not intended for system capacity selection and recommends its design software to validate H-series AIRSTAGE equipment.
Why each zone must be calculated separately
In a dual-zone installation, it would be incorrect to simply divide the home's total floor area in half.
Each zone has its own characteristics:
- number of windows;
- solar orientation;
- insulation level;
- exterior walls;
- ceiling height;
- air infiltration;
- occupancy;
- heat-generating appliances;
- location within the building.
The photographed room appears to have a relatively low ceiling. Its air volume may therefore be smaller than that of a room with the same floor area and a cathedral ceiling.
The window on the left affects heat loss in winter and solar gains in summer. Furniture and the layout also determine how air moves.
An oversized unit can cool the space quickly without running long enough to dehumidify it properly. An undersized unit may run continuously during extreme conditions.
A connected capacity of up to 130%
Fujitsu indicates that its multi-zone systems can accept a connected capacity of up to 130 %, depending on the model and combination. However, the manufacturer specifies that exceeding 100% connected capacity does not increase the outdoor unit’s production capacity.
This principle deserves a clear explanation.
The nominal total of the indoor units can sometimes exceed that of the outdoor unit. This configuration is permitted when the zones do not always reach their maximum demand simultaneously.
However, if both indoor units demand full power at the same time, the available capacity must be distributed.
A combination exceeding 100% must therefore be assessed based on:
- the actual needs of both zones;
- their simultaneous use;
- outdoor temperatures;
- the capacity available at low temperatures;
- the building’s heat losses.
Low-temperature operation
Fujitsu documentation indicates that CTEB versions of the Aquila series can operate in heating mode down to -26 °C and in cooling mode up to 50 °C.
This feature is important for a property located in Châteauguay, on Montreal’s South Shore.
However, the minimum operating temperature does not mean that the unit delivers its full rated capacity at all temperatures.
When the cold intensifies:
- capacity may vary;
- efficiency may decrease;
- defrost cycles become necessary;
- demand from both zones may increase simultaneously.
We therefore compare the exact model’s performance with the home’s heating needs. Existing supplemental heating may still be necessary during certain periods, depending on the building.
The variable-speed compressor
Fujitsu multi-zone systems use an inverter-driven compressor. This technology adjusts the compressor speed to match the actual demand.
In a dual-zone configuration, the system can adjust its output when:
- only one indoor unit is operating;
- both zones require little capacity;
- one zone approaches its target temperature;
- demand increases in both spaces;
- the outdoor temperature changes.
This modulation helps maintain a more stable temperature and limit certain on-off cycles.
Two independent commands, but one shared logic
Each zone has its own control. Occupants can adjust:
- a different temperature;
- a different fan speed;
- a separate schedule;
- operation adapted to occupancy.
One zone can also be turned off while the other continues to operate.
However, the two units share the same condenser. They must operate in a compatible mode.
In winter, both units can heat at different temperatures. In summer, they can cool according to separate setpoints.
One unit cannot heat while the other is cooling. This limitation is normal for a system of this type and must be taken into account during use.
An indoor installation designed for maintenance
The elevated location allows for good air distribution, but it must remain accessible.
The front panel must be able to open so the filters can be removed and cleaned. The piece of furniture on the right must not obstruct access to the unit. The area beneath the heat pump must also remain sufficiently clear to allow for the safe use of a stepladder.
Routine maintenance includes, among other things:
- cleaning the filters;
- inspecting the air outlet;
- checking the drainage;
- checking for unusual noises;
- looking for any signs of moisture;
- keeping the upper air intake clear.
More thorough professional maintenance may include:
- cleaning the coil;
- washing the tangential fan;
- cleaning the condensate pan;
- inspecting the drain;
- checking the internal components.
How furniture affects air circulation
The large dark element to the right of the unit shows why future furnishings must be considered when selecting the location.
A tall piece of furniture installed directly in front of or below a heat pump can disrupt air distribution. It can also reflect the airflow back toward the unit and create a less representative temperature reading.
We recommend keeping the area in front of the air outlet clear and not placing a cabinet all the way to the ceiling directly below the wall-mounted air conditioner.
In this installation, the unit is offset far enough to limit this risk.
Mistakes to avoid in a similar room
An installation similar to the one in Châteauguay can be compromised by several mistakes:
- Install the unit too close to the ceiling.
- Block the side of the unit with a tall piece of furniture.
- Direct the air straight toward a window or bed.
- Neglect the wiring for recessed light fixtures.
- Create a back-pitch in the drain.
- Choose BTUs based solely on the area.
- Use a combination not approved by Fujitsu.
- Make the filters difficult to remove.
- Running the lines with bends that are too tight.
- Assuming that both zones can operate in opposing modes.
- Installing the unit above furniture that blocks the airflow.
- Closing up surfaces before testing the drainage.
Rebates must be validated based on the complete system
Eligibility for financial assistance cannot be confirmed solely based on the brand or a photo of the indoor unit.
It depends in particular on:
- the indoor and outdoor model numbers;
- the exact combination;
- the applicable certification;
- the recognized reference number;
- the system’s capacity and performance;
- the conditions of the current program;
- the type of building;
- the purchase and installation date.
Before presenting the homeowner with a price, we therefore verify the complete configuration and the requirements of the applicable program.
An AirGreen installation tailored to a genuinely lived-in room
This Fujitsu Aquila XLTH dual-zone heat pump installation in Châteauguay demonstrates the importance of integrating the equipment into the existing layout.
The window, light fixtures, low ceiling, and tall piece of furniture limited the options. However, the upper part of the wall provided a location that allowed for:
- unobstructed air distribution;
- reasonable access to the filters;
- a discreet finish;
- no long indoor line-set cover;
- adequate separation from the furniture;
- full use of the lower wall surface.
At AirGreen, we analyze each project based on the home, rather than according to a predetermined location.
Our work includes:
- assessing the two zones;
- selecting the Fujitsu combination;
- calculating the requirements;
- identifying obstacles;
- drainage planning;
- routing the lines;
- compliance with clearances;
- vacuuming the system;
- operational testing;
- explaining the controls to the homeowner.
We carry out this type of HVAC installation in Châteauguay, throughout the other areas of the South Shore, as well as in Montreal, Laval, Longueuil, and across the North Shore.
In this project, the wall-mounted unit fits into a compact room without blocking the window or furniture. The dual-zone system allows two distinct areas of the home to be served by a single outdoor unit while maintaining controls suited to each space.
The lasting performance of a heat pump depends on this combination: a properly sized unit, a manufacturer-approved combination, reliable drainage, and a location that suits the room’s everyday use.
