Two comfort zones precisely integrated into a home with a well-established character
In Lachine, many residences have interior architecture that requires more careful planning than a standard wall-mounted installation. Wooden window frames, tall cabinets, uneven ceilings, masonry walls, and limited available space can quickly turn an apparently simple installation into a true precision exercise.
For this project, our AirGreen team installed a Fujitsu Aquila XLTH dual-zone heat pump to heat and cool two distinct areas of the residence using a single outdoor unit. The photograph shows one of the Fujitsu AIRSTAGE wall-mounted indoor units, installed in a particularly challenging space: above a cabinet, between two wood-trimmed openings, and very close to the ceiling.
This positioning was not chosen solely for aesthetic reasons. We needed to find a location that would ensure good air distribution, preserve access to the unit, limit its visual impact on the room, and allow for the proper routing of the refrigerant lines and condensate drain.
The result is a discreet installation, aligned with the existing features and designed to provide consistent comfort without unnecessarily encroaching on the living space.
Why a dual-zone heat pump was the right choice for this Lachine residence
A dual-zone heat pump uses a single outdoor unit to power two indoor units. Each wall-mounted head serves a separate space and has its own control.
This configuration is particularly useful when a home has different heating and cooling needs from one room to another. In Lachine, residences may include extensions built at different times, rooms exposed to sunlight, areas less well served by central heating, or floors where the temperature varies significantly.
A dual-zone system can serve, among other areas:
- a living room and a bedroom;
- a ground floor and an upper floor;
- an open-plan kitchen and a family room;
- an older section and an extension;
- two zones separated by a hallway or stairwell.
In this project, the multi-zone solution eliminated the need to install two separate outdoor units. This reduces outdoor clutter, simplifies the overall layout, and centralizes the refrigeration system around a single compressor with Inverter technology.
An indoor unit installed in a very restricted space

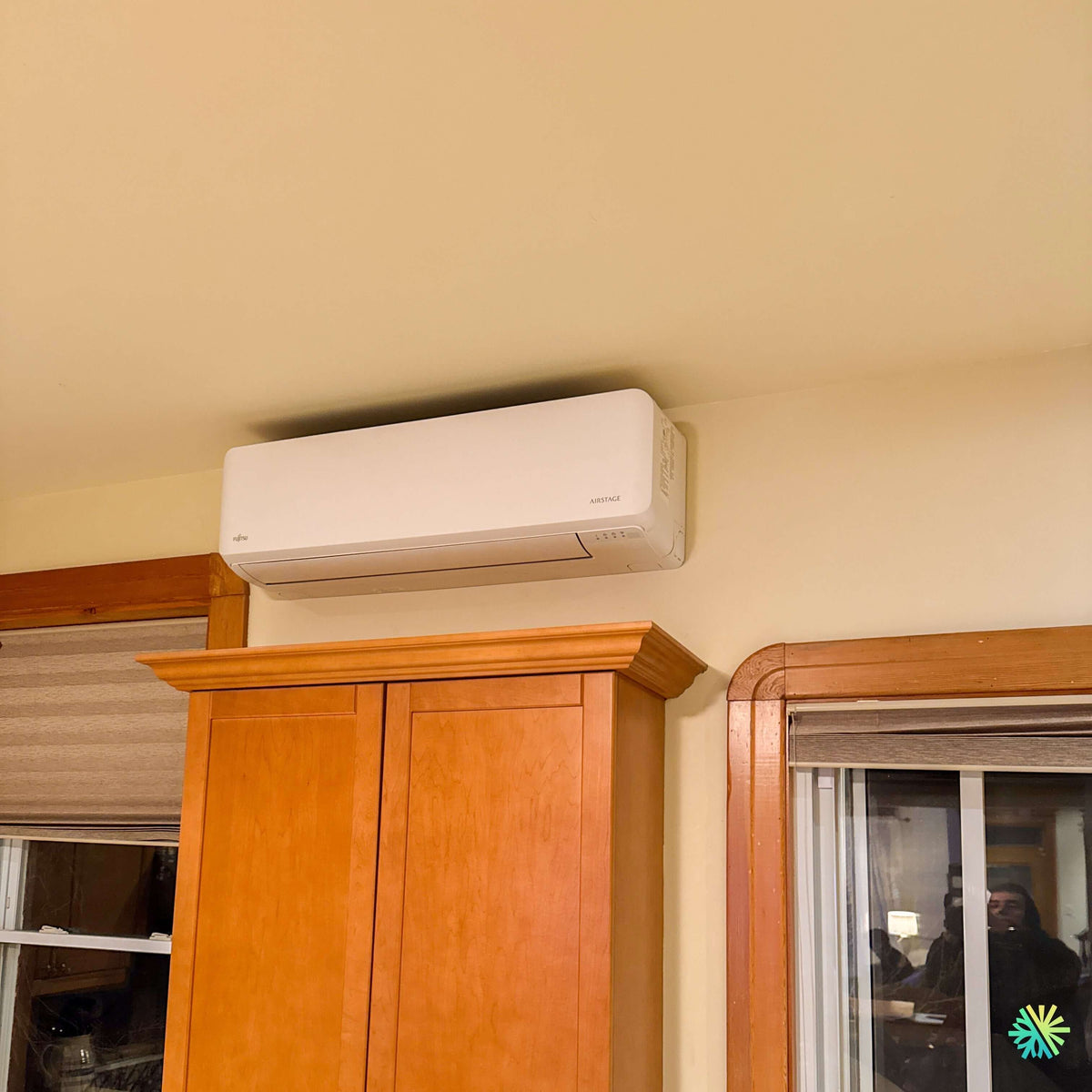

The photograph clearly illustrates the main challenge of this installation: the space available above the cabinet was limited by the ceiling, the wooden trim, and the proximity of the windows.
A wall-mounted unit cannot simply be placed in any available space. Several essential factors must be taken into account:
- the clearance required around the unit;
- the complete opening of the front panel;
- access to the filters;
- the air outlet beneath the unit;
- the drain’s slope and route;
- the possibility of carrying out future maintenance;
- the wall structure behind the unit.
The unit was therefore carefully positioned to make use of the available space without blocking the windows or interfering with the use of the cabinet. Its elongated, relatively discreet design fits well above the furniture, while its white finish contrasts minimally with the wall and ceiling.
Clearance above the unit
In the photo, the unit is quite close to the ceiling. This type of configuration requires a thorough check of the clearances recommended by the manufacturer.
Ambient air generally enters through the upper part of the unit. If this intake is too obstructed, airflow may decrease, affecting the system’s capacity, noise level, and operation.
Our role is therefore to find the best balance between:
- the height required to distribute air throughout the room;
- the space available above the furniture;
- the unit’s technical clearances;
- the access required to remove and clean the filters.
A position that was too low could have made the cabinet difficult to use and concentrated the airflow directly on the furniture. A position that was too high could have complicated maintenance and restricted air intake.
Air distribution in a room with tall furniture
Having a cabinet directly beneath a wall-mounted unit represents a significant constraint. The furniture must not block the air outlet louver or prevent the air from circulating throughout the room.
In this installation, the unit extends far enough beyond the front of the cabinet to allow the airflow to exit forward and downward. The motorized louver can therefore direct the air beyond the furniture rather than behind it.
This detail is essential because poor air distribution can cause:
- a buildup of warm air near the ceiling;
- cold areas at the opposite end of the room;
- an inaccurate temperature reading;
- more frequent cycles;
- a localized draft;
- a decrease in comfort despite sufficient capacity.
For a wall-mounted heat pump installation, the choice of location must always take the room’s actual geometry into account. Floor area alone is not enough. The position of furniture, doors, windows, and occupied areas must be analyzed.
The role of the Fujitsu Aquila XLTH system in cold climates
The Fujitsu AIRSTAGE Aquila range was designed for residential multi-zone installations. The documentation provided describes 18,000, 24,000, 36,000, and 45,000 BTU/h outdoor units that can be combined with several types of indoor units, including wall-mounted units, Slim Duct units, compact cassettes, and medium-static-pressure ducted units.
The versions designed for cold climates can continue operating in heating mode down to -26 °C. This capability is particularly relevant for Montreal, where a heat pump must be selected based on actual winter temperatures and not solely on its summer performance.
The system uses an inverter-driven compressor, also called an Inverter compressor. Rather than operating only at full power and then stopping, the compressor can modulate its speed to better match demand.
This modulation helps:
- maintain a more stable temperature;
- reduce differences between cycles;
- limit abrupt starts;
- improve acoustic comfort;
- adjust consumption to the actual load;
- distribute capacity between the two zones.
Two indoor units, but one shared operating mode
Each indoor unit in a Fujitsu multi-zone system can be controlled separately. Occupants can adjust the temperature, fan, and several settings in each zone.
However, an important feature must be understood before purchase: the system provides heating or cooling for all zones, but not both simultaneously.
It is therefore possible to set one zone to a different temperature from the other, but one unit cannot heat while the second cools.
In most homes, this limitation is not a problem when both zones have compatible uses. However, it must be considered when the rooms have opposite solar exposures or very different thermal loads.
Sizing a dual-zone heat pump
The exact capacity of the installed units must always be determined based on the building’s needs. The photograph can confirm the type and integration of the indoor unit, but it cannot by itself determine the BTU capacity.
To select a dual-zone configuration, we analyze in particular:
- the area of each zone;
- ceiling height;
- the number of exterior walls;
- the orientation of the windows;
- the type of glazing;
- the level of insulation;
- air infiltration;
- the floor where each zone is located;
- heat produced by appliances and occupants;
- low-temperature heating requirements.
Fujitsu documentation shows several permitted combinations. For example, an 18,000 BTU/h outdoor unit can serve up to two indoor units, while larger outdoor units can power three, four, or five zones, depending on the model.
In some configurations, it is also possible to connect a total indoor capacity greater than 100% of the outdoor unit’s nominal capacity. Fujitsu indicates a connection capacity of up to 130%. However, this does not mean that the outdoor unit will simultaneously produce the entire combined nominal capacity of the indoor units.
When both zones require their maximum capacity at the same time, the available power is distributed according to the outdoor unit’s operation and limitations.
Why oversizing is not a safeguard
Choosing a unit that is too large does not automatically ensure better comfort. An oversized unit can quickly reach the requested temperature, stop, and then restart frequently.
In summer, this operation can reduce dehumidification. The air becomes cooler, but humidity remains high. The result may be less comfortable than with a properly sized system.
In a room with large windows like the one shown in the photo, selection should also not be based solely on floor area. Solar gains and heat losses near the glazing can significantly alter the actual load.
A discreet indoor installation that is accessible and suited to everyday use
Routing the lines behind the unit
A multi-zone indoor unit must be connected to the outdoor unit by several components:
- a refrigerant liquid line;
- a refrigerant gas line;
- a communication and power cable, depending on the configuration;
- a condensate drain;
- continuous thermal insulation.
In a clean installation, these connections must be planned before drilling through the wall. Their direction affects the exact position of the mounting plate and the unit’s final height.
In this Lachine project, the proximity of the ceiling, cabinet, and windows required precise planning of the exit point. A poorly placed opening could have made it impossible to center the unit, created insufficient slope for the drain, or forced the lines to make a bend that was too tight.
The importance of drainage in cooling mode
In cooling mode, the indoor unit removes moisture from the air. This moisture turns into water in the condensate pan and then drains through the drain line.
The drain must maintain a sufficient slope when drainage occurs by gravity. A backfall or sag can cause water to accumulate and lead to:
- drops beneath the unit;
- a stale odor;
- the buildup of deposits in the drain;
- an obstruction;
- damage to the wall or furniture.
The presence of a cabinet beneath the unit makes this check even more important. Even a minor leak could damage the wood before being noticed.
After installation, we therefore check the condensate drainage and the unit’s operation in its various modes.
An installation that respects the existing architecture
The visible woodwork around the windows gives the room a great deal of character. The goal was not to turn the HVAC unit into a decorative feature, but to integrate it neatly without hiding the moldings or unbalancing the composition of the wall.
The unit was placed above the piece of furniture rather than between the two windows. This decision avoids occupying the central wall space and limits proximity to the glazing.
The positioning also offers several practical advantages:
- the unit remains outside traffic areas;
- the controls remain visible;
- the louver can distribute air throughout the room;
- the furniture retains its function;
- the installation does not block any windows;
- the unit is protected against accidental impacts.
Mistakes to avoid in a similar room
Choosing the location based solely on appearance
A location may seem discreet while being unsuitable for airflow or maintenance. Always confirm mechanical feasibility before finalizing the position.
Installing the unit directly above a piece of furniture without checking the airflow projection
A piece of furniture that is too deep can block the airflow. The air must be able to clear the front of the furniture and circulate toward the occupied area.
Neglecting access to the filters
The filters in a wall-mounted unit must be cleaned regularly. If the unit is installed too close to the ceiling or above an inaccessible piece of furniture, this task becomes difficult and may be neglected.
Directing the airflow straight toward an occupied area
A unit installed facing a table, armchair, or bed can cause discomfort if the airflow constantly reaches occupants. The direction and range should be assessed during the technical inspection.
Selecting capacity based on an approximate rule
Calculations based solely on a number of BTUs per square foot can lead to an improper selection. Windows, insulation, floor level, and solar exposure must be included in the assessment.
The maintenance required to preserve performance
A Fujitsu wall-mounted heat pump requires regular maintenance, even when it is operating normally.
Filters should be inspected and cleaned according to usage. In a kitchen or an area adjacent to a cooking zone, greasy particles can accumulate more quickly on the filters and coil.
Preventive maintenance includes, among other things:
- cleaning the filters;
- inspecting the coil;
- checking the drain;
- checking the fan;
- inspecting the lines;
- checking the outdoor unit;
- removing debris around the heat exchanger;
- observing unusual noises or vibrations.
A clogged filter reduces airflow and can make it seem as though the heat pump lacks capacity. In many cases, reduced performance is caused by insufficient maintenance rather than a refrigerant problem.
A suitable solution for Lachine and Greater Montréal
This Fujitsu Aquila XLTH dual-zone heat pump installation in Lachine shows that limited space should not lead to an approximate installation. The proximity of the ceiling, the presence of a tall cabinet, and the two windows required precise positioning of the indoor unit.
Thanks to careful planning, the unit was integrated without blocking the openings or compromising air distribution. The multi-zone system now allows two areas of the home to be controlled from a single outdoor unit, with independent settings in each zone.
At AirGreen, we install multi-zone heat pumps, wall-mounted air conditioners, and HVAC systems in Montréal, Laval, Longueuil, the North Shore, and the South Shore. We adapt each installation to the building’s actual constraints rather than applying the same configuration to every property.
In a home with woodwork, closely spaced windows, and permanent furnishings, a few centimeters can determine the final quality of the project. Location, drainage, clearance, air projection, and maintenance access must be analyzed together.
This attention to detail is what enables a Fujitsu heat pump to provide consistent comfort, a clean integration, and reliable operation throughout the heating and cooling seasons.
