Installation of a Fujitsu Aquila XLTH dual-zone heat pump in Ville Mont-Royal, Montreal

A compact HVAC installation in a particularly narrow outdoor passageway

This installation of a Fujitsu Aquila XLTH dual-zone heat pump in Ville Mont-Royal presented an obvious constraint upon arrival: the available outdoor space was very limited. The unit had to be integrated into a narrow passageway between the wall of the residence and a vegetation-covered wooden fence, without blocking the adjacent door or compromising the airflow required for the heat pump to operate.

In this type of project, the challenge is not simply to find a surface capable of supporting the unit. It is necessary to ensure that the heat pump can operate under proper conditions for many years, despite the proximity of walls, plants, openings, and traffic areas.

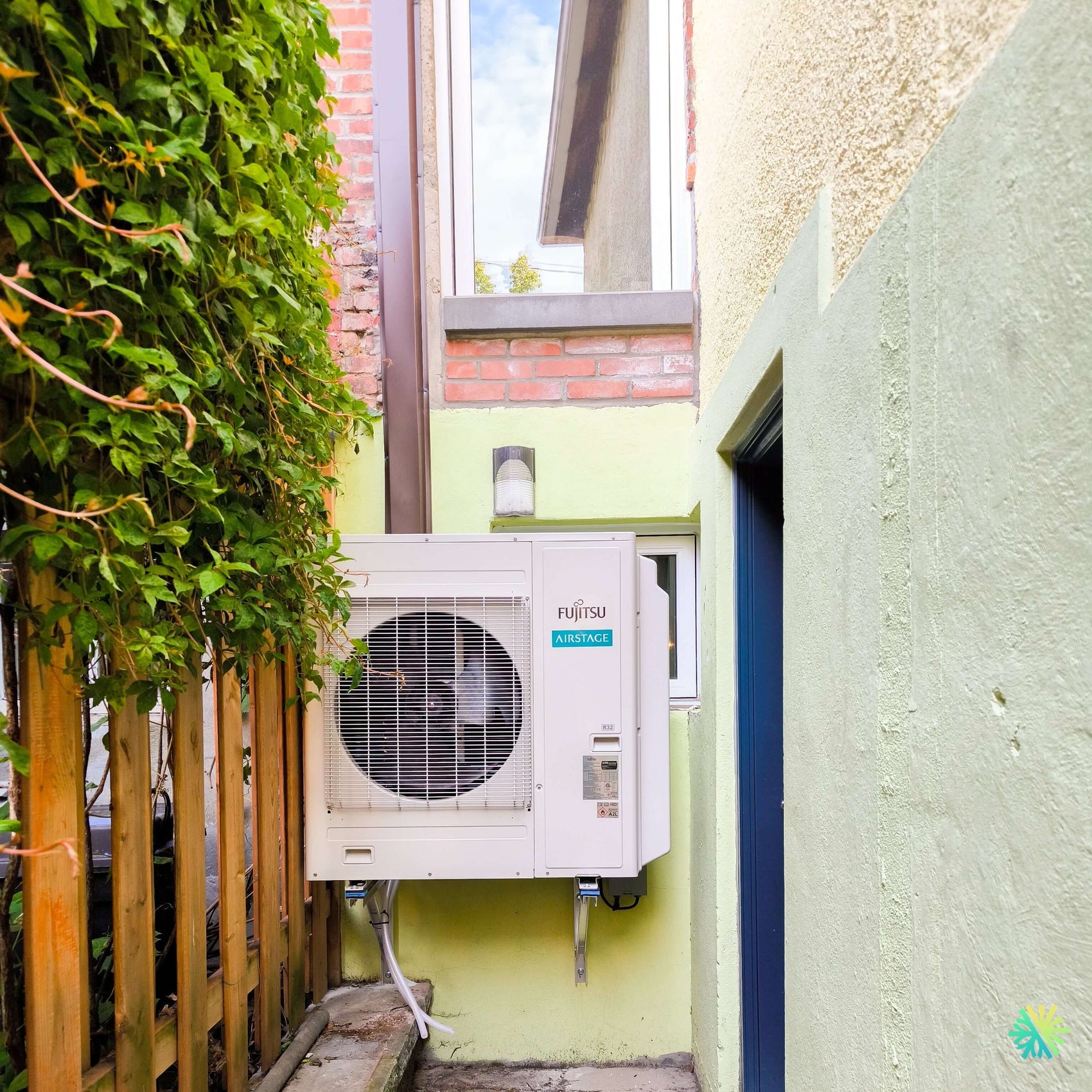

The photograph shows a Fujitsu AIRSTAGE outdoor unit installed on metal wall brackets above ground level. The R32 label is visible on the enclosure, indicating the use of a next-generation refrigerant classified as A2L. The unit was positioned high enough to clear its base, facilitate the drainage of defrost water, and protect the components from snow and debris accumulation.

Several installation details are visible:

• The outdoor unit is elevated on two wall brackets;
• Anti-vibration pads are installed beneath the feet;
• The unit is positioned along the available axis between the fence and the door;
• The fan remains oriented toward the open space of the passageway;
• The lines and drains are grouped beneath the unit;
• The service panel remains accessible;
• The enclosure does not rest directly on the ground;
• The vegetation was taken into account when selecting the location.

This compact configuration required precise planning. A heat pump installed in a passageway that is too enclosed may experience exhaust-air recirculation, lose efficiency, or operate at abnormal pressures. We therefore had to make use of the available space without enclosing the unit between obstacles.

Why the outdoor unit’s placement was critical

An outdoor heat pump unit draws air through its coil and then expels it through the front fan. The clearance around the unit directly affects this heat exchange.

In this Ville Mont-Royal project, three main obstacles had to be taken into account:

1. the fence and vegetation located on the left;
2. the property wall located on the right;
3. the exterior door positioned immediately nearby.

The unit could not be extended too far into the passage, as it would have obstructed traffic. Nor could it be installed too close to the fence, where leaves and branches could have blocked the coil.

We looked for a location that would allow:

• an unobstructed front air discharge;
• access to the technical components;
• a reasonable distance from vegetation;
• the door’s normal opening;
• a short route for the lines;
• a solid attachment to the wall;
• adequate protection against snow.

A successful installation in a restricted space often comes down to a few centimetres. The choice of the support’s height, orientation, and depth can make the difference between an accessible unit and an appliance that is difficult to maintain.

Wall-mounted installation rather than a ground-level slab

In a narrow passage, a concrete slab or ground-level base would have occupied a significant portion of the circulation area. It would also have placed the unit closer to leaves, soil, water, and snow.

We therefore opted for installation on wall brackets.

This method notably makes it possible to:

• to free up the ground;
• to facilitate passage near the unit;
• to provide greater protection for the unit against debris;
• to reduce the risk of movement caused by ground freezing;
• to maintain space beneath the heat pump;
• to facilitate cleaning of the area;
• to better manage the water produced during defrosting.

However, the wall mounting must be carried out on a suitable load-bearing material. The image shows a façade covered with stucco. The exterior finish must never be considered the sole supporting structure. The anchors must reach an element strong enough to bear the weight of the unit, vibrations, and loads exerted during operation.

We also verify that the support remains perfectly level. A tilted heat pump can lead to uneven stress distribution, alter water drainage, or cause additional vibrations.

Anti-vibration mounts to reduce mechanical transmission

The supports visible between the Fujitsu unit and the brackets play an important role in this installation. They help limit the transmission of vibrations to the residence's wall.

This precaution is particularly relevant in a narrow passage, where the unit is close to the building's structure. Even a relatively quiet outdoor heat pump can transmit a perceptible vibration indoors if it is mounted directly on a rigid support.

We check, among other things:

• the quality of the supports;
• their position under each foot;
• the tightness of the bolts;
• the leveling of the cabinet;
• the absence of contact between the pipes and the wall;
• the rigidity of the brackets;
• the unit's behavior at different speeds.

The inverter technology in the Fujitsu series allows the compressor to adjust its speed according to demand. This modulation prevents it from constantly operating at full capacity, but it can produce different vibration frequencies. A properly executed mechanical installation reduces the risk of a particular frequency being amplified by the wall.

Managing vegetation around the heat pump

The dense vegetation visible near the fence is an attractive feature in a yard, but it must be controlled around an HVAC unit.

Leaves and stems can:

• settle on the coil;
• reduce airflow;
• retain moisture;
• enter the grille;
• complicate maintenance;
• encourage dust accumulation;
• come into contact with the fan if they extend too far.

We recommend that the owner trim the plants regularly to maintain clear space around the unit. It is not necessary to remove all the vegetation, but it should never touch the coil or cover the sides of the cabinet.

A simple seasonal check in spring and fall helps prevent many blockages. After a period of vigorous growth, it is also useful to check that the branches have not moved closer to the fan.

A dual-zone heat pump for two separate spaces

The system installed in Ville Mont-Royal serves two indoor zones from a single outdoor unit. Each zone has its own indoor unit and its own control.

This configuration makes it possible to adapt comfort to the property's actual needs. The two spaces can have very different characteristics:

• an open-concept area exposed to sunlight;
• a smaller bedroom;
• an upper floor that is warmer in summer;
• a room located above a garage;
• an office used only during certain hours;
• a basement requiring different humidity control.

The two indoor units can be set to different temperatures. They can also use different fan speeds and louver directions.

However, it is important to understand that the outdoor unit operates in a common mode. One indoor unit cannot request heating while the other provides cooling. The system can heat two zones to different temperatures or cool them according to separate settings, but the modes must remain compatible.

Fujitsu’s documentation for the Aquila H series confirms that each indoor unit can be controlled independently and that the system provides heating and cooling, but not both modes simultaneously. It also specifies that the outdoor units in the range can be paired with various wall-mounted, ducted, or concealed configurations.

A multi-zone series designed for various layouts

The Fujitsu AIRSTAGE Aquila series can be paired with several indoor unit formats, including:

• wall-mounted units;
• Slim Duct units;
• compact cassettes;
• Mid Static Duct units.

This flexibility is useful in renovation projects, where not all rooms allow for the installation of the same type of unit. A wall-mounted unit may be appropriate in a living room, while a ducted unit may be better suited to a bedroom or an area where interior aesthetics require greater discretion.

The documentation presents outdoor units rated at 18,000, 24,000, 36,000, and 45,000 BTU/h. Depending on the model, the system can serve two to five indoor units.

In the case of this dual-zone installation, the exact model number and nominal capacity are not legible enough in the photograph to be confirmed. We therefore avoid assigning a precise capacity based solely on the cabinet size.

At AirGreen, capacity is validated based on:

• the outdoor model number;
• the indoor unit models;
• the Fujitsu combination tables;
• the heating and cooling loads;
• the pipe lengths;
• the difference in elevation between the units;
• the simultaneous needs of both zones.

Sizing, commissioning, and maintenance of a Fujitsu Aquila XLTH in Mont-Royal

Authorized combinations do not replace a load calculation

Fujitsu authorizes various indoor capacity combinations. For a dual-zone outdoor unit in the H series, the technical tables list combinations such as:

• 7,000 + 7,000 BTU/h;
• 7,000 + 9,000 BTU/h;
• 7,000 + 12,000 BTU/h;
• 7,000 + 15,000 BTU/h;
• 9,000 + 9,000 BTU/h;
• 9,000 + 12,000 BTU/h;
• 9,000 + 15,000 BTU/h;
• 12,000 + 12,000 BTU/h.

These tables are used to confirm that a combination is technically permitted. They are not used to automatically determine the capacity suitable for a home.

The Fujitsu document also specifies that the combination tables do not replace system capacity selection and recommends using its design tool when choosing equipment.

Two rooms of the same size may require very different capacities depending on:

• their level in the building;
• their orientation;
• window quality;
• wall insulation;
• whether there is a roof directly above;
• air infiltration;
• the number of occupants;
• the electrical appliances present;
• frequency of use.

An oversized indoor unit may reach the desired temperature too quickly. This can reduce operating time, impair dehumidification, and create a drafty feeling.

An undersized unit may run continuously without reaching the setpoint during periods of extreme cold or intense heat.

Understanding the connected capacity of a multi-zone system

Some Fujitsu combinations allow a total indoor capacity greater than the outdoor unit’s rated capacity. This practice is sometimes called oversizing or connecting more than 100% capacity.

It may be appropriate when both zones do not demand their full capacity at the same time. For example, a room exposed to sunlight may have its peak demand in the afternoon, while a bedroom may require more capacity in the evening or at night.

However, a higher total indoor capacity does not turn the outdoor unit into a higher-capacity appliance. Fujitsu documentation clearly states that exceeding 100% in combination does not increase the system’s output capacity.

The available outdoor capacity is distributed between the zones. When both units simultaneously demand high output, each receives part of the total capacity.

This behavior must be taken into account in a property where both zones are often used at the same time.

Cold-weather operation

The Aquila range designed for cold climates includes models that can operate in heating mode down to approximately -26 °C, depending on the model.

This feature is particularly relevant in Ville Mont-Royal, where winter temperatures can become very low. However, it does not mean that the heat pump necessarily maintains its full rated capacity down to this temperature.

Three concepts must be distinguished:

1. the minimum operating temperature;
2. the heating capacity available at low temperatures;
3. the building’s actual heating load.

The lower the outdoor temperature, the more heat the building loses. At the same time, a heat pump’s capacity and efficiency can vary.

We therefore check the selected model’s performance at temperatures relevant to Montreal, rather than relying solely on the rated capacity announced under milder conditions.

R32 Refrigerant and Installation Requirements

The R32 label visible on the unit indicates that this refrigerant is used in the installed system.

R32 has different characteristics from some refrigerants used in earlier generations of heat pumps. It is classified as A2L, meaning it has low toxicity and moderate flammability.

Its installation requires:

• compatible tools;
• appropriate work procedures;
• rigorous leak testing;
• complete vacuum evacuation;
• adequate ventilation during certain procedures;
• compliance with the manufacturer’s requirements;
• professional handling of the refrigerant circuit.

We pay particular attention to flared connections. An improperly tightened connection can leak, while overtightening can weaken the copper.

The steps generally include:

1. cleanly cutting the tube;
2. deburring;
3. making the flare;
4. aligning the connection;
5. tightening to the recommended torque;
6. leak testing;
7. evacuating the circuit;
8. checking vacuum stability;
9. opening the service valves;
10. commissioning the system.

The importance of vacuum evacuation

Once the lines are installed, the circuit must be evacuated before the refrigerant valves are opened.

This step removes:

• air;
• moisture;
• non-condensable gases;
• residue that could impair operation.

Insufficient evacuation can contribute to increased pressures, reduced efficiency, and premature degradation of the compressor oil.

Vacuum evacuation should never be replaced by a simple refrigerant purge. Professional commissioning includes checking the vacuum depth and its stability.

Identification of the two zones

In a dual-zone system, each indoor unit has its own refrigerant and electrical connections.

The circuits must be identified precisely. Mixing up a pair of lines and its communication cable can cause improper operation.

Our checks include:

• identification of Zone 1;
• identification of Zone 2;
• matching the outdoor ports to the indoor units;
• testing each zone individually;
• testing both units simultaneously;
• checking the controls;
• checking the temperatures;
• observing the compressor’s operation.

These tests confirm that the remote control for each room operates the correct unit and that the outdoor unit properly distributes its capacity.

Managing visible drains beneath the unit

The photograph shows pipes or drains descending beneath the heat pump. Their position must allow water to drain without creating a hazardous area in the passage.

In heating mode, the outdoor unit produces water during defrost cycles. This water can freeze on the ground when the temperature is low.

In a narrow passage, the location of the drainage outlet should be examined to avoid:

• a sheet of ice in front of a door;
• an accumulation against the foundation;
• water flowing toward a frequently used passage;
• a block of ice reaching the base of the unit;
• damage to the support.

The elevation visible in the photo provides useful space beneath the unit. It facilitates drainage and delays the point at which an accumulation could reach the enclosure.

Mistakes to avoid in a narrow outdoor passage

Installing the unit too close to the fence

The coil can become obstructed by leaves, and airflow may be insufficient.

Pointing the fan toward a nearby wall

Discharged air can return toward the unit and reduce its performance.

Neglecting the nearby door

The enclosure must not prevent the access door from opening or impede passage or normal use.

Installing the heat pump too low

Snow, debris, and ice can quickly reach the bottom of the unit.

Forgetting the service clearance

The electrical panel, valves, and components must remain accessible.

Allowing vegetation to touch the coil

Branches can retain moisture, reduce airflow, and cause noise.

Securing the unit only to the exterior cladding

The anchors must reach an appropriate structural support.

Neglecting vibrations

A wall bracket without adequate insulation can transmit noise into the residence.

Recommended maintenance for this installation

In this configuration, outdoor maintenance should include particular attention to vegetation and clearance for movement.

We recommend that the owner periodically check:

• that branches do not touch the unit;
• that the coil remains visible and unobstructed;
• that the front grille is not obstructed;
• that no debris accumulates beneath the unit;
• that the drains remain clear;
• that the supports show no movement;
• that the vibration-damping pads remain properly positioned;
• that ice does not accumulate near the door;
• that the lines remain protected.

The filters of both indoor units must also be cleaned regularly. A clogged filter reduces airflow and can unbalance operation between the zones.

A professional HVAC maintenance service makes it possible to inspect the coil, connections, drainage, pressures, and the system's overall operation.

Eligibility for Financial Assistance Programs

Eligibility for a grant or financial assistance program depends on the exact combination installed.

The following must be verified:

• the outdoor unit model;
• the indoor unit models;
• the AHRI or ENERGY STAR reference;
• the capacity recognized at the required temperatures;
• the property type;
• the program criteria;
• the purchase date;
• the installation date;
• the required documents.

The Fujitsu brand or the cold-climate designation alone is not enough to guarantee eligibility. One specific combination may be recognized while another is not.

At AirGreen, we verify the references applicable to the project rather than making a general promise based solely on the series name.

The result for this Mont-Royal residence

This Fujitsu Aquila XLTH dual-zone heat pump installation addresses a common constraint in urban areas: providing an efficient system when outdoor space is very limited.

The selected solution makes it possible to:

• to serve two indoor zones;
• to use a single outdoor unit;
• to maintain a functional passage;
• to keep the door accessible;
• to elevate the unit;
• to limit vibration transmission;
• to protect the heat pump from debris;
• to maintain access for servicing.

The positioning between the vegetated fence and the wall shows that a compact installation can be completed neatly when clearances, airflow, and future maintenance are analyzed from the outset.

At AirGreen, we adapt every HVAC installation in Montreal to the property's actual constraints. The solutions used in Mont-Royal will not necessarily be the same as those chosen for a house in Laval, a condo in Longueuil, a building on the North Shore, or a property on the South Shore.

Our approach consists of studying the building, selecting an appropriate combination, and installing the equipment in a way that preserves its performance, accessibility, and durability.
