A discreet dual-zone installation in Carignan, designed to distribute comfort where it is truly needed
In Carignan, on Montreal's South Shore, we completed an installation that clearly illustrates the value of a MIDEA 28 dual-zone heat pump when a residence has several areas with different heating and cooling needs. Rather than imposing a single temperature throughout the house, a multi-zone system allows comfort to be distributed much more precisely.

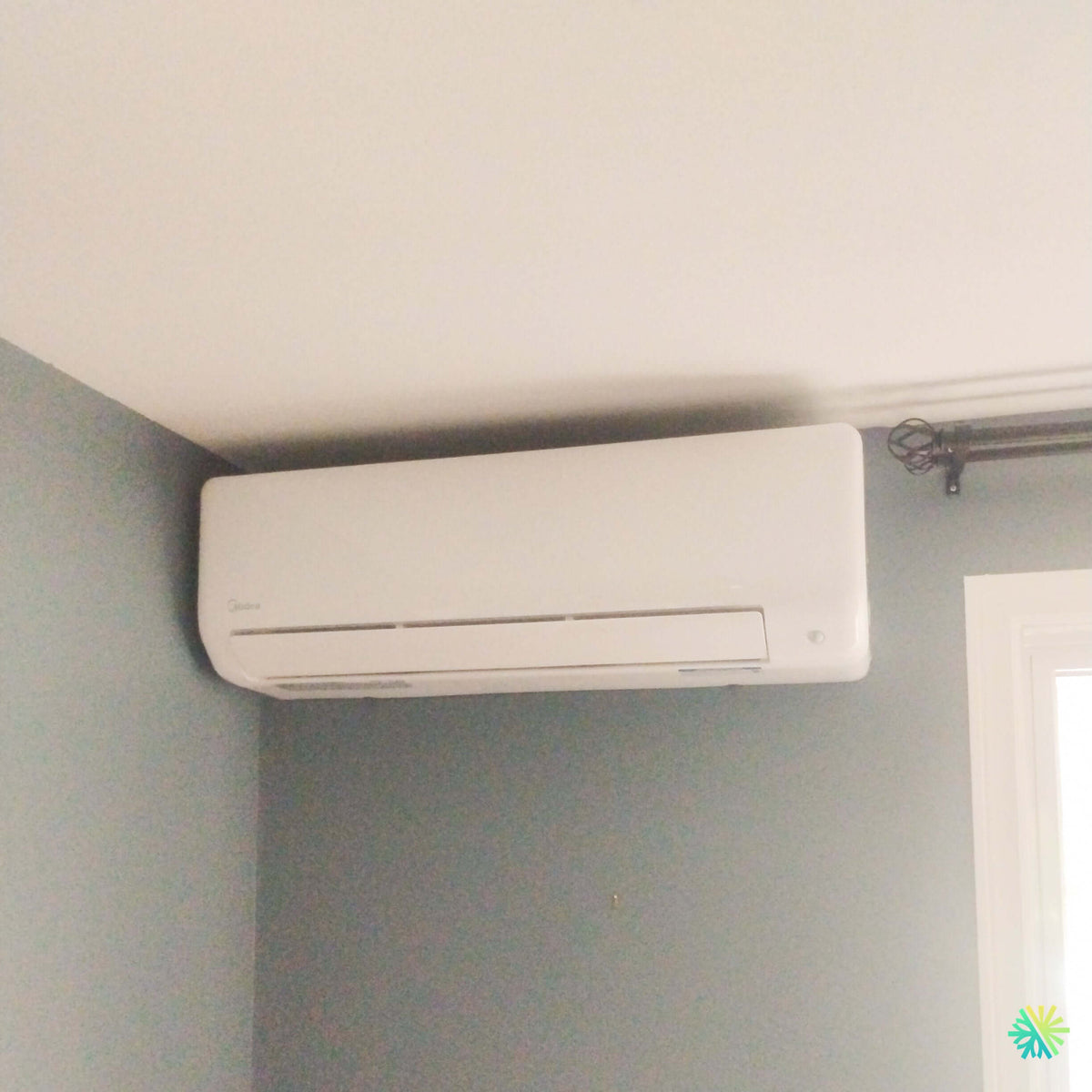

The photo of this installation shows one of the MIDEA wall-mounted indoor units, installed very high on a blue-gray wall, near a window and curtain rod. The space available near the ceiling was relatively limited: the unit had to be integrated neatly without visually weighing down the wall, while maintaining a position favorable to distributing air throughout the room.
This is exactly the kind of detail that makes the difference between simply mounting a wall-mounted air conditioner on the wall and carrying out a truly well-planned HVAC installation.
In the MIDEA technical documentation provided for this multi-zone family, the principle is clear: a single outdoor unit can power several indoor units, each of which can be controlled individually and adjusted according to the desired temperature in the room it serves.
For this Carignan residence, we worked with a dual-zone configuration. The goal is simple: to provide two independent distribution points from a single outdoor system while keeping the indoor installation visually discreet.
Why choose a dual-zone heat pump instead of two separate systems?
A multi-zone heat pump becomes particularly useful when two separate areas of a property need to be cooled or heated without installing two separate outdoor condensers.
With a dual-zone configuration, we can, for example, serve:
- two floors;
- a living area and a bedroom;
- a main part of the house and an extension;
- two rooms far apart from each other;
- a space strongly exposed to the sun and a cooler area;
- two zones with different usage schedules.
The MIDEA documentation specifically highlights one of the main advantages of this architecture: each indoor unit offers individual control, making it possible to heat or cool the spaces in use rather than unnecessarily conditioning the entire residence.
This approach is particularly relevant in homes in Carignan, Chambly, Brossard, Saint-Jean-sur-Richelieu, Longueuil and elsewhere on the South Shore, where multi-storey layouts, additions, or rooms with significantly different thermal loads are common.
What we observe on the installed indoor unit
The photograph provides several interesting clues about the work carried out.
The MIDEA wall-mounted unit was placed:
- near the ceiling, which promotes good air distribution;
- in the upper part of the wall, without taking up useful space for furniture;
- near a glazed opening, while avoiding encroaching on the window frame;
- so as to maintain a clean appearance on an already finished and painted wall.
This type of installation requires more precision than it may appear.
When determining the location of an indoor unit, we do not limit ourselves to finding a space that is large enough. We must also take into account the air path, future access for HVAC maintenance, the routing of the refrigerant lines, condensate drainage, the wall structure, and the distance from the ceiling or surrounding architectural elements.
In the case presented here, the presence of the window and curtain rod limited the natural options. The unit therefore had to be installed carefully so that the result would remain clean and functional.
MIDEA 28: a multi-zone platform suited to residential zoning
The MIDEA multi-zone family described in the documentation allows several indoor unit formats and several types of emitters to be combined, including wall-mounted units, consoles, cassettes, and ducted units. The range was specifically designed to provide great flexibility in residential projects.
For a two-zone project, this flexibility allows us to adjust the indoor capacity to the needs of each area rather than systematically installing two units of identical capacity.
This is an important point.
Two rooms of the same size do not automatically require the same capacity. Solar orientation, the number of windows, insulation, ceiling height, floor, room use, and heat losses can significantly affect the actual load.
At AirGreen, we therefore look at the entire building before determining the best combination.
Inverter technology that modulates rather than operating only at full power
The MIDEA multi-zone system uses Inverter technology to adjust the output capacity as the temperature changes. The manufacturer explains that the compressor and fan motors are modulated according to demand and that part-load operation can reduce consumption when all zones do not simultaneously require their full capacity.
In everyday life, this is much more relevant than a simple BTU figure.
A properly sized heat pump does not need to operate constantly at maximum capacity. It should be able to reduce its output as the indoor temperature approaches the setpoint, then gradually increase its effort when conditions require it.
This modulation contributes to:
- maintain a more stable temperature;
- reduce sudden comfort fluctuations;
- limit on-off cycling;
- improve part-load operation;
- better meet the simultaneous needs of multiple zones.
The documented technical data for the 27,000 BTU MIDEA configuration
In the MIDEA brochure provided, the 27,000 BTU Extreme Heat configuration, paired with the MO4HX-H27B-2A outdoor model, is listed under reference number AHRI 215471460.
For this documented combination with ductless units, the published specifications include, among others:
- power supply: 208/230 V, single-phase, 60 Hz;
- rated cooling/heating capacity: 27,000 / 27,000 BTU/h;
- SEER2: 23;
- EER2: 12.5;
- HSPF4: 10.5;
- listed heating capacity at 5 °F / -15 °C: 27,000 BTU/h;
- maximum listed outdoor airflow: 2,148 CFM;
- Published outdoor sound level: 61 dB(A).
The corresponding condenser is also listed with net dimensions of 946 × 410 × 810 mm, or approximately 37 1/4 × 16 1/8 × 31 7/8 in..
This data is important for a heat pump installation in Carignan because it influences the electrical requirements, the placement of the outdoor unit, the required clearances, and compatibility between the different indoor units.
However, you must always verify the exact combination actually installed. In a multi-zone system, certified performance may vary depending on the indoor units paired with the condenser.
An outdoor unit's capacity does not mean that each zone always receives its maximum output
This is a common mistake when comparing multi-zone systems.
Suppose a system has two indoor units whose combined nominal capacities exceed that of the outdoor condenser. This does not mean that the system will artificially create more capacity.
MIDEA documentation also specifies that when the total load of the indoor units exceeds the nominal capacity of the outdoor unit, the practical capacity available for each unit may decrease, a situation that is particularly noticeable in heating mode.
That is why we never choose a dual-zone configuration solely by adding the figures shown on the two wall-mounted units.
We must consider the probable simultaneous operation of the zones.
Practical example
A living area may require a lot of energy in the late afternoon because of the sun, while a bedroom may require very little cooling at that time.
In the evening, the situation may be reversed.
In this context, a well-selected multi-zone system can distribute its capacity very efficiently. However, arbitrarily installing oversized indoor units in every room is not necessarily an advantage.
An essential detail: the location of the wall-mounted head
The image of our installation in Carignan is interesting because it shows exactly what we generally seek to achieve with a wall-mounted unit: making it noticeable when it is operating, but discreet when it is not being looked at.
An incorrectly installed unit may interfere with the layout and distribute air less efficiently.
A unit that is too close to an obstruction can compromise airflow.
A wall-mounted head placed directly where the airflow continuously hits the occupants can also become uncomfortable, even if the room's average temperature is technically correct.
We therefore seek a balance between:
performance, accessibility, aesthetics, and real comfort.
Condensate drainage deserves as much attention as the refrigerant circuit
When a wall-mounted air conditioner operates in cooling or dehumidification mode, water forms on the indoor evaporator.
This water must be drained properly.
An insufficient slope, an improperly positioned pipe, or an installation that unnecessarily relies on a condensate pump can become a source of problems several months after installation.
When the building configuration allows it, we favor simple and reliable gravity drainage. When a pump becomes necessary, its location and maintenance must be considered from the outset.
This is particularly important on an installation like the one shown in the photo, where the unit is located very high up and near several finishing elements.
Refrigerant lines must be planned before drilling
For a dual-zone heat pump, there are two indoor circuits to organize from a single outdoor unit.
This means that line planning becomes even more important.
We must determine:
- the route of each pair of lines;
- the available length;
- the required diameter for each unit;
- where the runs meet;
- outdoor access points;
- the positioning of communication cables;
- line insulation;
- outdoor protection for the runs;
- drain slopes.
MIDEA documentation also presents a SynchroConnect function, designed to facilitate matching electrical and refrigerant connections on compatible multi-zone systems.
Even with this type of technological assistance, methodical installation remains essential. The lines must be prepared properly, the connections correctly made, the system evacuated according to industry standards, and the tightness verified before commissioning.
What this MIDEA 28 installation in Carignan shows about choosing a good HVAC system
The best system is not simply the one that displays the most BTUs
In our projects in Montréal, Laval, Longueuil, on the North Shore and the South Shore, we regularly meet homeowners who compare heat pumps almost exclusively based on three factors: price, BTU count, and SEER2 efficiency.
This data is important, but it is not enough.
To achieve a truly successful installation, you must also verify:
- if the capacity matches the building's heating and cooling loads;
- if the indoor units are properly distributed;
- if their location will allow good air circulation;
- if the condenser can operate without being obstructed;
- if the lines are reasonably short and accessible;
- if the electrical installation is suitable;
- if the specific combination of equipment has the required certification;
- if the equipment remains accessible for cleaning and servicing.
The particular value of dual-zone systems in a home
A dual-zone configuration may make more sense than a single-zone installation when the two areas are not connected enough for a single wall-mounted head to truly control the temperature.
A unit installed in a hallway, for example, does not guarantee that two enclosed bedrooms will reach the same temperature comfortably.
Similarly, a very powerful unit in an open-plan area will not always replace a second unit located upstairs.
Zoning addresses the problem directly.
The MIDEA brochure specifically highlights independent room control and the ability to manage comfort based on occupancy.
Can other units be added later?
The MIDEA multi-zone platform offers several configurations and different numbers of ports depending on the outdoor model. The documentation presents systems capable of handling a high number of zones and a wide variety of indoor units.
But this does not mean that an additional unit can automatically be added to any existing installation.
Before making any modifications, we must verify:
- the exact condenser model;
- the available ports;
- the approved combinations;
- the total connected capacity;
- the piping lengths;
- the amount of refrigerant;
- the manufacturer's limitations;
- the compatibility of the indoor units.
Planning for this possibility from the initial design is generally much simpler than trying to modify the system several years later.
Watch out for rebates: always verify the exact combination
For a heat pump installed in Québec, it is tempting to assume that a unit advertised as high-performing or certified ENERGY STAR will automatically qualify for financial assistance.
That is not how it should be done.
For programs such as Hydro-Québec's LogisVert, eligibility must be verified according to the rules in effect at the time of the project and according to the specific combination of indoor and outdoor units.
The AHRI number is precisely one of the important elements to verify.
In the documentation provided for the 27,000 BTU Extreme Heat version, the reference combination is identified by AHRI 215471460.
We therefore always recommend confirming eligibility before basing a purchasing decision on a potential rebate.
The mistakes we avoid in a dual-zone installation
Choosing the two heads based solely on floor area
Floor area is only one of several factors. A south-facing room with large windows may have completely different needs from a room of the same size facing north.
Placing a wall-mounted unit solely where it is easiest to install
The shortest route for the pipes is not necessarily the best location for comfort.
Neglecting access for cleaning
A wall-mounted heat pump must be able to be opened and cleaned properly. An indoor unit installed too close to a ceiling or adjacent structure can unnecessarily complicate maintenance.
Oversizing the indoor units
More BTUs do not automatically mean greater comfort. Oversizing can reduce modulation quality and lead to less balanced operation.
Ignoring the performance of the actual combination
The same outdoor condenser can have different specifications depending on the indoor units it is paired with. We therefore always check the complete configuration rather than relying solely on the commercial name.
A visually understated installation in Carignan
One of the most successful aspects of this project is the way the visible indoor unit integrates into the room.
The white casing contrasts slightly with the blue-gray wall, but the high position limits its visual impact. The unit takes up no floor space and does not interfere with the furniture.
The proximity of the window required a precise installation, but the result remains clean: the unit naturally follows the upper section of the wall and maintains a balanced appearance.
This is an aspect we systematically consider at AirGreen.
A heat pump becomes part of the building for many years. Its location must therefore be chosen as carefully as its capacity.
Our approach at AirGreen for MIDEA multi-zone systems
For a MIDEA heat pump installation in Carignan, we begin by understanding how the occupants actually use their home.
We then assess the areas to be served, the required capacity, the possibilities for routing the lines, and the location of the units.
When the project is multi-zone, we pay particular attention to load simultaneity: will both zones require their full capacity at the same time? Does one operate mainly during the day and the other at night? Is one zone highly exposed to the sun? Does one room already have a significant heating source?
These answers make it possible to choose a much more coherent configuration.
Once the installation is complete, we commission the system, check the operation of the zones, and verify air distribution.
A well-designed dual-zone heat pump can greatly simplify comfort in a home
This MIDEA 28 installation in Carignan well summarizes what we look for in a multi-zone project: high-performance equipment, clean indoor integration, and above all, comfort distribution adapted to the different parts of the residence.
The real advantage of a dual-zone system is not simply having two wall-mounted units.
It lies in the ability to manage two distinct environments with a single heat pump platform, while maintaining independent control in each area.
For a homeowner hesitating between a single-zone heat pump, a dual-zone heat pump, or a larger multi-zone configuration, an on-site assessment will generally determine quickly which setup makes the most sense.
