Installation of a MIDEA MIDEA28 27,000 BTU dual-zone heat pump in Saint-Jean-Baptiste, Montérégie

In Saint-Jean-Baptiste, a dual-zone installation where the real challenge was on the facade

Some dual-zone heat pump installations appear simple when looking only at the outdoor unit. On this project completed by AirGreen in Saint-Jean-Baptiste, in Montérégie, however, the photograph tells a very different story: the most demanding part of the work is above the condenser, on this tall brick facade where the lines must reach the home's two zones without creating a disorderly route around the windows.

We installed a 27,000 BTU MIDEA MIDEA28, a multi-zone heat pump designed to allow several indoor spaces to share a single outdoor unit. In this installation, the configuration selected is dual-zone: two areas therefore have their own indoor unit while being supplied by the same condenser.

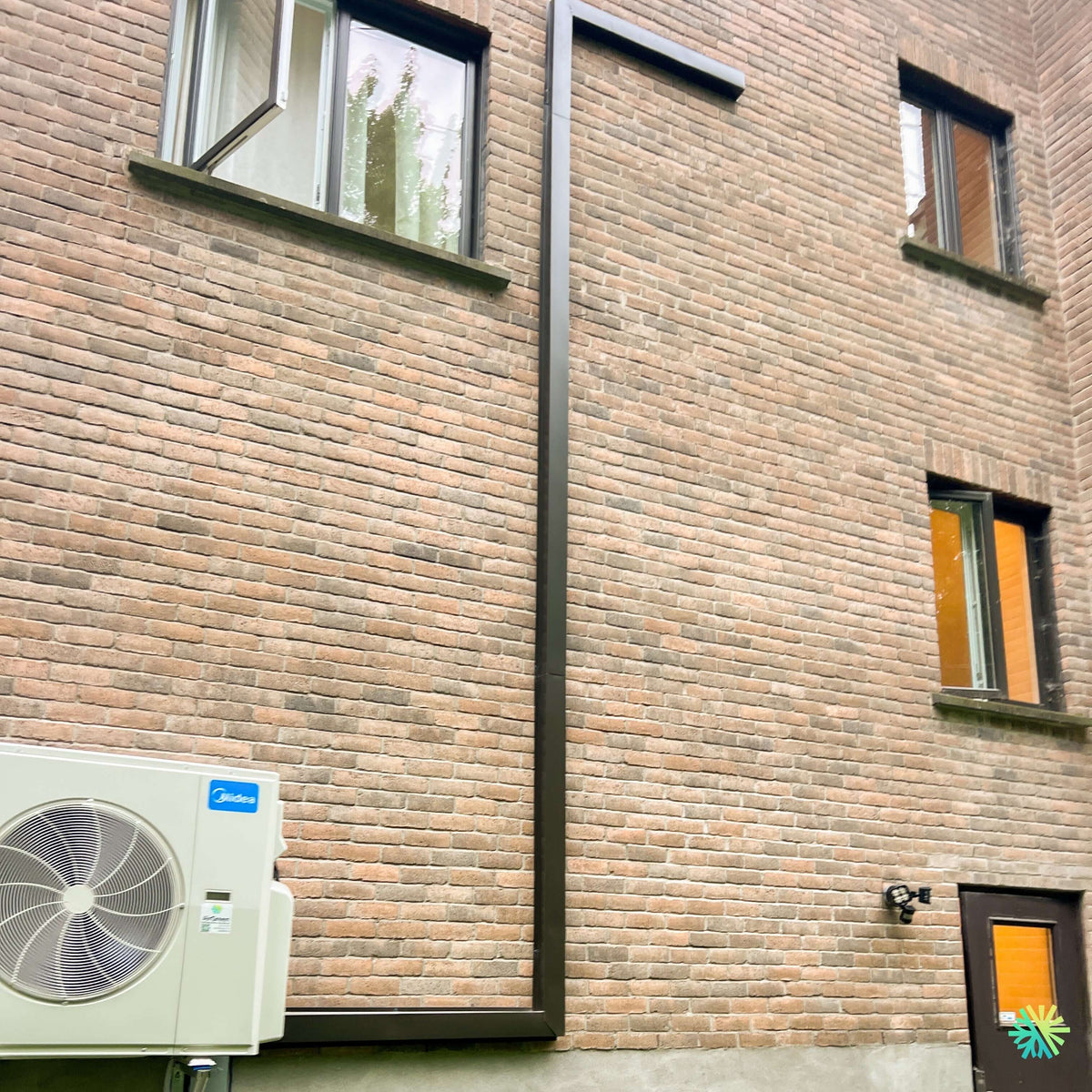

What immediately distinguishes the installation is the exterior finish. The condenser is mounted on a wall bracket, while a long dark line set cover rises vertically several metres along the masonry. At the top, it changes direction and continues horizontally. The route was positioned between the openings rather than in front of the windows, and the dark colour visually blends with the frames and architectural elements already present on the facade.

The result demonstrates a principle we consider very important at AirGreen: in an HVAC installation, the lines should not be treated as a detail to improvise after choosing where to place the units. Their route is an integral part of the project design.

Why a dual-zone MIDEA28 was well suited to this type of building

A multi-zone system connects a single outdoor unit to several indoor units. Each indoor unit can then be controlled and adjusted individually according to the desired temperature in its space.

That is precisely the benefit of a dual-zone heat pump in a home with rooms located on different levels or having different heat loads.

A room with a lot of glass, a floor exposed to the sun, and a bedroom can have completely different needs over the course of the same day. With two zones, we do not have to treat all spaces as if they had the same load.

MIDEA also indicates that its multi-zone platform can heat or cool only the spaces being used rather than the entire building continuously.

On this Saint-Jean-Baptiste project, this flexibility comes with another highly visible advantage: despite having two indoor zones, we have only one condenser on the facade.

A 27,000 BTU condenser capable of supporting up to four zones

The installed MIDEA28 belongs to the 27,000 BTU/h multi-zone platform. MIDEA's technical documentation indicates that this capacity has four ports and can serve configurations ranging from one to four zones.

In other words, using this condenser in a dual-zone configuration does not require multiplying the number of outdoor units.

This configuration is particularly interesting in areas where the space available around the building is limited or when we want to reduce the visual impact of the HVAC system.

In this case, placing two condensers on this same section of facade would have considerably increased the installation's weight. With the dual-zone MIDEA28, the two refrigerant circuits converge into a single outdoor unit.

Technical specifications for the 27,000 BTU MIDEA28

The 27,000 BTU Extreme Heat platform corresponding to the MO4HX-H27B-2A outdoor model is powered by 208/230 V, single-phase, 60 Hz. In the reference combination published by MIDEA in its multi-zone documentation, it reaches 23 SEER2, 12.5 EER2, and 10.5 HSPF2-4, with a listed outdoor sound level of 61 dB(A).

Its listed exterior dimensions are approximately 37 1/4 in. wide × 16 1/8 in. deep × 31 7/8 in. high, with a net weight of approximately 168 lb.

This weight is not insignificant when examining the job-site photo: the unit is supported directly against a masonry facade. The choice of support, anchoring points, and load-bearing structure is therefore an essential part of the work.

The MIDEA28 lineup is also advertised by MIDEA as an ENERGY STAR, cold-climate heat pump using R-454B refrigerant, with heating operation down to -30 °C.

For an installation in Quebec, this last point is decisive. A heat pump cannot be evaluated solely on its cooling performance in July: we also need to know what it can do when the temperature drops sharply in January.

Why we do not automatically assign the same AHRI number to all MIDEA28 configurations

MIDEA documentation associates reference AHRI 215471460 with the MO4HX-H27B-2A condenser when it is tested with a specific combination of All Easy Pro indoor units in a four-zone reference configuration.

This is an important detail for homeowners shopping for a heat pump based solely on a sales sheet.

In a multi-zone system, the condenser alone does not constitute the AHRI match. The indoor unit models also matter. On a dual-zone installation like the one in Saint-Jean-Baptiste, we must therefore validate the actual match of both indoor units rather than assume that a reference number published for another combination automatically applies.

This verification is particularly important when a subsidy application is being considered.

A long rise of lines on brick: what this installation reveals about HVAC expertise

A line set cover several meters long that had to become part of the architecture

The most interesting feature of this installation is probably the long vertical line set cover visible in the center of the photo.

Starting at the condenser, the line set cover first runs along the lower part of the wall, then rises over practically the entire visible height of the façade before turning horizontally beneath the upper part of the building.

Such a configuration requires much more planning than a wall-mounted installation in which the indoor unit is located directly behind the condenser.

Before starting, we need to consider the complete route:

• position of each of the two indoor units;
• total length of the refrigerant lines;
• height difference between the units;
• piping limits permitted by MIDEA;
• location of penetrations into the building;
• protection of cables and lines;
• future access for HVAC service;
• secure attachment of the line set cover to the masonry;
• location of windows and other architectural elements;
• amount of refrigerant required based on the actual length of the lines, when required by the manufacturer's specifications.

This preparatory work avoids a common problem: reaching the middle of the façade and discovering that the planned route conflicts with a window, molding, or another building element.

Why run the lines vertically instead of crossing the façade in several places

The photo clearly shows the advantage of a centralized route.

We could theoretically have created several different routes to reach the zones. However, this would have multiplied the visible piping sections and changes in direction on the brick.

Instead, we grouped the route into a clean vertical line.

This approach offers three practical advantages.

First, the exterior appearance is much more orderly.

Second, the refrigerant lines and wiring remain protected inside a rigid cover rather than being directly exposed to the sun, rain, snow, and impacts.

Third, a logical layout makes subsequent service much easier. When a technician returns a few years later for diagnostics or HVAC maintenance, quickly understanding the routing of the lines is a real advantage.

The colour of the line set cover matters more than you might think

On this Saint-Jean-Baptiste project, we used a dark finish that visually complements the window frames and the building’s other dark elements.

On a beige and light-brown brick facade, a white line set cover running several metres would have been much more noticeable.

This type of choice obviously does not change the heat pump’s heating capacity, but it radically transforms the project’s final appearance.

For us, a good heat pump installation in Saint-Jean-Baptiste is about more than simply making the compressor work. It must also respect the building on which we are working.

A wall-mounted installation that frees up ground space and better protects the equipment

The outdoor unit visible in the photo is not placed directly on the ground. It is installed on a metal wall bracket.

This approach can be particularly useful in Quebec. It keeps the condenser elevated and allows snow accumulation around the unit to be managed more effectively, while keeping the space underneath clear.

However, the fastening method must be chosen correctly.

A condenser weighing approximately 168 lb, along with the mechanical forces generated by the operation of the compressor and fan, must not be installed on a support or surface whose strength has not been properly evaluated.

Vibration management is also important, especially when an outdoor unit is connected directly to the building structure.

Inverter technology that is particularly well suited to a two-zone system

MIDEA uses variable-speed technology that allows the system’s capacity to be adjusted as temperature and load change. According to the manufacturer’s documentation, when all rooms do not simultaneously require full capacity, the system can operate at partial load and reduce its energy consumption.

This is precisely one of the common scenarios with two zones.

If one zone reaches its setpoint while the second still needs heating or cooling, the system does not necessarily need to operate as though both spaces were demanding their maximum load.

Actual operation naturally depends on the combination of equipment, thermal loads, and outdoor conditions, but that is precisely why we pay close attention to sizing.

The oversizing trap in multi-zone systems

A common mistake is to arbitrarily add two large indoor units, thinking that “more BTUs” automatically means greater comfort.

This is not how a multi-zone system should be designed.

MIDEA specifies in its combination rules that when the total capacity of the indoor units exceeds the rated capacity of the outdoor unit, the available capacity of each unit may be reduced, a phenomenon that is particularly noticeable in heating mode.

Each zone must therefore be sized according to its actual needs: volume, insulation, windows, orientation, floor, air infiltration, and room use.

In Saint-Jean-Baptiste, as with our installations in Montréal, Laval, Longueuil, on the North Shore and the South Shore, this analysis is much more relevant than a simple estimate based solely on square footage.

SynchroConnect: an interesting function when several circuits converge

Multi-zone installations include several pairs of refrigerant lines and their corresponding wiring. Correctly matching each indoor unit with its circuit is therefore essential.

MIDEA includes a function called SynchroConnect. The documentation indicates that the system can diagnose connection matching and, in certain configurations, automatically synchronize the refrigerant lines and wiring when the ports do not initially match.

We obviously do not consider this technology a reason to work less methodically. On the contrary, for an installation like this one, with a long line set run and two distinct zones, we carefully identify and verify the circuits. SynchroConnect is an additional function of the MIDEA platform.

LogisVert: what to check before advertising a rebate

At the time of this publication in 2026, Hydro-Québec indicates that the LogisVert program may offer $120 per 1,000 BTU/h at -8 °C for the purchase and installation of a cold-climate ENERGY STAR-certified heat pump, when all program conditions are met.

For certain eligible multi-unit residential buildings, a $100 incentive per 1,000 BTU/h at -8 °C can bring the total assistance to $220 per 1,000 BTU/h at -8 °C for eligible installations completed since June 15, 2026. However, this measure includes additional criteria concerning, among other things, the building and its location.

The photograph of this project shows a multi-level building, but it obviously cannot, by itself, determine its eligibility for an enhanced incentive.

That is why we prefer to review the actual file rather than promise an amount based solely on the name MIDEA28.

The calculation depends in particular on the certified pairing, the recognized capacity at -8 °C, the installation date and compliance with the program's other requirements.

This Saint-Jean-Baptiste project clearly summarizes our approach to a dual-zone heat pump

The most impressive part of this installation is not hidden behind a technical data sheet: it can be seen directly on the wall.

The 27,000 BTU MIDEA28 condenser occupies a limited area at the bottom of the facade, the two circuits are grouped together, and a carefully aligned line set cover reaches the upper levels without running across the brick in several directions.

This type of project requires simultaneous consideration of the heat pump sizing, refrigerant line lengths, outdoor support, vibrations, facade aesthetics, service access and the system's winter performance.

For a homeowner currently comparing a single-zone heat pump with a MIDEA dual-zone heat pump, this installation provides a very concrete answer: multi-zone becomes particularly interesting when you want to serve two separate spaces while limiting the number of outdoor units.

At AirGreen, we carry out this type of HVAC installation in Saint-Jean-Baptiste and throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore and the South Shore. Every project begins with the same logic: choosing an appropriate capacity, determining a realistic location for the condenser, and planning the complete piping route before drilling or attaching anything.

For this MIDEA28 installation, this preparation translates into something very simple to see in the photo: despite several metres of routing along a large brick facade, the installation remains visually structured. This is precisely what we look for when a heat pump must become a permanent part of the building.
