A Discreet HVAC Installation in an Interior Space Where Every Detail Counts
In Outremont, the integration of a heating and air conditioning system is never limited to technical performance. In this residential area known for its elegant homes, carefully renovated apartments, and often highly refined interiors, an HVAC installation must respect the architecture, building constraints, and aesthetic of the room. This is precisely what guided our AirGreen team during this installation of a GREE FREE MATCH R32 DualZone heat pump, configured in 2 zones with 2 wall-mounted units.

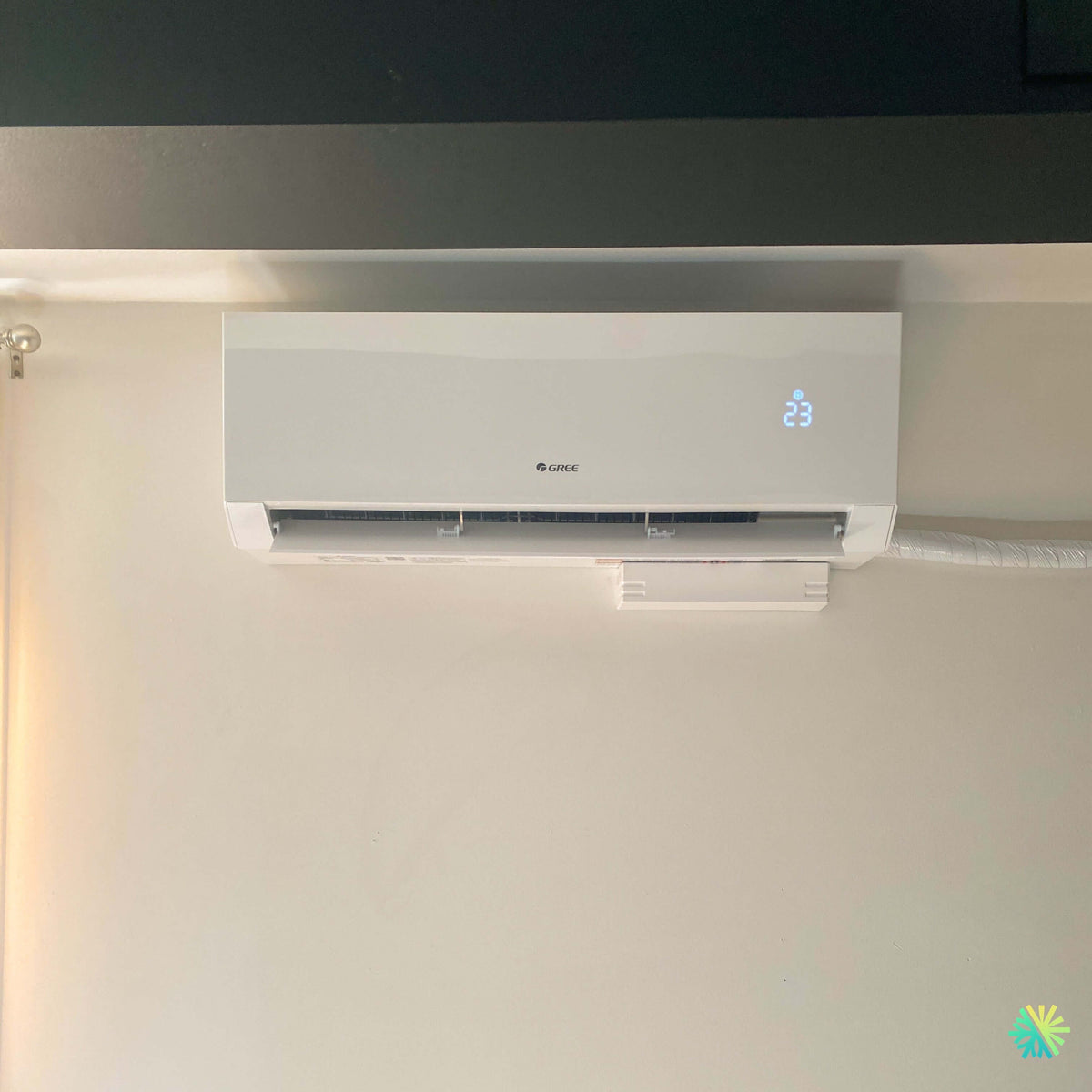

The photo of this project shows a GREE wall-mounted unit installed high on the wall, just below a dark beam or soffit, in a clean space. The unit displays a temperature of 23 °C, already illustrating the project's goal: to ensure stable, silent, and easily controllable comfort. We also notice the lateral routing of the lines in a discreet finish, with a duct and protection well integrated into the light-colored wall. This kind of detail is essential in a visible installation, especially in a residence where interior appearance matters as much as energy efficiency.
The choice of a GREE FREE MATCH R32 in a DualZone configuration met a very specific need: to provide independent comfort in two areas of the house, without multiplying outdoor units and without requiring major renovations. For a homeowner in Outremont, this approach allows them to benefit from a flexible, high-performance solution adapted to the realities of Montreal buildings.
Why a GREE FREE MATCH R32 DualZone is a Relevant Solution in Outremont
Two Wall-Mounted Units to Better Manage Temperature Differences
In many Outremont residences, rooms do not all behave the same way. An open-plan area may accumulate more heat, a bedroom may require a more stable temperature at night, an office may become uncomfortable in the afternoon due to sunlight, and an upper floor may retain more heat during the summer.
A DualZone heat pump allows precise action on these differences. With two wall-mounted units connected to a single outdoor unit, the owner can adjust each zone according to its actual use. The temperature can be comfortable in a living area without overheating or overcooling a bedroom. This independent management is particularly interesting in houses and apartments where occupancy habits vary from room to room.
The GREE FREE MATCH R32 system is designed for this type of multi-zone application. It allows capacity modulation according to demand, which promotes a more regular temperature and better controlled consumption. For the client, the result is more consistent comfort, fewer abrupt variations, and better adaptation to Montreal's seasons.
An Installation Designed for Interior Aesthetics
One of the most interesting aspects of this project is the location of the wall-mounted unit. It was installed very close to the ceiling, under a dark soffit, on a light-colored wall. This contrast makes the unit visible, but its clean and centered positioning gives it a discreet presence. The integrated digital display on the facade adds a modern touch without cluttering the room.
In this type of environment, the difficulty lies in avoiding an installation that appears to have been added as an afterthought. Our team paid particular attention to the alignment of the unit, the routing of the lines, and the finish of the wall penetration. The lateral duct visible in the photo was installed to protect the connections while maintaining a neat appearance. A poorly aligned installation or an overly conspicuous duct would have detracted from the final result.
At AirGreen, we know that a wall-mounted heat pump must function perfectly, but it must also integrate into the living space. This is even more true in neighborhoods like Outremont, where properties often have significant architectural or decorative value.
Technical Constraints Observed on Site
Limited Clearance Near the Ceiling
The indoor unit is installed under a ceiling drop or a dark decorative beam. This type of configuration requires a precise assessment of the available clearance. A wall-mounted unit must have enough space around it to allow for air intake, distribution, filter access, and future maintenance.
A common mistake is to install the unit too close to the ceiling or an overhead obstruction. This can restrict airflow and impair performance. In this project, the location was chosen to maintain functional distance while respecting the room's architecture.
Air Diffusion to Optimize in a Minimalist Room
The visible wall-mounted unit blows air forward and downward. In a minimalist space, it is necessary to anticipate air movement without creating uncomfortable drafts. The goal is to distribute heat or coolness evenly, especially if the room is open to other areas.
The positioning of this unit allows air to be projected into the main space, without immediate obstruction in front of the outlet. This decision is important to avoid cold spots when air conditioning or poorly heated areas in winter.
Clean and Protected Line Routing
To the right of the unit, a lateral finish is visible, protecting the line routing. In a multi-zone installation, each indoor unit must be connected to the outdoor unit by refrigerant lines, a communication cable, and a condensate drain. These elements must be installed rigorously, as they directly influence the system's reliability.
Line routing is often one of the elements that differentiate an average installation from a professional one. A poorly placed duct, an improperly sloped drain, or insufficiently protected lines can cause long-term problems. On this site in Outremont, the finish was executed with particular attention to discretion and durability.
R32 Technology: A Modern Choice for Residential Installations
The GREE FREE MATCH R32 uses R32 refrigerant, a new-generation fluid commonly used in recent HVAC equipment. It is valued for its thermal efficiency and improved environmental profile compared to many older refrigerants. For the client, choosing an R32 system is part of a modernization logic: better efficiency, current design, and compatibility with recent industry standards.
However, an R32 system requires compliant installation. Refrigerant connections, pressurization, vacuuming, connection validation, and commissioning must be carried out by qualified professionals. A high-performance heat pump only delivers its full potential if installed correctly.
At AirGreen, we never treat these steps as mere formalities. They are an integral part of the system's final performance, both for summer air conditioning and for heating during cold seasons.
Main Steps of the Installation
1. Assessment of the Areas to Be Served
Before recommending a DualZone heat pump, we analyze the room configuration, usage habits, heat losses or gains, building orientation, ceiling heights, and installation constraints. In Outremont, this analysis is particularly important, as buildings can have specific characteristics: thicker walls, successive renovations, delicate interior finishes, narrow spaces, or exterior constraints.
The goal is to determine where to place the two wall-mounted units to maximize comfort, rather than choosing locations based solely on technical ease.
2. Selection of Interior Locations
The unit visible in the photo was installed in a high and clear area, under a dark soffit. This position allows for preserving available wall space while ensuring efficient diffusion. For the second head, the same logic was applied: finding a useful, accessible, discreet, and coherent location with air circulation.
In a 2-zone system, the choice of locations must also take into account the overall balance between the two units. Each unit must be able to meet its own needs without creating comfort conflicts in the rest of the house.
3. Refrigerant Connections and Drainage
A multi-zone installation requires more planning than a single-zone installation. Two indoor circuits must be coordinated to a single outdoor unit. The lines must be insulated, protected, and routed cleanly. The condensate drain must have an adequate slope or an adapted solution when the configuration does not allow for natural drainage.
In this installation, the visible lateral routing reflects this coordination step. Nothing is left to chance: mechanical protection, wall finish, alignment, and drainage verification.
4. Commissioning and Verifications
After the physical installation, our team performs the necessary tests: connection verification, vacuuming, leak testing, system startup, validation of heating and cooling modes, and explanation of use to the client.
This phase is essential to ensure that the GREE FREE MATCH R32 operates correctly in both zones. A multi-zone system must be tested carefully, as each head must communicate effectively with the outdoor unit.
Concrete Benefits for the Homeowner
The installation of a GREE FREE MATCH R32 DualZone heat pump brings several practical benefits:
- Personalized comfort in two distinct zones.
- Reduced outdoor footprint, thanks to a single outdoor unit.
- More precise temperature management, room by room.
- Quiet operation, suitable for living spaces and bedrooms.
- Improved energy efficiency, thanks to Inverter modulation.
- Ductless solution, ideal for homes and apartments where a central system would be too invasive.
- Use for both air conditioning and heating, particularly useful for inter-seasons in Montreal.
For a building in Outremont, these advantages are very relevant. Owners often seek a solution that improves comfort without compromising interior appearance or requiring major renovations.
Mistakes to Avoid with a DualZone Heat Pump
Underestimating the Importance of Location
A high-performance unit poorly positioned can yield disappointing results. It is important to avoid locations where the airflow is blocked, directed directly towards a seating area, or too close to an obstruction. In this project, the high and clear location of the wall-mounted unit promotes better diffusion.
Neglecting Maintenance Access
A wall-mounted unit must remain accessible for filter cleaning and HVAC maintenance. A unit installed too close to an overhead structure can complicate interventions. This is why we always assess the space available around the unit before confirming the installation.
Choosing a Configuration Without Considering Lifestyle Habits
A multi-zone system must correspond to the actual use of the house. The two zones must be selected according to the client's priorities: living area, bedroom, office, upper floor, or sun-exposed room. A good configuration maximizes the benefits of the system.
Entrusting Installation to a Team Without Multi-Zone Expertise
Multi-zone systems require more advanced technical mastery than simple installations. Line lengths, multiple connections, communication between units, drainage, and commissioning must be managed with precision. At AirGreen, our experience in HVAC installations in Montreal, Laval, Longueuil, on the North Shore, and the South Shore allows us to handle these projects methodically.
Usage Tips to Maximize Performance
After installation, we recommend that the client use the system regularly and consistently. Modern heat pumps with Inverter technology are designed to modulate. They often offer better results when abrupt setpoint changes are avoided.
Some good practices:
- Maintain a consistent temperature rather than frequently turning off and on.
- Clean filters according to the use of each room.
- Keep the area in front of the unit clear.
- Use each head according to the actual occupancy of the room.
- Schedule periodic HVAC maintenance to preserve performance.
In the installation visible in the photo, the space in front of the unit is clear, which promotes good air projection. The temperature displayed at 23 °C corresponds to a comfortable setpoint for many indoor environments, especially when the system maintains a stable temperature.
Subsidies and Potential Eligibility
Depending on the exact model, installed configuration, applicable criteria, and requirements of available programs, certain heat pumps may be eligible for subsidies or financial aid. Owners in Montreal, Laval, Longueuil, on the North Shore, and the South Shore should check the applicable conditions at the time of their project, as amounts and criteria may evolve.
AirGreen assists its clients in understanding the necessary documents: invoice, installed model, technical information, and proof of installation. This help is invaluable in avoiding errors in the file and facilitating the process.
The AirGreen Approach: Technical Rigor and Clean Finish
This installation in Outremont is a good representation of our way of working. We do not consider a wall-mounted heat pump as a simple device fixed to the wall. Each installation is an assembly of decisions: system choice, positioning, line routing, drainage, finishing, commissioning, and explanation to the client.
Our experience in Greater Montreal has taught us that a good result relies as much on visible details as on hidden elements. A well-aligned duct, a straight installed unit, a properly designed drain, and a complete commissioning make all the difference in the long run.
In this project, the GREE FREE MATCH R32 DualZone offers the client an efficient and discreet solution, adapted to a Montreal residence where performance had to coexist with meticulous interior finishing. The system meets comfort needs in two zones, while limiting visual impact and exterior bulk.
For Outremont homeowners considering an HVAC installation, a heat pump, a wall-mounted air conditioner, or a multi-zone system, this project demonstrates the importance of entrusting the work to a team capable of analyzing the building, proposing the right configuration, and delivering a professional finish.
