Installation of a GREE FREE MATCH R32 Quad-Zone 4-head heat pump in Dorval

A discreet multi-zone solution to improve room-by-room comfort in a Dorval residence

In Dorval, residential heat pump projects often require a combination of technical precision, visual discretion, and intelligent planning. Homes in the area frequently feature closed rooms, ceilings with moldings, door openings that influence air circulation, and walls where every inch counts for a clean installation. It is in this context that our AirGreen team installed a GREE FREE MATCH R32 Quad-Zone heat pump, a 4-Zone – 4-Head system designed to offer independent comfort control in several areas of the property.

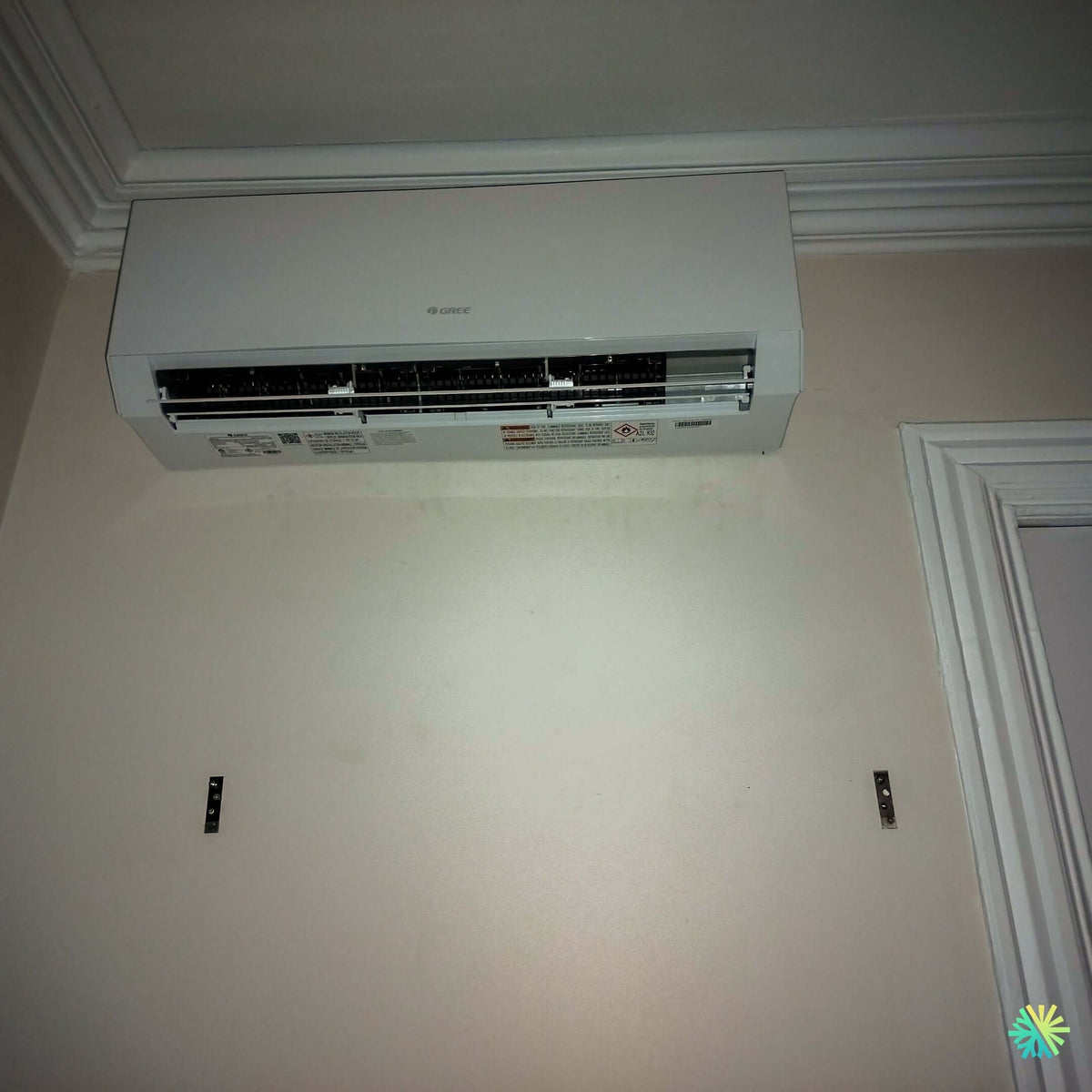

The interior photo of this installation shows one of the GREE wall-mounted units placed very high, close to the ceiling and moldings. This detail is important: in a residence where interior aesthetics are a priority, the location of a wall unit should never be chosen randomly. It is essential to ensure good air distribution, respect necessary clearances, preserve the appearance of the room, and provide an efficient technical passage to the outside or to other system components. In this Dorval project, our work involved integrating a high-performance HVAC (heating, ventilation, and air conditioning) solution without disturbing the visual balance of the space.

A Quad-Zone heat pump like the GREE FREE MATCH R32 is particularly well-suited to the needs of homeowners who want to air condition and heat multiple rooms without installing several independent outdoor units. Each indoor head can be used according to the actual needs of the room, which improves daily comfort while avoiding a uniform and sometimes inefficient management of the entire house.

Why a GREE FREE MATCH R32 Quad-Zone was relevant for this residence

The choice of a GREE FREE MATCH R32 system is explained by the flexibility this range offers. In a residence where several spaces require distinct control, the multi-zone system becomes a very attractive solution. It allows multiple indoor units to be connected to a single outdoor unit, which reduces clutter around the property and facilitates the integration of the system into a residential environment.

In this project, the client was looking for a solution capable of meeting different needs depending on the rooms. Some areas required more air conditioning in the summer, while others primarily needed supplementary heating during colder periods. With a 4-head heat pump, each space can be adjusted individually, without imposing the same temperature on the entire house.

The R32 refrigerant is also a significant advantage. It is used in several modern air conditioning and heating equipment, notably for its good thermal performance. For a homeowner in Dorval, where seasonal variations can be significant between summer humidity and winter cold, choosing an efficient and well-sized system makes a real difference.

A wall-mounted unit installed near moldings: an interior integration challenge

The project image reveals a delicate interior installation: the wall-mounted unit is positioned near the ceiling, just below a decorative molding. This type of configuration requires great precision. A wall unit must be installed high enough to allow good air diffusion, but it must not be placed too close to an obstacle that could hinder airflow or complicate access for HVAC maintenance.

Our technicians therefore paid particular attention to several elements:

• the alignment of the unit with the architectural lines of the room;
• the required clearance above and around the wall unit;
• the direction of the airflow to avoid direct discomfort;
• the solidity of the wall anchoring;
• the routing of refrigerant lines and the drain;
• filter accessibility for regular maintenance;
• the visual finish around the unit.

In a room with moldings, door frames, and visible walls, the installation of a wall-mounted heat pump must be clean. A slight misalignment can become very apparent. This is why our team always takes the time to carefully validate the location, considering both technical requirements and the final appearance.

The role of each head in a 4-Zone system

A Quad-Zone heat pump does not function as four randomly placed independent units. Each indoor head must have a clear function within the overall system. For this installation in Dorval, our planning aimed to ensure a balanced distribution of comfort in the main living areas.

In a typical house, needs can vary greatly from room to room. A bedroom often requires quieter operation and a stable temperature during the night. A living room needs better air throw to cover a larger space. An office or a closed room may need quick control, especially if it is used at specific times. A family area may require different capacity depending on sun exposure and the number of occupants.

The GREE FREE MATCH R32 system allows precisely this adaptation. Each indoor head can be used independently, giving the customer better control over their comfort. This flexibility is highly valued in homes in Dorval, but also in residences in Montreal, Laval, Longueuil, on the North Shore and the South Shore, where interior configurations are rarely identical from one property to another.

An installation designed for comfort, not just capacity

A heat pump system must be precisely sized. The number of BTUs should never be chosen solely based on a quick estimate of the area. Insulation, orientation, windows, ceiling height, air circulation, doors, staircases, and the use of each room must be taken into account.

In this project, the goal was not simply to install a GREE heat pump with 4 heads, but to create consistent comfort. The mounting height of the head visible in the photo allows air to be diffused from the top of the room, which is generally favorable for distributing air conditioning in summer. For heating, the orientation of the louvers and the usage settings become important to promote good downward flow of warm air into the occupied zone.

This nuance is essential: a good HVAC installation is not limited to connecting equipment. It includes explaining the settings to the client, positioning the louvers, using operating modes, and providing seasonal advice to optimize performance.

The technical steps of the AirGreen installation in Dorval

For this GREE FREE MATCH R32 Quad-Zone installation, our team followed a structured work sequence. Multi-zone projects require more coordination than a simple wall-mounted system, as each head must be correctly connected to the outdoor unit, with clearly identified lines and communications.

The main steps included:

1. Analysis of the areas to be served
   Each room was evaluated according to its surface area, exposure, use, and wall constraints.
2. Choice of indoor locations
   Wall-mounted units were positioned to maximize comfort and limit visual impact.
3. Planning of line routing
   Refrigerant lines, communication cables, and drains were organized to achieve a clean and efficient layout.
4. Fixing of wall plates
   Each indoor support was securely installed, with particular attention to level and alignment.
5. Refrigerant connection
   Connections were made rigorously to ensure the system's tightness and reliability.
6. Vacuuming and testing
   The circuit was prepared according to best practices before commissioning.
7. Verification of each head's operation
   Heating, cooling, ventilation modes, and individual control were tested.
8. User advice to the client
   The client received explanations on settings, filter maintenance, and efficient system use.

This method reduces the risk of errors and ensures a more durable installation. On a 4-Zone system, every detail counts, as a single misidentified line, insufficient drain slope, or poor indoor location can affect the customer's experience.

The details that make the difference in a successful Quad-Zone installation

Condensate drain management

In cooling mode, each indoor unit produces condensation. In a 4-head installation, drain management becomes a major element. Inadequate slope or a poorly designed path can cause leaks, odors, or humidity problems. Our technicians therefore plan the drains from the outset, rather than treating them as a secondary detail.

In Dorval residences, interior finishing constraints can complicate drain routing, especially when the heads are installed in separate rooms. Good planning helps limit visible interventions while maintaining reliable drainage.

Sound level and night comfort

A wall-mounted unit installed in a bedroom or near a resting area must be carefully chosen and adjusted. GREE units are designed to offer comfortable operation, but the result also depends on the location, the fan speed used, and how air circulates in the room. During commissioning, we test the settings to help the client find a balance between comfort, discretion, and performance.

The finish around interior walls

The photo shows a unit installed in a room where moldings and frames create a very precise visual setting. An installation in this type of space must respect the room's appearance. We ensure to avoid unnecessary marks, correctly center the unit according to available constraints, and protect surfaces during work.

This attention to detail is one of the reasons why many clients choose AirGreen for their wall-mounted heat pump or wall-mounted air conditioner projects in Greater Montreal.

The importance of a complete commissioning

Commissioning is a crucial step. Once the heads are connected and the outdoor unit is installed, it is necessary to verify that each zone functions correctly. On a GREE FREE MATCH R32 system, each head must respond to commands, produce the expected temperature, correctly evacuate condensation, and communicate adequately with the outdoor unit.

We particularly check:

• supply air temperatures;
• heating mode behavior;
• cooling mode behavior;
• absence of abnormal vibrations;
• drainage;
• individual controls;
• connections;
• the final cleanliness of the installation.

This step is essential to ensure a stable customer experience from the first days of use.

Practical advice for homeowners considering a 4-Zone heat pump

Before choosing a Quad-Zone heat pump, it is useful to consider how the house is actually used. Many homeowners initially think in terms of total area, whereas a multi-zone system should rather be thought of room by room.

Here are some practical tips:

• choose priority rooms based on actual occupancy;
• avoid oversizing heads in small rooms;
• plan for filter access for maintenance;
• take into account doors that often remain closed;
• avoid placing a head directly facing a bed or sofa;
• discuss the outdoor location from the outset;
• check subsidy possibilities based on the installed combination;
• compare installation quality, not just price.

A successful HVAC installation depends as much on the choice of equipment as on the quality of the on-site work. This is particularly true with multi-zone systems, where planning errors can be costly to correct later.

Subsidies and eligibility: an aspect to validate depending on the configuration

Homeowners in Dorval, Montreal, Laval, Longueuil, on the North Shore, and on the South Shore are often interested in financial assistance programs related to heat pumps. Eligibility depends on the exact model, the combination of units, current criteria, and the requirements of the applicable program at the time of installation.

For a GREE FREE MATCH R32 Quad-Zone system, it is important to keep installation-related documents, including the invoice, model numbers, technical information, and any documentation required for a potential application. At AirGreen, we help our clients understand these elements so they can submit their application correctly when the installed system is eligible.

Why AirGreen is a solid choice for multi-zone installations

AirGreen regularly completes heat pump, wall-mounted air conditioner, central system, and multi-zone installation projects in the greater Montreal area. Our experience with a wide variety of buildings allows us to adapt each project to the realities of the site: old walls, ceilings with moldings, confined spaces, co-ownerships, visible facades, finishing requirements, and electrical constraints.

For this installation in Dorval, our approach was guided by three priorities: comfort, cleanliness, and durability. The wall-mounted unit visible in the photo perfectly illustrates this philosophy. It is installed high, carefully aligned, integrated into an interior environment where appearance matters, while offering efficient air diffusion for the room.

Our clients particularly appreciate our ability to clearly explain technical choices. A multi-zone heat pump represents a significant investment. It is therefore normal to want to understand why a unit is placed in a specific location, why a certain line path is recommended, or why a given capacity is preferable to another.

A project that improves comfort without altering the home's appearance

The final result of this GREE FREE MATCH R32 Quad-Zone installation in Dorval is a complete solution, capable of offering independent comfort in several rooms while maintaining a neat interior appearance. The system allows the client to better manage air conditioning in summer, heating in the cold season, and the daily use of each zone.

A 4-Zone heat pump is particularly useful for homes where needs vary by room. It avoids relying on a single diffusion point and allows comfort to be adapted to the reality of each space. When installed correctly, it becomes a durable, efficient, and pleasant-to-use solution.

At AirGreen, we approach each project as a custom installation. We don't just aim to install a device; we aim to deliver a well-integrated, well-explained, and reliable system. For homeowners in Dorval and Greater Montreal considering a wall-mounted heat pump, a Quad-Zone heat pump, or a wall-mounted air conditioner, this type of project demonstrates the importance of entrusting the installation to an experienced team, attentive to detail, and accustomed to local realities.
