Installation of a Sharp ZU1 Mini Split Heat Pump in Kirkland, Montreal
Discover how we installed the Sharp ZU1 heat pump in Kirkland, offering top-tier energy efficiency, air purification, and a $2,172 LogisVert grant. Perfect for Quebec’s extreme weather!
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Why This Installation Stands Out

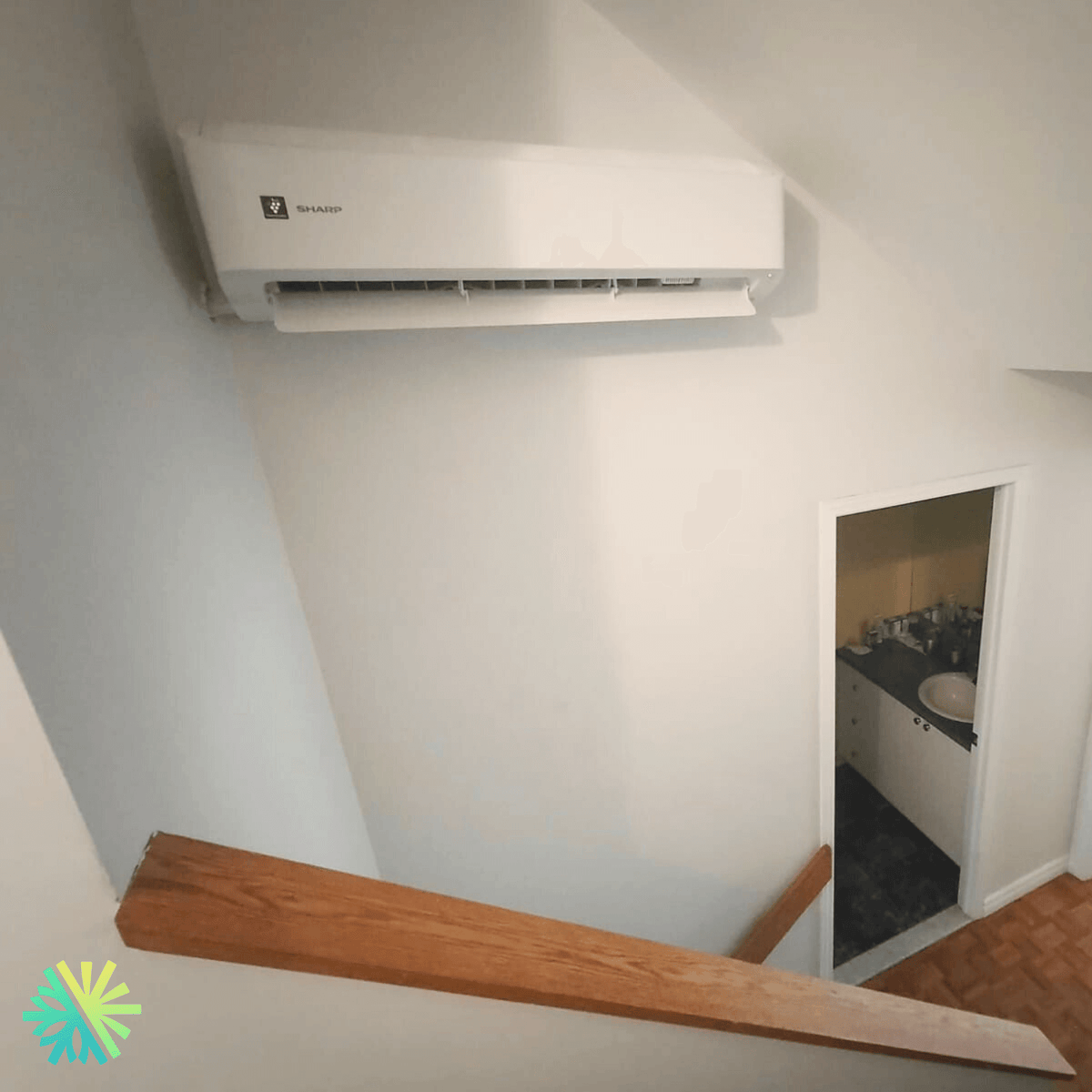

In the beautiful suburb of Kirkland, located on the West Island of Montreal, we recently completed an installation of a Sharp ZU1 15,000 BTU wall-mounted mini split heat pump. This project, while it may seem like a standard setup, had some unique features that made it particularly interesting for both our team and the homeowner. The Sharp ZU1 series is renowned for its advanced technology and high energy efficiency, which are key reasons why this installation qualifies for a $2,172 LogisVert grant from Hydro-Québec—currently the highest grant available for a 15,000 BTU unit in Quebec!
A Perfect Fit for Kirkland's Climate
Montreal winters can be brutally cold, and summers are known for their sweltering heat. The Sharp ZU1 mini split is designed to handle these extreme temperature fluctuations. This system provides reliable heating even when outdoor temperatures drop as low as -27°C, making it an ideal choice for Quebec's harsh winters. On the flip side, its cooling capabilities ensure that the home remains a cool haven during the hot summer months.
By opting for the Sharp ZU1, the homeowner not only invests in comfort but also in sustainability, as the ZU1 uses R-32 refrigerant, a more environmentally friendly option that helps reduce the home’s carbon footprint.
The Installation Process: A Unique Challenge
We were tasked with installing this heat pump in a somewhat unconventional spot—a staircase landing in the home. The placement of a unit in such a location required precise measurements and thoughtful planning. The goal was to ensure optimal air circulation throughout the main living areas while also making sure that the airflow wouldn’t be directly hitting the stairwell traffic.
Balancing Efficiency and Aesthetics
With any HVAC installation, especially in homes with unique architectural features, balancing functionality with aesthetics is crucial. The homeowner wanted the Sharp ZU1 to seamlessly blend into the interior design while maximizing the unit’s efficiency. To achieve this, our expert team at AirGreen carefully positioned the unit so that the airflow would distribute evenly across the room, making full use of the Coanda effect. This technology allows the air to follow the surfaces of the walls and ceilings, creating a more natural flow and ensuring that both heating and cooling are dispersed evenly throughout the space.
Why the Sharp ZU1 Was the Perfect Choice
Energy Efficiency and Long-Term Savings
The Sharp ZU1 is not just any heat pump; it’s equipped with the latest inverter technology, which adjusts the compressor’s speed to meet the precise heating or cooling demands. This means the unit doesn’t constantly turn on and off, saving energy and significantly reducing electricity bills. Its SEER rating of 24.0 is among the highest available, guaranteeing that homeowners can enjoy energy efficiency without sacrificing performance.
Plasmacluster Technology: A Breath of Fresh Air
Sharp is known for its Plasmacluster technology, which is a unique air purification system that goes beyond simply cooling or heating a space. This system helps to remove allergens, mold, and even viruses from the air, ensuring that the indoor environment is not only comfortable but also healthier for the homeowner and their family. In homes where indoor air quality is a concern, such as those with pets or respiratory sensitivities, the Sharp ZU1 makes a significant difference.
Quiet Operation for a Peaceful Home
One of the standout features of the Sharp ZU1 is its quiet operation. With a sound pressure level of just 23 dB(A) indoors, it’s one of the quietest models on the market. For this installation, that was a particularly important consideration, given its placement near the staircase, where noise could easily carry through the house. The homeowner was thrilled with how quiet the system was, even when running at full capacity.
The LogisVert Grant: A Game-Changer for Quebec Homeowners
A big selling point for the Sharp ZU1 is its eligibility for the $2,172 LogisVert grant, offered by Hydro-Québec. This is the highest grant available for a mini split in its class and provides a significant financial incentive for homeowners who are looking to improve their home’s energy efficiency. The Sharp ZU1 is a perfect match for this program due to its top-tier energy efficiency and eco-friendly refrigerant.
How to Qualify for the Grant
To qualify for the LogisVert grant, the installation must meet specific energy efficiency requirements, and the homeowner needs to ensure that the unit is installed by a certified professional. Our team at AirGreen specializes in helping clients navigate the application process, ensuring that they get the maximum available incentives for their HVAC upgrades.
Why Choose AirGreen for Your Installation?
At AirGreen, we pride ourselves on delivering high-quality installations that are tailored to each home’s unique needs. Our expert technicians have years of experience in the HVAC industry, particularly with complex installations like this one in Kirkland. We understand that every home is different, and we take the time to plan each installation carefully to ensure that the system operates at its highest efficiency.
Our Commitment to Customer Satisfaction
From the initial consultation to the final walkthrough, we maintain an open line of communication with our clients. We understand that an HVAC system is a significant investment, and we want our customers to feel confident in their decision to choose AirGreen. That’s why we offer an extended 10-10-10 warranty (10 years on the compressor, 10 years on parts, and 10 years on labor), so homeowners can rest easy knowing that their system is protected for the long haul.
Conclusion
The Sharp ZU1 mini split heat pump is an excellent choice for homeowners in Quebec who want a system that performs well in extreme weather, purifies the air, and saves on energy costs. The unit’s placement in this Kirkland home demonstrates our ability to adapt to unique spaces and deliver top-tier service.
If you’re considering upgrading your HVAC system, reach out to AirGreen today. We’ll help you choose the right system for your home, guide you through the grant application process, and ensure that your installation is smooth, efficient, and customized to your needs.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
