Installation of a Sharp ZU1 24,000 BTU Heat Pump in Repentigny
Learn how our Sharp ZU1 heat pump installation in Repentigny ensures year-round comfort, energy efficiency, and indoor air quality, backed by a $2,688 LogisVert Grant.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Experience the Efficiency and Comfort of the Sharp ZU1 in Repentigny
At AirGreen, we are committed to providing top-notch HVAC services across Montreal, Laval, Longueuil, North Shore, and South Shore. Our recent project in Repentigny showcases the installation of a Sharp ZU1 24,000 BTU heat pump, offering homeowners an efficient, environmentally-friendly solution for year-round comfort. This installation not only highlights our expertise but also aligns with our mission to deliver cutting-edge technology combined with exceptional service quality.
Bringing Comfort to Repentigny with the Sharp ZU1

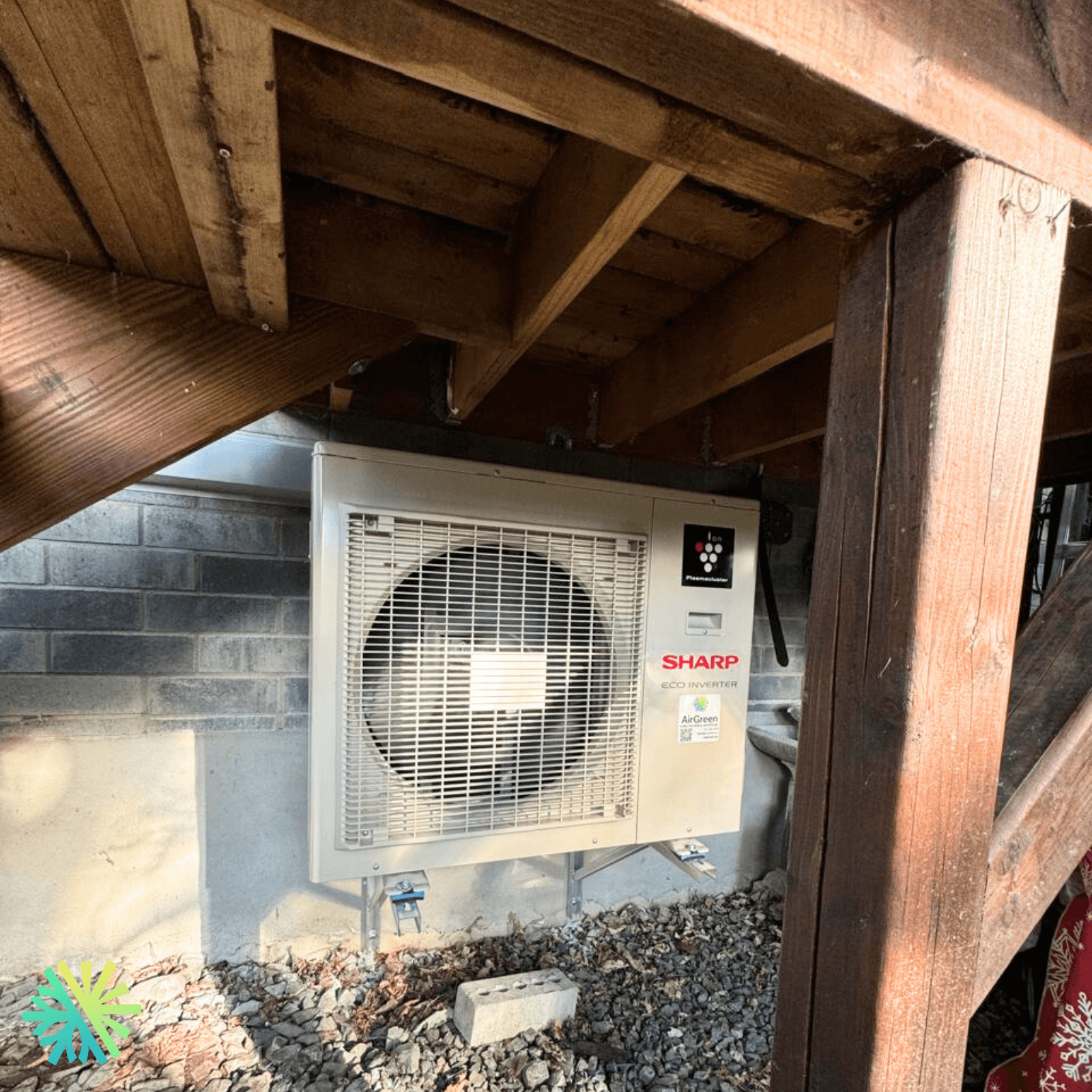

The project involved the installation of the Sharp ZU1 wall-mounted heat pump under a sheltered area to protect the outdoor unit from extreme weather conditions. With the harsh Quebec winters in mind, the location was carefully chosen to ensure maximum efficiency and protection. The model's ability to function optimally at temperatures as low as -27°C makes it a perfect fit for the region’s cold climate. By installing it beneath a sturdy wooden deck, we ensured the unit stays shielded from snow accumulation, ice, and direct sunlight, enhancing its longevity and performance.
Key Features of the Sharp ZU1 Heat Pump
- Energy Efficiency: The Sharp ZU1 is a modern marvel, offering an impressive 22.0 SEER rating. Its R-32 refrigerant is more eco-friendly compared to traditional options, reducing greenhouse gas emissions and energy consumption by approximately 10%.
- Plasmacluster Technology: One of the standout features of this unit is Sharp's proprietary Plasmacluster air purification technology, which works to eliminate airborne viruses, mold, and allergens. This technology is unique to Sharp products and significantly improves indoor air quality, contributing to a healthier home environment.
- Coanda Airflow Control: Ensures even temperature distribution throughout the space. The Coanda effect gently directs airflow along walls and ceilings, providing uniform comfort without blowing cold air directly onto the occupants.
- Winter Performance: The Hot Gas Pipe system and a special defrost mode keep the unit operational even during the coldest months, minimizing heat loss and maintaining a cozy indoor environment. Multiple drainage holes prevent ice buildup, while the anti-corrosive coating extends the lifespan of the exterior components.
A Smart Choice for Homeowners: The LogisVert Grant
This installation qualifies for the LogisVert Grant by Hydro-Québec, offering homeowners in Repentigny a substantial $2,688 rebate. This is the highest grant available for a 24,000 BTU mini split heat pump, making it an economical choice for energy-conscious customers. By opting for the Sharp ZU1, homeowners not only benefit from reduced energy bills but also receive significant financial incentives that offset the installation cost.
Tailoring the Installation to the Client's Needs
Our experienced team at AirGreen paid close attention to the specific requirements of the homeowner. The installation involved careful positioning of the unit to optimize airflow while maintaining a clean, aesthetically pleasing look. We selected the ideal location to minimize noise disturbance, with the outdoor unit's sound pressure level at 53.0 dB(A)—quiet enough to operate without disturbing the peaceful environment of the residence.
To achieve optimal performance, we used high-quality 1/4 - 3/8 pipes and 220V wiring, ensuring the system operates efficiently under varying load conditions. The indoor unit's sound pressure level ranges from 25 to 49 dB(A), providing quiet comfort that suits any living space.
Smart Connectivity for Modern Living
The Sharp ZU1 offers a suite of smart features that cater to the tech-savvy homeowner. It comes with built-in Wi-Fi capabilities, enabling remote operation through a smartphone app. The app not only provides real-time temperature and humidity readings but also offers insights into the heat pump's energy consumption. This allows homeowners to track their usage patterns and make adjustments to optimize efficiency.
The system also features a motion sensor, which detects when a room is unoccupied and adjusts the settings accordingly. This functionality ensures minimal energy wastage and contributes to a sustainable lifestyle. Additionally, GPS interlocking can automatically adjust the system based on the homeowner's proximity to the house, making it an intelligent choice for those seeking convenience and energy savings.
Enhancing Durability and Longevity
In Quebec's diverse climate, durability is a key factor for any heat pump installation. The Sharp ZU1 is designed with features that enhance its resilience:
- Anti-corrosive coating on outdoor components ensures they withstand harsh weather and resist rust over time.
- Multiple drainage holes help prevent water accumulation and freezing in the condensate pan, especially during winter months.
- The self-cleaning mode keeps the unit free from mold and dust, preserving air quality and extending the life of the system.
Why Choose AirGreen for Your HVAC Needs?
At AirGreen, we pride ourselves on our attention to detail and commitment to customer satisfaction. From the initial consultation to the final installation, our goal is to provide a seamless experience that leaves you with a reliable, high-performance HVAC system. Our technicians are highly trained in Sharp products and HVAC best practices, ensuring that every installation is executed to the highest standards.
By choosing AirGreen, you benefit from:
- Professional installation services that adhere to the latest industry standards.
- Customized solutions tailored to your specific needs and budget.
- Comprehensive warranty coverage of 10 years on the compressor, parts, and labor, with an extended warranty option for added peace of mind.
- Access to grants and rebates, such as the LogisVert Grant, to help reduce your investment.
The Importance of R-32 Refrigerant in Modern HVAC Systems
The Sharp ZU1's use of R-32 refrigerant is a game-changer in terms of both performance and environmental impact. This refrigerant has a lower global warming potential (GWP) than older options like R-22 and R-410A, making it a greener choice. R-32 not only enhances the heat pump's energy efficiency but also supports Quebec's ongoing efforts to reduce carbon emissions and transition to new government energy efficiency standards by 2025.
Installation Process: A Closer Look
Our installation in Repentigny involved several meticulous steps to ensure optimal performance and reliability:
- Site Assessment: We conducted a thorough assessment to determine the ideal location for the heat pump, taking into account factors like airflow, accessibility, and exposure to the elements.
- Mounting the Outdoor Unit: The outdoor unit was securely installed on a sturdy bracket, elevated to avoid potential water damage and snow accumulation.
- Indoor Unit Placement: The indoor unit was mounted at a strategic location to maximize the benefits of the Coanda airflow control, ensuring a consistent temperature throughout the home.
- System Testing and Optimization: After installation, we conducted a series of tests to verify the system's efficiency and ensure it meets all AHRI standards. We also provided the homeowner with a detailed walkthrough on how to use the heat pump's features and mobile app.
Conclusion: Comfort and Efficiency Combined
With the installation of the Sharp ZU1 24,000 BTU heat pump in Repentigny, we delivered a solution that embodies both comfort and sustainability. The Sharp ZU1’s advanced technologies, energy efficiency, and smart connectivity features make it an ideal choice for homeowners seeking year-round comfort without compromising on environmental responsibility.
Choose AirGreen for your next HVAC project and experience the benefits of a professionally installed, high-efficiency heat pump that meets the demands of Quebec's climate while qualifying for significant energy rebates. Let us help you achieve the perfect indoor climate with a system that is built to last.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
