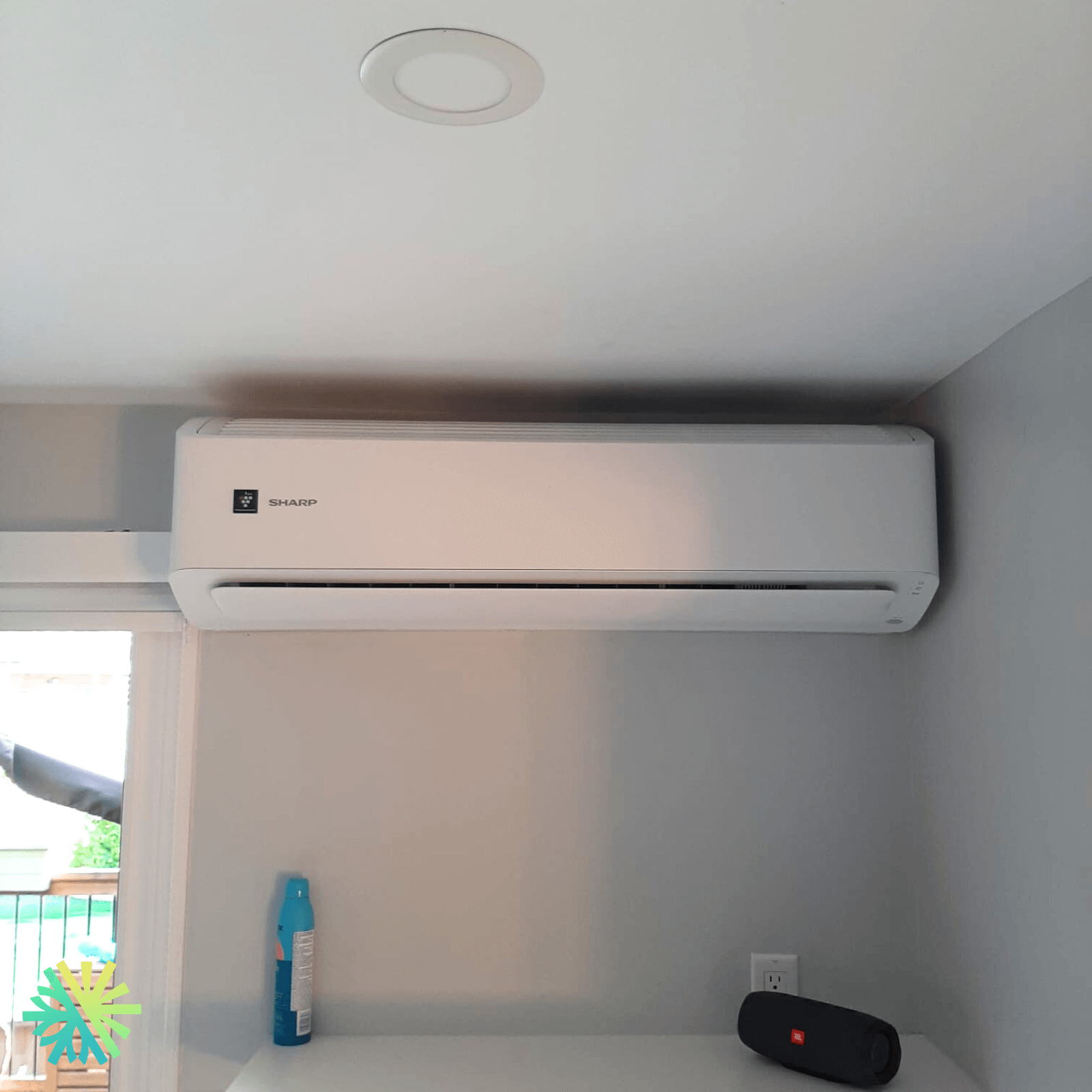

Installation of a SHARP ZU1 Mini Split Heat Pump in Sainte-Thérèse
Experience year-round comfort in Sainte-Thérèse with our SHARP ZU1 Mini Split installation, featuring energy efficiency and whisper-quiet operation. Find out more!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
An Unmatched Heating and Cooling Experience Tailored for Sainte-Thérèse’s Climate
At AirGreen, we take great pride in providing our clients with cutting-edge HVAC solutions tailored for optimal performance, no matter the season. Our latest project brought us to the scenic city of Sainte-Thérèse, where we completed an impressive installation of a SHARP ZU1 Mini Split Heat Pump. This energy-efficient unit not only enhances indoor comfort but also ensures top-tier performance even during the harshest Quebec winters. Here’s a detailed account of this installation, along with some key highlights of the impressive SHARP ZU1.
Understanding the Needs of Our Sainte-Thérèse Client
Sainte-Thérèse, known for its charming neighborhoods and historic charm, experiences wide temperature fluctuations throughout the year. Our client sought an HVAC solution that could offer reliable heating in the freezing winter months, as well as efficient cooling during the humid summer days. The SHARP ZU1, with its 18,000 BTU cooling capacity and outstanding performance down to -27°C, was the perfect answer to this challenge.
Key Features of the SHARP ZU1 Mini Split Heat Pump
Extreme Cold Performance
One of the standout features of the SHARP ZU1 Mini Split is its ability to deliver heat even in bone-chilling temperatures as low as -27°C. This ensures that our clients in Sainte-Thérèse stay warm and cozy, even when winter decides to show its fiercest face. The heat pump’s HOT GAS PIPE system prevents ice buildup, keeping the unit functioning smoothly throughout extreme weather conditions.
Ultra-Quiet Operation
When installing a unit in a peaceful residential area, noise levels matter. The SHARP ZU1 boasts a whisper-quiet indoor operation, ranging from 25 to 49 dB(A), making it perfect for maintaining a serene indoor environment. Even the outdoor unit, with a sound pressure level of 52 dB(A), operates unobtrusively, preserving the neighborhood's tranquility.
Technical Specs That Impress
- Energy Star Certified: Yes
- Cooling Capacity: 18,000 BTU
- Heating Capacity: Reliable performance down to -27°C
- Efficiency: A stunning 24.0 SEER, ensuring energy savings year-round
- Wi-Fi Enabled: Included, for seamless control and convenience
- AHRI Certified: 213246053
- Voltage: 220V
These specifications highlight the efficiency and performance of the SHARP ZU1, making it one of the best choices for homeowners in Quebec’s varying climate.
Installation Challenges and How We Overcame Them
Our team was tasked with ensuring that the heat pump’s placement maximized efficiency while adhering to the aesthetic and practical needs of the homeowner. The sleek design of the SHARP indoor unit, with dimensions of 41.42 x 9.80 x 12.44 inches, made it possible to mount it discreetly in the living space without compromising on decor. Meanwhile, the outdoor unit was installed securely, with special attention given to drainage to prevent water accumulation during defrost cycles.
Smart Placement
The outdoor unit, measuring 33.47 x 13 x 27.94 inches, was positioned strategically to ensure optimal air circulation and efficient operation. Our team made sure that all connections were meticulously sealed, preventing energy loss and enhancing the system’s longevity.
Grant Benefits: A Financial Win for the Homeowner
One of the exciting aspects of this project was informing the homeowner about the significant financial incentives available. The SHARP ZU1 qualifies for the highest LogisVert Grant from Hydro-Québec, amounting to $2,640 for units in the 18,000 BTU category. This grant not only reduces the initial investment but also underscores the environmental benefits of installing a high-efficiency heat pump.
Superior Air Quality with Plasmacluster Technology
The SHARP ZU1 is not just a heating and cooling powerhouse; it also enhances indoor air quality through its unique Plasmacluster ion technology. This innovative feature neutralizes airborne bacteria, viruses, and allergens, creating a healthier living space for the entire family. Say goodbye to musty odors and hello to fresh, clean air, all year round.
What Makes This Installation Unique?
Every project we undertake is unique, and this one was no exception. The Sainte-Thérèse homeowner was particularly concerned about indoor air quality and energy efficiency, which made the SHARP ZU1 an ideal match. The unit’s smart Wi-Fi capabilities allow for remote monitoring and adjustment, providing maximum convenience and energy savings. The client can now preheat their home on a cold winter evening with just a tap on their smartphone or ensure the house stays cool during summer heatwaves.
The AirGreen Difference
We pride ourselves on delivering not just installations but complete HVAC solutions. Our expert team ensured that every aspect of the SHARP ZU1 setup was optimized for performance and longevity. From precision piping using 1/4 - 3/8 inch lines to setting the unit’s voltage at 220V, every detail was executed with precision. Our meticulous approach ensures that homeowners can enjoy hassle-free operation and reduced energy bills for years to come.
Why Choose AirGreen for Your HVAC Needs?
- Expert Installations: Our team of certified professionals brings years of experience and a commitment to excellence.
- Comprehensive Support: From initial consultations to post-installation service, we’ve got you covered.
- Top-Tier Products: We partner with leading brands like SHARP to offer our clients the best in HVAC technology.
Client Testimonial
Our client was thrilled with the seamless installation and the immediate impact of the SHARP ZU1 on their home’s comfort. “AirGreen exceeded our expectations,” they said. “The SHARP ZU1 is whisper-quiet, and the air feels cleaner and fresher. The grant was a huge bonus, too!”
Final Thoughts
This project in Sainte-Thérèse was a testament to the power of great technology paired with expert craftsmanship. The SHARP ZU1 Mini Split Heat Pump is not just a heating and cooling solution; it’s a long-term investment in comfort, efficiency, and health.
For anyone considering an HVAC upgrade, AirGreen is here to guide you every step of the way. Our dedication to quality installations and customer satisfaction makes us a top choice in Montreal, Laval, Longueuil, and beyond.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
