Installation of a HITACHI airHome Multi three-zone multizone heat pump in Vimont, Laval

Three spaces heated and cooled with a single outdoor unit, without compromising the interior integration

In Vimont, in the northern sector of Laval, we installed a HITACHI airHome Multi triple-zone multi-zone heat pump to provide more evenly distributed temperature control across three distinct areas of the property. This configuration replaces the often-imperfect approach of installing a single oversized wall-mounted unit in a central area and hoping the air reaches the bedrooms, closed-off rooms, or different levels of the home.

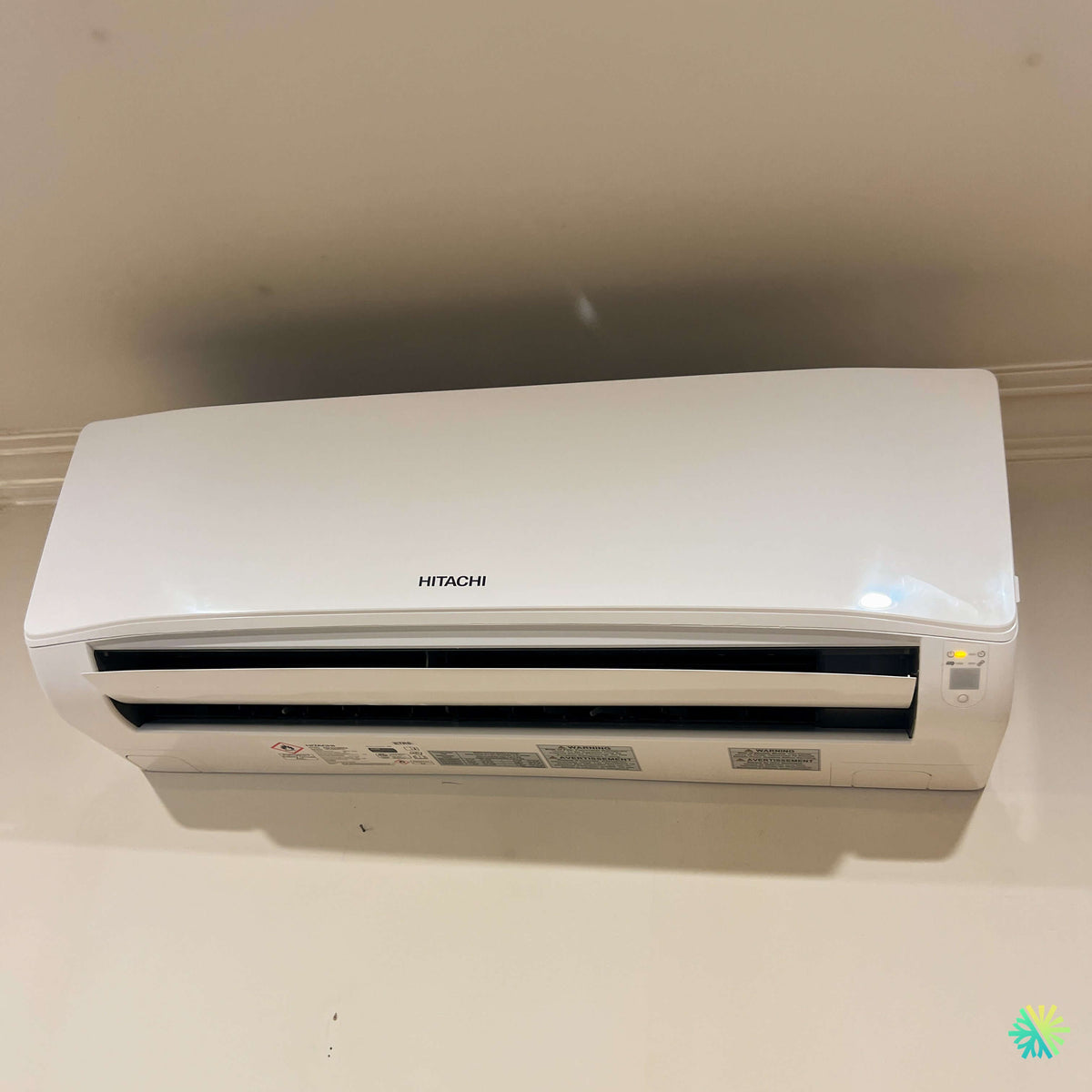

The installation photo shows one of the HITACHI indoor units in operation. Its air discharge louver is open, the control indicators are active, and the unit is installed near the ceiling on an unobstructed wall. The slightly rounded white casing blends discreetly into the interior décor without taking up floor space.

However, this location has an important feature: the unit is near an upper trim moulding. Our technicians therefore had to position the mounting plate precisely to preserve the space needed for air intake, opening the front panel, and removing the filters. An installation that is too close to the ceiling may look acceptable visually, but it can hinder airflow and make HVAC maintenance much more difficult.

In a triple-zone configuration, workmanship is not judged solely by the appearance of this wall-mounted head. It also depends on selecting the three indoor capacities, compatibility between the units, the route of each refrigerant line, condensate drainage, and commissioning the outdoor unit.

Why a triple-zone heat pump was the right fit for this Vimont home

Homes in Vimont often have several areas with different heating and cooling needs: an upper floor that is warmer in summer, a bedroom closed off at night, a cooler basement, a sun-exposed office, or a living area with large windows.

A single wall-mounted unit cannot always compensate for these differences. Conditioned air does not move efficiently through several closed doors, nor does it rise or descend evenly between levels. Even when a unit has sufficient BTUs on paper, its capacity does not guarantee even distribution.

The triple-zone multi-zone heat pump addresses this problem precisely. It allows three indoor units to be connected to a single outdoor unit. Each zone then benefits from:

• its own setpoint;
• its own fan speed;
• adjustable airflow direction;
• independent control;
• operation that can be interrupted when a room is not in use.

However, this independent control does not mean that all three zones can operate in opposing modes. As with most residential multi-zone systems, the units connected to the same outdoor unit must remain in compatible modes.

In summer, they can be set to cooling, dehumidification, or fan mode. In winter, they can operate in heating or fan mode. Therefore, a bedroom cannot call for heating while the living room simultaneously demands cooling.

HITACHI documentation indicates that the airHome Multi system can power up to five indoor units, depending on the outdoor unit selected. It also states that each unit can be controlled separately, with its own temperature and fan settings.

The outdoor unit associated with a triple-zone configuration

In the HITACHI airHome Multi range shown in the brochure, the model designed to accommodate up to three indoor units is the RAM-G24N3HAA.

This outdoor unit has a nominal cooling capacity of 24,000 BTU/h and a nominal heating capacity of 24,000 BTU/h. In a ductless configuration, the cooling capacity can modulate approximately from 7,000 to 28,000 BTU/h, while the heating capacity can vary from 9,000 to 26,200 BTU/h.

The term « triple zone » does not necessarily mean that each indoor unit constantly receives 8,000 BTU/h. The available capacity is dynamically allocated based on actual demand.

For example:

• if only one room calls for heating, a greater share of the capacity can be directed to that zone;
• if all three units operate simultaneously, the output is shared;
• when a zone reaches its set temperature, the system can reduce its output;
• in very cold weather, the total available capacity decreases, as it does with any air-to-air heat pump.

The selection of the three wall-mounted units must therefore be based on the needs of each room and the combinations authorized by HITACHI. It is not enough to arbitrarily add together three capacities indicated on the indoor units.

What we observe on the installed indoor unit

The photo shows several characteristic features of a well-integrated wall-mounted installation.

A high position that promotes air distribution

The unit is placed high on the wall. In cooling mode, cool air can be projected forward and then gradually distributed throughout the room. In heating mode, the flap direction can be adjusted to send the air more downward, where the occupants are located.

A unit installed too low can create an uncomfortable direct draft and reduce its range. Conversely, a unit positioned too close to the ceiling may not have enough space to draw in room air through its upper section.

We must therefore meet several criteria simultaneously:

• the manufacturer's clearance requirements;
• the presence of moldings;
• the actual ceiling height;
• the position of the furniture;
• the main direction of movement through the room;
• the location of the bed, sofa, or workstation;
• the possible routing of the piping.

An unobstructed, accessible front panel

The front panel must be able to lift up to provide access to the filters. In this installation, no furniture or decorative element obstructs the unit.

This access is essential because the filters must be inspected and cleaned regularly. A dust-filled filter restricts airflow, increases noise levels, and can reduce heating or cooling capacity.

A fully functional air discharge flap

In the photo, the large horizontal flap is open, and the small internal louvers are visible. These components control the direction of the airflow.

When commissioning the system, we verify that:

1. the flap opens without rubbing;
2. the louvers respond to commands;
3. no part of the casing vibrates;
4. the airflow is not directed at an obstacle;
5. air is distributed toward the area that is actually occupied.

The best unit can deliver disappointing results if the airflow is directed straight toward a door, a low ceiling, or a tall piece of furniture.

Available indoor capacities in the airHome Multi range

HITACHI offers several indoor unit sizes compatible with the airHome Multi system. The wall-mounted units in the brochure are available in capacities ranging from 7,000 to 24,000 BTU/h, depending on the series and model.

For a triple-zone project in Vimont, different combinations could be considered, for example:

• three small zones of comparable capacity;
• a larger main zone and two smaller bedrooms;
• an open-plan ground floor accompanied by two enclosed rooms;
• a wall-mounted unit combined with a floor console and a ducted unit.

The exact capacity of the photographed unit cannot be confirmed based on its appearance alone. Several models use a similar cabinet. The nameplate and installation documents remain the only reliable references for identifying the precise capacity.

This distinction avoids a common mistake: assuming that a larger wall-mounted indoor unit necessarily has a much higher capacity. Cabinet width may vary depending on the series, filtration components, and airflow, without making it possible to identify the exact number of BTUs.

Energy performance of the HITACHI airHome Multi triple-zone system

For the RAM-G24N3HAA in a ductless configuration, the brochure indicates, among other things:

• a TRÉ2 of 12,5;
• a TRÉS2 of up to 22,0;
• a CPSC2 of 9.5 in Region 4;
• a CPSC2 of 7.8 in Region 5;
• a COP of 3.5 at 8°C;
• heating operation down to -20°C;
• cooling operation from -10°C to 46°C;
• an advertised outdoor sound level of 54 dB(A);
• refrigerant use R32.

These figures correspond to the product range and vary according to the certified combination of indoor units. To confirm the precise performance of an installation and its eligibility for a financial assistance program, consult the AHRI reference for the actual installed system.

Understanding low-temperature capacity

The rated capacity of 24,000 BTU/h is measured under standardized conditions. It does not automatically represent the heat available during a cold snap in Laval.

For the RAM-G24N3HAA model, the documentation indicates approximately:

• 16,000 BTU/h rated heating capacity at -8°C;
• 18,500 BTU/h maximum capacity at -15°C;
• 13,000 BTU/h maximum capacity at -20°C.

These figures must be included in the load calculation. A multi-zone heat pump can cover a significant portion of annual needs, but it must be selected based on the building envelope and the available backup heating system.

A well-insulated home will not behave the same way as an older house with air infiltration, large original windows, or a poorly insulated basement.

Inverter technology and capacity distribution

The Inverter compressor adjusts its speed according to the combined demand of the three zones. This modulation is particularly useful in a triple-zone system because needs are constantly changing.

In the morning, a bedroom may require less heating after the occupants get up. During the day, an office may become the priority. In the evening, the family area may require more capacity. The system then adjusts its output rather than operating solely in on-off mode at full power.

This modulation helps to:

• maintain a more stable temperature;
• reduce frequent starts;
• improve comfort at partial load;
• reduce temperature variations;
• reduce noise when demand is low;
• use the shared outdoor unit more efficiently.

It remains important to use the controls consistently. Setting widely different temperatures between zones does not create additional capacity. The outdoor unit has a limited total output that it must distribute.

A triple-zone installation requires three perfectly coordinated runs

The refrigerant lines

Each indoor unit has its own refrigerant circuit connected to the outdoor unit. For the RAM-G24N3HAA model, the outdoor unit has three liquid connections and three gas connections. 1/4 po and three gas connections of 3/8 po.

Each pair of lines must be:

• cut cleanly;
• deburred;
• flared with the appropriate tool;
• tightened to the specified torque;
• insulated along its entire length;
• protected against crushing;
• identified according to the corresponding zone.

Identification is essential. The piping for zone A must correspond to the communication wiring for zone A. Reversing two circuits can cause operating errors that are difficult to diagnose after the walls are closed or the cable channels are installed.

The length limits to follow

For the triple-zone model, HITACHI specifies:

• a maximum total piping length of 200 feet;
• a maximum total height of 66 feet;
• a maximum length of 82 feet between the outdoor unit and an indoor unit;
• a minimum total length of 16 feet;
• a maximum elevation difference of 16 feet between the indoor units.

These limits directly influence job planning. The actual routes must be measured, including rises, drops, detours, and passages through cavities.

A shorter route is not always the best one. We sometimes need to choose a slightly longer path to avoid a beam, preserve the interior finish, or maintain an adequate drain slope.

Drainage for three indoor units

Each wall-mounted head produces condensation in cooling mode. A triple-zone installation therefore requires three drains to be planned.

When gravity drainage is possible, we favor continuous flow outdoors or to an appropriate destination. The line must avoid:

• back-pitches;
• crushed sections;
• unnecessary elbows;
• inaccessible connections;
• areas where water could freeze;
• discharges that could damage a wall or foundation.

When a unit is located too far from a drainage point, a condensate pump may be necessary. This component must be selected based on the flow rate, lift height, and acceptable noise level.

Features related to indoor cleanliness

The airHome Multi range includes several functions depending on the selected indoor unit.

FrostWash

The FrostWash technology uses a freezing and thawing cycle to help remove contaminants accumulated on the coil. The manufacturer presents this function as a way to maintain airflow and heat exchanger cleanliness.

However, it does not replace professional cleaning when the blower wheel, drain pan, or internal surfaces are heavily contaminated.

Mold Guard

After cooling or dehumidification, the Mold Guard function can circulate air for approximately 60 minutes to dry the internal components. This sequence helps limit conditions that promote odors and mold.

Filtration and leak sensor

Depending on the indoor series, the system may include a PM2.5 activated carbon filter, a ViroSense S filter, or a washable prefilter. The brochure also mentions a built-in refrigerant leak sensor on several unit types, with visual and audible alerts depending on the configuration.

Mistakes to avoid with a triple-zone heat pump

Adding up BTUs without validating the combination

Three heads whose nominal capacities add up to a high total will not necessarily all receive their full capacity simultaneously. The combination must be approved by the manufacturer and suited to the outdoor unit’s capacity.

Placing all units according to the easiest route

The placement should first serve comfort. Installing a head above a door simply because the exterior wall is nearby can result in poor air distribution.

Neglecting enclosed zones

A unit located in the hallway will not always replace a head installed directly in a bedroom. Closed doors severely limit air transfer.

Installing a unit too close to the ceiling

Air intake generally takes place through the upper section. Insufficient clearance can reduce airflow and make filter cleaning more difficult.

Set one zone to heating and another to cooling

The three units share the same outdoor unit. They must operate in the same compatible seasonal mode.

Postponing filter maintenance

With three indoor units, there are three sets of filters to monitor. We recommend regular checks, particularly in homes with pets, renovation work or high levels of dust.

A solution suited to homes in Vimont and Greater Montréal

This HITACHI airHome Multi triple-zone multizone heat pump installation in Vimont makes it possible to condition three spaces more precisely while limiting the number of outdoor units.

The wall-mounted unit visible in the photo illustrates the importance of careful integration: a properly aligned unit, accessible front panel, unobstructed louver and placement chosen with the trim and available height in mind. Behind this simple appearance is a complete network of lines, drains and cables that must be coordinated with the other two zones.

We apply this same rigor to our installations in Laval, Montréal, Longueuil, on the North Shore and on the South Shore. Requirements vary from one building to another, but the principles remain the same: calculate the needs, respect the combinations, protect the lines, check the drains and test each zone.

In this Vimont project, the triple-zone configuration provides a more targeted response to temperature differences between rooms. It allows occupants to adjust their comfort according to how the home is actually used rather than relying on a single unit intended to serve all areas.
