A discreet installation beneath a sloped ceiling to ensure year-round comfort in a bedroom
Installing a wall-mounted heat pump in a room with a sloped ceiling requires more than simply choosing a location. In Saint-Rémi, in Montérégie, our AirGreen team had to integrate an ELIOS EMC indoor unit into a bedroom where the architecture naturally limited the available vertical space.

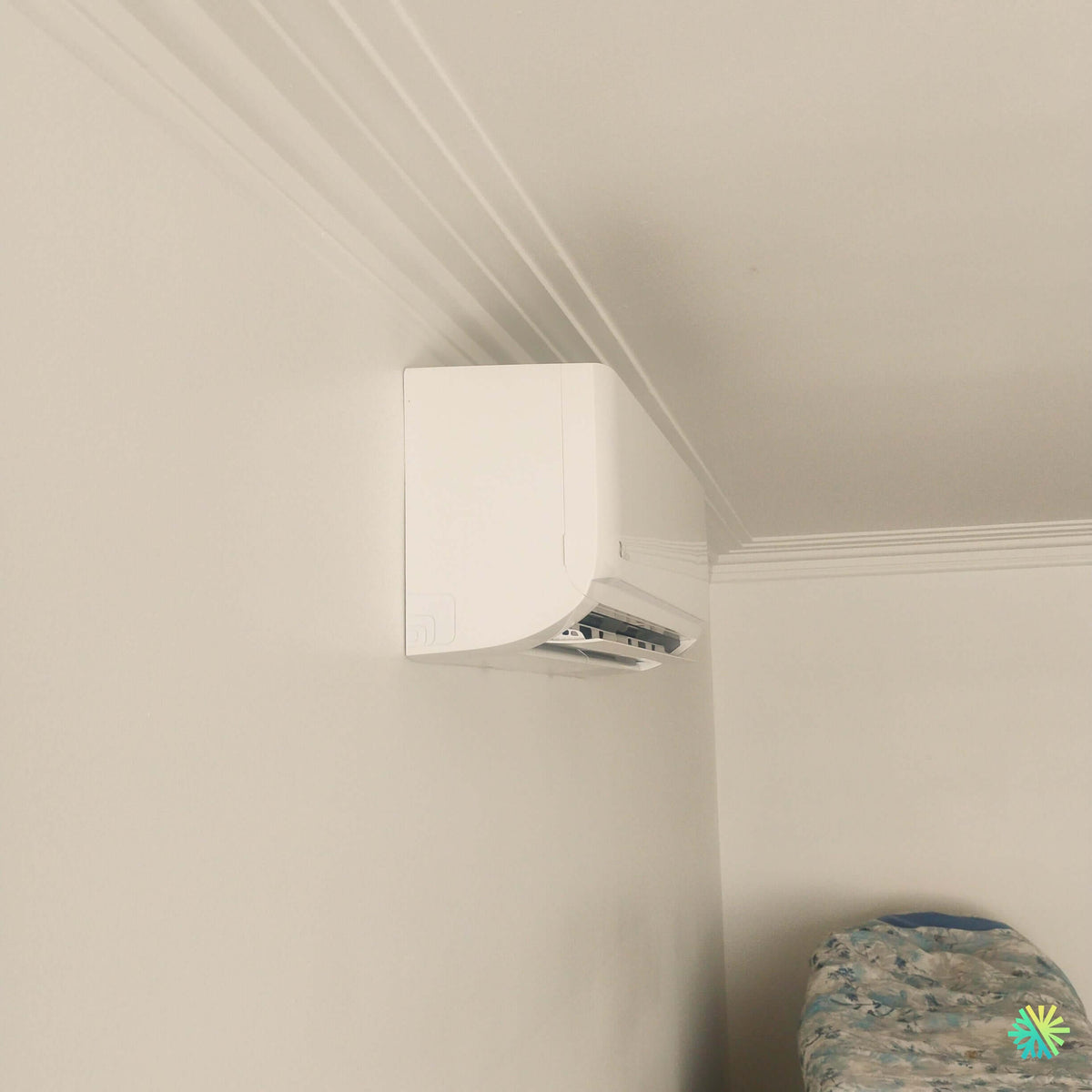

As the completed installation shows, the unit was positioned on a vertical section of the wall, immediately below the sloped ceiling and near decorative molding. This type of configuration requires precise planning: the unit must have the necessary clearances, remain accessible for maintenance, and distribute air effectively without detracting from the room’s appearance.
Our objective was therefore clear: to complete a clean, functional, and visually discreet HVAC installation, while respecting the particular constraints of this Saint-Rémi residence.
A bedroom with very little clearance above the indoor unit
In a standard room, the installer generally has a relatively uniform wall surface. Here, the ceiling slope descended directly toward the area selected for the indoor unit. The molding located at the junction between the wall and ceiling further reduced the available room for maneuver.
This configuration raised several technical challenges:
- preserve enough space around the unit to allow air circulation;
- prevent the unit’s front panel or cover from conflicting with the sloped ceiling;
- maintain access to the filters and internal components;
- position the air outlet louver to distribute air throughout the bedroom;
- create a discreet route for the refrigerant piping, wiring, and condensate drain;
- respect the existing decorative elements.
A unit installed too close to the ceiling can become difficult to service. It may also draw in ambient air less effectively if there is insufficient space above the unit. Conversely, an installation that is too low would have occupied unnecessary wall space and could have directed air straight toward the bed or occupants.
We therefore sought the best balance between technical clearance, comfort, and architectural integration.
Precise positioning beneath the ceiling slope
The ELIOS EMC indoor unit was installed as high as the configuration allowed, while maintaining appropriate clearance for its shape and operation. The right side of the unit visually follows the transition toward the adjacent wall, helping reduce its impact in the room.
The result is particularly understated:
- the unit remains close to the ceiling, as homeowners generally prefer;
- the slope does not touch the casing;
- the existing trim has been preserved;
- the front panel can be opened for servicing;
- the air-distribution louvers have enough room to operate freely.
The unit’s white finish also complements the walls, ceiling, and trim. This visual continuity allows the ELIOS wall-mounted heat pump to blend in naturally, despite the bedroom’s unusual geometry.
A clean side exit for the refrigerant lines
To the right of the unit, we can see a white line-set cover extending toward the adjacent wall. This finish allows the essential elements connecting the indoor unit to the outdoor unit to be grouped and protected:
- the refrigerant lines;
- the electrical and communication wiring;
- the condensate drain pipe;
- the insulation surrounding the refrigerant lines.
In a bedroom, the finish around the lines is particularly important. Visible piping, a poorly finished wall opening, or a misaligned line-set cover can quickly become the most noticeable element of the installation.
We therefore adapted the route to the trim and the ceiling angle. The line-set cover remains compact and follows a logical path from the unit. This approach protects the components while making future servicing easier, unlike an installation where the lines would be completely concealed in a difficult-to-access area.
Why the ELIOS EMC model is suitable for Saint-Rémi’s climate
The ELIOS EMC series is designed as a range of wall-mounted heat pumps for cold climates. According to the manufacturer's documentation, it is available in nominal capacities of 9,000, 12,000, 18,000, 24,000, and 33,000 BTU. The photograph does not make it possible to confirm with certainty the exact capacity of the unit installed in this bedroom; sizing must always be determined based on the floor area, insulation, exposure, windows, and actual heating and cooling requirements.
The series uses R454B refrigerant and offers heating operation down to an outdoor temperature of -30 °C. Depending on the selected capacity, its performance can reach a TRÉS2 of 26.0 and a CPSC2 of 10.1. The documentation also indicates a rated heating capacity maintained at 100% down to -15 °C thanks to Heat+ technology.
These features are relevant for a property located in Saint-Rémi, where the system must meet two very different needs:
- efficiently cool the bedroom during hot and humid periods;
- provide useful heating during the cold periods of Quebec winters.
However, the heat pump should not be selected solely based on its maximum capacity or advertised efficiency. An oversized unit can quickly reach the set temperature, then shorten its operating cycles, compromising dehumidification and comfort consistency. An undersized unit may run continuously without adequately meeting the room's load.
At AirGreen, we therefore assess the entire building before recommending a capacity.
Inverter technology and comfort in a bedroom
The ELIOS EMC series uses an Inverter compressor, whose frequency can be modulated according to demand. Unlike a system that operates only at full power or is switched off, the unit can gradually adjust its capacity.
In a bedroom, this modulation offers several advantages:
- a more stable temperature;
- fewer sudden fluctuations between hot and cold;
- extended operation at low output;
- energy consumption better suited to actual needs;
- generally quieter operation when the load is low.
This feature is particularly useful at night. A properly modulating unit avoids abrupt restarts and excessive drafts associated with certain improperly sized or configured appliances.
The EMC range also offers a quiet mode and a “Do Not Disturb” mode, which allows the display and audible alerts to be disabled. These features are particularly useful in a bedroom, where mechanical noise and indicator lights can disrupt sleep.
Air distribution to plan according to the bed’s location
The indoor unit is positioned high up, near a corner of the room. This choice promotes airflow toward the open space rather than directly against the sloped ceiling.
When commissioning the system, the louver direction should be adjusted according to the mode being used.
In cooling mode
Cold air naturally tends to sink. It is generally preferable to direct the airflow slightly upward or horizontally so that it crosses the room before gradually descending.
An overly vertical orientation can create a concentrated cold spot beneath the unit without cooling the rest of the bedroom evenly.
In heating mode
Warm air rises. In heating mode, the louver can be directed further downward to send heat toward the occupied area.
This difference in settings may seem simple, but it has a significant impact on comfort. We always explain to homeowners how to adjust the louvers and fan speed according to the season.
Filtration, active cleaning, and air quality
The ELIOS EMC series uses a two-stage filtration system. According to the manufacturer’s brochure, the first filter is designed to capture dust, pollen, and pet hair, while the second uses charcoal to help absorb smoke and certain contaminants.
The unit also has an active cleaning function designed to limit the accumulation of contaminants on the indoor coil.
However, these features do not replace regular maintenance. In a bedroom, textile fibers, dust, and particles from bedding can quickly accumulate in the filters.
We particularly recommend:
- check the filters every month during periods of intensive use;
- clean them according to the manufacturer’s instructions;
- keep the area around the unit clear;
- watch for any unusual odors;
- have professional HVAC maintenance performed when the coil, blower wheel, or drain pan has a more significant buildup.
A clogged filter reduces airflow, increases operating time, and can affect the heat pump’s performance.
Condensate drainage: an invisible but essential detail
In cooling and dehumidification mode, the indoor unit removes moisture from the air. This water must be discharged through a properly sloped drain.
In an installation near a sloped ceiling, the drain route requires special attention. An insufficient slope, a pinched pipe, or an incorrectly positioned connection can cause:
- water flowing indoors;
- gurgling sounds;
- odors;
- an accumulation in the condensate pan;
- damage to the wall or trim.
The pipe route must therefore be planned before drilling. When gravity drainage is possible, it generally remains the simplest and quietest solution. In other configurations, a condensate pump may be required, but it adds a mechanical component that must remain accessible for maintenance.
R454B and integrated safety devices
The ELIOS EMC heat pump uses the refrigerant R454B. The documentation indicates the presence of a refrigerant leak detection sensor, designated DFR. If a leak is detected, the system may stop operating and activate the fan according to its safety logic.
This type of equipment must be installed by technicians with the appropriate tools, knowledge, and procedures for the refrigerants used in new HVAC equipment.
Installation is not limited to connecting two pipes. It notably includes:
- making the flared connections;
- checking the tightening torque;
- leak testing;
- vacuuming;
- checking the wiring;
- checking the drainage;
- commissioning;
- testing the heating and cooling modes.
Poor pipe preparation can lead to refrigerant loss, reduced performance, or premature compressor failure.
This project in Saint-Rémi illustrates the importance of an installation suited to the room
Mistakes to avoid under a sloped ceiling
An installation like this may seem easy when looking only at the final result. However, several mistakes could have compromised the quality of the project.
Installing the unit too close to the slope
The housing must remain unobstructed so that air can enter properly and the panel can be opened. An installation wedged under the ceiling would make filter cleaning difficult.
Ignoring the trim
Unnecessarily cutting the trim or going around it with an uneven finish would have detracted from the room’s appearance. The route must be planned before securing the wall plate.
Directing the air straight at the bed
A constant draft can become uncomfortable, even when the room’s average temperature is correct. The unit and louver orientation must take the room’s layout into account.
Choosing capacity based on floor area alone
Floor area is a starting point, but it is not enough. The sloped ceiling, roof insulation, solar orientation, number of windows, and connection with other rooms all affect the actual load.
Neglecting maintenance access
A unit placed in an overly tight corner can make it difficult to remove the filters, clean the blower wheel, and open the casing. A professional installation also plans for future service.
A wall-mounted heat pump that blends in without transforming the bedroom
The result achieved in Saint-Rémi demonstrates that an ELIOS EMC wall-mounted heat pump can be integrated into a room with distinctive architecture without visually dominating the space.
The unit is installed neatly beneath the sloped ceiling. The mouldings were preserved. The line-set cover remains discreet. The lower flap can open without obstruction and direct air toward the usable area of the bedroom.
This project reflects our approach at AirGreen: we do not simply look for the quickest wall to drill. We assess comfort, access, drainage, aesthetics, airflow, and the installation’s durability.
Expertise available in Saint-Rémi and Greater Montréal
We carry out projects involving wall-mounted heat pumps, central systems, and HVAC equipment in Saint-Rémi as well as in Montréal, Laval, Longueuil, the North Shore, and the South Shore.
Every property presents its own constraints: cathedral ceilings, masonry walls, attic bedrooms, limited space above a door, complex duct routes, or restricted outdoor placement options. Our role is to turn these constraints into a cohesive, safe, and durable installation.
For this ELIOS EMC installation in Saint-Rémi, the main challenge was not simply mounting a unit on the wall. We had to make precise use of the available space beneath the slope, protect the architectural features, and ensure air distribution suited to a bedroom.
The result is a clean, accessible installation ready to provide both heating and cooling throughout the seasons.
