Installation of a Hitachi airHome 400 wall-mounted heat pump on a residential terrace in Montreal

An HVAC installation designed for a narrow terrace, safe access, and lasting performance

Installing a Hitachi airHome 400 wall-mounted heat pump in Montréal is not simply a matter of placing an outdoor unit near a wall and connecting two refrigerant lines. In this residential project, the available space imposed several clearly visible constraints: a wooden terrace, a relatively narrow passage, a metal fence, abundant vegetation, and the presence of an old window air conditioner nearby.

Our job was therefore to integrate the new heat pump safely and functionally, while preserving access to the terrace and ensuring sufficient airflow around the condenser.

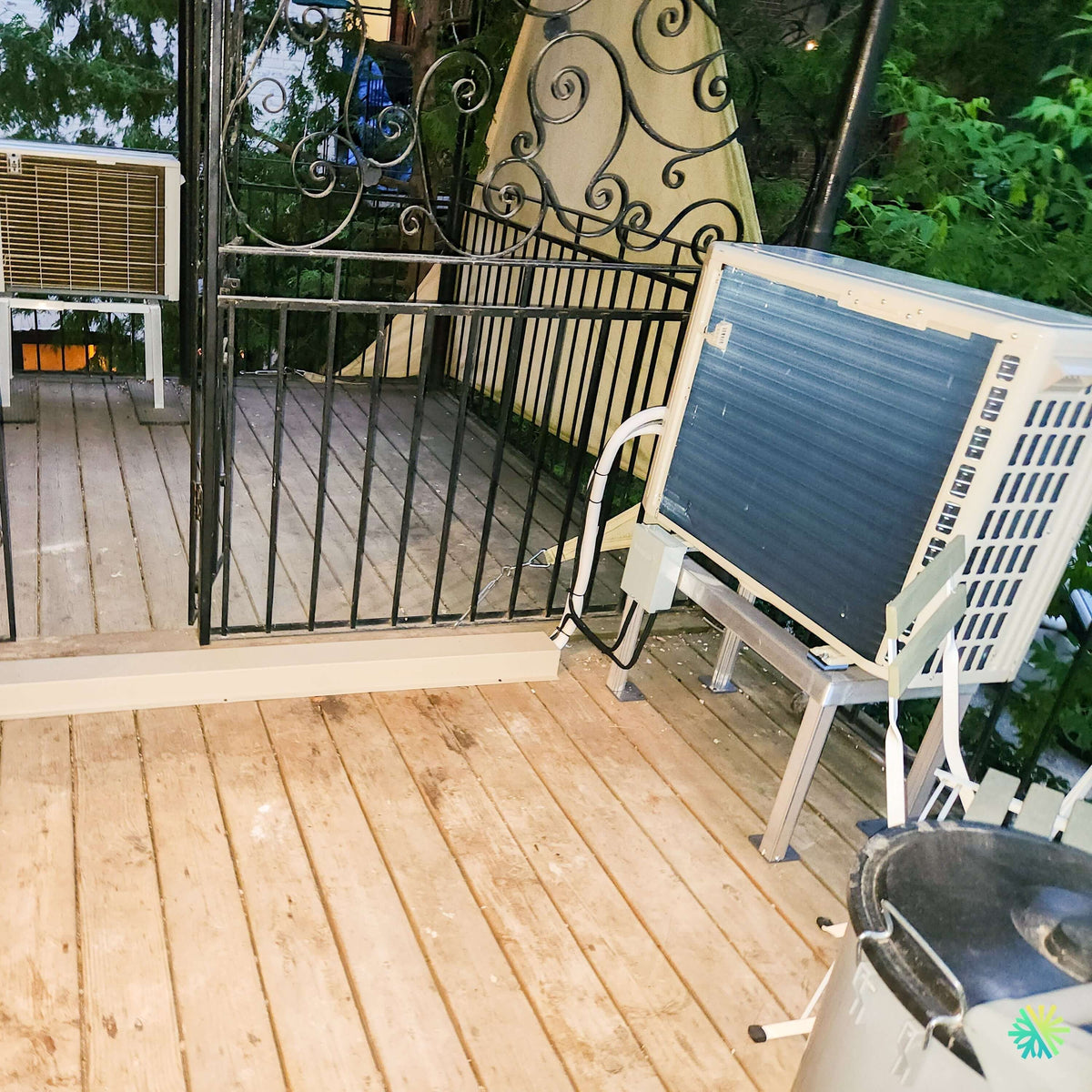

The result shows a Hitachi airHome 400 outdoor unit installed on an elevated metal support. This configuration keeps the unit off the wooden floor, limits contact with water, leaves, and debris, and facilitates access to the components during future HVAC maintenance.

Why the outdoor unit's location required careful planning

On a terrace, every inch counts. A heat pump placed too close to a fence, railing, or dense vegetation can encounter several problems:

• recirculation of hot air in cooling mode;
• reduced heat-rejection capacity;
• accumulation of leaves in the coil;
• noise more noticeable near occupied areas;
• difficult access for cleaning and repairs;
• obstruction of a door, passage, or staircase;
• vibrations transmitted directly to the wooden structure.

For this installation, we chose a side location that keeps the center of the terrace clear. The unit is positioned to allow air exchange through the rear coil and discharge through the front fan, without blocking the main passage.

This approach is particularly important in the denser areas of Montréal, as well as in the condominiums and townhouses of Laval, Longueuil, the North Shore, and the South Shore, where outdoor units often need to be integrated into balconies, terraces, narrow yards, or side passages.

A raised support suitable for a wooden deck

The outdoor unit is placed on a raised metal base rather than directly on the boards. This choice offers several advantages.

Reduce exposure to water and debris

A deck is exposed to rain, leaves, pollen, and sometimes windblown snow. By raising the heat pump, we reduce the risk of debris accumulating directly beneath the chassis.

The clearance also facilitates the drainage of water produced during defrost cycles in winter. Although the airHome 400 model is designed to operate in heating mode down to approximately -20.5 °C, defrost water must be able to leave the area beneath the unit without forming a block of ice that could reach the base or fan.

Make maintenance easier

The outdoor coil must remain clean to maintain the heat pump’s performance. A unit that is too low or wedged against a structure makes the technician’s work more difficult.

Here, the support leaves access beneath the unit and keeps the connections visible. During maintenance, we can more easily:

• inspect the refrigerant connections;
• check the pipe insulation;
• clean the coil;
• check the drainage;
• check the electrical connections;
• quickly identify abnormal vibration or noise.

Limit vibration transmission

A wooden deck can act as a resonance chamber. A small vibration from the compressor can become much more noticeable indoors if the unit is mounted directly on a lightweight structure.

A rigid, properly positioned and stabilized support helps limit this phenomenon. Depending on the characteristics of the deck, we can also add vibration-damping pads or recommend a heavier base when the structure strongly amplifies low frequencies.

A compact, protected refrigerant line route

The lines connecting the indoor unit to the outdoor condenser generally include:

• a liquid line;
• an insulated gas line;
• the communication wiring;
• the power supply, depending on the configuration;
• the indoor unit’s condensate drain.

In the photo of this installation, the refrigerant line set runs down to the outdoor unit along a relatively short route. A short distance reduces unnecessary losses, simplifies installation, and makes future inspections easier.

The route is kept close to the structure so as not to unnecessarily encroach on the terrace’s usable space. However, the lines must maintain gradual bends: a bend that is too tight can damage the copper or restrict refrigerant flow.

The Hitachi airHome 400 series uses R32 refrigerant. Depending on the capacity selected, the stated maximum piping lengths range from 82 to 165 feet, with maximum elevation differences ranging from 49 to 98 feet. Line diameters also vary according to capacity, including between 1/4 in. and 3/8 in. for the liquid line, and between 3/8 in. and 5/8 in. for the gas line.

These data explain why it is essential to confirm the precise model before reusing existing piping. A line installed for an older unit is not automatically compatible with a new wall-mounted heat pump.

An installation that is a worthwhile replacement for a window air conditioner

The presence of a window air conditioner on the same terrace clearly illustrates the difference between a temporary solution and a true four-season comfort system.

A window air conditioner can cool a room, but it often has certain limitations:

• partial window obstruction;
• air infiltration;
• noise in the occupant’s immediate vicinity;
• heating capacity absent or limited;
• less precise temperature control;
• bulkier appearance;
• removal and reinstallation may sometimes be necessary depending on the season.

A Hitachi airHome 400 provides modulating cooling and heat-pump heating in a single system. Its Vector DC Inverter technology adjusts the compressor speed according to actual demand rather than operating only through full on-and-off cycles.

This modulation generally improves temperature stability and reduces uncomfortable fluctuations. The unit can quickly deliver the required capacity, then slow down as it approaches the setpoint.

The specifications of the installed Hitachi airHome 400

The airHome 400 series is available in several capacities, from 9,000 to 36,000 BTU/h. Since the rating plate is not legible in the photograph, it would be inaccurate to assign a precise tonnage to this installation without consulting the project’s technical documentation.

The capacity selection should always be based on several factors:

• actual area served;
• insulation level;
• window orientation;
• number of floors;
• room layout;
• air infiltration;
• ceiling height;
• solar exposure;
• heating needs;
• presence of other heating systems.

Depending on capacity, the series offers seasonal cooling efficiency of up to 20.0 SEER2, as well as a CPSC2 rating of up to 9.2 in Region 4. The 9,000 and 12,000 BTU models can operate at an advertised indoor sound level starting at 29 dB(A) in Quiet mode.

FrostWash technology

The FrostWash system cleans the indoor coil through a freeze-and-thaw cycle. Accumulated impurities are captured and then flushed out with the water.

This function does not replace periodic professional cleaning. However, it helps slow coil fouling and preserve airflow between maintenance visits.

In a home where the unit operates for long periods in cooling mode, dust and moisture can accumulate on internal surfaces. A cleaner coil promotes:

• more consistent airflow;
• better heat exchange;
• reduced odors;
• better-controlled energy consumption;
• a more predictable service life.

Mold Guard function

After certain cycles, the Mold Guard function circulates air through the indoor unit and heats the coil to reduce residual moisture. This approach helps limit conditions favorable to odors and mold growth in the unit.

It does not remove contamination that is already present. A heavily soiled indoor unit requires a deep cleaning of the wall-mounted heat pump performed with suitable equipment.

PM2.5 and activated carbon filtration

The airHome 400 includes an activated carbon PM2.5 air-purifying filter as well as a stainless-steel prefilter. These components help capture certain small particles and reduce odors in the recirculated air.

However, a wall-mounted heat pump does not replace a mechanical ventilation system or a central air purifier. It primarily treats the air in the room where the indoor unit is installed.

Optional Wi-Fi control available

An optional Wi-Fi adapter can allow control of the heat pump from a phone. Depending on the accessories selected, the user can:

• adjust the temperature;
• schedule weekly programs;
• track an estimated consumption;
• use certain voice commands;
• manage the unit remotely.

For a second home or a dwelling that is often unoccupied, this feature can be useful for checking the settings and avoiding leaving the unit running unnecessarily.

What this patio installation teaches us before choosing a wall-mounted heat pump

A good HVAC installation must be evaluated as a whole. Performance depends as much on the quality of the product as on its location, piping, drainage, and commissioning.

Do not choose the location based solely on aesthetics

An outdoor unit may seem less noticeable behind a fence or amid dense vegetation. However, a location that is too enclosed may reduce its performance.

Before installation, we check in particular:

1. the clearances recommended by the manufacturer;
2. the direction of airflow;
3. the route of the lines;
4. proximity to doors and windows;
5. possible noise for occupants and neighbors;
6. access for maintenance;
7. the flow of defrost water;
8. the strength of the support surface.

Do not place the unit directly on a lightweight patio

Installing the unit directly on the boards can cause vibrations, trap moisture underneath the appliance, and complicate winter drainage.

A suitable base must be level, stable, and compatible with the weight of the unit. The structure must not move when the compressor changes speed.

Do not neglect the vegetation

The branches and leaves visible around this patio create a pleasant environment, but they require more frequent maintenance of the outdoor coil.

We recommend periodically checking that:

• leaves are not blocking the back of the unit;
• plants are not growing against the coil;
• no objects are leaning against the condenser;
• air can flow freely in front of the fan;
• the support remains stable after winter.

Cleaning must be performed without bending the fins. A water jet that is too powerful or a pressure washer can damage the coil.

Check condominium rules and municipal requirements

In some buildings, a heat pump installed on a balcony or terrace requires authorization from the condominium association. Restrictions may apply to:

• location;
• visibility from the street;
• the color of the lines;
• noise level;
• attachment to the structure;
• condensate drainage;
• operating hours.

Municipal regulations may also vary between Montreal, Laval, Longueuil, the North Shore, and the South Shore. This verification must be completed before confirming the final position of the outdoor unit.

Rigorous commissioning remains essential

A clean installation must be followed by complete commissioning. At AirGreen, this step includes checking the refrigeration circuit, drainage, electrical connections, and operation in the various modes.

An insufficient vacuum can leave moisture or air in the piping. Over time, this can affect the compressor and performance.

We also verify that:

• the indoor unit is level;
• the drain flows properly;
• the connections are leak-free;
• the lines are properly insulated;
• the outdoor fan rotates freely;
• the controls respond normally;
• the customer understands the operating modes.

A solution suited to homes without ductwork

This Hitachi airHome 400 wall-mounted heat pump installation demonstrates that it is possible to significantly improve a home's comfort even when outdoor space is limited.

The elevated support, compact line-set routing, and side positioning of the unit make it possible to keep the terrace usable while providing a much more complete heating and cooling solution than a window air conditioner.

For homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, the goal should never be simply to find a unit with a given capacity. You need to select a heat pump that is compatible with the building, plan a realistic location, and entrust the commissioning to a team that understands the constraints specific to urban balconies, terraces, and yards.

At AirGreen, we plan every detail so that the heat pump performs well, remains accessible, and integrates seamlessly with the property from day one and for years to come.
